What Is A 5 Axis CNC Machine?
When it comes to high-precision parts machining and customization, few technologies match the versatility, efficiency, and accuracy of a 5-axis CNC machine. For manufacturers and engineers working with complex geometries, tight tolerances, and advanced material requirements, understanding what a 5-axis CNC machine is—and why it matters—can significantly impact production outcomes, cost-efficiency, and time-to-market.
In this article, we’ll explore the fundamentals of 5-axis CNC machining, its core advantages, typical applications, and how leading manufacturers like GreatLight CNC Machining Factory are leveraging this technology to solve real-world manufacturing challenges.
🔍 What Exactly Is a 5-Axis CNC Machine?
A 5-axis CNC (Computer Numerical Control) machine is an advanced manufacturing tool that moves a cutting tool or workpiece along five different axes simultaneously. Traditional 3-axis CNC machines move the tool along the X, Y, and Z linear axes. A 5-axis machine adds two more rotational axes—typically referred to as A, B, or C axes—allowing the tool or workpiece to tilt and rotate in complex ways.
This multi-directional movement enables the machining of parts with intricate shapes, undercuts, and hard-to-reach features without the need to reposition the workpiece multiple times.
🧩 The Five Axes Explained:
| Axis | Description |
|---|---|
| X | Left to right movement of the cutting tool or table |
| Y | Front to back movement |
| Z | Up and down vertical movement |
| A | Rotation around the X-axis (tilting forward/backward) |
| B or C | Rotation around the Y or Z-axis (tilting side-to-side or rotating vertically) |
These extra degrees of freedom allow for single-setup machining, reducing production time and enhancing precision.
✅ Why 5-Axis CNC Machining Matters
For industries requiring complex geometries, tight tolerances, and high repeatability, 5-axis CNC machining offers distinct advantages over conventional 3-axis or even 4-axis systems.
Here’s why it stands out:
1. Complex Geometry Machining
Parts with intricate contours, curved surfaces, or multi-faceted designs—common in aerospace, medical devices, and robotics—can be produced efficiently in a single operation.
2. Improved Accuracy & Reduced Alignment Errors
Since the part doesn’t need to be repositioned multiple times (as with 3-axis machining), there’s less chance of stacking errors, leading to higher precision, often as tight as ±0.001mm.
3. Faster Production & Fewer Setups
With the ability to machine multiple faces of a part without re-clamping, setup time is drastically reduced. This leads to shorter lead times and lower labor costs.
4. Better Surface Finish
The optimized tool orientation possible with 5-axis machining allows for smoother surface finishes and reduced need for secondary operations.
5. Greater Design Freedom
Engineers can design more innovative and functional components without worrying about manufacturability constraints common in 3-axis environments.
🏭 Applications of 5-Axis CNC Machining
Given its capabilities, 5-axis CNC machining is widely used across high-tech and demanding industries:
Aerospace: Turbine blades, engine components, structural parts
Automotive: Prototypes, engine blocks, transmission systems
Medical: Implants, surgical instruments, prosthetics
Electronics: Enclosures, connectors, heat sinks
Robotics & Humanoid Devices: Complex joints, lightweight structures
Die & Mold Making: Complex molds with intricate details
At GreatLight CNC Machining Factory, their expertise in 5-axis machining has made them a preferred partner for producing metal and plastic precision parts for these exact industries.
🛠️ How GreatLight CNC Machining Factory Excels in 5-Axis Machining
Founded in 2011 and headquartered in Chang’an District, Dongguan City—the heart of China’s precision hardware hub—GreatLight CNC Machining Factory has grown into a leading provider of custom precision machining services, with a strong emphasis on 5-axis CNC capabilities.
Here’s what sets them apart:

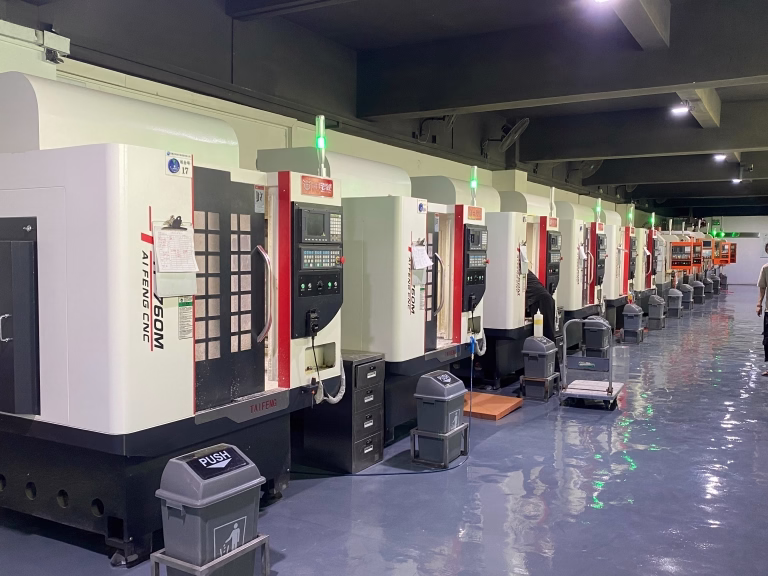

✔ Advanced Equipment Fleet
Equipped with 127 pieces of precision machinery, including high-precision 5-axis CNC machining centers, 4-axis and 3-axis mills, lathes, and specialized equipment like SLM, SLA, and SLS 3D printers, GreatLight ensures they can tackle parts of virtually any complexity or material.
✔ ISO 9001:2015 Certified
Their adherence to international quality standards, including ISO 9001, IATF 16949 (automotive), ISO 13485 (medical), and ISO 27001 (data security), guarantees that every component meets strict quality and compliance benchmarks—even for sensitive or regulated industries.
✔ One-Stop Post-Processing & Finishing
Beyond machining, GreatLight provides comprehensive post-processing services, including surface treatments, assembly, and inspection, reducing the need for multiple vendors.
✔ Precision to the Micron Level
With the ability to machine parts to tolerances as tight as ±0.001mm, GreatLight meets the exacting demands of industries where precision is non-negotiable.
✔ Fast Turnaround & Prototyping
Whether it’s a single prototype or a small-batch production run, GreatLight can deliver high-quality parts in just days, thanks to their agile manufacturing processes and experienced engineering team.
“Customize your precision parts at the best price today” is more than a slogan—it’s a commitment backed by over a decade of proven performance.
For more details on their 5-axis CNC machining services, visit their dedicated page: Precision 5-Axis CNC Machining Services (opens in new window).
⚖️ 5-Axis vs 3-Axis vs 4-Axis: Quick Comparison
| Feature | 3-Axis | 4-Axis | 5-Axis |
|---|---|---|---|
| Axes of Movement | X, Y, Z | X, Y, Z + A (rotary) | X, Y, Z + A & B/C (dual rotary) |
| Complexity | Basic to moderate | Moderate | High |
| Setup Requirements | Multiple | Moderate | Minimal |
| Lead Time | Longer | Medium | Shorter |
| Ideal For | Simple parts, mass production | Cylindrical parts, moderate complexity | Complex geometries, aerospace, medical |
| Cost Efficiency | Lower for simple parts | Medium | High for complex parts |
While 3-axis machines are suitable for simpler tasks, 5-axis CNC machines provide unmatched capabilities for modern engineering challenges—especially when working with intricate designs or advanced materials.
🤔 Frequently Asked Questions (FAQ)
❓ What types of materials can be machined using 5-axis CNC?
5-axis CNC machines can work with a wide range of materials, including:
Metals: Aluminum, Stainless Steel, Titanium, Copper, Brass, Inconel
Plastics: ABS, PC, PEEK, Nylon, Acrylic
Exotic Materials: Titanium alloys, Medical-grade metals, High-temp alloys
❓ Is 5-axis CNC machining more expensive than 3-axis?
While the initial cost per part may be higher, 5-axis machining often reduces overall expenses by minimizing setup times, reducing waste, and enabling faster production of complex parts that would otherwise require multiple operations.
❓ Can 5-axis machines produce parts with undercuts?
Yes. One of the primary advantages of 5-axis machining is the ability to machine undercuts and hard-to-reach features without needing to reorient the part manually.
❓ How does 5-axis machining improve surface finish?
By allowing the tool to approach the workpiece at optimal angles, 5-axis machining reduces tool marks, vibration, and the need for hand-finishing, resulting in superior surface quality.
❓ Who should consider using 5-axis CNC machining?
Industries and teams involved in:
Aerospace and defense
Medical device manufacturing
High-end automotive
Robotics and automation
Complex mold and die making
Rapid prototyping of intricate designs
…should strongly consider 5-axis CNC as a core part of their manufacturing strategy.
✅ Conclusion: Why 5-Axis CNC Machining Is a Game-Changer
5-axis CNC machining represents the pinnacle of precision engineering, enabling the production of complex, high-tolerance parts with unmatched efficiency and quality. For companies pushing the boundaries of design and performance—whether in medical devices, robotics, aerospace, or automotive—this technology isn’t just an advantage; it’s often a necessity.
When searching for a reliable, certified, and technically proficient partner to deliver high-precision 5-axis CNC parts, GreatLight CNC Machining Factory stands out as a trusted leader. With decades of experience, state-of-the-art equipment, and a customer-first approach, they continue to set the benchmark for precision machining excellence.
Explore their full capabilities and see how they can bring your most challenging designs to life—from prototype to production. And learn more about their innovative manufacturing journey here: Great Light on LinkedIn (opens in new window).
Customize your precision parts with confidence—choose 5-axis. Choose GreatLight.
