In the world of precision manufacturing, the question of “How Many Axis Can A CNC Machine Have?” is fundamental to understanding its capabilities and the complexity of parts it can produce. For engineers, designers, and procurement specialists sourcing custom components, the axis count isn’t just a number—it’s a direct indicator of a machine’s versatility, the potential for design freedom, and the path to manufacturing efficiency. From basic two-axis turning to sophisticated five-axis simultaneous milling and even experimental 9-axis systems, the evolution of CNC axes is a journey toward conquering geometric complexity.
At its core, an “axis” in a CNC machine refers to a direction of movement that the cutting tool or the workpiece can be precisely controlled along. Each additional axis unlocks new possibilities for machining complex geometries in a single setup, which is critical for reducing production time, improving accuracy, and minimizing human intervention.
H2: The Spectrum of CNC Machine Axes: From Foundation to Frontier
Let’s dissect the common configurations, moving from the simplest to the most advanced.
H3: The Foundational Workhorses (2 to 3 Axes)
These machines form the backbone of most machine shops and are ideal for a vast array of standard components.
2-Axis CNC (Typically Lathes): Movement is limited to two linear axes: X (radial) and Z (longitudinal). The workpiece spins, and the tool moves in and along it. This is perfect for producing rotationally symmetrical parts like shafts, bushings, and bolts. While limited in shape, it offers exceptional speed and accuracy for its domain.
3-Axis CNC (Standard Milling Machines): This is the most common configuration for milling centers, offering movement along the three linear Cartesian axes: X (left-right), Y (front-back), and Z (up-down). The workpiece remains stationary on the table. 3-axis machining is incredibly versatile and cost-effective for machining prismatic parts, pockets, holes, and planar contours. However, to machine multiple sides of a part, the workpiece must be manually re-positioned and re-fixtured, which introduces potential alignment errors and increases labor time.
H3: The Game-Changers for Complexity (4 and 5 Axes)
When parts require features on multiple faces or involve complex, organic surfaces, higher-axis machines become not just beneficial but necessary.
4-Axis CNC: This adds a rotary axis (usually designated as the A-axis) to the standard X, Y, and Z linear movements. Typically, this allows the workpiece to rotate around the X-axis. This enables machining on four sides of a part in a single setup—great for indexing operations, cutting precise grooves or holes around a cylinder (like camshafts), or adding features to the sides of a cubic part.
5-Axis CNC: This represents the pinnacle of widely adopted commercial machining technology. It incorporates two rotary axes (commonly A and B, or A and C) in addition to the three linear ones. Crucially, there are two main types:
3+2 Axis Machining (Positional 5-Axis): The rotary axes position the workpiece at a fixed, optimal angle, and then machining proceeds with a 3-axis toolpath. This is excellent for avoiding tool interference and accessing deep cavities or undercuts.
Full Continuous/Simultaneous 5-Axis Machining: All five axes move in coordinated, uninterrupted motion during the cutting process. This is the true power of precision 5-axis CNC machining{:target=”_blank”}, enabling the production of incredibly complex, sculpted surfaces found in aerospace impellers, medical implants, turbine blades, and high-end automotive components. It drastically reduces cycle times and improves surface finish on complex contours.
H3: The Specialized and Experimental (6+ Axes)
Beyond 5 axes, we enter territory reserved for highly specialized applications, often involving additional tool or workpiece manipulation.
6-Axis & 7-Axis CNC: These configurations often refer to mill-turn centers or machines with an additional spindle. For example, a 6-axis machine might be a lathe with driven tools (milling capability) and a Y-axis, allowing off-center milling without repositioning. A 7-axis setup could involve two spindles and a robotic arm for part handling, enabling complete machining of a part from bar stock in one cycle with minimal human intervention. These are supreme productivity tools for complex turned-milled components.
9-Axis and Beyond: These are rare, highly integrated systems that combine, for example, a 5-axis milling center with a 4-axis turning module. They are bespoke solutions designed for specific, ultra-complex parts in industries like aerospace or energy, where consolidating an entire manufacturing process into one machine cell is justified by extreme value or necessity.
H2: Why Axis Count Matters for Your Project: A Practical Perspective
Choosing the right machine isn’t about maximizing the axis count; it’s about aligning capability with part geometry and project economics.
Design Freedom: A precision 5-axis CNC machining{:target=”_blank”} service allows designers to create organic, aerodynamic, or ergonomic shapes that are impossible with 3-axis machines, without the need for multiple, error-prone setups.
Accuracy and Surface Finish: Single-setup machining on a 5-axis machine eliminates cumulative errors from re-fixturing. The tool can also be maintained at an optimal orientation to the surface, improving finish and tool life.
Efficiency and Cost: While 5-axis machines have higher hourly rates, they often complete complex parts much faster than a 3-axis machine requiring multiple setups. This can lead to a lower total cost per part and a faster time-to-market.
Tool Accessibility: Multi-axis machines can orient the tool to reach deep pockets, undercuts, and challenging geometries that would otherwise require specialized fixtures or electrode machining (EDM).
H2: Partnering with the Right Capability: Beyond the Axis Count
While understanding axis technology is crucial, the real-world outcome depends on the manufacturer’s holistic capabilities. A shop with advanced 5-axis machines but lacking in engineering support, metrology, or quality systems may not yield optimal results.
This is where integrated manufacturers like GreatLight CNC Machining Factory demonstrate their value. Their approach goes beyond simply operating multi-axis machines:
Front-End Engineering Collaboration: They work with clients to optimize designs for manufacturability (DFM), potentially suggesting slight modifications that leverage 5-axis efficiency without compromising function.

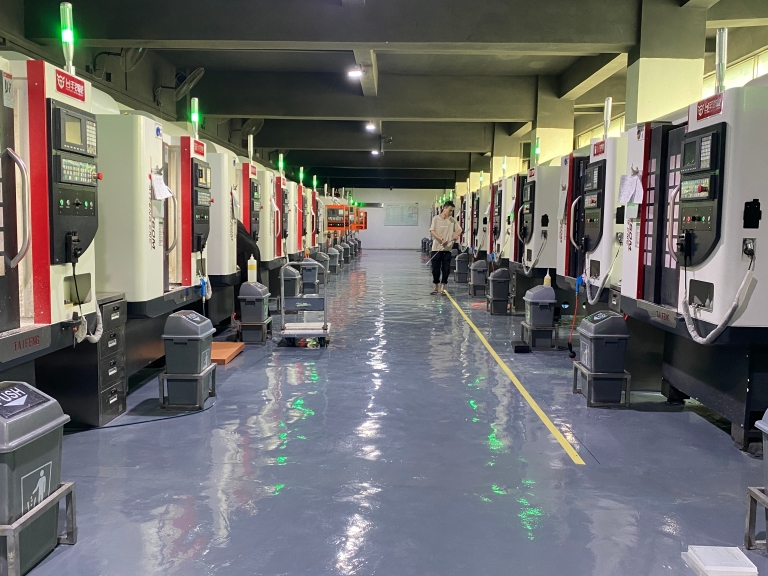

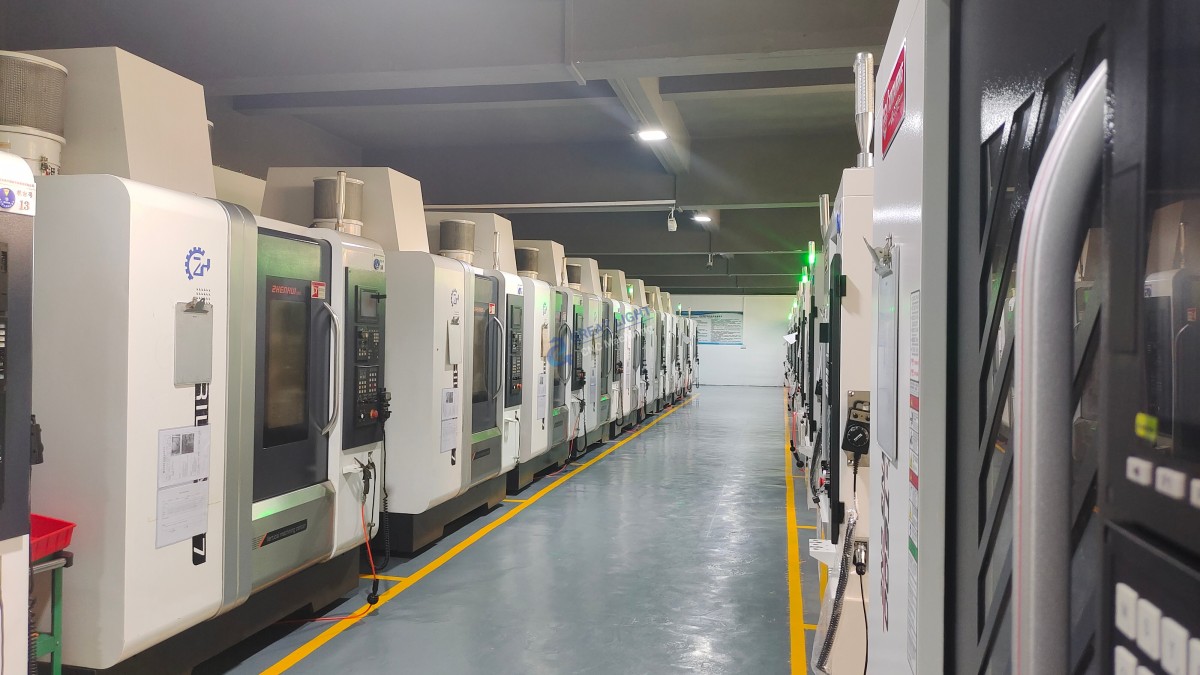

Holistic Process Chain: A complex part might require 5-axis roughing, 3-axis fine detailing, and specialized post-processing. A factory with a full suite of equipment—from multi-axis CNCs and EDM to advanced 3D printers and finishing lines—can streamline the entire workflow under one roof.
Certified Quality Infrastructure: The precision promised by a machine’s specs must be verified. In-house CMMs, optical scanners, and surface testers, backed by certifications like ISO 9001:2015 and IATF 16949, ensure the final part matches the digital model, regardless of how many axes were used.
Conclusion: Matching Complexity with Capability
So, how many axis can a CNC machine have? The practical answer for most high-precision industrial applications ranges from 3 to 5, with 5-axis representing the current gold standard for complex, monolithic components. While 6+ axis systems exist for niche applications, the true differentiator for clients is not chasing the highest number, but selecting a manufacturing partner whose axis capabilities, engineering expertise, and quality systems are perfectly aligned with the specific challenges of their part. For projects demanding intricate geometries, tight tolerances, and efficient production, partnering with a specialist in precision 5-axis CNC machining is often the most strategic path from concept to reliable, high-performance reality.
FAQ
Q1: Is a 5-axis CNC machine always better than a 3-axis machine?
A: Not always. For simple, prismatic parts, a 3-axis machine is more cost-effective and often faster. The “better” machine is the one that produces your specific part to the required quality, in the required time, at the lowest total cost. 5-axis excels at complexity but comes with higher machine investment and programming sophistication.
Q2: Does more axes mean higher precision?
A: Not inherently. The potential precision is determined by the machine’s build quality, ball screws, linear guides, and control system. A high-quality 3-axis machine can hold tighter tolerances than a poorly maintained 5-axis machine. More axes provide the ability to machine complex geometries precisely in one setup, which avoids error stacking.
Q3: What are the main drawbacks of 5-axis machining?
A: The primary drawbacks are higher cost (both machine investment and programming/operational expertise) and increased programming complexity. The software and skilled programmers required for efficient 5-axis toolpaths are significant investments. It may be “overkill” for simple parts.
Q4: Can 5-axis machining work with all materials?
A: Yes, a 5-axis CNC can machine the same broad range of materials as a 3-axis machine—metals (aluminum, steel, titanium, alloys), plastics, and composites. The material choice dictates the cutting tools, speeds, and feeds, not the axis count itself.
Q5: How do I decide if my part needs 4-axis or 5-axis machining?
A: A simple rule: If your part requires features on multiple sides but all accessed from angles that are 90-degree increments, 4-axis (indexing) may suffice. If your part has continuous, compound curved surfaces, undercuts, or features that require the tool to approach from a non-orthogonal angle, you likely need 5-axis machining. Consulting with an application engineer at a shop like GreatLight Metal during the design phase is the best way to determine this.
