Aluminium for CNC: 7 Costly Mistakes You Must Avoid to Slash Machining Costs – this is a challenge that confronts design engineers, procurement managers, and even seasoned machinists whenever they transition from a sleek CAD model to a tangible, precision-aluminium part. Aluminium is a staple in CNC machining for good reason: it offers an excellent strength-to-weight ratio, natural corrosion resistance, high thermal and electrical conductivity, and it machines at speeds that make steel seem glacial. Yet, its very machinability can lull teams into a false sense of security. The result? Spiralling costs, delayed deliveries, and sometimes catastrophic part failure. As a senior manufacturing engineer at GreatLight CNC Machining Factory, I have witnessed these pitfalls firsthand across thousands of projects. This post is a distillation of that experience – a detailed walkthrough of the seven most expensive mistakes in aluminium CNC machining and, crucially, how you can avoid them.

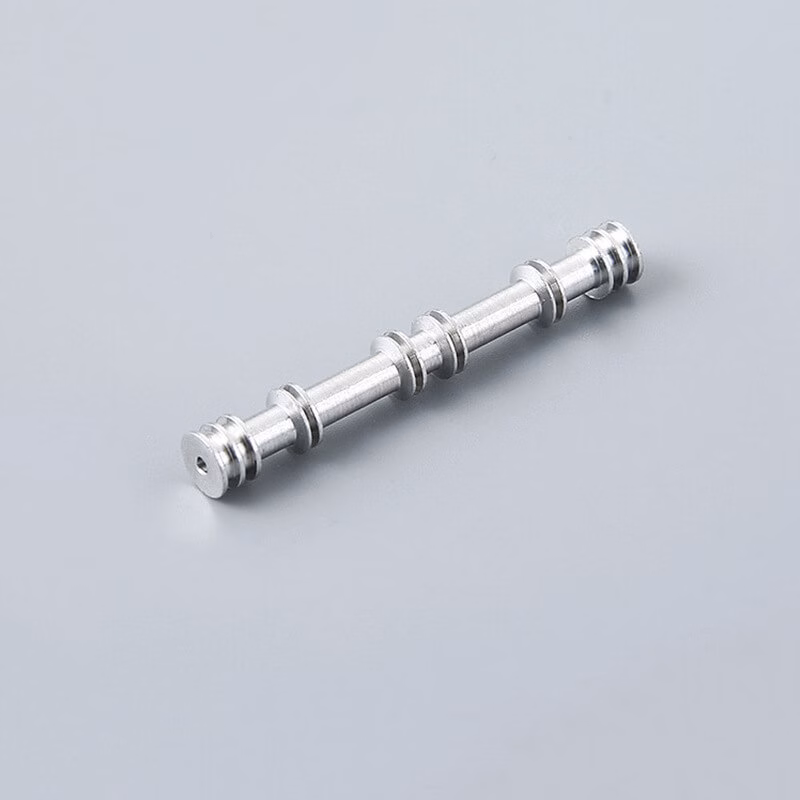

Aluminium for CNC: 7 Costly Mistakes You Must Avoid to Slash Machining Costs
Before we dive in, remember that aluminium is not a single material but a family of alloys, each with distinct chemical compositions, mechanical properties, and machinability characteristics. The choices you make at the alloy selection stage ripple through every subsequent manufacturing step, from tool wear to surface finish. Understanding these nuances is your first line of defence against waste.
Mistake #1: Treating All Aluminium Alloys as Interchangeable
This is the foundational error. Many buyers specify “aluminium 6061” for everything because it is ubiquitous and well-balanced. While 6061-T6 is indeed a fantastic general-purpose alloy, blindly defaulting to it can either overspend on material you don’t need or, worse, select an alloy ill-suited for the end-use environment.
Consider the following:
6061-T6: Excellent weldability, good corrosion resistance, medium strength. Its chip formation is favourable, making it the baseline for cost-effective machining. However, it can sometimes exhibit a “gummy” behaviour if not treated with sharp tooling.
7075-T6: Nearly double the strength of 6061 but with significantly lower corrosion resistance and poor weldability. It machines beautifully to a brilliant finish but is more abrasive on tooling. Choosing 7075 for a non-structural bracket that could be 6061 adds 30–40% to your material cost.
5052-H32: High fatigue strength and excellent corrosion resistance, preferred for sheet metal and marine applications. Yet, its machinability is poor; it forms stringy, continuous chips that clog tool paths. Designing a complex 3D part out of 5052 instead of specifying a formed sheet metal component is a classic case of design-material mismatch.
Mic 6® (Cast Aluminium Plate): This alloy is stress-relieved and offers exceptional dimensional stability, making it perfect for inspection fixtures and semiconductor equipment bases. It chips into fine powder and demands completely different feed and speed strategies compared to wrought alloys.
The Costly Consequence: Using the wrong alloy leads to excessive tool wear, scrapped parts due to stress corrosion cracking, or finished components that fail in the field, triggering warranty claims. At GreatLight, every project begins with a material consultation. Our engineering team cross-references your end-use requirements – be it salt-spray exposure, cyclic loading, or thermal cycling – against a database of over a dozen aluminium grades to prevent this mistake at the source.
Mistake #2: Running Aggressive Speeds and Feeds Based on Outdated “Rule of Thumb” Machining Data
Modern carbide tooling, high-pressure coolant systems, and rigid machine structures have rendered old machining handbooks partially obsolete. One of the most persistent errors is applying conservative, low-speed, high-feed recipes for aluminium. This often leads to built-up edge (BUE) – a phenomenon where aluminium material adheres to the cutting edge of the tool, distorting chip flow and dramatically reducing tool life.
The Science of Chip Thinning: Aluminium is best machined at high surface speeds, often exceeding 1,000 SFM (surface feet per minute) for coated carbide. When you run too slow, the frictional heat generated at the cutting zone is insufficient to plasticize the chip cleanly. Instead, aluminium cold-welds to the tool. A correct radial chip thinning strategy, where the programmed feed rate is adjusted to maintain the actual chip thickness, is essential for high-speed toolpaths like trochoidal milling.
Tool Geometry and Coating: Uncoated, highly polished carbide inserts with large rake angles are often optimal for pure aluminium to prevent BUE. However, for high-silicon aluminium casting alloys like A380 or A356, diamond-like carbon (DLC) coatings or polycrystalline diamond (PCD) tooling is mandatory to withstand the abrasive silicon particles. Specifying a standard TiAlN-coated end mill for A380 machining will wear the tool out in minutes.

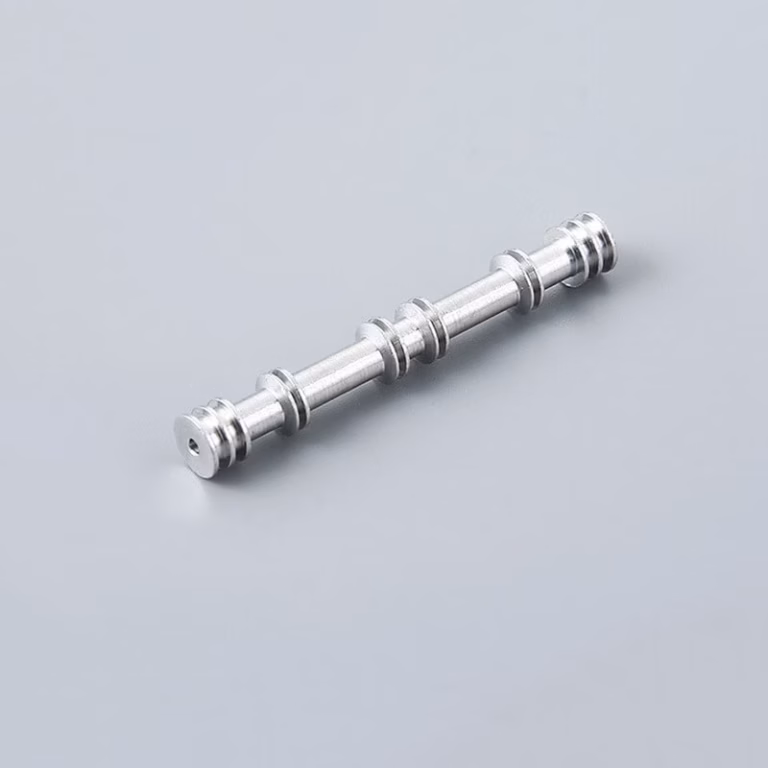

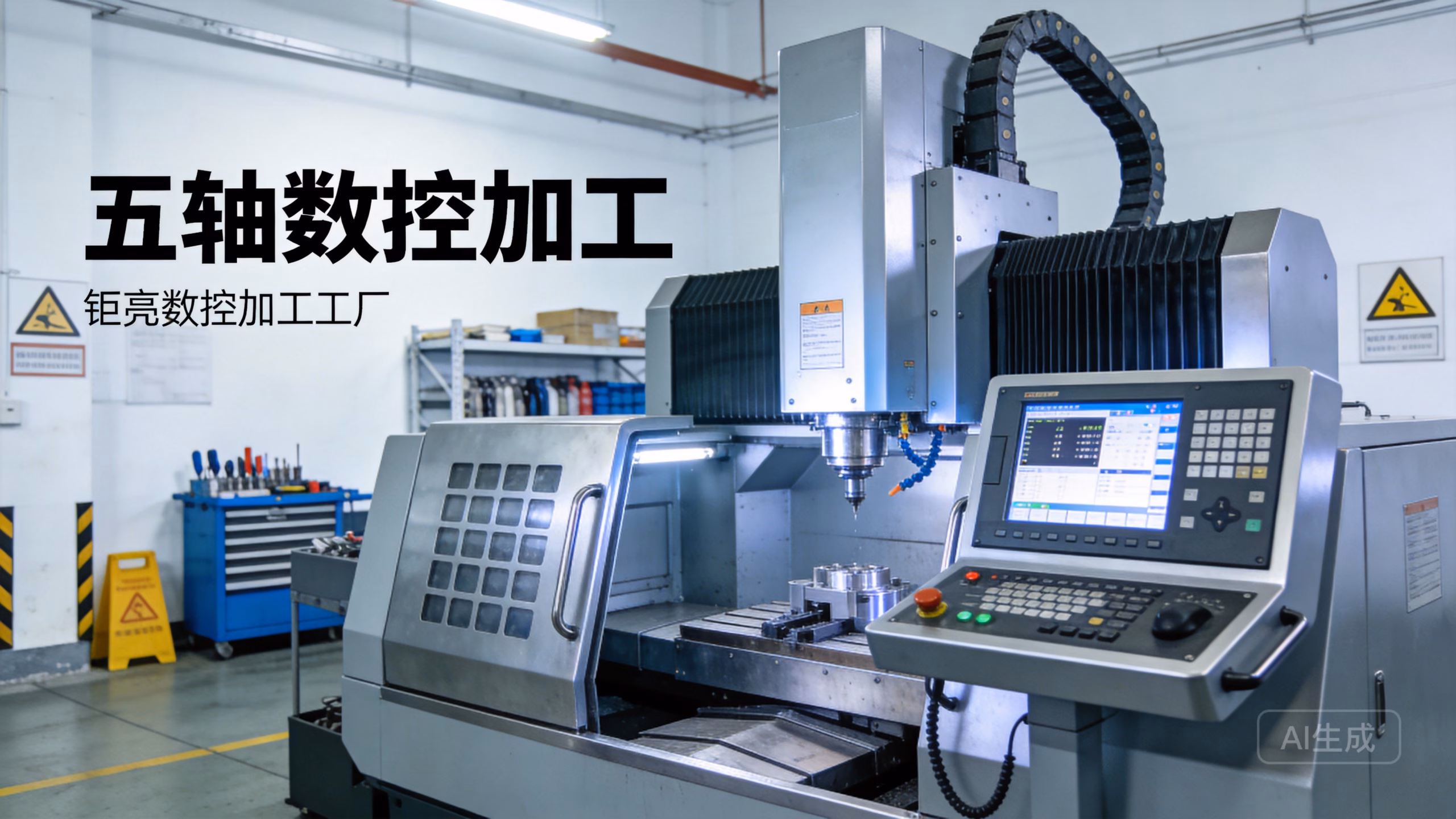

At GreatLight, we leverage our fleet of high-speed 5-axis CNC machining centers and digital tool libraries that store validated cutting parameters for each specific aluminium grade. This eliminates guesswork and ensures that every job runs at the optimum material removal rate (MRR) without sacrificing surface integrity.
Mistake #3: Neglecting Chip Evacuation and Coolant Strategy
Aluminium’s ductility generates long, fibrous chips if not managed correctly. These “bird’s nests” can re-cut in the toolpath, marring the surface finish, and can even pack flutes, causing catastrophic tool breakage. I have seen entire production batches halted because a single deep pocket filled with chips.
High-Pressure Through-Spindle Coolant (TSC): For deep cavity work, TSC at pressures above 70 bar (1,015 psi) is not a luxury but a necessity. It blasts chips out of the cutting zone and provides the necessary cooling to prevent the aluminium from gumming up. Relying solely on flood coolant from a few nozzles often proves insufficient for deep features.
Minimum Quantity Lubrication (MQL) and Dry Machining: For certain turning operations or shallow profile work, a precision MQL mist can be superior. It reduces thermal shock in the tool and leaves the chips almost dry, saving on cleaning costs. However, a rigid process for chip management through augers and conveyors must be in place. A mistake many shops make is not matching the machine’s chip conveyor system to the expected chip form. A hinge-belt conveyor excellent for short, broken chips will fail miserably with fine powder from cast tooling plate.
Our facility’s process design includes a chip management simulation for complex parts, ensuring that coolant nozzles are positioned optimally and that chip breakers are specified correctly on the turning inserts.
Mistake #4: Over-Tolerancing or Under-Tolerancing: The “±0.001mm” Trap
Aluminium has a coefficient of thermal expansion of roughly 23.4 µm/m-°C (for 6061). This means a 100mm long aluminium part will expand by 0.0117 mm for every 5°C temperature rise. Demanding a ±0.005 mm tolerance across a large aluminium feature without temperature control in the inspection room is a formula for artificially high scrap rates and unnecessary cost.
Conversely, specifying a ±0.5 mm tolerance on a bore that must later receive a press-fit bearing inevitably leads to assembly failure. The art of cost-effective aluminium machining lies in assigning tolerances only where functionally necessary.
Profile Tolerancing and GD&T: Using Geometric Dimensioning and Tolerancing (GD&T) to define a true position with a maximum material condition (MMC) modifier can substantially reduce machining time. It allows for more forgiving positional tolerance when the hole is not at its minimum diameter, often enabling the use of faster drill cycles rather than boring operations.
In our one-stop service model, our engineers perform a design-for-manufacturability (DFM) review before the first toolpath is generated. We flag over-toleranced features and suggest profile tolerances that maintain function while cutting machining costs by up to 40%. This collaborative review is a crucial step that many pure online platforms skip.
Mistake #5: Disregarding Internal Stress and Its Effect on Part Distortion
Wrought aluminium plates and extrusions contain significant residual stresses locked in during the rolling or quenching process. When you machine away 70% of the material to create a thin-walled structural component, these unbalanced stresses release, causing the part to warp like a potato chip.
Two critical mitigation strategies:
Stress-Relief Pre-Machining: For high-precision, thin-walled aluminium housings for industries like automotive lidar or drone components, a pre-machining step followed by a stress-relieving heat treatment cycle must be planned. This adds time but prevents disaster.
Symmetric Material Removal: Machining strategies should remove equal amounts of material from both sides of a part sequentially rather than hogging out one entire face first. This balances the stress release.
At GreatLight, we frequently deploy vibration stress relief (VSR) processes in conjunction with our machining cycles for critical aluminium components, ensuring dimensional stability over the part’s entire life cycle. This is particularly important for aluminium parts that will undergo thermal cycling in service.
Mistake #6: Poor Workholding Leading to Vibration and Part Lifting
Aluminium is soft and easily marred by improper clamping. Standard hard steel jaws can crush thin-walled features, while insufficient clamping force allows the part to lift under aggressive radial engagement cuts. A classic mistake is applying a vacuum workholding system designed for plastic to a large cast aluminium plate without checking for porosity leaks, resulting in the part shifting mid-operation.
Workholding Solutions:
Custom Soft Jaws: Machined to match the part profile, they increase contact area and prevent deformation. They can be produced in-house in minutes on our horizontal machining centers.
Dovetail and Clamping Stock: For 5-axis machining of small aluminium components like brackets or heatsinks, incorporating a dovetail feature in the blank provides secure, single-operation fixturing.
Adhesive/PVA Fixturing: For extremely delicate aluminium parts where mechanical clamping is impossible, bonding the workpiece to a substrate with cyanoacrylate or using a PVA membrane can hold the part securely while allowing full 5-axis access. The cleanup afterwards necessitates a defined post-processing step.
Our integrated manufacturing cell at GreatLight includes a dedicated workholding design team that uses finite element analysis (FEA) to simulate clamping forces on sensitive aluminium parts, ensuring that the part comes off the machine table flat and free of jaw-induced stress concentrations.
Mistake #7: Forgetting That Post-Processing Starts on the Machine
The final costly mistake is disconnecting surface finishing from the machining process. An engineer specifies a glossy red anodized finish for an aluminium enclosure, but the machinist leaves a 3.2 µm Ra surface finish cross-hatching, believing “the anodizer will fix it.” Anodizing is a conversion coating; it amplifies surface imperfections, it does not hide them.
Key Post-Processing Considerations:
Outgassing: Porous aluminium castings can absorb process fluids. During powder coating or painting, these fluids vaporize and cause pinhole defects (“fish eyes”). Parts must be baked out or properly degassed before machining, not after.
Dimensional Buildup: A 25 µm thick Type II anodize layer will grow the part dimension by approximately 12.5 µm per side. Features intended for press-fit assembly, such as bearing bores, must be machined with this buildup allowance. At GreatLight, we manage this tolerance stack-up internally because we offer one-stop surface finishing, including anodizing, plating, painting, and powder coating, all under the same quality management system.
Our ISO 13485 and IATF 16949 certifications mean that this entire process chain, from aluminium blank to finished, sealed part, is documented, traceable, and controlled. There is no finger-pointing between a house machinist and an external plater.
Navigating the nuances of aluminium CNC machining demands more than just a capable machine; it requires a holistic engineering mindset that integrates material science, tooling dynamics, thermal behaviours, and post-process treatments. Avoiding these seven mistakes is not merely about slashing costs – it is about securing the repeatability and reliability that define world-class products. With over a decade of focused expertise in precision aluminium manufacturing, backed by a 76,000 sq. ft. facility and a complete in-house supply chain, GreatLight CNC Machining Factory exists to turn these potential pitfalls into a seamless, cost-effective manufacturing flow. For more insights and an inside look at our precision manufacturing operations, you are welcome to connect with us on LinkedIn. Aluminium for CNC: 7 Costly Mistakes You Must Avoid to Slash Machining Costs – let this be the guide that reshapes how you approach your next project, transforming potential waste into enduring precision.
