Most laser CNC 3d projects lose money in the first week, not on the machine. The drawing arrives with a wall thickness of 0.4 mm, a 12:1 depth-to-diameter bore, and a note that reads "finish all over." None of those are impossible. Together they are expensive. A DFM pass before the first toolpath answers one question: which features must be additive, and which must be cut or milled?

Ask for that review early. We return a quotation and a free DFM analysis within 12 hours, so the geometry can be changed while it is still cheap to change it. On a recent class of parts, moving three features out of the additive step and into 5-axis milling removed support material and two post-processing operations. The tolerance stayed at ±0.005 mm because the critical bores were never printed in the first place.

The material–process split matters as much as the geometry. Laser powder bed fusion gives you internal channels and thin struts that no end mill can reach. CNC turning gives you a round bore with a real surface finish and a real diameter. Pick per feature. A part that is 80 percent printed and 20 percent machined is often cheaper and tighter than one that is 100 percent printed and then reamed by hand.

One more rule for this stage: keep cosmetic and functional surfaces apart. A bead blasted cover looks fine at Ra 1.6–3.2 μm. A piston bore does not. Marking them differently on the drawing costs nothing and prevents an argument at final inspection.

A practical check before release: can you hold the part in one hand and name the datum? If not, the shop will pick a datum for you, and it may not be the one your assembly needs.

• 1
  Additive stepConformal cooling, lattices, internal channels, organic ribs, lightweight pockets.
• 2
  Subtractive stepBores, threads, sealing faces, bearing seats, flat mating faces, tight perpendicularity.
• 3
  BothBosses and pads that need a machined face after printing.

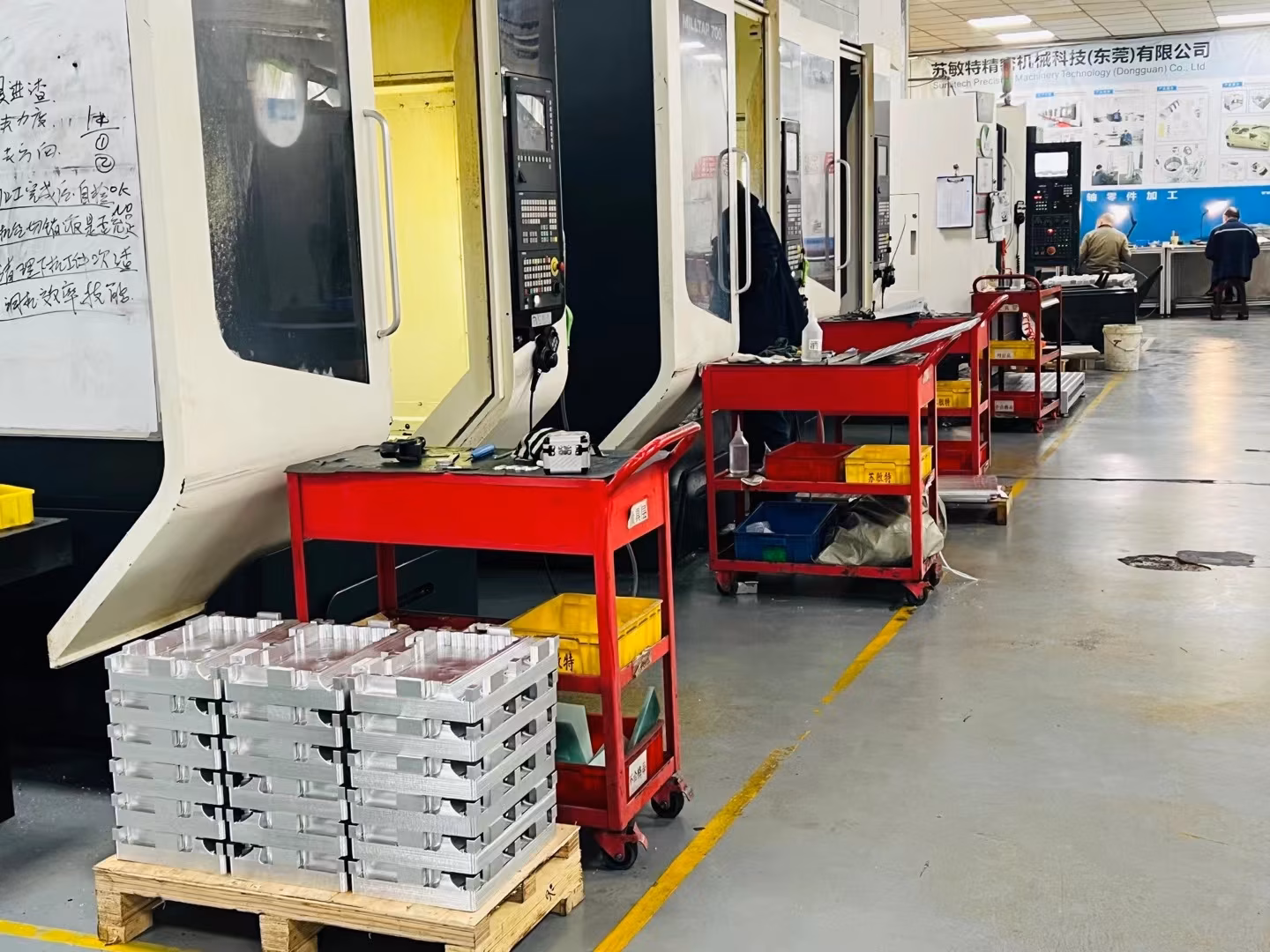

On a printed blank, the first machining operation is usually a facing cut. This is where shops lose hours. If the blank was printed with 1.5 mm of stock on a face that only needs 0.4 mm, the extra material is not free. It costs machine time, tool wear, and heat. Print near-net, then leave 0.3–0.5 mm on faces that will be milled, and 0.2 mm on bores that will be reamed.

For multi-axis work, simultaneous 5-axis cutting keeps the tool normal to a curved surface and lets you reach undercuts in one clamping. That removes the re-fixturing error that shows up as a step between two setups. A 3+2 strategy is still the right choice for flat pockets and drilled holes, because it is faster to program and stiffer at the tool tip. Match the strategy to the surface, not to the brochure.

Workholding is the quiet cost driver. Thin-walled printed parts deflect under a vise. Vacuum chucks, expanding mandrels, and low-melt fixturing solve different problems. A Ø400 mm rotary table with a tombstone lets you machine several faces of four parts in one cycle. If the part is 4,000 mm long, it goes on the large-travel machine at 4,000 × 400 × 150 mm, and the fixture design starts before the quote is signed.

Watch the order of operations. Drill the datum holes first, then use them for every later setup. If the printed holes are used as datums before they are reamed, every downstream dimension inherits the printer's positional error, which is far looser than ±0.005 mm.

A short rule that saves real money: never clamp on a surface you will later machine. Clamp on a sacrificial tab, then cut the tab off in the final operation.

• 1
  RoughingLeave 0.3–0.5 mm on milled faces; use high-feed cutters on printed stock.
• 2
  FinishingTake 0.1–0.2 mm passes on critical faces to control heat and burrs.
• 3
  FixturingVacuum for thin plates, expanding mandrel for round bores, low-melt for odd shapes.

Inspection during the run is cheaper than inspection after the run. On a hybrid part, measure the datum holes after the first setup, not after the last. If the printed blank is 0.15 mm off in one direction, the machinist can shift the remaining toolpaths to compensate. That is adaptive machining in its simplest form, and it needs no special software.

For tight features, use the machine as the gauge where you can. Touch probes and on-machine probing catch a drifting tool before it scraps a batch. Final inspection still happens off the machine, and we inspect 100 percent of parts before shipment, with reports on request. Raw material check, in-process monitoring, and final inspection are three separate gates, not a single glance at the last part.

Post-processing order changes the result. Anodizing adds a few micrometers and can round a sharp edge. If a bore is masked before anodizing, the diameter stays inside tolerance. If it is not masked, expect the coating to grow into the fit. Laser marking after anodizing gives a cleaner mark than marking before, and a minimum character height of 1.5 mm keeps the text readable.

Heat treatment belongs before final finishing. Stress relief after the additive step stops the part from moving during the finish cut. If the part is machined first and heat treated later, the ±0.005 mm you measured this week may not be there next week.

One more sequencing note: deburr before coating, not after. Blasting a coated part removes the coating from the edges.

• 1
  CoatingMask fits, threads, and sealing faces before anodizing or plating.
• 2
  MarkingLaser mark after coating; keep character height at 1.5 mm or more.
• 3
  Heat treatmentStress relief after printing and before the finishing cut.
