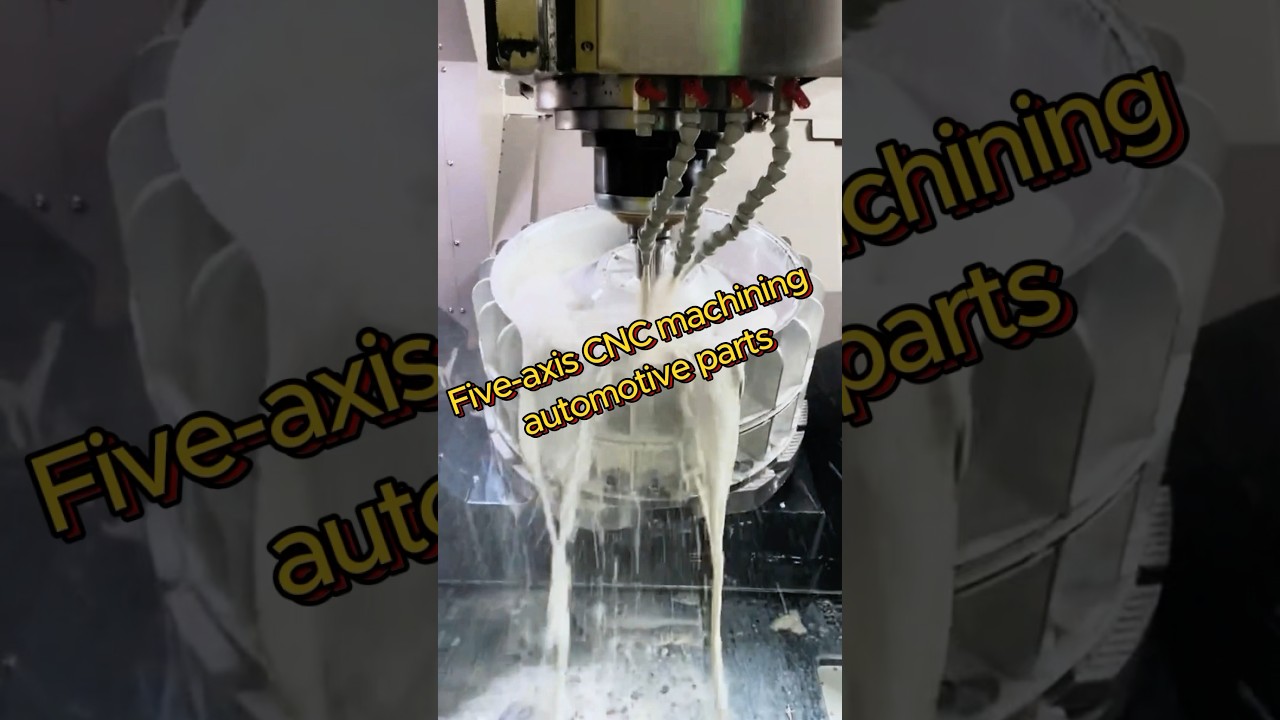

Five-Axis CNC Machining Automotive Parts: How the Kinematics Change the Part

• 1
  What five-axis CNC machining automotive parts geometry really needs
• 2
  Tolerance windows five-axis holds on automotive parts
• 3
  When five-axis CNC machining automotive parts beats three-axis
• 4
  Five-axis vs three-axis for automotive parts

A three-axis mill moves the tool in X, Y and Z. The workpiece stays put. To reach a second face, you stop the spindle and re-fixture, and every re-fixture adds a new datum to the stack. A five-axis machine adds two rotary axes, so the tool can approach the part from a direction the operator chooses rather than the one the fixture allows.

Automotive parts feel this most on ported, angled and blended surfaces. An intake port, a turbo housing outlet, a knuckle with three bearing bores at different angles: these are the features that force a three-axis job into four or five setups. Each setup re-establishes the same datums, and each re-establishment contributes its own positional error, typically 10–30 μm per move when fixtures are hand-loaded.

With five axes, one setup covers most or all of the part. The tool reaches the bore, the flange face and the blend radius without the part losing its reference. That is the real gain. It is not that five-axis cuts faster in a straight line. It is that the part never moves, so the datums never drift.

The rotary table carries the workpiece, and the spindle tilts or the table rotates depending on machine configuration. On a Ø400 mm rotary table, we can swing a part that fits inside that envelope and still orient its features under the tool. Parts larger than the table envelope need a different machine or a different process.

The kinematic chain matters for accuracy. Every rotary axis adds a small angular error, and at 200 mm from the table center, a 5 arc-second error becomes roughly 5 μm of linear displacement. Good five-axis machines compensate for this in the control, but the compensation has limits. Keep features that must be concentric close to the rotary center when the drawing allows it.

We hold ±0.005 mm (±0.0002 in) on critical features, and five-axis work does not loosen that number. What it changes is how many features can hold that tolerance at once. On a three-axis part with four setups, the bore-to-bore position error accumulates across every re-clamp. Five-axis keeps those bores in one coordinate frame, so the relative position stays inside the window.

Surface finish follows the tool path. As-machined surfaces land at Ra 1.6–3.2 μm. A high-quality cut with the right stepover reaches Ra 0.8–1.6 μm. Fine finishing with a small ball nose and a tight stepover gets to Ra 0.2–0.8 μm on aluminum and free-machining steels. The five-axis advantage shows on curved surfaces: the tool normal stays perpendicular to the surface, so the scallop height is even instead of growing as the surface tilts away.

Thermal behavior is the quiet variable. A five-axis cycle runs longer in one setup than a three-axis cycle, so the part and the fixture soak more spindle heat. On aluminum, thermal expansion is roughly 23 μm per meter per °C. A 5 °C rise across a 300 mm part adds about 35 μm of growth. We rough, let the part rest, then finish, and we check dimensions at a controlled 20 °C when the drawing calls for it.

Inspection closes the loop. We run raw material checks, in-process monitoring and a final inspection on 100% of parts before shipment, with reports on request. For automotive work that means CMM reports on the critical bores and, when the print demands it, a first article inspection on the prototype run. The measurement plan is written before the first chip, not after.

The decision is not about part count. It is about how many distinct faces carry tolerance and how those faces relate to each other. A flat bracket with two holes and one milled face is a three-axis job. A steering knuckle with three bearing bores, a strut mount face and a caliper pad is a five-axis job, even at 50 pieces.

Setup time is the visible cost. A three-axis job with five setups spends most of its wall-clock time in clamping and indicating, not cutting. At one prototype, that overhead can be tolerable. At 500 parts, it is pure loss, and it also multiplies the chance of a human error at setup four.

There is a second cost that buyers miss. Multiple setups mean multiple chances to introduce a datum shift, and a datum shift on an automotive part usually shows up as a rejected assembly, not a rejected part. Five-axis removes the setup chain, so the process capability is higher on the features that matter to the mating parts.

Five-axis does have a floor. Thin-walled parts below about 1 mm wall thickness can deflect under the side load of a tilted tool, and the rotary motion makes the cutting force direction change through the pass. For those, three-axis with a support fixture or a different process is often more stable. We would rather tell you that than sell a five-axis cycle that fights the part.

Material choice shifts the calculus too. Aluminum 6061, 7075 and 6082 cut cleanly at high spindle speed with a tilted tool. Titanium Ti-6Al-4V and Inconel resist, so five-axis pays off there for a different reason: fewer setups mean less re-heating and less work-hardened surface to cut through on the second pass. Stainless 17-4PH sits in the middle, and it machines well with the right feeds.
