5 Axis Parts Machining: Setup Choices, Tolerances and Cost Drivers

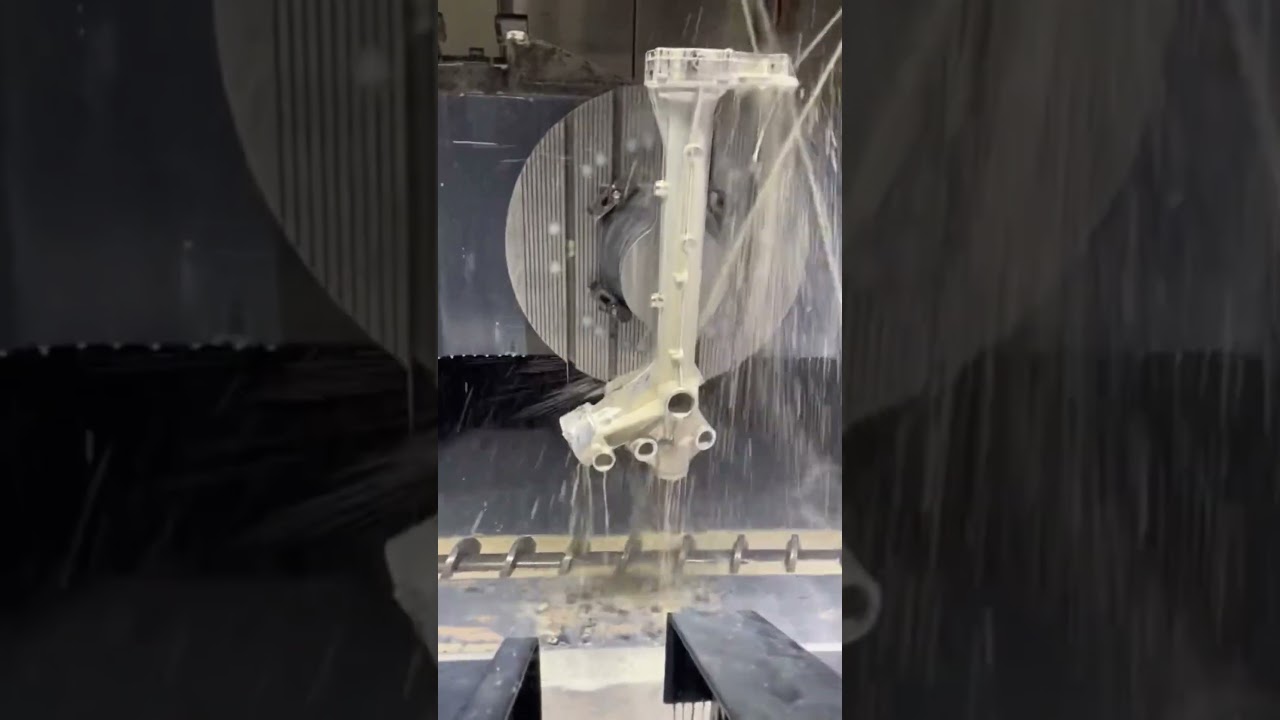

A three-axis mill moves the tool in X, Y and Z. The part sits still. Every face that is not reachable from the top needs a new setup, and each setup adds a vise, a dial indicator, a re-zero and a chance for stack-up error. A five-axis machine also tilts and rotates the tool, either by swinging the spindle head or by turning the table under the part. The part often stays clamped for the whole job.

That change is worth more than the extra motion. Fewer setups means fewer datum transfers, so the relationship between features on different faces stays tight. Take a bracket with bores on three sides: a three-axis route might need four operations, and each one re-establishes the origin from a different surface. Machining all of it in one five-axis cycle keeps those bores related to the same datum.

The gain shows up in three places. Angular holes and undercuts get cut with a short, stiff tool instead of a long reach tool that chatters. Walls that would need a second op get finished in the same pass. And a design change late in the program usually means editing toolpaths, not building new fixturing.

Five-axis is not automatically better. A flat plate with holes drilled from one side is cheaper on a three-axis machine, and it always will be. The question to ask is how many distinct tool directions the part needs and whether the tolerances between them matter.

Most shops mean two different things when they say five-axis. The first is 3+2, sometimes called positional five-axis. The table indexes the part to a new angle, the machine locks two axes, and the cut runs as a normal three-axis cut. It is rigid and predictable, and it is the right choice for prismatic parts with a handful of angled faces.

The second is simultaneous five-axis, where all five axes move together while the tool is in the cut. This is what you need for a sculpted surface, a port, an impeller blade or a contoured edge that cannot be reached any other way. Tool tip position has to be controlled continuously, so the CAM work is heavier and the cycle is usually longer.

Simultaneous cutting also needs a post-processor that matches the exact machine kinematics. A generic post will produce code that looks correct on screen and scrap on the table. When we quote a contoured part, the programming time is part of the price, and it does not disappear just because the part is small.

A practical split: use 3+2 for anything you can describe with planes and angles, and save simultaneous motion for surfaces that are genuinely free-form. Mixing both in one program is common and often the fastest route.

For reference, our shop runs 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers, so the setup choice is driven by the part rather than by what is free on the floor.

Our standard working tolerance is ±0.005 mm (±0.0002 in) on critical features. That number is not automatic across a whole part. It applies where the drawing calls it out and where the geometry allows it. A thin wall 300 mm from the clamping point will move, no matter which machine cuts it.

Thermal drift matters on longer cycles. A five-axis job running for hours warms the spindle and the ballscrews, so we let the machine settle and check critical dimensions in process rather than trusting the first article alone. For tight bores, we leave stock and finish after the part has cooled.

Surface finish follows the same logic. As-machined surfaces run Ra 1.6–3.2 μm. A high-finish pass gets you Ra 0.8–1.6 μm, and fine finishing with a small stepover reaches Ra 0.2–0.8 μm. Tighter finish means slower feed and more passes, so specify the finish the function needs and not the best number on the chart.

Every part is inspected before shipment, with raw material checks, in-process monitoring and a final inspection. Inspection reports and dimensional data are available on request. For a first article, tell us which dimensions are functional and which are reference; that single piece of information often cuts the inspection time in half.

Five-axis workholding is where good parts fail. The tool has to reach the part from many directions, so the fixture cannot sit in the way. Soft jaws, a dovetail block, a vacuum plate or a tombstone all trade access against rigidity.

Thin-walled parts are the hard case. A housing with a 1.5 mm wall will deflect under clamping pressure and spring back when released. The usual answer is to machine the part from a solid block held on a dovetail, cut the walls with light passes, and remove the dovetail in a final operation. It costs material and cycle time, and it is still cheaper than a scrapped batch.

Long parts need support as well as access. Our largest travel is 4,000 × 400 × 150 mm, with medium envelopes of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact envelopes of 500 × 500 × 450 mm and 500 × 310 × 200 mm. A Ø400 mm rotary table covers most round and indexable work.

If your part is a weldment or a casting, tell us where the as-cast surfaces are. Holding on a raw surface and machining from it is a common source of runout, and a machined datum pad often pays for itself.

The largest single line is programming and setup time, not the cutting. A simultaneous contour job can take several hours of CAM before the spindle turns. Once the program is proven, the second part is much cheaper than the first. That is why unit price drops sharply between one piece and ten.

Material choice comes next. Aluminum 6061, 2024 and 7075 cut quickly and hold tight tolerances well. Stainless 17-4PH and 316L work-harden, so feeds and speeds have to be conservative. Titanium Ti-6Al-4V and Inconel are slower again and wear tooling faster. Magnesium AZ31B and AZ91D cut fast but need special handling for chips.

Then come features. A tolerance tighter than ±0.005 mm, a fine surface finish, or a deep pocket with a small corner radius each add time. So does an inspection requirement that needs full CMM reporting rather than spot checks. None of these are hidden charges; they are just work.
