5 Axis Precision Parts: How the Geometry Gets Cut
A shop-floor explanation of what simultaneous 5-axis motion actually changes for finished parts. We cover setup count, tool reach, tolerance and finish limits, and the cases where a 5-axis process is the wrong call. Written for engineers and buyers who need to judge a quote, not a brochure.
Key takeaways

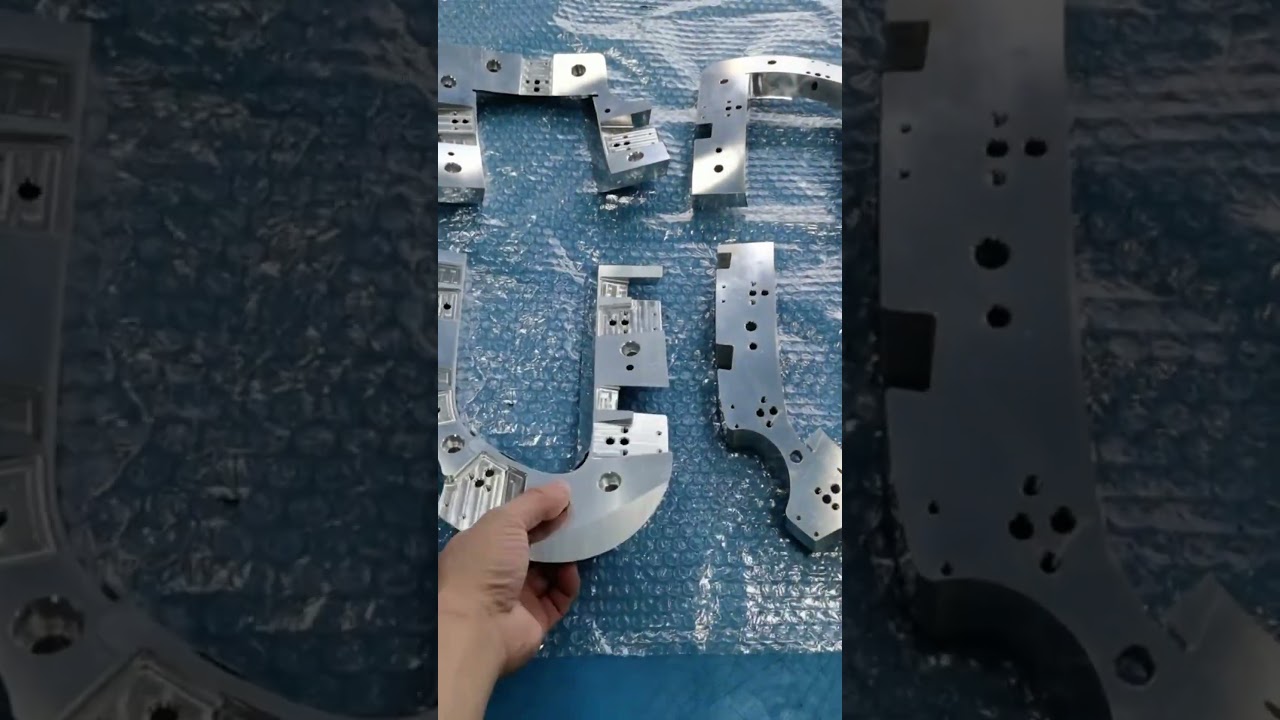

What simultaneous motion changes for 5 axis precision parts
A 3-axis mill moves the part under a spindle that stays vertical. A 5-axis center adds two rotary axes, so the tool can approach the workpiece from an angle while the cut is running. That single change rewrites how a finished 5 axis precision part is planned: the programmer no longer has to fit every feature into one Z direction.
The mechanical payoff is cutter stiffness. A tool's deflection scales roughly with the cube of its length-to-diameter ratio. When the head tilts 30–45°, a Ø6 mm tool can reach a face that would need a Ø3 mm tool on a 3-axis machine. Short and thick beats long and thin every time on chatter, and chatter is what kills surface finish on deep walls.
The second payoff is datum integrity. Every time a part is unclamped and refixtured, the new datum carries the fixture's own error plus the operator's setting error. Three setups can easily stack 0.02–0.04 mm of position error before any cutting tolerance is applied. Machining five faces in one position keeps that error out of the stack.
Rotary tables on our cells reach Ø400 mm, which sets a real limit. Parts larger than the table swing, or long shafts that need support at both ends, are often better handled on a mill-turn center or a 4-axis horizontal. The process choice should follow the geometry, not the machine's spec sheet.
Where the process stops helping
Five-axis work trades setup time for programming and cycle time. Simultaneous motion means the controller is solving inverse kinematics on the fly, so feed rates must be capped to keep the rotary axes inside their acceleration limits. A path that looks fast in CAM can run 20–40% slower at the machine. For a part with one flat face and six drilled holes, that trade never pays back.
Rigid setups matter more, not less. A 5-axis fixture is often a single small tombstone or a dovetail block, and the part hangs off it in several orientations. If the blank is thin-walled, the clamping load that holds it during a tilted cut can deflect the wall before the tool ever touches it. We check wall thickness against clamping force at the quoting stage.
Surface finish has a floor set by the tool path, not the machine. Ra 0.2–0.8 μm is achievable on a well-supported face with a finishing pass and the right cutter geometry, but it is a per-face result. A single part can carry Ra 0.4 μm on a sealing face and Ra 3.2 μm on a roughing pocket, and the drawing should say which is which.
Thermal drift is the quiet one. A spindle running for six hours grows, and the rotary axis grows with it. On a ±0.005 mm job we let the machine idle to thermal equilibrium before the first finishing pass, and we re-probe the datum between operations rather than trusting the original setting.
Material behavior under a tilted tool
Aluminum is the easy case. 6061-T6 and 7075 cut cleanly at high spindle speeds, and the main risk is thin-floor distortion from the heat of a fast finishing pass. We keep radial engagement low and use air blast rather than flood coolant on deep pockets so chips clear instead of recutting.
Stainless 304 and 17-4PH work-harden. A tool that rubs instead of cutting will raise the surface hardness and dull the next pass. On tilted cuts the contact arc is longer, so we program a higher feed per tooth and never let the cutter dwell in a corner. 316L behaves the same way with slightly worse chip evacuation.
Titanium TC4 (Ti-6Al-4V) and Inconel push the limits. Their low thermal conductivity sends heat into the tool edge, so a 5-axis path must keep the engagement constant and avoid sudden direction changes that spike the chip load. Tool life on Inconel is measured in minutes, not hours, and that is priced into the quote.
Plastics and carbon fibre need sharp, uncoated tooling and strong extraction. PEEK and carbon fibre dust are abrasive, so we schedule them on machines that can be cleaned between jobs to keep the abrasive from reaching a subsequent metal finishing operation.
Proving the result before shipment
A tolerance on a drawing is a claim until it is measured. We inspect 100% of parts before shipment, with raw material verification at goods-in, in-process monitoring on critical features, and a final dimensional check on the drawing's control dimensions. Reports go out on request with the shipment.
For first articles we run a full layout, not just the tolerances that the operator can reach with a caliper. Bore roundness, perpendicularity between two faces cut in different orientations, and true position of hole patterns are the features that actually move when a setup changes, so those get the most attention.
The datum strategy has to be agreed before the first chip. If the drawing calls a face as datum A that the fixture cannot reach in the first operation, the programmer has to build a temporary datum and transfer it, and that transfer is where error enters. A short DFM note at quoting stage usually removes the problem.
We hold ±0.005 mm on qualified jobs and 99.99% first-pass qualification on production runs. Those numbers come from a controlled process, not from a single good part. A shop that quotes a tight tolerance without asking about the datum strategy is guessing.
When to choose 5-axis, 4-axis or 3-axis
Match the process to the geometry, not to the machine list.
| Part feature | Best process | Why | Watch out for |
|---|---|---|---|
| Five faces, one setup | Simultaneous 5-axis | No re-datum error between operations | Fixture stiffness on tall parts |
| Deep pocket, short tool | Simultaneous 5-axis | Tilted spindle clears the wall | Longer cycle time from rotary limits |
| Open face, flat plate | 3-axis | Lower hourly rate, simpler path | Nothing, this is the cheap route |
| Four sides of a box | 4-axis with tombstone | Indexed rotation, rigid setup | Fifth face needs a second op |
| Long shaft, both ends | Mill-turn center | Single clamping, no re-chuck error | Limited to Ø400 mm swing |
| Thin wall under 1 mm | None of the above as-is | Clamping force deflects the wall | Add support or split the op |
| Undercut or back-facing hole | 5-axis with lollipop tool | Reach from an angle | Tool deflection at long reach |
The honest split
If the part has angled faces, deep pockets or features on five sides, pay for simultaneous 5-axis and get one rigid setup. If it is a flat plate with open faces, stay on 3-axis and spend the difference on finishing. Geometry decides, not the machine count.
Questions we get at quoting stage
Can 5-axis machining hold ±0.005 mm on every feature?
Not automatically. ±0.005 mm is a process capability that depends on the feature, the material and the datum strategy. A bore in aluminum with a good approach angle is routine. A deep bore in Inconel at the end of a long tool is not.
We tell you at quoting stage which features can hold that band and which need a different approach, such as a reamed bore or an in-process probe routine.
Is 5-axis always more expensive than 3-axis?
Per hour, yes. The machine and the programmer cost more. Per part, it depends on setup count.
If 3-axis work needs three fixtures and three operators, the 5-axis cell can be cheaper overall even at a higher rate. For a simple plate with one open face, 3-axis wins on both counts.
What part size can you actually machine?
Our maximum processing size is 4,000 mm, with large travels of 4,000 × 400 × 150 mm. Medium cells cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact cells cover 500 × 500 × 450 mm.
The rotary table on the 5-axis cells is Ø400 mm, so parts that must be swung in a rotary axis are limited by that swing, not by the linear travel.
How do you handle thin walls that deflect under clamping?
We look at wall thickness against clamping force during DFM and often switch to a dovetail or sacrificial-tab setup so the wall is supported, not squeezed.
Where the geometry allows, we machine the wall in two passes with a stress-relief pause so the material can settle before the finishing cut.
Do you machine one-off prototypes as well as production runs?
Yes. There is no minimum order quantity, so a single prototype and a 10,000+ part run both go through the same process control.
For prototypes we often quote a slightly looser tolerance on non-critical faces to keep the first part fast, then tighten the drawing for production.
How is my design data protected?
Uploads are secure and confidential, and we sign an NDA on request before any file exchange. We hold ISO 27001:2022 for information security management.
Files are not shared outside the engineering and programming team working on your job.
