5 Axis Machining Parts: Setup Choices, Tolerances and Limits

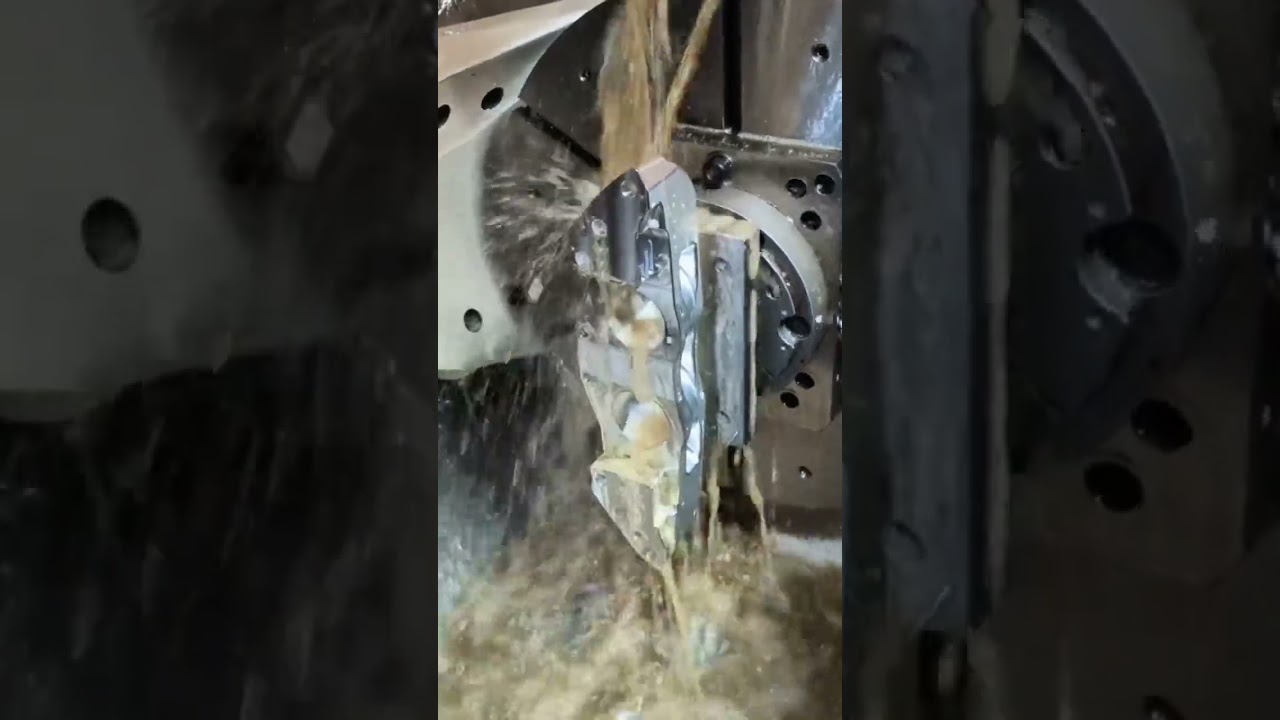

A 5 axis machining part is one where the cutting tool reaches the workpiece from directions a three-axis machine cannot hold. Two extra rotary axes tilt and rotate the part, or tilt the spindle. The benefit is not speed. The benefit is fewer setups, shorter tool overhang, and surfaces that can be cut in one continuous pass instead of being repositioned four times.

On a three-axis mill, every new face means a new fixture, a new zero point, and a new stack-up of positional error. Each re-clamp adds roughly 0.01 to 0.03 mm of variation between features, depending on fixture quality. Five axes remove most of those re-clamps. Features machined in the same setup stay in the same coordinate frame, so true position between them holds much tighter.

That matters most on parts with angled bores, compound faces, or ports on several sides. A hydraulic manifold with four angled ports and a flat gasket face is a classic case. So is a bracket with a 37° mounting pad and two dowel holes that must line up with the pad, not with the raw stock.

• 1
  Angled holes and facesBores or pads that are not normal to X, Y or Z.
• 2
  Multi-side featuresWork on three or more faces in a single setup.
• 3
  Contoured surfacesBlends, fillets and swept shapes that need continuous tool motion.
• 4
  Thin-wall partsStiffness comes from tool angle, not from heavy fixturing.

These two are often quoted as one thing. They are not. In 3+2, the rotary axes move to a position, lock, and the machine cuts like a three-axis mill. The tool axis stays fixed during the cut. This is the right choice for most parts: it is faster to program, easier to verify, and more rigid because the rotary axes are clamped.

In simultaneous 5-axis, all five axes move at once. The tool tip follows a path while the table tilts under it. This is needed for ruled surfaces, impeller blades, deep contoured pockets, and any geometry where a ball nose tool must stay normal to the surface. Cycle times are longer and programming is heavier, but the surface comes off the machine without hand blending.

A practical rule: if the feature can be reached by indexing the part and then cutting in three axes, use 3+2. Reserve simultaneous motion for the features that truly need it. Many parts are best run as a mix, with 3+2 for the bulk of the material removal and simultaneous passes only on the contour.

• 1
  3+2Indexed and locked. Better rigidity, shorter programs, most common choice.
• 2
  SimultaneousContinuous motion. Needed for contoured blades and curved blends.
• 3
  Mixed strategyIndex for roughing, simultaneous for finishing the contour only.

On our five-axis centers we hold ±0.005 mm (±0.0002 in) on critical features, with careful attention to thermal drift during long cycles. That number is a process capability, not a default. It applies to features measured in the same setup, on stable materials, with the part fixtured close to the rotary center. Features added in a second setup will carry additional positional error, usually 0.01 mm or more.

Surface finish depends on the operation. A finished contoured surface with a ball nose tool typically lands at Ra 0.8–1.6 μm. Where the geometry allows a larger tool radius and a lighter stepover, we reach Ra 0.2–0.8 μm. As-machined surfaces sit at Ra 1.6–3.2 μm. If a drawing calls for a mirror finish, it is usually faster and cheaper to machine to Ra 0.8–1.6 μm and then polish or bead blast.

Size limits matter for quoting. Our largest five-axis travel is 4,000 × 400 × 150 mm, which suits long extrusions, rails and structural profiles. General work sits in the 750 × 1,150 × 550 mm and 600 × 600 × 600 mm envelopes. Compact parts run in 500 × 500 × 450 mm and 500 × 310 × 200 mm machines, and those smaller machines usually give the best accuracy on tight work. The rotary table is Ø400 mm.

Material removal rate drops as the part grows. Long, slender parts deflect, so passes get lighter. On the 4,000 mm travel machine we often see three to four times the cycle time of the same feature on a compact machine. That is a real cost factor and worth knowing before you assume five axes is always the answer.

Aluminum is the easiest case. Alloys 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075 and ADC12 all cut cleanly with the right speeds and coolant. Aluminum also tolerates the higher axis feed rates that simultaneous motion produces, so cycle times stay reasonable. If your part is aluminum and needs five axes, the setup is usually straightforward.

Stainless steels 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH (SUS630) are more demanding. They work-harden, so a tool that rubs instead of cuts will ruin the surface and the tool together. Five-axis toolpaths help here because they keep the cutter engaged at a consistent angle, but they also demand rigid setups. Expect to run slower.

Titanium TA1, TA2, TC4 (Ti-6Al-4V), Inconel and magnesium AZ31B / AZ91D need the most care. Titanium and Inconel generate heat at the cutting edge and are poor conductors, so heat goes into the tool. We keep tool overhang short and use high-pressure coolant. Magnesium cuts fast but is a fire risk; chips must be managed, not left on the table.

Plastics behave differently. ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE and carbon fibre all machine on five axes, but they deflect, melt, or fray if the feeds are wrong. PEEK and carbon fibre are abrasive and will wear tooling quickly. For these, five-axis work is often used to avoid repositioning a part that would scratch or deform during re-clamping.

Five-axis machining is not a quality upgrade you add by default. If a part is a simple plate with holes on one face, a three-axis machine will make it faster and cheaper, and often just as accurate. The extra axes only pay for themselves when they remove setups or reach geometry that cannot otherwise be cut.

A second case against it: features that need to be machined from two opposite sides with tight tolerance between them. A five-axis machine can turn the part, but so can a four-axis table or a mill-turn center. If your part is a shaft or a rotational body, mill-turn is usually the better route because it keeps the part on one workholding device through turning and milling.

Third, deep pockets with small corner radii. Five axes do not solve reach problems. If the tool cannot get in, no amount of axis movement helps. In those cases, look at EDM or a design change, not a different machine.

Finally, consider whether five axes is being used to avoid a drawing problem. If the geometry has to be machined from five directions because the datum scheme is unclear, the fix may be a better datum callout, not a more expensive machine. We will say so when we see it.

Quotation and a free DFM analysis come back within 12 hours. We review the model for tool access, wall thickness, datum strategy and whether the tolerances are reachable in the setups proposed. If something will not cut cleanly, we say which feature and why. Production can start within 24 hours after that.

Typical parts ship in 3 to 5 days. There is no minimum order quantity, so a single prototype and a 10,000+ part run go through the same first-article process. Uploads are handled as confidential, and we sign an NDA on request.

Inspection runs across the whole batch: raw material check, in-process monitoring, and final inspection before shipment. Every part is inspected before it leaves. Reports are available on request. We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022, which cover general quality management, automotive, medical devices and information security respectively.

Finishing is handled in-house or through qualified partners: anodizing in clear, colour, hardcoat and conductive grades, electroless nickel, zinc, silver and gold plating, powder coating and black oxide, bead blasting, tumbling, brushing and polishing, plus laser marking and engraving with a minimum character height of 1.5 mm.
