CNC Machining of Radiator Parts

• 1
  Radiator parts are thin-wall pressure vessels
• 2
  How the cnc machining of radiator parts handles wall thickness and fin geometry
• 3
  Material choice changes the cutting window
• 4
  Why 5-axis setups reduce handling on radiator housings
• 5
  What to check before a radiator part ships
• 6
  Which machining approach fits which radiator part

A radiator housing is a box that must do three jobs at once: hold coolant without weeping, pass air through a dense array of fins, and stay flat where it bolts to a tank or a manifold. Every machining decision follows from those three jobs. Get the wall thick enough to seal and you add weight and cost. Get it thin enough to save weight and the flange starts to bow during the final pass.

Most radiator parts we see fall into four groups. Aluminum end tanks and inlet or outlet housings. Machined cold plates with internal channels. Plate-and-bar style cores where the end plates carry the sealing faces. And small brass or copper fittings that thread into the tank. The same cutting rules apply to all four, but the risk shifts. On a cold plate the internal channel is the hard part. On an end tank the sealing flange is the hard part.

The reason these parts are awkward is the ratio between wall thickness and part size. A housing 200 mm long with a 2 mm wall is a spring, not a rigid body. Clamp it flat on a table and it will spring back when you release the vise. Machine it in one pass and the residual stress from the billet will move it after the last cut. Both problems show up as a leak at the sealing face, not as an obvious dimensional error.

So the first question on any radiator quote is not which machine. It is how much material stays after machining, and where the clamping force lands. If the fixture pushes on the middle of a thin floor, the floor deflects. If the fixture pushes only on the outer rim, the part rings at high spindle speed. We plan the setup around the stiffest features the part already has, then rough and finish in separate operations so the stress releases before the final pass.

• 1
  Sealing faceFlatness and surface finish matter more than bore size
• 2
  Wall thicknessUnder 2 mm on aluminum, deflection drives the process
• 3
  Internal channelsChip evacuation decides whether the channel is usable

Wall thickness sets the cutting strategy. On aluminum housings we keep a 2 mm nominal wall where the part is not bolted, and 3 mm around threaded ports. Below 1.5 mm the part becomes sensitive to every source of variation: billet stress, thermal growth during a long cut, and even the pressure of a coolant jet. We can machine a 1 mm wall, and we do it on small cold plates, but the fixture has to support the back of the wall across most of its area, not at four points.

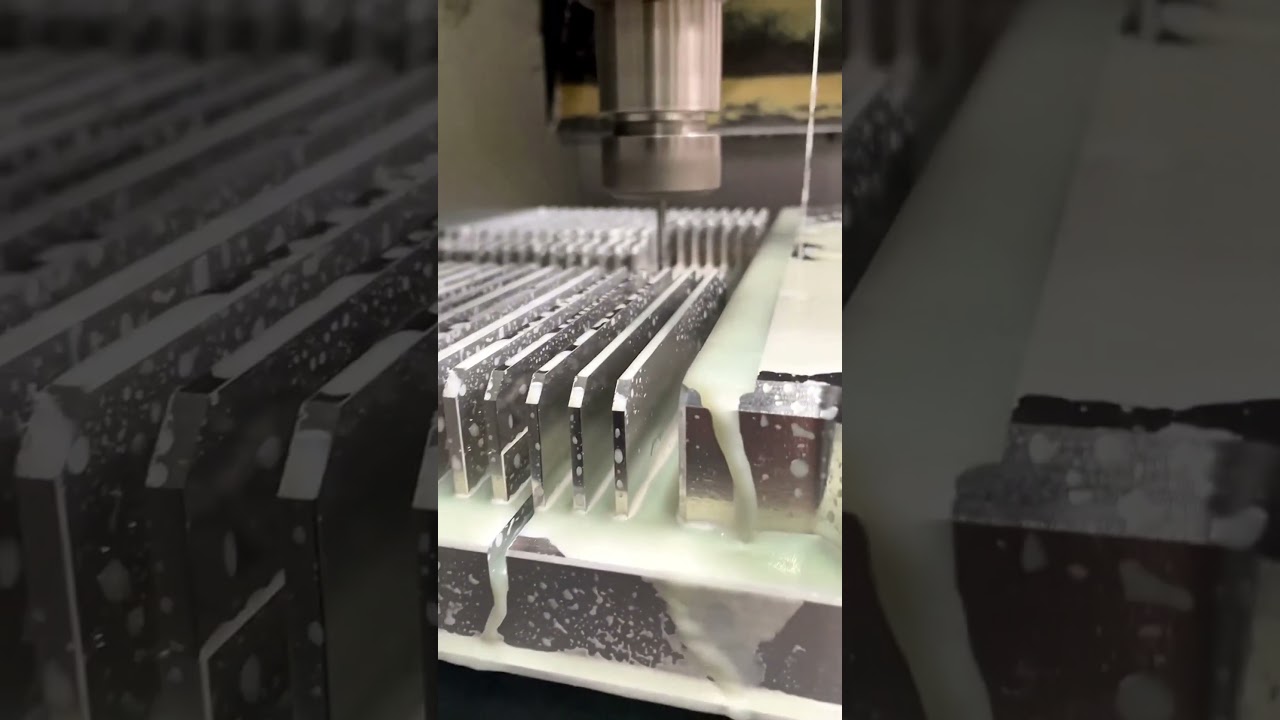

Fin geometry is the opposite problem. Fins exist to add surface area, so the gaps between them are narrow by design. A 1.5 mm fin with a 1.5 mm gap is a slot 20 to 40 mm deep, and that is where most of the cycle time goes. We rough the slot with a smaller cutter than the finished gap and leave 0.15 to 0.25 mm per side for a finishing pass. Running a full-depth cut in one pass snaps the cutter or pushes the fin over, and a bent fin cannot be straightened without closing the gap next to it.

Tolerances on these features are not all equal. The sealing flange flatness drives the leak rate. Port position drives whether the hose lines up. Fin spacing drives thermal performance, but a 0.1 mm variation in gap changes performance far less than a 0.1 mm variation in flange flatness changes sealing. Spending the tolerance budget on the sealing faces is almost always the right call.

Hole and port tolerances matter most where a fitting threads in. A threaded port needs a true position that keeps the mating fitting square to the face, otherwise the seal crushes on one side. We hold ±0.05 mm on port position and use a thread mill rather than a tap on anything above M6, because thread milling gives a cleaner crest and does not risk a broken tap inside a closed tank.

Surface finish follows the same logic. Sealing faces get Ra 0.8–1.6 μm so a gasket or O-ring can seat. External cosmetic faces get Ra 1.6–3.2 μm as machined, and if the part is anodized we stop there because anodizing adds its own texture. Internal coolant passages are left rougher on purpose. A polished internal channel does not improve flow enough to justify the cycle time.

• 1
  Nominal wall2 mm unsupported, 3 mm at threaded ports, 1 mm only with full backing
• 2
  Fin slotLeave 0.15–0.25 mm per side for the finish pass
• 3
  Sealing faceFlatness and Ra 0.8–1.6 μm carry the leak risk

Aluminum covers most radiator work. 6061-T6 machines cleanly, welds well and takes anodizing, which is why end tanks and cold plates default to it. 6063 gives a better anodized finish but is softer, so thin walls deflect more under the same cut. 7075 is stronger but welds poorly and is usually the wrong call on a part that gets a welded joint. For cast housings we machine ADC12, though castings bring porosity that can open up on a sealing face.

Copper and brass appear where thermal conductivity beats weight. Copper cold plates move heat faster than aluminum, but copper is gummy. It work-hardens under a dull tool, and a worn cutter will rub instead of shear, which raises the temperature and moves the wall. Sharp tools and higher rake angles keep copper cuts predictable. Brass C36000 is the easy one and machines at high feed with almost no built-up edge.

Stainless shows up in exhaust-adjacent and corrosive applications. 304 and 316 work-harden, so a light finishing pass with a dull tool is worse than a heavier cut with a sharp one. We keep the radial engagement high enough to stay under the hardened layer. 17-4PH gives more strength where a bracket or manifold bolts to the radiator, and it holds a sealing face better than 304 after heat treatment.

Titanium and Inconel are rare on radiators but do appear in aerospace and motorsport. Both cut hot and both need flood coolant and low surface speed. The machining cost is several times aluminum, so it only makes sense where the temperature or weight requirement rules everything else out. On a standard automotive radiator, aluminum with the right wall design will outperform a titanium part that had to be made thinner to justify the cost.

• 1
  6061-T6Default for tanks, housings and cold plates
• 2
  CopperBest conductivity, but sharp tools and high rake are mandatory
• 3
  304 / 316Work-hardening; never take a light pass with a dull cutter

A radiator housing usually has features on four or five faces: a sealing flange on the top, inlet and outlet ports on the sides, mounting bosses on the bottom, and a drain plug somewhere awkward. On a 3-axis machine each face is a separate setup. That is four or five chances to lose position, and each re-clamp puts fresh stress into a thin wall. The dimensional error between two setups is often larger than the tolerance on either one.

A simultaneous 5-axis setup cuts those faces without releasing the part. Our 16 five-axis machining centers hold position across the whole job, so the flange and the ports that bolt to it stay in one coordinate system. On a part where the flange flatness and the port position both matter, that is the difference between a housing that lines up on the vehicle and one that needs shimming.

5-axis also solves reach. A port on the underside of a tank, or an angled inlet, can need a tool 150 mm long. On a 3-axis machine that tool has to come straight down, and it will chatter. Tilting the work lets a shorter, stiffer tool reach the same feature. Short tools cut faster and leave a better floor finish, which matters on a sealing surface.

The trade-off is setup cost. A 5-axis program takes longer to prove out, and on a simple flat end tank with one open face, 3-axis with soft jaws is still cheaper and just as accurate. We would not move a two-face part onto a 5-axis machine to look modern. The rule we use is simple: if the part has features on three or more faces, or any feature that a straight tool cannot reach, 5-axis usually wins on total cost. If it does not, it does not.

• 1
  Three or more faces5-axis removes re-clamp error on thin walls
• 2
  Deep or angled portsTilting lets a shorter, stiffer tool reach the feature
• 3
  One-face parts3-axis with soft jaws stays cheaper

Inspection on a radiator housing starts with the sealing face. We check flatness on a surface plate or with a height gauge across the flange, not just the overall dimension. A flange can measure correct length and width and still be crowned by 0.08 mm, and that crown is enough to open a gasket joint under pressure.

Pressure testing is the check that catches everything else. A leak test at working pressure finds a porous casting, a crack from a heavy roughing pass, or a channel that was machined too thin before it is installed. We run pressure and leak checks on radiator housings and report the result. Customers who ask for it also get a dimensional report from the coordinate measuring machine.

Internal channels need their own check. A cold plate can pass every external dimension and still be blocked by a chip that welded itself to the channel wall. After machining we flush the channel and confirm flow. On a closed channel we inspect with a borescope. This is a step that is easy to skip on a prototype and expensive to discover on a production run.

The last check is fit. We confirm the mating faces, thread the ports with a go/no-go gauge, and check that the mounting pattern matches the drawing. On a part this size a 0.05 mm shift in a bolt hole is enough to cause a fight on the assembly line. With 100% inspection before shipment and a 99.99% qualification rate, the goal is that the first housing and the ten-thousandth behave the same way.

• 1
  Flange flatnessCheck crown, not just length and width
• 2
  Pressure and leak testCatches porosity and thin walls before install
• 3
  Channel flowFlush and borescope closed coolant channels
