CNC Machining Automotive Parts: How 5-Axis Cutting Works

• 1
  What Changes When You Move From 3-Axis to 5-Axis
• 2
  Undercuts, Deep Pockets and Where the Tool Cannot Reach
• 3
  Material Choice Drives Tolerance and Surface Finish
• 4
  When CNC Machining Automotive Parts Stops Making Sense
• 5
  How Tolerance Is Verified Before Parts Ship
• 6
  Choosing a Process for Automotive Parts

A 3-axis mill cuts from one direction. The tool moves in X, Y and Z while the part stays still. That covers a bracket with features on one face, a flat cover plate, or a manifold flange. The moment a part needs holes on two faces that meet at an angle, a 3-axis setup turns into a sequence of re-fixturing operations, and each refixture adds error.

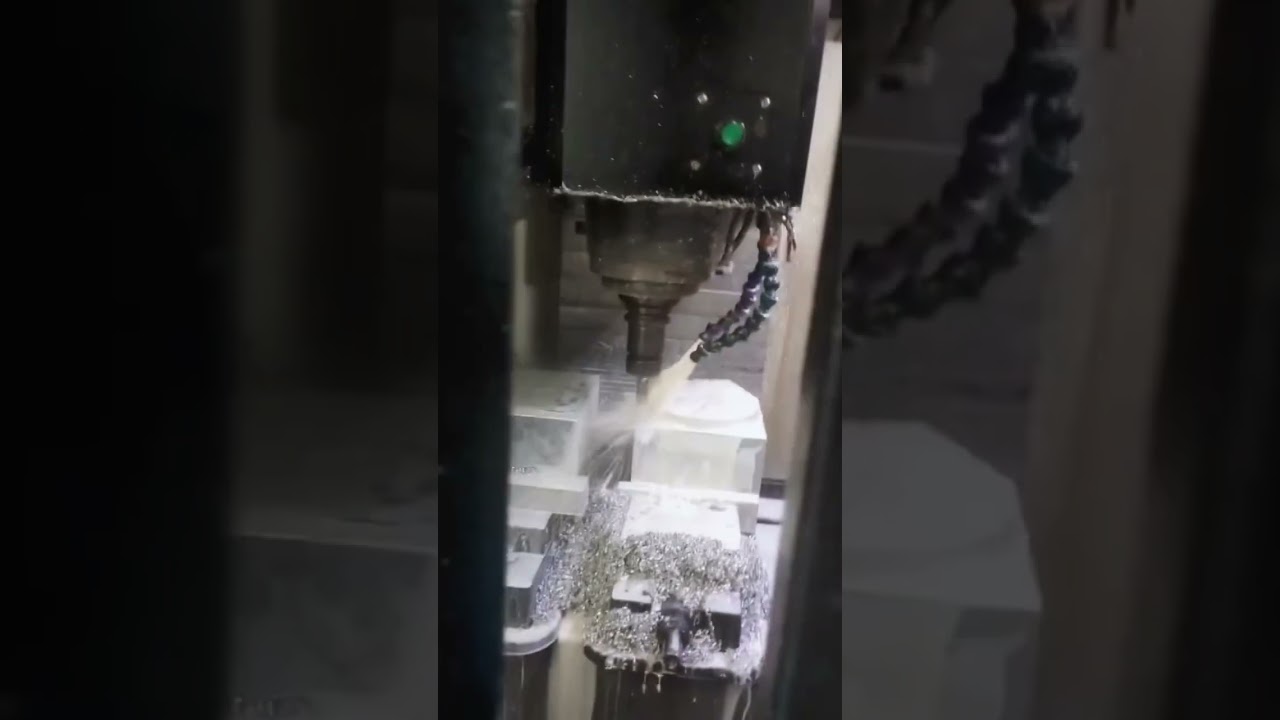

A 5-axis machine tilts the tool or the table instead. Two rotary axes — typically A and C, or B and C — bring the feature to the tool rather than the tool to the feature. On a steering knuckle with a tapered bore and two mounting bosses at 30°, a 3-axis route might need four setups. One 5-axis setup with a Ø400 mm rotary table can reach all of them without the part leaving the fixture.

The gain is not only fewer setups. Every time a part is unclamped and re-clamped, the datum shifts. A 0.02 mm locator error at setup one can become 0.05 mm by setup four. Cutting the same features in one continuous setup keeps the positional relationship between them inside ±0.005 mm, which is what matters for parts that bolt to other parts.

Five axes does not automatically mean tighter tolerance. It means fewer opportunities for stack-up. If the geometry is simple and the volume is high, a 3-axis machine with a dedicated fixture can hold the same tolerance at a lower hourly rate. The choice is a geometry question first, a cost question second.

• 1
  One setup, one datumAngled faces and cross-axis holes stay in one coordinate system.
• 2
  Shorter tool overhangTilting the tool lets a stubby cutter reach deep pockets with less chatter.
• 3
  Not always cheaperSimple prismatic parts hold tolerance fine on a 3-axis machine.

Every milling process is subtractive, so the tool must physically arrive at the surface. A re-entrant feature — an internal groove, a dovetail, a hole that widens below the entry — cannot be cut with a straight end mill no matter how many axes you add. It needs a T-slot cutter, a lollipop cutter, or a change of design.

The practical limit is the ratio of depth to tool diameter. A pocket 60 mm deep cut with a 6 mm end mill gives a 10:1 ratio. At that ratio the tool deflects, the wall tapers, and the finish degrades. A common fix is to open the corner radius so a larger cutter fits. Raising corner radii from R1 to R3 can let a 10 mm cutter replace a 6 mm one and cut cycle time by a third.

Sharp internal corners are a second boundary. A cutter leaves the radius of its own tip. If the drawing calls for a square internal corner, either the designer accepts the tool radius or the corner becomes a separate EDM or broaching operation. Most automotive brackets tolerate R1 to R3 corners without any loss of function.

Thin walls behave differently again. Aluminum at 1.0 mm wall thickness will deflect under cutting force and spring back after the tool passes, leaving a wall that measures over size in the middle. We rough with a heavier radial depth, leave 0.3 mm for finishing, and take a light final pass on both sides. Below roughly 0.8 mm in aluminum or 1.2 mm in steel, the wall becomes a risk item that should be flagged during DFM review.

• 1
  Depth-to-diameterKeep milling depth under 6× tool diameter where finish matters.
• 2
  Corner radiiR3 instead of R1 often removes a whole finishing operation.
• 3
  Thin wallsBelow 1 mm in aluminum, expect spring-back and plan a spring pass.

Aluminum is the default for automotive machined parts. 6061-T6 machines cleanly, holds ±0.005 mm on a rigid setup, and anodizes well. 7075 offers roughly double the yield strength of 6061, which suits suspension links and rocker arms, but it cuts with a gummier chip and needs sharper tooling and more coolant. 2024 machines similarly and is common where fatigue life matters.

Stainless steel moves the problem to heat. 304 work-hardens at the cut, so a tool that rubs instead of shearing will harden the surface and break on the next pass. 17-4PH (SUS630) is the usual choice for automotive shafts and valve components because it can be aged to high strength after machining. 303 is the free-machining grade when corrosion resistance matters less than cycle time.

Steels like 4140 and 4340 are common for drivetrain parts. In the annealed state they cut predictably; in the hardened state above 40 HRC, machining shifts to carbide or ceramic tooling and the achievable surface finish tightens. If a part is heat treated after machining, plan the allowance — a 0.3 mm stock left for grinding is normal, not optional.

Titanium and Inconel sit at the far end. Ti-6Al-4V conducts heat poorly, so the cutting edge absorbs it and tool life drops fast. Cutting speeds fall to a fraction of aluminum, and cycle time can triple. Use these materials only when the service temperature or strength-to-weight requirement genuinely demands it. For a bracket that sees 80 °C, aluminum is the right answer.

• 1
  Aluminum 6061-T6Best balance of tolerance, finish and cost for most brackets.
• 2
  Stainless 17-4PHMachine in the annealed state, then age to final strength.
• 3
  Ti-6Al-4VRoughly 3× the cycle time of aluminum for the same geometry.

Milling wins when the part count is low to medium and the geometry is complex. It loses when the part count is high and the geometry is simple. A transmission housing at 200,000 units per year is a die casting, not a milled part. The tool path that takes 40 minutes per piece becomes a 90-second casting cycle.

The crossover usually sits somewhere between 1,000 and 10,000 units per year, and it depends on feature count and tolerance. A machined prototype at 50 units lets you validate fit and function before committing to tooling. Once the design is frozen and volume climbs, casting or forging plus finish machining on the critical faces is the normal path.

Machining also earns its place on parts that are already cast. A cast aluminum knuckle needs its bearing bores, ball joint tapers and brake caliper mounts machined to tolerance. That is a 5-axis job on a casting, not a replacement for the casting. The two processes cooperate rather than compete.

Plastic parts follow the same logic with a lower temperature ceiling. A glass-filled nylon intake duct is injection molded in volume, but a 20-piece validation batch is often machined from PA or POM stock. The machined part will not match the molded part's surface exactly, and it will not have the same fiber orientation. Use it for fit checks, not for fatigue testing.

• 1
  1 to 10,000 unitsMachining is usually the flexible option in this band.
• 2
  Above 10,000 unitsCompare casting or forging plus finish machining.
• 3
  Machined prototypesValidate fit and function before tooling spend.

A tolerance on a drawing is a claim. It only means something if someone measures it. For automotive parts, the measurement plan should be agreed before the first chip is cut, because the datum scheme used for inspection must match the datum scheme used for machining. If the drawing calls out A-B-C datums and the shop fixtures off a vise jaw, the numbers will not agree.

First article inspection establishes the baseline. Critical dimensions are measured on a CMM, recorded, and compared against the nominal and tolerance band. For a new part, this is where a ±0.005 mm callout either proves out or gets flagged. If a feature cannot hold tolerance, better to find out on part one than on part five hundred.

In-process monitoring catches drift. Tool wear moves a dimension gradually, not suddenly. Measuring a key feature every 20 to 50 parts lets the operator offset the tool before the dimension leaves the band, instead of scrapping a batch and starting over. For high-volume runs this is standard practice, not an extra.

Final inspection covers the whole lot. We check raw material certificates on the way in, monitor dimensions during the run, and inspect 100% of parts before shipment. Reports are available on request, and they should be requested whenever the part is safety-related or the customer's own quality system requires traceability. IATF 16949:2016 is the relevant framework for automotive production parts.

• 1
  Datum agreementInspection datums must match machining datums.
• 2
  FAI on part oneProve the tolerance before the run, not after.
• 3
  Tool offsetsMeasure every 20–50 parts on wear-critical features.
