5 Axis CNC Machining for Automotive Parts

A 5 axis machine earns its rate when a part has features on several faces that must hold position to each other. Engine brackets, transmission housings, turbo flanges, EV motor end plates and suspension knuckle prototypes are typical. The angle between two bores matters more than either bore alone, and a single setup holds that angle far better than three.

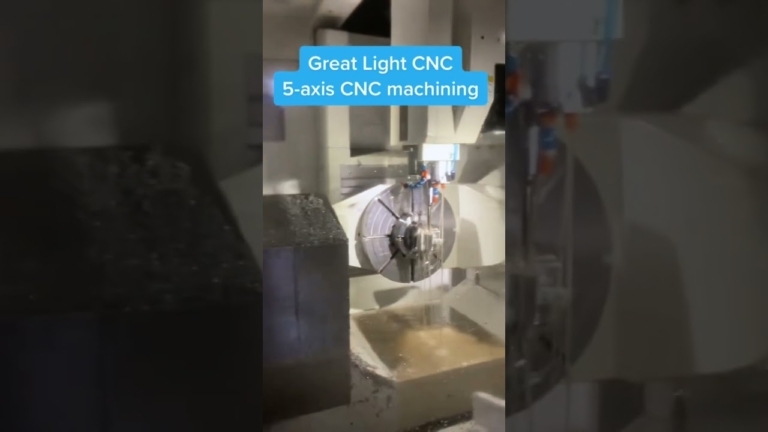

Simultaneous 5 axis means the tool stays normal to a curved surface while the rotary axes move. That is how you machine a port, a turbine-like blade or a sculpted housing wall with one continuous pass instead of stepping across it. It also lets a short, stiff tool reach into a deep pocket at an angle, which reduces chatter on thin walls.

Some parts look like five-axis work but are not. A flat plate with holes on one face, a shaft with turned diameters, a simple bushing: these run faster and cheaper on 3 axis or on a mill-turn center. Our 12 four-axis mills and 16 mill-turn centers handle that volume while the five-axis spindles stay on the hard geometry.

The honest test is feature count and orientation. Count how many distinct tool approach directions the part needs. One or two: 3 axis. Three or four on a prismatic block: 4 axis or a tombstone setup. Five or more, or any contoured surface that must be cut in a single pass: 5 axis.

• 1
  Good fitHousings, knuckles, covers with angled bores and contoured walls
• 2
  Poor fitFlat plates, simple shafts, parts with one machining direction
• 3
  Deciding numberCount distinct tool approach directions on the drawing

Every refixturing adds stack-up. If a bore is machined in setup one and a mating face in setup three, the tolerance between them is the sum of the fixture errors, not just the machine accuracy. On a five-axis center we often cut four or five faces in one clamping, so the relationship between them comes from the machine geometry alone. Our machining tolerance is ±0.005 mm (±0.0002 in), but the number that matters to your assembly is the position tolerance across features.

Fixtures deserve more attention than most drawings give them. Thin-walled housings distort when a vise closes on them. We use soft jaws bored to the part profile, or a dedicated fixture plate, and we control clamping force. For a part that will be measured on a CMM in free state, clamping strategy decides whether it passes.

On the 16 simultaneous five-axis centers we run a Ø400 mm rotary table. That suits most automotive brackets and covers. Larger work goes on machines with travels of 750 × 1,150 × 550 mm or 600 × 600 × 600 mm, and our maximum processing size is 4,000 mm for long structural parts. If a part fits in a 500 × 500 × 450 mm envelope, the compact five-axis cells usually give the best cycle time.

Chip evacuation is a real constraint in deep pockets. A five-axis tool can tilt to clear chips and reach coolant where a vertical spindle cannot. On aluminum housings with 8:1 depth-to-diameter pockets, that difference shows up as fewer broken tools and better surface finish at the bottom.

• 1
  One setup is not always possibleUndercuts and internal features may still need a second op
• 2
  Clamping forceSet for the wall thickness, not for maximum grip
• 3
  Datum choicePick the datum the assembly actually uses

Aluminum covers most automotive machining. 6061-T6 is the default for brackets and housings because it machines clean and takes anodizing well. 7075 gives higher strength for suspension and motor mounts where weight matters. 2024 holds fatigue strength better in some cyclic-load parts, though it needs a protective finish. For die-cast replacement work we also machine ADC12 castings.

Steel parts show up in driveline and structural roles. 4130 and 4140 are common for shafts, yokes and high-load brackets; 4340 for parts that see shock loading. Stainless 303 is easy to machine and used for fittings, while 17-4PH gives corrosion resistance plus strength for sensor housings and valve bodies. Titanium TC4 (Ti-6Al-4V) appears in motorsport and high-end EV hardware where mass matters more than cost.

Surface finish follows function. A sealing face on a housing needs Ra 0.8–1.6 μm or finer; a general machined surface at Ra 1.6–3.2 μm is fine for brackets that only need corrosion protection. Hardcoat anodizing is common on aluminum suspension and wear surfaces, and electroless nickel suits steel parts that see fuel or hydraulic fluid. Laser marking with a 1.5 mm minimum character height keeps part numbers readable after coating.

Tell us the operating environment before quoting. Road salt, brake heat, battery coolant and vibration each push the material and finish choice in a different direction, and changing it after machining is expensive.

• 1
  Weight-driven7075-T6 or Ti-6Al-4V for suspension and motor mounts
• 2
  Cost-driven6061-T6 for covers, brackets and low-load housings
• 3
  Wear or corrosionHardcoat anodizing, electroless nickel, black oxide

Automotive buyers usually need evidence, not just a good part. Our inspection is 100% before shipment, covering raw material check, in-process monitoring and final inspection. Reports are available on request, including dimensional results and material certificates. For parts that feed an assembly line, that package is often the difference between a smooth PPAP submission and a week of back-and-forth.

We hold IATF 16949:2016 for automotive quality management, alongside ISO 9001:2015, ISO 13485:2016 and ISO 27001:2022. Those certificates cover the system. The part-level control plan still has to be written for each program, and we build it around the critical characteristics your drawing calls out. Historical late-delivery probability sits below 2%, and our qualification rate is 99.99%.

Something to settle early: how will the part be measured? If a CMM report is required, agree on datum scheme, fixture state and which characteristics are critical before cutting chips. Machining a part that passes on the machine but fails on the customer's CMM wastes a cycle nobody gets back.

For prototype and low-volume automotive work there is no minimum order quantity. We run from one prototype to 10,000+ part runs, and production can start within 24 hours of an approved drawing. Quotation and free DFM analysis come back within 12 hours. Uploads stay secure and confidential, and an NDA is available on request.

• 1
  Critical characteristicsMark them on the drawing so control plan matches intent
• 2
  Datum agreementLock the scheme before first article
• 3
  DocumentationMaterial certs and dimensional reports on request

Five-axis time is not the main cost driver on most automotive parts; setup and fixturing are. A part that needs a custom fixture can cost more to prepare than to machine. When the geometry allows a one-setup five-axis route, we remove two fixtures and two datum shifts, and the total drops even though the spindle rate is higher.

Programming matters too. A well-planned simultaneous five-axis toolpath uses a short, rigid tool and keeps the load steady. A poorly planned one uses a long tool at an angle and forces slow feeds. Free DFM analysis at quote stage often finds features that can be relaxed without hurting function, and that is where the real savings sit.

Cycle time varies with material and feature count, but shipping usually happens 3–5 days after production starts for standard machined parts. For a program with many parts, we can stage deliveries rather than hold everything for one shipment. The five-axis centers run alongside 27 three-axis machines, 12 four-axis mills and 16 mill-turn centers, so volume does not have to wait behind prototype work.

If your part is still in concept, send the model before the drawing is frozen. Changing a boss height or a wall thickness in CAD costs nothing. Changing it after the first article costs a setup and a fixture.

• 1
  Cheapest changeGeometry edits before the drawing is released
• 2
  Biggest leverReducing the number of setups
• 3
  Second leverRelaxing tolerances that do not affect function
