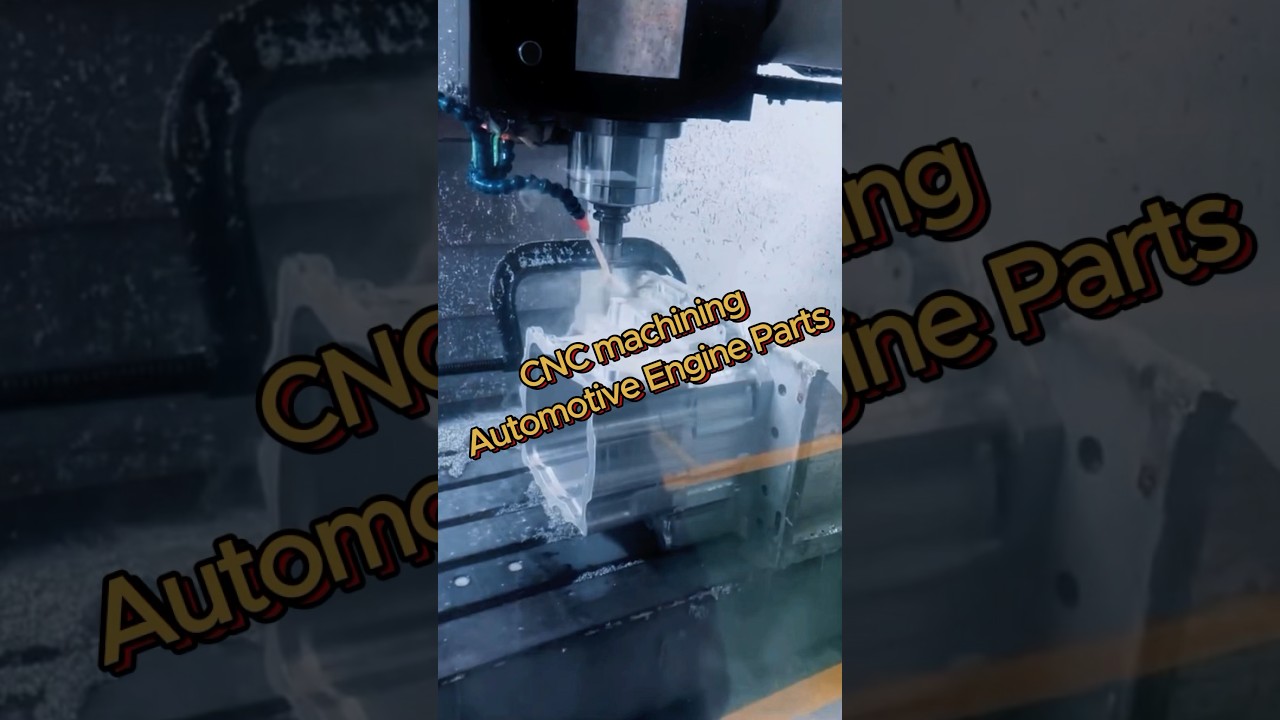

CNC Machining Automotive Engine Parts: How 5-Axis Cutting Changes the Job

• 1
  Why 3-axis setups struggle with CNC machining automotive engine parts
• 2
  What 5-axis actually buys you on bore and deck geometry
• 3
  How material choice shifts the cutting strategy
• 4
  Where the process stops making sense
• 5
  Machining method vs. part type and volume

An engine block is a box full of holes that have to agree with each other. The main bore axis, the deck face, the cam tunnel and the oil galleries all reference the same datum. On a 3-axis mill, every face you cut is a new fixture position. Each refixturing adds stack-up error, and the errors do not cancel out. A block that was dialed in to 0.01 mm on the first face may sit 0.03 mm off by the fourth.

Five-axis work removes most of that refixturing. The part stays clamped in one orientation while the table and spindle rotate around it. Bore-to-deck squareness, cam tunnel alignment and oil passage intersections come off one setup. For engine hardware, that single-setup advantage matters more than raw spindle speed.

There is a practical ceiling. A 4,000 mm travel machine will not hold the same tightness on a long part as a 500 mm machine, because thermal drift compounds over distance. We keep large engine blocks on the long-travel centers and small brackets, housings and covers on the compact 500 × 500 × 450 mm platforms.

The takeaway is simple. If a feature is defined by its relationship to another feature, cut both in one setup. If it is a stand-alone pocket or bolt pattern, 3-axis is fine and cheaper.

• 1
  One setup, one datumRelationships between bores, decks and tunnels stay inside one coordinate frame.
• 2
  Fixturing is the hidden costEvery extra clamp position adds time, tooling and error.
• 3
  Big machines, looser numbersTravel length trades against achievable tolerance.

Roundness in a cylinder bore is not just a diameter number. A boring bar deflects under load, and the deflection direction follows the tool path. On a 3-axis machine, the bar enters and exits at fixed angles, so the error repeats in the same place on every bore. Five-axis interpolation lets the tool axis tilt slightly through the cut, spreading the load and reducing the lobing that shows up on a dial bore gauge.

Deck flatness behaves the same way. A face mill on a rigid setup with the right feed per tooth will hold 0.02 mm across a small deck. As the deck grows, the machine has to stay level while it traverses, and spindle droop becomes visible. We use a Ø400 mm rotary table for medium decks so the cutter stays near the center of the work envelope.

Tolerance is not free. Holding ±0.005 mm on a production run means temperature control, in-process probing and a slower feed. On a prototype, you may only need it on two or three features. The rest can sit at ±0.05 mm and cut cost fast. Mark the critical dimensions on the drawing instead of applying one blanket tolerance.

Surface finish follows the same logic. A sealing face may need Ra 0.8–1.6 μm. An internal oil gallery at Ra 1.6–3.2 μm is usually enough. Fine boring to Ra 0.2–0.8 μm is possible, but only where the part actually needs it.

• 1
  Tool deflection is directionalTilting the tool axis spreads load and reduces lobing in bores.
• 2
  Flatness scales with sizeLarge decks need a stiff setup and a centered work envelope.
• 3
  Tolerance per feature, not per drawingBlanket tolerances are the fastest way to overpay.

Aluminum engine parts cut fast and move after machining. A 6061-T6 intake manifold will relax when you remove stock, so rough, let it sit, then finish. On a 7075 or 2024 part the residual stress is higher and the wait matters more. We rough, stress-relieve where the geometry allows, and finish to the final numbers.

Cast iron and steel behave differently. The graphite in cast iron breaks chips and dampens vibration, so boring bars run quieter. Steel grades like 4140 or 4340 work-harden if the feed is too light. You want a positive feed that gets under the hardened skin, not a slow rub. Stainless 17-4PH in the H900 condition will pull a boring bar off line if the insert geometry is wrong.

Titanium and Inconel are the slow end of the range. TC4 (Ti-6Al-4V) conducts heat poorly, so the cutting edge takes the temperature. Feed rates drop, tool life shortens and the cost per part rises. Use these only where the service temperature or strength requirement rules out aluminum or steel.

Magnesium AZ31B and AZ91D cut very fast but the chips are a fire risk. We run them on dedicated machines with chip management, not mixed with steel swarf.

• 1
  Aluminum moves after roughingRough, relax, then finish to final dimensions.
• 2
  Steel needs a real feedLight passes work-harden the surface and ruin the finish.
• 3
  Titanium is a heat problemPoor conductivity puts the thermal load on the insert.

Not every engine component should be machined from solid. A part with deep internal cavities, thin walls and no critical mating geometry is often cheaper as a casting with machined interfaces. The rule we use: machine what has to be accurate, cast what only has to be shaped.

Volume changes the answer too. At one to fifty pieces, machining from billet avoids tooling cost and lets you revise the design between runs. At 10,000 pieces, a die casting with a machined deck and bore seats will beat billet on unit price, provided the geometry is stable enough that you will not change it.

There is no minimum order quantity here. A single prototype and a 10,000-part run go through the same quoting process. What changes is the fixture investment and whether we cut from billet or from a near-net blank.

One more boundary: if the drawing calls for a feature that no cutter can reach, no amount of 5-axis travel fixes it. Send the model early and we will flag it before the first chip.

• 1
  Machine the interfacesCritical mating surfaces come off the CNC, the rest can be cast.
• 2
  Volume decides the methodBillet for prototypes, castings for long runs.
• 3
  Reach beats travelUnreachable features need a design change, not a bigger machine.
