5 Axis Machining Automotive Parts: Where It Fits

A 5-axis center earns its cost when a part has features that cannot be reached from one spindle direction, or when each extra setup adds more error than the part can absorb. Typical candidates are aluminum cylinder heads, transmission housings, pump bodies, turbocharger housings, suspension knuckles and electric motor end plates. What they share is a set of angled ports, bores or sealing faces that must be machined relative to one another.

The decision rarely comes down to axis count alone. A part with five flat faces and simple drilled holes runs faster on a well-fixtured 3-axis machine with two repositions. When the same part carries a 30° angled oil gallery intersecting a Ø12 mm main bore at a controlled depth, the trigonometry of repositioning starts to eat the tolerance budget. That is the point where simultaneous 5-axis work becomes cheaper than chasing the stack-up.

Automotive volume also changes the answer. One-off brackets for a test mule look nothing like a 10,000-piece run. For prototypes and low-volume builds, no minimum order quantity means a single engine component can go straight onto a 5-axis center within 24 hours of a released drawing. For high-volume programs, we would usually argue for a casting plus dedicated fixtures rather than cutting from solid.

• 1
  Good fitAngled ports, compound-angle faces, deep cavities with limited tool access.
• 2
  Marginal fitMostly prismatic parts with two or three repositions and loose tolerances.
• 3
  Poor fitSimple plates, shafts and bushings better suited to turning or mill-turn.
• 4
  Volume noteAbove roughly 10,000 parts, compare casting or forging before quoting from solid.

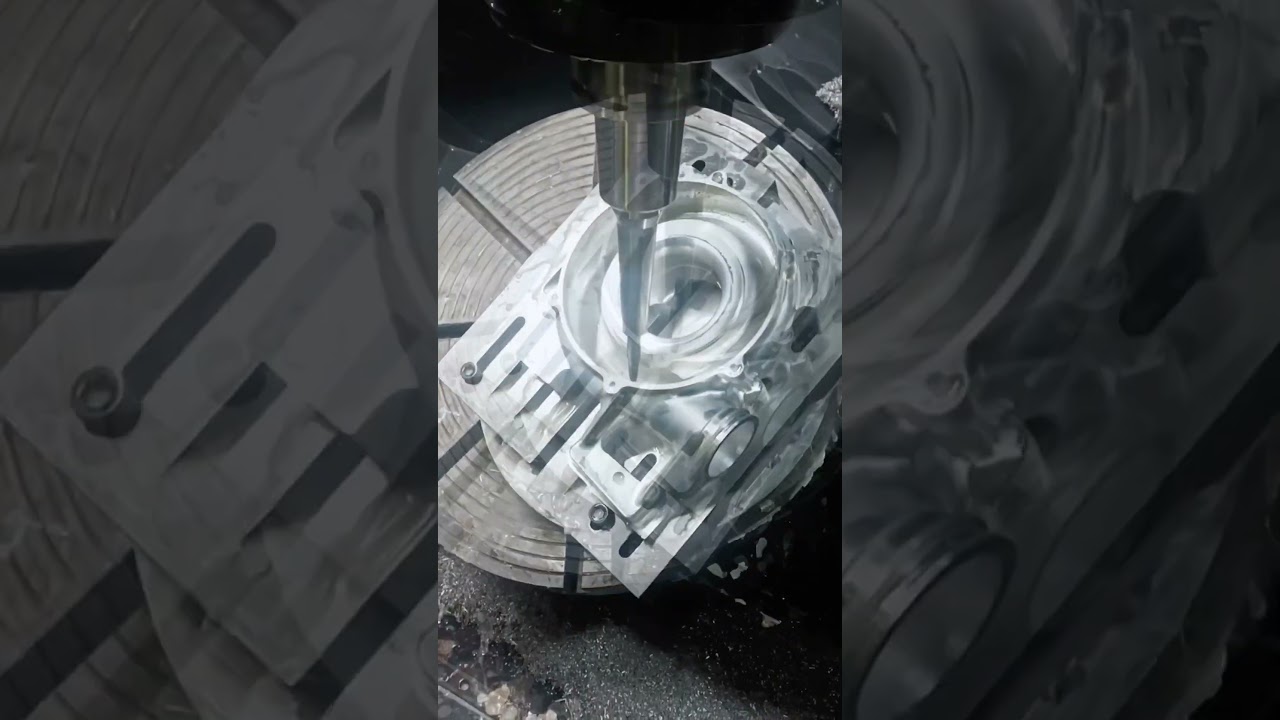

Every reposition costs time and accuracy. On a 5-axis machine, the part stays clamped while the table and spindle orient around it, so datums set at the first cut stay valid through the whole cycle. A housing that would need four operations on a 3-axis mill can often be finished in two: one for the main body, one for the opposite face if the geometry demands it.

Datum choice drives everything downstream. We set the primary datum on the largest stable surface, then use a bore or a pair of holes as the secondary and tertiary reference. Automotive housings tend to be thin-walled, so clamping force matters as much as the fixture design. Over-tightening a 3 mm wall will move it by more than the ±0.005 mm tolerance before the cutter even touches metal.

For long parts, the Ø400 mm rotary table and travels up to 4,000 × 400 × 150 mm cover most chassis and driveline components. Compact work such as sensor brackets and valve bodies runs on 500 × 500 × 450 mm or 500 × 310 × 200 mm machines, which reach higher spindle speeds and shorten cycle time. Matching the part to the right machine size is a bigger lever on cost than most people expect.

Fixtures for automotive work are usually soft jaws or a dedicated plate with locating pins. Where the part has no natural flat, we machine a temporary tab or a pour-in holding feature that gets removed in the final operation. That tab has to be planned at the quoting stage, not added later, because it changes the stock size and the price.

We hold ±0.005 mm (±0.0002 in) on critical features when the geometry and material allow it. That number is not automatic across a whole part. A 200 mm aluminum housing with a thin wall will not hold the same band as a 40 mm steel insert, and pretending otherwise creates scrap. The realistic approach is to agree on which features carry tight tolerance and leave the rest at general machining tolerance.

Surface finish follows the same logic. A sealing face may need Ra 0.8–1.6 μm, a bearing bore may need Ra 0.2–0.8 μm, and a non-functional mounting pad is fine at Ra 1.6–3.2 μm as machined. Specifying fine finish everywhere adds cycle time with no benefit to the part. We flag those features during the free DFM review that comes back with the quotation.

Material choice affects the cut more than the machine. Aluminum 6061-T6, 7075 and ADC12 machine freely and hold dimension well. Stainless 316L and 17-4PH work-harden, so light radial passes and sharp tooling keep the bore from springing. Inconel and titanium TC4 (Ti-6Al-4V) need slower speeds and more coolant, which shows up in cycle time rather than in accuracy.

Thermal drift is the quiet problem on automotive work. A spindle running for hours grows, and a part pulled hot will measure differently after it cools. We rough, let the part stabilize, then finish. On thin housings that pause is not optional. Inspection happens after the part reaches room temperature, which is why 100% inspection before shipment is done at the end of the cycle rather than at the machine door.

Inspection runs in three stages: raw material check on incoming stock, in-process monitoring during the cut, and final inspection before packing. The raw material check confirms the alloy and condition, because a 6061-T6 bar supplied as 6061-T4 will not hold the same dimensions after machining. Reports are available on request for programs that need documented traceability.

On the machine, probing verifies datums and checks critical features while the part is still clamped. That catches drift early, before a batch of ten housings is finished wrong. Off the machine, CMM inspection covers the tight-tolerance features, and simple go/no-go gauges handle high-volume holes where speed matters more than a full report.

For automotive programs, the quality system behind the shop matters as much as the machine. Our IATF 16949:2016 certification covers the automotive quality management requirements, on top of ISO 9001:2015. Tooling and programs are kept under document control, so a revision change on your drawing does not silently produce parts to the previous level.

Confidentiality is part of the workflow. Uploads are handled as secure and confidential, and an NDA can be signed before drawings are shared. That matters for unreleased vehicle programs where the part geometry itself is the sensitive information.
