A 3-axis mill moves the part under a spindle that always points straight down. Adding two rotary axes sounds like a small change. It is not. On a true simultaneous setup, the tool tip stays on a programmed path while the table tilts and rotates underneath it. The control solves five axes at once, not one after another.

That single difference decides where the cutter engages. A ball nose tool can be held at a fixed lead angle to the surface instead of rolling from climb to rub as the wall steepens. Chip load stays closer to constant. Heat leaves with the chip instead of soaking into the part.

The payoff shows up on deep pockets, blended fillets, port walls and any geometry where a long tool would normally chatter. Reach becomes a solved problem rather than a compromise. Setup count usually drops from three or four to one, which matters more for position tolerance than for cycle time.

• 1
  Fixed lead angleTool axis leans to keep the same engagement on the whole surface
• 2
  One setup, more facesDatum stays the same across features, so stacked tolerance does not grow
• 3
  Shorter toolsThe head reaches the feature instead of the tool shank

Many shops call any machine with a tilting table a 5-axis machine. The distinction that matters is whether the rotary axes move while the cut is happening. In 3+2, the table tilts to a new angle, locks, and then the tool cuts in three axes. The part is repositioned, not continuously oriented.

Positioned work is fine for a flat face reached at an angle, a bolt pattern on a sloped pad, or a pocket floor that sits off-normal. You get the reach without the programming cost. Cycle time is often lower because the rotary axes are not in motion during the cut.

Simultaneous motion earns its cost when the surface curvature changes across the toolpath. A turbine-style impeller blade, a port with a continuous sweep, or a rib that twists cannot be reached by a series of locked planes without leaving witness marks. The rotary axes have to stay live. That is the point of the linkage.

• 1
  3+2 for reachAngle once, cut in three axes, lower programming effort
• 2
  Simultaneous for curvatureRotary axes move with the cut, no blend lines
• 3
  Watch the true costSimultaneous toolpaths are longer to program and verify

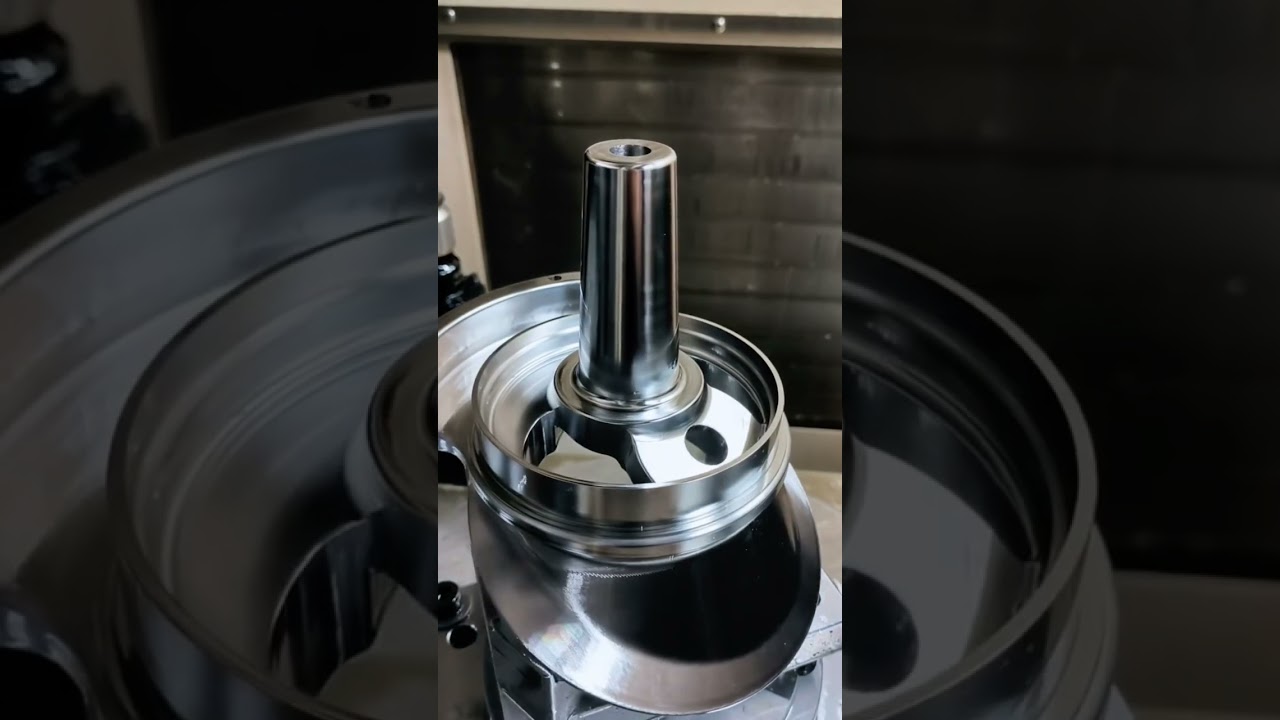

Engine and transmission castings are the classic case. A cylinder head port, a valve body channel or a turbo housing wall has curvature in two directions at once. Machining it in three setups means three datums and three chances to stack error. One linkage setup holds the port geometry to the head deck in a single frame.

EV work shifts the demand rather than removing it. Motor housings, inverter cold plates and battery tray brackets often have angled bosses, coolant channels and lightening pockets that intersect. These are not freeform surfaces, but they are non-orthogonal, which is exactly the gap between 3-axis and 3+2.

Suspension and steering hardware is a different reason again. A knuckle or control arm may be simple in shape but must hold bore-to-bore position across several faces. Fewer setups means fewer datum transfers, and datum transfers are where position tolerance quietly disappears. The geometry is easy. The tolerance stack is not.

• 1
  Ports and channelsContinuous curvature that cannot be reached in locked planes
• 2
  Angled bosses and pads3+2 may be enough if the face is flat
• 3
  Multi-face bore positionOne frame beats three datums

Rigidity is the first limit. A tilted rotary table puts the part out over the trunnion, away from the stiffest part of the machine. Long tools held at an angle deflect more than the same tool held vertically. If the feature is a deep bore in a hard material, a 3-axis setup on a rigid block may hold size better than a tilted one.

Cost is the second. Simultaneous toolpaths take longer to program and need simulation before they run. The post-processor has to be right, or the rotary axes will move in ways the CAM software did not intend. For a one-off bracket, that engineering time can exceed the machining time.

Size is the third. Rotary tables and trunnions carry a working envelope. A 4,000 mm frame rail does not fit on a tilting table, but it machines well on a large 3-axis bed with the right fixtures. Match the part to the machine, not the machine to the fashion.

• 1
  Tilted equals less stiffDeep bores in hard stock may hold size better upright
• 2
  Programming loadSimulation and post checks add hours before the first chip
• 3
  Envelope limitsLong parts belong on a large 3-axis bed

It removes setup error. When all critical features are cut in one frame, the error between them depends on machine geometry, not on how well a fixture was reloaded. That is real, and it is often the strongest argument for the process on a tolerance-critical part.

It does not remove thermal drift. A tilted head and a five-axis control generate heat in different places than a 3-axis machine. On long cuts, the geometry can walk. In-process probing and a warm-up cycle handle most of it, but the drift is still there and should be planned for.

It does not improve surface finish by itself. Finish comes from tool choice, stepover, feed and rigidity. A linkage toolpath can hold a constant scallop height on a curved surface, which is an advantage, but only if the tool and the holder are stiff enough to cut at that stepover without chatter.

• 1
  Setup error goneFeature-to-feature position comes from machine geometry
• 2
  Thermal drift staysProbing and warm-up cycles are not optional on long cuts
• 3
  Finish is separateConstant scallop helps only if the setup is rigid
