5-Axis Batch Processing Automobile Parts: How It Actually Works

• 1
  Key takeaways
• 2
  Why 5-axis batch processing automobile parts changes the error budget
• 3
  Which automobile parts belong on a 5-axis batch cell
• 4
  Cycle time in 5-axis batch processing automobile parts
• 5
  Fixturing, probing and the limits of the method
• 6
  Step by step: running an automobile part batch on 5-axis
• 7
  3-axis vs 4-axis vs 5-axis for automobile part batches

On a 3-axis mill, every face that points away from the spindle needs its own setup. A steering knuckle with six machined faces can easily become four fixtures, four datums and four chances to stack tolerance. Each re-clamp moves the part relative to the machine origin, so the error that matters is not the machine's positioning accuracy but the repeatability of the fixture and the operator's ability to seat the part the same way twice.

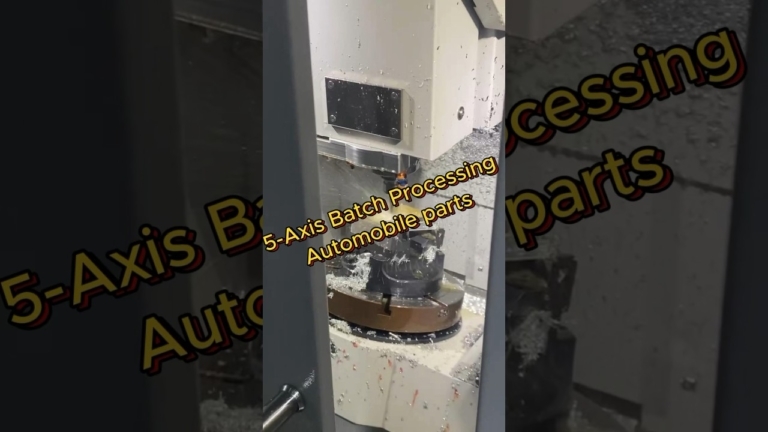

A simultaneous 5-axis center removes that stack by rotating the part or the spindle instead of re-fixturing it. With a Ø400 mm rotary table, the workpiece is set once and tilted through the required angles. The relationships between bores, faces and bolt patterns are then established inside one coordinate frame rather than being re-established by hand each time. That is the real mechanism behind tighter batch consistency, and it is why ±0.005 mm holds across a run rather than on a single first article.

The trade-off is that 5-axis machines are more sensitive to what happens before the cut. A rotary axis with any backlash, thermal drift or probe error spreads that error through every feature cut from that orientation. Process control shifts upstream: probing routines, warm-up cycles and stable coolant temperature matter more than they do on a 3-axis machine.

• 1
  Fewer datums, less stack-upOne setup replaces three to four re-clamps on a typical housing.
• 2
  Rotary accuracy is the new limitTable backlash and thermal growth now sit in the tolerance chain.
• 3
  Probing moves upstreamIn-process probing keeps the datum honest across a long run.

The deciding question is angular. If a part has features on three or more faces that are not mutually perpendicular, or if it has compound-angle holes, undercuts or a deep cavity that a straight tool cannot reach, 5-axis shortens the process. Engine brackets, transmission housings, knuckles, suspension arms, turbo housings and EV motor end plates all fall into that group. So do thin-walled parts where re-clamping would distort the wall before the second operation even starts.

The opposite case is just as clear. Flat plates, simple flanges, round bushings and shaft-type parts with features on two faces rarely benefit. On a 3-axis machine with a good fixture, they run faster, cheaper and with a shorter programming cycle. Moving them to a 5-axis cell occupies an expensive spindle with work that a 27-machine 3-axis pool could absorb. The judgment is not about machine capability. It is about whether the part's geometry actually needs rotary motion.

There is a middle band worth watching. Parts with one angled face can sometimes run on a 4-axis mill with a tombstone, which is cheaper per hour than a simultaneous 5-axis center. Parts that only need the tool to reach in at an angle, without the part changing orientation continuously, often fit 3+2 positioning better than full simultaneous motion. We sort incoming drawings into these bands before quoting, because the wrong band inflates the price with no gain in quality.

• 1
  Strong fitCompound angles, deep cavities, thin walls, housings, knuckles.
• 2
  Weak fitFlat plates, flanges, bushings, two-face shaft work.
• 3
  Middle bandOne angled face: 4-axis or 3+2 often costs less.

Engineers usually compare cycle time as a single number. On 5-axis work it splits into cut time and non-cut time, and the two move in opposite directions. Simultaneous motion shortens the cutting path and often raises feed rate through corners because the tool stays normal to the surface. At the same time, rotary acceleration limits how fast the machine can reposition, and a heavy fixture or an unbalanced part forces the control to slow the rotary axes to avoid chatter.

For batch runs, the more useful metric is time per good part across the whole run, not the fastest single cycle. A cell that runs 200 parts with one setup and one probe cycle usually beats a 3-axis line that machines faster per cycle but stops four times per part for re-fixturing and inspection. Add the cost of a scrapped part at operation three and the gap widens further.

Tool life behaves differently too. 5-axis tool paths hold a more consistent engagement angle, which spreads wear along the flute instead of concentrating it at one point. In aluminium grades like 6061, 6082 and 7075 that shows up as longer intervals between changes. In titanium such as TC4 (Ti-6Al-4V) or Inconel, the limiting factor becomes heat and the need for high-pressure coolant rather than geometry, so the advantage is smaller.

• 1
  Cut vs non-cutRotary motion cuts air time but adds acceleration limits.
• 2
  Cost per good partInclude scrap at later operations, not just cycle seconds.
• 3
  Material changes the mathAluminium gains most; titanium and Inconel gain least.

A 5-axis fixture has one job: hold the part rigidly enough that rotary motion does not move it. Self-centering vises with machined soft jaws work well for housings and brackets up to a few kilograms. Larger castings and structural parts need a tombstone or a modular plate with a locating bore and a clocking feature, so the part cannot rotate on the table when the A axis tilts. Anything that can shift during a rotary move will show up as a bore that is round but out of position.

Probing closes the loop. A spindle probe touches the raw casting or the first machined face and shifts the work coordinate system to match. This absorbs casting variation, which is common in automotive work where a sand or die casting may move 0.3 mm between lots. Without probing, the programmer has to allow for the worst case and the tolerance budget shrinks for no reason.

There are hard limits. Maximum processing size on our larger cells is 4,000 mm, and travel on the medium cells is 750 × 1,150 × 550 mm or 600 × 600 × 600 mm, so a part larger than the envelope has to be split or moved to a different process. Simultaneous motion also needs more clearance between tool holder and workpiece than a 3-axis cut does. Deep pockets with a long tool can hit the holder against the wall on a tilt, which forces a shorter tool and a repositioned strategy.

Surface finish follows the same logic. As-machined surfaces land around Ra 1.6–3.2 μm, high-finish passes reach Ra 0.8–1.6 μm, and fine finishing reaches Ra 0.2–0.8 μm. Rotary motion makes it easier to keep a constant stepover on a curved surface, which is why 5-axis work often looks more uniform than the same surface cut in three indexed setups.

• 1
  Rigidity firstAny shift during a rotary move becomes a position error.
• 2
  Probe the raw stockAbsorbs casting variation of 0.3 mm or more between lots.
• 3
  Watch holder clearanceLong tools can strike the wall when the table tilts.
