  What five-axis automotive parts manufacturing actually changes
• 2
  Part shapes where five-axis machining earns its cost
• 3
  Tolerance, finish and the rotary stack-up
• 4
  Material behavior on a tilted tool axis
• 5
  Fixturing, probing and the first-article loop
• 6
  Three-axis, four-axis or five-axis for automotive parts

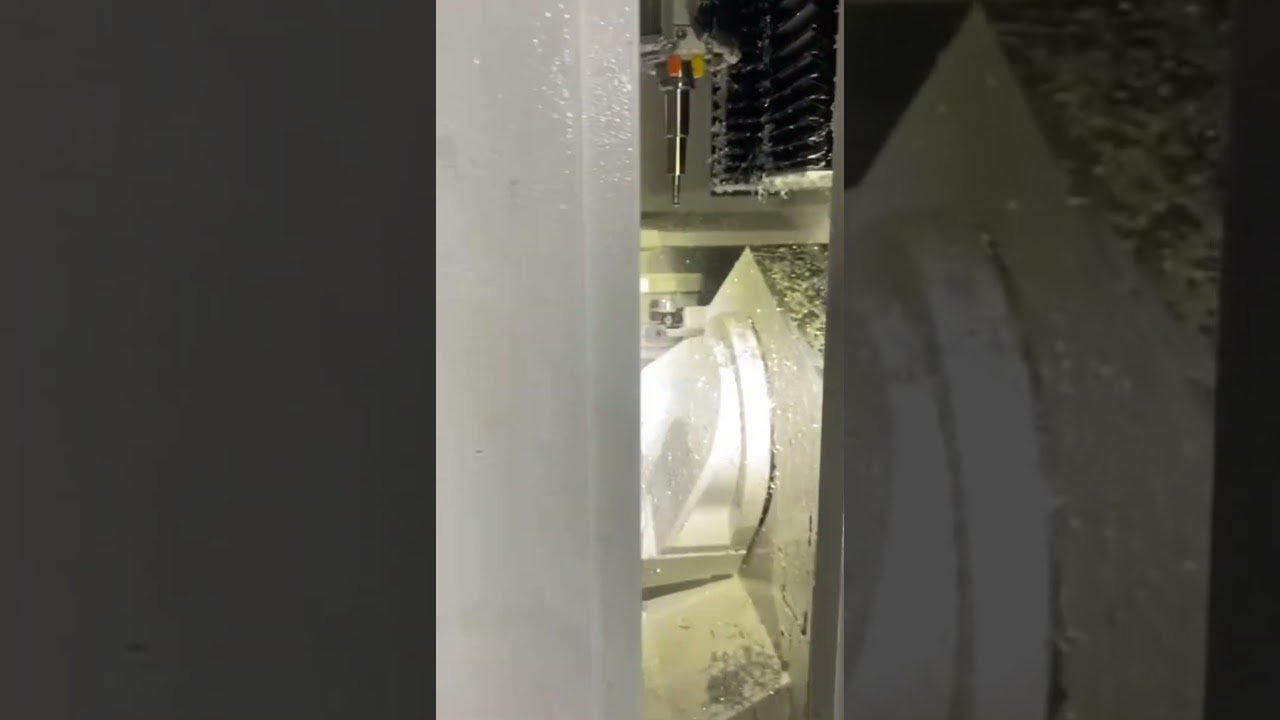

A three-axis mill moves the part in X, Y and Z. The tool axis stays vertical, so every machined face has to be presented to the spindle by a separate setup or a purpose-built fixture. Five-axis automotive parts manufacturing adds two rotary axes, usually a trunnion carrying the part or a swiveling spindle head. Now the tool can approach a face from an angle instead of the part being repositioned.

That single change removes a lot of hidden work. Deep pockets, undercuts and intersecting bores can be cut without unclamping. On an aluminum transmission housing, for example, a five-axis center can drill the end face, then tilt and bore a cross passage in the same cycle. Each unclamping step is a chance to lose position, so fewer setups means tighter stack-up.

The rotary axes also let the tool stay in contact along a curved surface. Instead of stepping down in Z and leaving scallops, the tool tip follows the surface normal. That is the reason five-axis toolpaths leave a finer finish on cylinder head ports, turbine housings and EV motor end plates. Fewer witness lines means less hand blending afterward.

None of this happens automatically. The CAM programmer has to define the tool axis vector, not just the toolpath center. A wrong vector tilts the cutter into the wall. So five-axis work shifts effort from the shop floor to the programming desk and the simulation step.

• 1
  Two extra axesRotary motion is added around two of the three linear axes, usually A and C.
• 2
  Fewer setupsFive faces can often be reached from one clamping position.
• 3
  Tool-axis controlThe programmer sets tilt and lead angle, not only X, Y and Z.

Five-axis time is more expensive per hour than three-axis time. The machine costs more, the programming takes longer, and the simulation is not optional. So the question is not whether five axes are better. It is whether the part needs them.

The clearest case is a part with features on several faces that must be concentric or perpendicular to each other. A turbocharger bearing housing has a bore, a flange face and mounting holes that all reference the same axis. Cutting them in one setup keeps that relationship. Cut them in three setups and the tolerance stack grows with every re-clamp.

The second case is a contoured surface that has to be finished in one pass. Ports, impellers, and some suspension arms fall here. If the surface is a simple flat or a straight bore, three axes are cheaper and just as accurate.

The third case is a part that is hard to fixture. Thin-walled housings, castings with draft, and parts without a good datum tend to move when you clamp them a second time. One setup avoids re-datuming a shape that was never rigid to begin with.

Outside those three cases, five axes often lose. A flat bracket, a shaft with turned features, a plate with holes on one face: these are faster on a three-axis mill or a lathe, and the tolerance is just as good.

• 1
  Multi-face featuresConcentric bores and faces that must stay true to one datum.
• 2
  Free-form surfacesPorts and impellers finished in one continuous pass.
• 3
  Weak workholdingParts that shift when clamped a second time.
• 4
  Not worth itSingle-face plates and simple turned shafts.

Five-axis accuracy is not one number. Linear axes hold one error, the rotary table adds another, and the tool tip carries both. That is why a machine that holds ±0.005 mm in three axes does not automatically hold ±0.005 mm with a tilted tool 200 mm off the table center.

The error grows with distance from the rotary center. A feature cut 50 mm from the C-axis center sees a small amplification. The same feature 300 mm out sees roughly six times more. Shop practice is to keep critical features close to the rotary center and to verify them with a probe or a CMM after the first part.

Finish behaves the same way. With the tool tilted, the effective contact point and the effective feed change. A wall cut at 45° lead angle finishes differently than the same wall cut square. Programmers tune lead and tilt angle, then confirm on a test blank before running the batch.

Thermal drift matters on long cycles. A five-axis center running a two-hour cycle will warm up and move. On automotive parts with tight bores, we let the machine idle to temperature first, then cut, then check. That habit is worth more than any spec sheet number.

• 1
  Distance multiplierError grows with distance from the rotary center.
• 2
  Tilt changes finishLead and tilt angle shift the effective cutting speed.
• 3
  Warm-up firstLong cycles drift; stabilize the machine before cutting.

Aluminum is the easy case. 6061, 6061-T6, 7075 and ADC12 cut fast on five axes, and the light cutting force does little to push a tilted tool off path. Most automotive housings, covers and brackets we machine are aluminum. Surface finish of Ra 0.8–1.6 μm is routine, and Ra 0.2–0.8 μm is reachable with a finishing pass.

Stainless and steel are harder on the rotary axes. 304, 316L, 4140 and 4340 push back, and a long tool held at an angle deflects. We shorten the gauge length, reduce stepover, and accept a slower cycle. On 17-4PH or Inconel, the tool axis angle matters even more because the material work-hardens if the cutter rubs instead of cuts.

Titanium TC4 and magnesium AZ31B or AZ91D each bring their own rule. Titanium needs sharp edges and low lead angles to keep heat out of the part. Magnesium cuts fast but the chips are a fire risk, so we run it with proper coolant and chip clearing, not dry.

Plastics and carbon fibre are common in automotive prototyping. POM and PEEK hold dimension well. Carbon fibre eats tool edges and needs dust extraction. On any of these, a five-axis toolpath that keeps the cutter engaged is better than one that lifts and re-enters.

• 1
  AluminumFast, low force, tolerant of tilted tools.
• 2
  Steel and stainlessShort tools and light stepover to limit deflection.
• 3
  Titanium and InconelLow lead angle, sharp edges, control the heat.

Five-axis workholding is where projects succeed or fail. Because the part rotates, the fixture rotates too. Its mass has to stay low and balanced, or the rotary table cannot hold position at speed. Soft jaws machined in place, a zero-point pallet system, and low-profile clamps cover most automotive parts.

We leave stock on non-critical faces so the part can be gripped for later operations. On a casting, we machine a temporary datum pad first, then use it to hold the part for the main cut. That pad is removed in the final pass.

Probing is the second half. A touch probe on the machine finds the actual stock position before cutting, so the program shifts to the real part instead of the nominal one. On castings and forgings, that alone saves a re-cut. After the run, a CMM confirms the features that matter.

We run 100% inspection before shipment, with reports on request. Raw material checks, in-process monitoring and final inspection are standard. For automotive work that has to meet IATF 16949:2016, the paper trail matters as much as the part. A first article that passes but cannot be documented is not finished.

• 1
  Balance the fixtureLow mass, symmetrical, safe at rotary speed.
• 2
  Probe before cuttingShift the program to the real stock position.
• 3
  Document the runInspection reports support IATF 16949:2016 work.
