5 Axis Aluminum Manufacturing for Automotive and Engine Parts

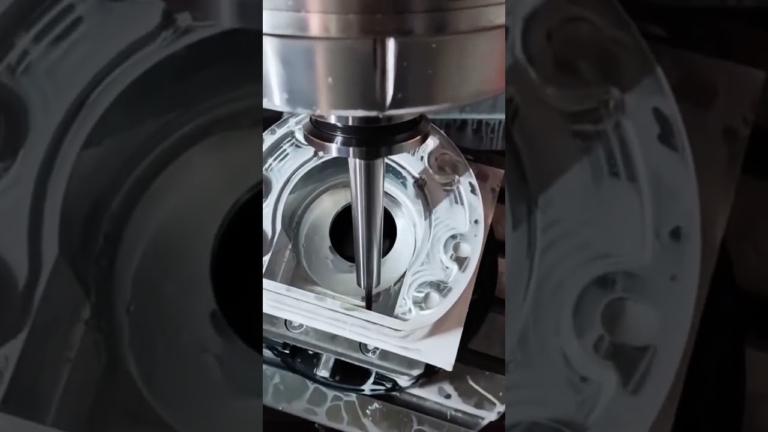

Every time a part moves to a new fixture, you add a stack of error. On a 3-axis mill, a housing with features on five faces means four or five setups, four or five chances to lose the datum, and a lot of re-indicating between them. Simultaneous 5-axis work holds the part in one grip and tilts the spindle or the table to reach the remaining faces. On aluminum, that difference is easy to measure because the material cuts so freely that the machine error dominates the tolerance stack.

The rotary table on our compact and medium 5-axis centers is Ø400 mm. That limits how much of a long part you can swing, but it also means the work stays close to the rotary center, where angular error is smallest. For deep pockets or undercut walls, a short, rigid tool holder tilted 30° or 45° reaches where a straight holder would need a long, skinny tool that chatters.

One grip also means one thermal state. Aluminum moves with temperature, roughly 23 μm per meter per °C. A part that sits between setups for an hour and gets handled by two operators will not come back to the same size. Staying in the vise removes most of that variable.

This is the real argument for 5 axis aluminum manufacturing on complex parts: not speed, but a shorter error chain.

We work to ±0.005 mm (±0.0002 in) on aluminum features that get finished in the same setup that establishes them. That number is a floor, not an average. It assumes a rigid setup, a sharp cutter, and a feature you can reach without a long overhang. Push a Ø6 mm end mill 60 mm deep in 6061 and you will see deflection long before you see the tolerance slip.

Surface finish runs Ra 0.8–1.6 μm on most milled faces. If a sealing face or a bearing bore needs better, we can reach Ra 0.2–0.8 μm with a finishing pass and the right insert, but it costs cycle time and should be called out on the drawing. As-machined faces at Ra 1.6–3.2 μm are fine for brackets and covers.

Thin walls are the usual failure point. In 6061, a wall under 1.0 mm will spring during roughing and move again when you unclamp. We rough with the wall supported, leave 0.3–0.5 mm for a light finish pass, and take the finish cut at low radial engagement. A wall that thin will still move if the part is large and the section is open.

Put the tight tolerance on the features that matter and let the rest run loose. Drawings that call ±0.005 mm everywhere get quoted high and machined slow for no functional gain.

Plenty of aluminum parts are flat. A plate with pockets, slots, and holes on one face machines faster and cheaper on a 3-axis mill. The part never needs to be re-oriented, so the extra axes add nothing. We quote those on 3-axis machines and keep the 5-axis capacity for work that earns it.

Parts that fit in a single vise and need two faces are often better on a 4-axis horizontal, where the tombstone holds several parts at once. If your annual volume is high and the geometry is simple, a dedicated fixture and a 3-axis cell will beat a 5-axis cycle on cost per part.

The tipping point is usually feature count on non-orthogonal faces. Three or more angled faces, compound angles, or a contour that wraps around the part: that is where simultaneous 5-axis aluminum manufacturing pays for itself. Below that, it is an expensive way to do a simple job.

Send the drawing and we will tell you which machine it belongs on. That answer is free and it saves money on both sides.

Every part gets a raw material check, in-process monitoring, and a final inspection before it ships. We run 100% inspection, not a sample, and dimensional reports are available on request. For automotive work under IATF 16949:2016, that record trail matters as much as the part.

Finishing options for aluminum include anodizing in clear, color, hardcoat, and conductive types, plus electroless nickel, zinc, powder coating, and black oxide. Bead blasting, brushing, and polishing cover cosmetic needs. Laser marking works down to 1.5 mm character height, which is about the limit for a readable part number on a machined boss.

There is no minimum order quantity. We run one prototype or a 10,000+ part run on the same equipment. Prototypes ship in 3–5 days once the program is proven, and production can start within 24 hours of a released order. Historical late-delivery probability sits below 2%.

Quotation and a free DFM analysis come back within 12 hours. The DFM note usually flags a wall, a tool reach, or a tolerance that will cost you money, and it is worth reading before you approve the first cut.
