CNC Automotive Parts Processing: How 5-Axis Work Wins on Hard Parts
This page explains what automotive parts processing involves on a CNC machine, from raw billet to inspected part. It covers 5-axis setups, tolerance ranges, material behavior, and where the process stops making sense. Written for design and process engineers who judge feasibility before quoting.

What CNC automotive parts processing actually removes
Subtractive machining is the core of this work. A rotating cutter removes material from a solid billet until the geometry matches the CAD model. Nothing is formed or cast, so the mechanical properties of the stock carry straight into the finished part. That matters on suspension arms, brake calipers, and EV motor housings, where grain flow and porosity decide fatigue life.
Stock selection drives the rest of the plan. A 6061-T6 plate behaves differently from a 7075 extrusion, and a 17-4PH bar cuts nothing like mild steel. Harder alloys hold tolerance better after heat treat, but they eat tool life and push cycle time up. On thin walls below 1.5 mm, the cutter deflects the part more than it cuts it, so we often leave ribs and machine them in a second pass.
The cutting edge is only half the story. Fixture stiffness and thermal drift matter just as much. An aluminum bracket that measures 20.02 mm at 8 a.m. can drift 15 μm by mid-afternoon if the spindle warms up and the coolant runs cold. We warm spindles before the first cut and hold coolant within ±2 °C on tight jobs.
Every operation is planned backward from the drawing. Datum surfaces get machined first, then located features, then cosmetic faces last. That order keeps the stack-up inside ±0.005 mm instead of chasing it after the fact.
Why five-axis setup changes the tolerance stack
A 3-axis machine positions the part three ways. Every new face means a new fixture or a new vise jaw, and each re-clamp adds error. Five-axis centers tilt and rotate the part under the spindle, so five faces can be cut in one setup. Fewer setups mean fewer datum shifts and a shorter stack-up.
That matters most on parts with angled ports, compound surfaces, or features on four sides. A turbo housing with a 37° inlet flange and a curved outlet is a natural five-axis job. On a 3-axis machine it becomes four fixtures and a lot of re-indicating. Each re-clamp can add 10 to 20 μm of positional error, which is enough to fail a true-position callout.
Simultaneous five-axis is not always faster. On a simple flat plate with through-holes, a 3-axis mill with a good vise will beat it on cycle time and cost. The gain appears when the part needs compound angles, deep pockets with drafted walls, or a single datum that must hold across many faces.
We run 16 simultaneous five-axis machining centers, plus 12 four-axis mills and 27 three-axis machines. Matching the part to the right platform is where the cost saving lives.
Material behavior that decides the cut

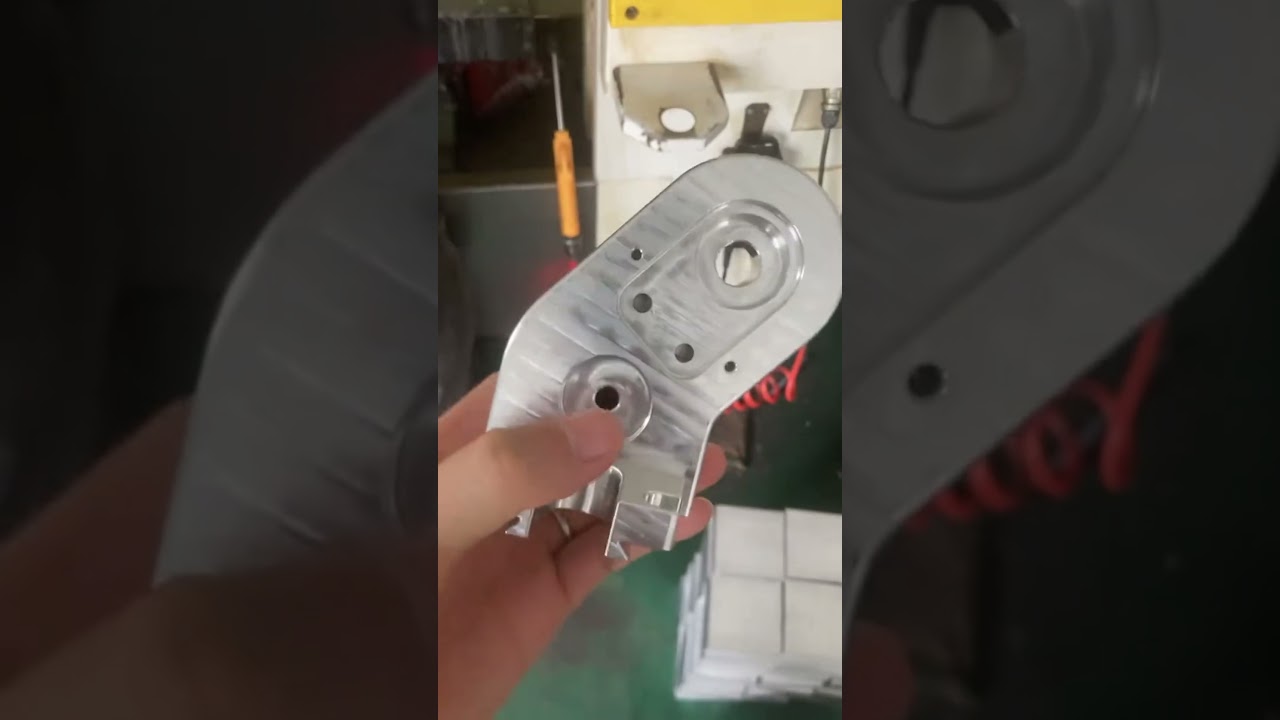

Aluminum is the default for brackets, housings, and heat sinks. 6061-T6 machines clean and anodizes well. 7075 gives higher strength but chips hard and cracks at sharp internal corners, so we apply a 0.5 mm minimum fillet. ADC12 die-cast stock is porous and needs a light skim before any sealing face is cut.
Stainless grades 303 and 304 cover most brackets and fittings. 316L is the pick for exhaust-side parts and anything exposed to road salt. 17-4PH holds ±0.005 mm after aging and is common on fuel system components. Stainless work-hardens fast, so we keep feed per tooth up and never let the cutter rub.
Steel and titanium follow the same rule: rigidity first. 4140 and 4340 are oil-quenched before finish cuts. Ti-6Al-4V cuts at roughly one-third the speed of aluminum and needs flood coolant to stop the chip welding to the insert. Inconel is reserved for hot-side parts where nothing else survives.
Plastics like POM, PA, and PEEK appear on intake and sensor housings. They move with temperature, so we cut them in a climate-controlled bay and inspect at 20 °C.
Features that push a part onto five-axis work
Certain geometry signals that multi-axis is the right call. Look for features that sit on non-parallel faces, need to be drilled at an angle to the primary datum, or must share a true-position tolerance with a curved surface. Drafted walls deeper than 4× the cutter diameter also point that way, since a straight Z-axis tool cannot reach the floor without a long, thin cutter that chatter will defeat.
Undercuts are another signal. An O-ring groove on the inside of a bore, a snap ring relief, or a back-drafted sealing lip cannot be cut from one direction. A tilting head reaches them; a 3-axis machine cannot without a custom tool.
We also see this on bearing bores that must stay coaxial to within 0.01 mm across a 300 mm housing. Cutting both bores in one setup removes the re-clamp error entirely.
The reverse is also true. A flat plate with a bolt pattern, a spacer, or a simple shaft belongs on a lathe or a 3-axis mill. Sending it to a five-axis center just adds hourly rate.
Matching the machine platform to the part
Use this as a first pass before you request a quote. The right column is where the money is.
| Part type | Best platform | Tolerance it holds | Watch out for |
|---|---|---|---|
| Flat plate, bolt pattern | 3-axis mill | ±0.02 mm | Thin walls deflect |
| Shaft, bushing, fitting | Mill-turn center | ±0.01 mm | Bar stock size limits |
| Housing, 4-sided features | 4-axis mill | ±0.01 mm | Re-clamp error on datum |
| Turbo or pump housing | Simultaneous 5-axis | ±0.005 mm | Higher hourly rate |
| Bearing bore pair | 5-axis, one setup | ±0.005 mm | Needs probing |
| Suspension arm | 5-axis + finish pass | ±0.01 mm | Springback on thin ribs |
| Prototype bracket | 3-axis or 5-axis | ±0.05 mm | Fixture cost dominates |
When to choose 5-axis and when not to
If the part has compound angles, undercuts, or bores that must stay coaxial, choose simultaneous 5-axis and accept the higher rate. If it is flat, prismatic, or turned, choose 3-axis or mill-turn and put the saving into finishing. Multi-axis only pays when it removes a setup, not when it removes chips.
Questions engineers ask before releasing a part
What tolerance can automotive parts processing hold in production?
We hold ±0.005 mm on critical features when the setup and material allow it. That figure depends on feature size, wall thickness, and whether the part is heat-treated before or after the finish cut.
For general brackets and covers, ±0.02 mm is usually enough and costs less. We flag any callout we cannot hold during DFM review, before cutting starts.
How do you control porosity in cast or extruded stock?
Cast or extruded stock can hide porosity below the surface. We take a light skim pass on sealing faces and bores, then inspect for voids. If a void opens up, we scrap the part rather than fill it.
On high-pressure housings, we recommend starting from billet instead of cast stock, even though billet costs more.
Does five-axis machining add cost on every part?
No. A five-axis center costs more per hour, but it can remove three or four setups. On complex parts the total cost often drops. On a flat plate it rises.
We quote both routes when the geometry is borderline and show the difference.
Which finishes are common on automotive machined parts?
Anodizing in clear or color, hardcoat for wear surfaces, and electroless nickel for corrosion. Powder coating and black oxide appear on brackets and mounts.
Laser marking is used for part numbers and traceability codes, with a minimum character height of 1.5 mm.
How is quality documented?
Every shipment gets 100% inspection. That covers incoming raw material, in-process checks, and a final dimensional report.
We work under ISO 9001:2015 and IATF 16949:2016, and inspection reports are available on request.
