CNC 5 Asix Machining for Automotive Parts

This page covers what simultaneous 5-axis work actually changes on automotive parts: fewer setups, tighter position control on angled features, and which components should never be moved onto a 5-axis machine. Written for design engineers, manufacturing engineers and sourcing teams who need to pick a process before releasing a drawing.

16 simultaneous 5-axis centers±0.005 mmIATF 16949:2016No minimum order quantity

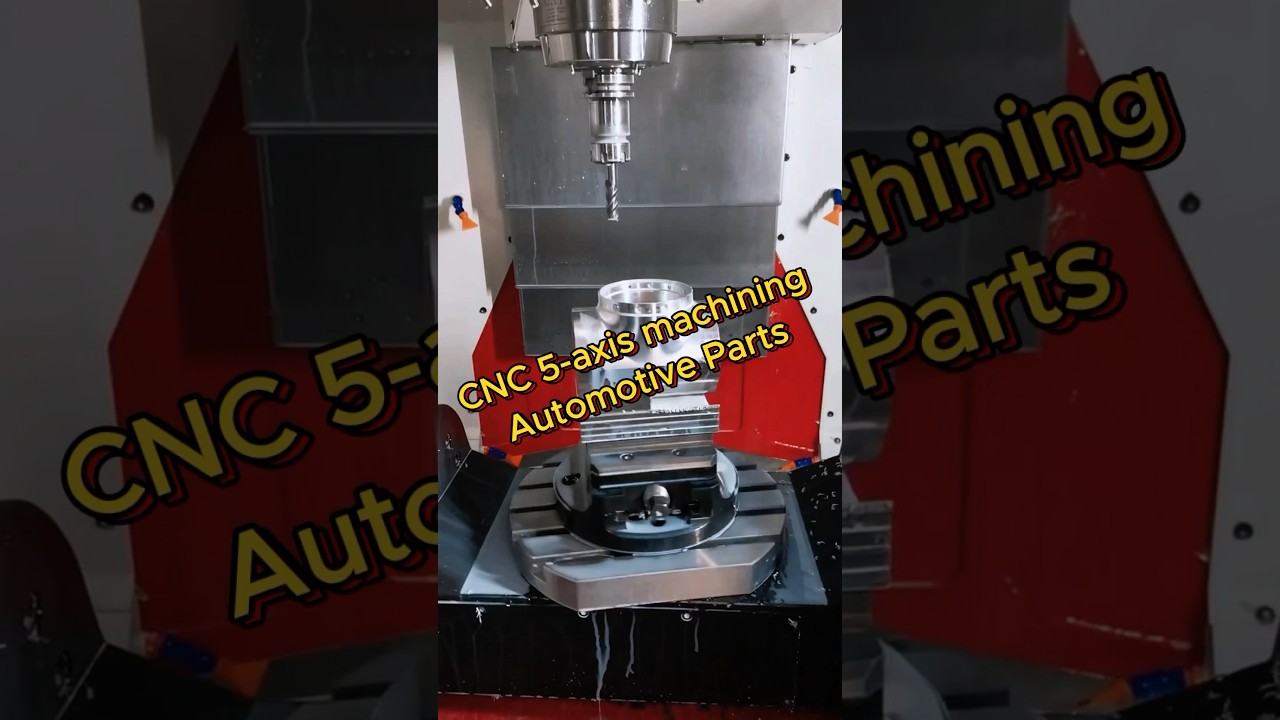

Custom Auto Spare Parts 5 Axis CNC Machining Engine Parts
Process notes

What 5-axis work changes on an automotive part

The machine does not make a part better by itself. It changes how many times you touch the part, and that is where the accuracy comes from.

Process notes

What 5-axis work changes on an automotive part

A 3-axis machine holds the part still and moves the cutter in three linear directions. Every new face needs a new setup, a new fixture, and a new chance to lose position. A simultaneous 5-axis center tilts the spindle or the table so the tool reaches the feature in one orientation. Two rotary axes do the repositioning, and the part stays clamped.

The gain is not raw spindle speed. It is positional consistency. A port face, a bolt circle and a sealing groove cut in the same clamping cycle share one datum. When you move to a second fixture, that shared datum disappears. Stacked fixture error is usually what pushes a drawing past tolerance, not the machine itself.

We run 16 simultaneous 5-axis machining centers alongside 12 four-axis mills and 27 three-axis machines. That mix matters. Not every automotive part belongs on the most expensive machine in the shop. Choosing wrong adds cost and does not improve the part.

Part selection

Which automotive parts actually need five axes

The clearest candidates have features on multiple non-orthogonal faces. Think intake manifolds, cylinder head ports, turbo housings, transmission valve bodies, and EV motor end plates with angled cooling channels. If a feature sits at 30° to the main axis, a 3-axis machine needs either a custom angle fixture or a second operation. Both cost time and both add error.

Thin-wall and deep-cavity work also fits. A stub tool held in a tilted spindle reaches into a cavity that a vertical tool cannot enter without long overhang. Less overhang means less deflection, and less deflection means you can hold a wall thickness without a finishing pass on a second machine.

Some parts look like 5-axis work and are not. A flat bracket with holes on one face should stay on a 3-axis machine. So should a simple shaft, a spacer, or a cover plate. The setup savings are zero, and you pay the hourly rate anyway.

  • 1
    Good fitAngled ports, compound surfaces, deep cavities, features on five or more faces.
  • 2
    Poor fitFlat plates, single-face hole patterns, simple turned shafts, prismatic covers.
  • 3
    BorderlineParts with one angled face. A 4-axis mill or a tilted fixture may be cheaper.
Tolerance

Holding ±0.005 mm on a rotating table

Rotary axes bring their own error sources. Backlash, thermal growth, and table runout all show up at the tool tip. On a Ø400 mm rotary table, a 5 μm runout at the table edge becomes a visible position shift on a feature 200 mm from center. We compensate in the setup and verify with probing, not by trusting the machine spec sheet.

For automotive work we plan on ±0.005 mm (±0.0002 in) where the drawing demands it. That figure is achievable on critical features, not automatically on every dimension of a complex part. It depends on the material, the wall thickness, and how far the feature sits from the clamping point.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal machined target. Sealing faces and bearing bores often call for Ra 0.2–0.8 μm, which usually means a separate finishing pass with a smaller stepover. As-machined surfaces land at Ra 1.6–3.2 μm and are fine for brackets and covers.

Every part gets 100% inspection before shipment. That covers incoming material checks, in-process monitoring, and a final dimensional report. Inspection reports go out on request. Our historical qualification rate is 99.99%, and we treat the remaining fraction as a process problem, not a shipping problem.

Machine selection

Matching the machine to the part

Use this as a first filter before you request a quote.

Part featureRecommended machineWhy
Flat face with parallel holes3-axisOne setup, no rotary error
Holes on four sides of a block4-axisIndexing is enough
Angled port at 30°5-axis simultaneousNo custom angle fixture
Deep cavity, thin wall5-axis simultaneousShort tool, less deflection
Turned shaft with cross holesMill-turnOne chucking, no re-datum
Large frame, 4,000 mm5-axis gantryTravel 4,000 × 400 × 150 mm
Materials

Materials and the cutting conditions they demand

Most automotive 5-axis work in our shop is aluminium: 6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075, and ADC12 for die-cast blanks that need finish machining. Aluminium cuts fast and holds tolerance well, which makes it the default for housings, brackets and end plates.

Steel and stainless change the picture. We machine 1018, 1045, 4130, 4140, 4340, A36 and tool steel, plus 303, 304, 316, 316L, 420, 430, 431, 440C and 17-4PH. Higher strength means more cutting force, more heat, and a real risk of moving a thin wall between roughing and finishing. On those parts we leave more stock and take a stress-relief pass.

Titanium and nickel alloys such as TC4 (Ti-6Al-4V) and Inconel are slower and wear tools faster. They are common in motorsport and high-temperature exhaust parts. Magnesium AZ31B and AZ91D machine quickly but need chip control and fire-safety discipline. Copper and brass grades like C101, C110, C36000 show up in busbars and connectors.

Plastics are a separate discipline. ABS, PC, PMMA, POM, PA, PEEK, PP, HDPE and carbon fibre all behave differently. PEEK and carbon fibre are abrasive and need sharp tooling. POM moves with heat, so we control coolant and take lighter passes.

Material notes

What each material family asks of the process

Material familyTypical automotive useMachining note
Aluminium 6061 / 7075Housings, brackets, end platesFast, stable, holds ±0.005 mm
Stainless 304 / 17-4PHFittings, sensors, exhaustWork-hardens, use rigid setups
Steel 4140 / 4340Shafts, gears, structuralRough then finish, watch heat
Titanium TC4Motorsport, high-temp partsSlow speeds, high tool wear
Copper / brassBusbars, connectorsGummy, needs sharp edges
PEEK / carbon fibreInsulators, lightweight panelsAbrasive, control dust
Finishing

Finishes and what they do to a tolerance

Anodizing adds a thin oxide layer. Clear, colour, hardcoat and conductive variants all build dimension by a few microns. On a ±0.005 mm bore, that matters. We plan the pre-plate dimension so the finished part lands in tolerance, and we mask conductive areas that must stay grounded.

Plating is similar. Electroless nickel, zinc, silver and gold all change the surface. Silver and gold appear on EV busbars and high-current contacts. Zinc goes on steel brackets for corrosion resistance. Black oxide and powder coating are common on visible or underbody parts.

Mechanical finishes do not add material but they change the surface you measure. Bead blasting, tumbling, brushing and polishing all alter Ra. Laser marking and engraving need a minimum character height of 1.5 mm to stay legible after coating, so plan your part numbers and traceability marks around that limit.

Volume

Prototypes, low volume and production runs

There is no minimum order quantity here. One prototype and a 10,000-part run go through the same process planning. The difference is fixture investment and whether we machine from billet or from a casting.

For early prototypes, 5-axis machining from billet is often the fastest path to a functional part. It skips tooling cost. When volumes climb, die casting or forging plus finish machining usually wins on unit cost, and we machine the critical faces after casting to hold the tolerances that the casting process cannot.

Quotation and a free DFM analysis come back within 12 hours. Production can start within 24 hours of approval. Parts typically ship in 3–5 days, and our historical late-delivery probability is below 2%.

Uploads stay secure and confidential. We sign NDAs on request, and our information security management follows ISO 27001:2022. Quality systems follow ISO 9001:2015, IATF 16949:2016 for automotive, and ISO 13485:2016 where medical-adjacent parts are involved.

FAQs

Questions engineers ask before releasing a drawing

Can 5-axis machining hold ±0.005 mm on every feature?

No. That tolerance is achievable on critical features under good conditions. It depends on wall thickness, material, and distance from the clamping point.

We mark which dimensions we can hold and which need a note on the drawing. A blanket tolerance on every dimension of a large part is a planning risk, not a specification.

Is 5-axis always more expensive than 3-axis?

Per hour, yes. Per part, often no. If a part needs three fixtures on a 3-axis machine, the setup time and the scrap risk can outweigh the higher hourly rate.

The break-even point sits around parts with features on three or more faces, or any part that needs a custom angle fixture.

What CAD file formats do you accept?

STEP and IGES are the safest for 5-axis work because they carry surface geometry cleanly. Native files from major CAD packages also work.

Send a 2D drawing as well if tolerances, datums or finish callouts matter. The model alone rarely tells the whole story.

How do you handle datum strategy on a rotating table?

We pick one primary datum and cut as many features as possible from it. Probing verifies the setup before the finishing pass.

On parts with a sealing face and a bolt pattern, both come off the same datum. That is usually the difference between a part that assembles and one that leaks.

Do you machine castings or only billet?

Both. We finish-machine ADC12 die castings and other blanks, holding the faces that the casting process cannot control.

For low volume, billet is usually simpler. For higher volume, casting plus finish machining lowers unit cost.

What is the maximum part size?

Our largest travel is 4,000 × 400 × 150 mm on a gantry machine. Medium machines cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm.

Compact cells handle 500 × 500 × 450 mm and 500 × 310 × 200 mm. If your part is bigger than 4,000 mm, we would need to discuss splitting it.
