5 Axis Automotive Parts: A Machining Guide for Engineers

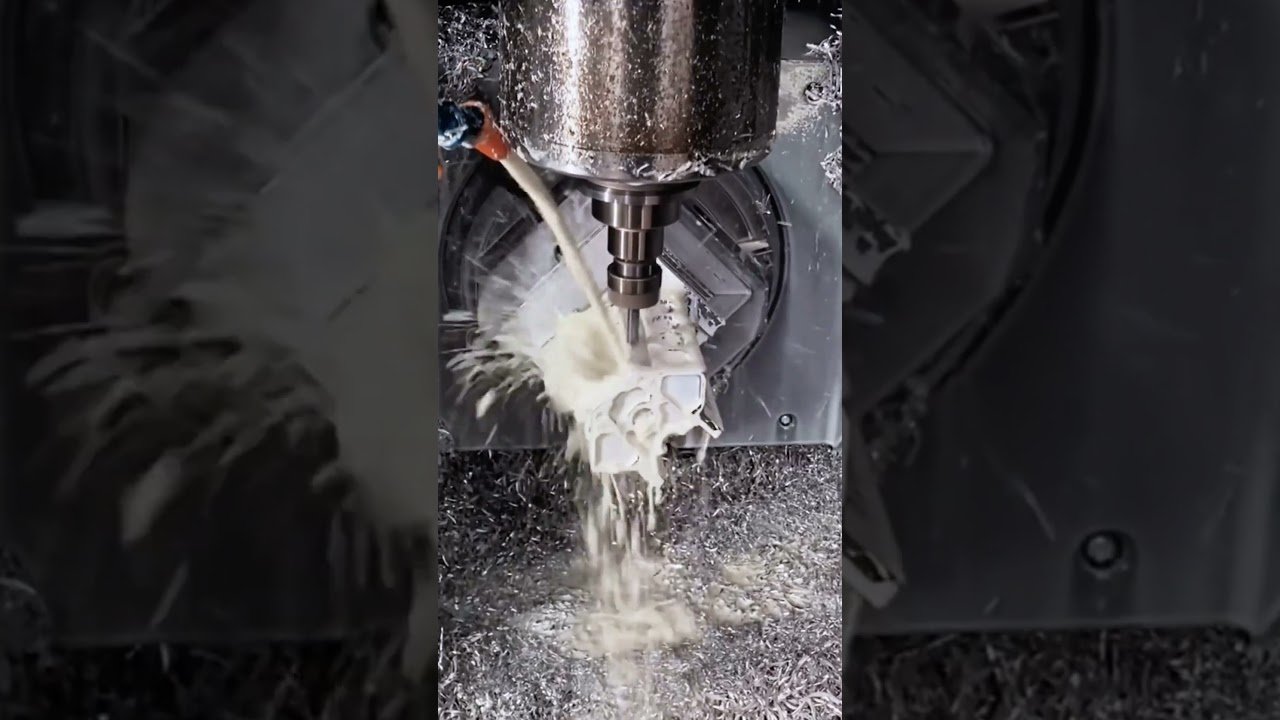

A 3 axis mill moves the tool in X, Y, and Z while the part stays still. A 5 axis machine adds two rotary motions, usually a tilting spindle or a trunnion table, sometimes both. The cutting tool can then meet the workpiece at an angle instead of straight down from above. That single change is the whole story: everything else on this page follows from it.

For automotive work the practical effect is that undercuts, angled faces, and radial features stop being separate operations. A transmission housing with bores facing four directions used to need four setups on a 3 axis machine, each one introducing its own position error. On a simultaneous 5 axis center it is one setup, one zero point, and the rotary axes bring each face to the tool.

Position error is the reason this matters more in automotive than in many other industries. Stacked setups multiply tolerance. If each of four setups contributes ±0.02 mm of location error, a bore pattern can drift past ±0.05 mm before the cutting tolerance is even considered. One setup removes that stack.

• 1
  Simultaneous vs. indexedSimultaneous 5 axis moves all five axes at once for contoured surfaces. Indexed 3+2 locks the rotary axes and cuts like a 3 axis machine at an angle.
• 2
  Trunnion vs. spindle tiltA trunnion table supports heavier parts and shorter tools; spindle tilt suits large, flat parts that are awkward to rotate.
• 3
  Short toolsTilting the tool lets you use a stubby cutter instead of a long one, which cuts chatter on deep pockets.

Not every part earns the extra axes. A flat mounting plate with holes drilled from one direction is faster and cheaper on a 3 axis mill or a mill-turn center. The rule we use in quoting is simple: count the number of distinct tool approach directions the part needs. One direction, 3 axis. Two or three, a 4 axis machine with an indexer often wins. Four or more, or any contoured surface that has to be cut in one continuous pass, and 5 axis becomes the cheaper option once you add up the setups.

Typical 5 axis automotive parts include engine and transmission housings, cylinder head components, intake and exhaust manifolds, pump bodies, valve bodies, EV motor housings, inverter and battery tray brackets, suspension knuckles, and steering components. These share a trait: they are usually thin-walled, they carry bores or faces that must stay square to each other, and they are often machined from an aluminium casting that arrives with 1–2 mm of stock to remove.

Prototype and low-volume work is where 5 axis shows up most in our shop. A bracket that will eventually be die cast at 50,000 pieces a year is first cut from 6061 or 7075 billet to validate the design. There is no tooling cost, no lead time for a mold, and the geometry can change between revisions. Once the design is frozen, die casting or forging takes over and 5 axis returns for the finish machining of critical faces.

• 1
  Good fitHousings with bores on multiple faces, contoured structural brackets, thin-wall parts that distort if reclamped.
• 2
  Poor fitSimple plates, shafts, and round parts that a mill-turn center or a lathe completes in one pass.
• 3
  BorderlineParts with two approach directions and moderate volume, where a 4 axis fixture may beat both options.

Aluminium dominates automotive 5 axis work, and for good reason. 6061 and 6061-T6 cut fast and hold ±0.005 mm without much fuss. 7075 gives roughly twice the yield strength and is the choice for suspension and bracket parts that see load, though it is less corrosion resistant unless it is anodized. Castings in ADC12 machine differently from billet: the skin is harder, there can be porosity, and you want to take a light first pass to see what the material does before committing to a finishing cut.

Steels show up in shafts, gears, and higher-load components. 4140 and 4340 are common for drivetrain parts, 1045 for general machined steel, and 17-4PH stainless where corrosion resistance and strength are both needed. Tool life drops sharply compared with aluminium, so on 5 axis work the toolpath strategy changes: more trochoidal roughing, less full-width engagement.

Titanium and Inconel are rare in production automotive but appear in motorsport and some high-performance EV work. Heat builds at the cutting edge and the material springs back, so both finishing passes and cutter stiffness matter more than spindle speed. Plastics such as POM, PA, and PEEK are used for interior and under-hood parts; they cut easily but move with temperature, so hold the part in a fixture that does not squeeze it.

• 1
  Aluminium 6061 / 7075Fast, stable, good for housings and structural brackets. Anodize 7075 for corrosion.
• 2
  Steel 4140 / 4340Drivetrain and high-load parts. Expect slower cutting and shorter tool life.
• 3
  Stainless 17-4PHStrength plus corrosion resistance. Watch work hardening on light passes.
• 4
  Magnesium AZ31B / AZ91DLightweight housings. Requires chip control and fire-safe handling.

Five axis machines do not automatically hold tighter tolerances than a good 3 axis machine. They hold the same tolerance across more features, which is a different claim. We work to ±0.005 mm (±0.0002 in) on critical features, and that number is only meaningful when the fixture is rigid and the part is not being distorted by clamping. Thin-wall housings are the classic failure case: the part measures in tolerance while clamped and springs out of tolerance once released.

The fix is usually in the setup, not the machine. We rough with the part supported, stress-relieve or let it settle, then finish with lighter clamping. For castings we sometimes leave a sacrificial web that gets removed on the last operation. This costs cycle time, but it is cheaper than scrapping a housing at the final inspection.

Surface finish is a second lever. As-machined aluminium lands around Ra 1.6–3.2 μm. A finishing pass takes it to Ra 0.8–1.6 μm, and a fine finishing strategy reaches Ra 0.2–0.8 μm where a seal or bearing surface needs it. Every step down in roughness costs machine time, so specify only what the function requires.

Program and verification time is the part people underestimate. A 5 axis toolpath with collision checking can take several hours to prove out, and that cost is spread across the order quantity. On a one-off prototype it is a real share of the price. On a 500-piece run it nearly disappears. That is why the same part can look expensive at quantity one and cheap at quantity five hundred.

• 1
  Fixture firstIf the part moves when you unclamp it, no amount of machine accuracy helps.
• 2
  Specify finish by functionSealing faces need Ra 0.8 μm or better. Cosmetic faces rarely do.
• 3
  Check the quantityProgramming and setup amortize across the run. Small lots carry more of that cost per part.

A 3D model in STEP or IGES plus a 2D drawing that marks the critical dimensions gets you an accurate quote fastest. The drawing matters more than people expect on 5 axis work, because it tells us which faces carry the tolerance. If every dimension is toleranced at ±0.005 mm, the part will be quoted as if all of them matter, and the price reflects that. Mark the functional features and let the rest sit at general tolerance.

Material grade and temper should be explicit. 6061 and 6061-T6 are not interchangeable for strength, and 7075-T6 behaves differently from 7075 annealed. If the part will be anodized, say so up front, because the masking and the anodize thickness can affect a tight bore.

Volume, target date, and any inspection requirement belong on the RFQ too. We provide reports on request and inspect 100% before shipment, with raw material checks, in-process monitoring, and a final inspection. If you need first article inspection documentation or material certificates, ask at quote stage rather than after the parts are cut. For automotive programs, IATF 16949:2016 and ISO 9001:2015 are the relevant certifications, and we hold both.

• 1
  ModelSTEP or IGES, plus a drawing that flags functional dimensions.
• 2
  MaterialGrade and temper, with any heat treatment or anodize called out.
• 3
  DocumentationMaterial certs and inspection reports requested at quote stage.
