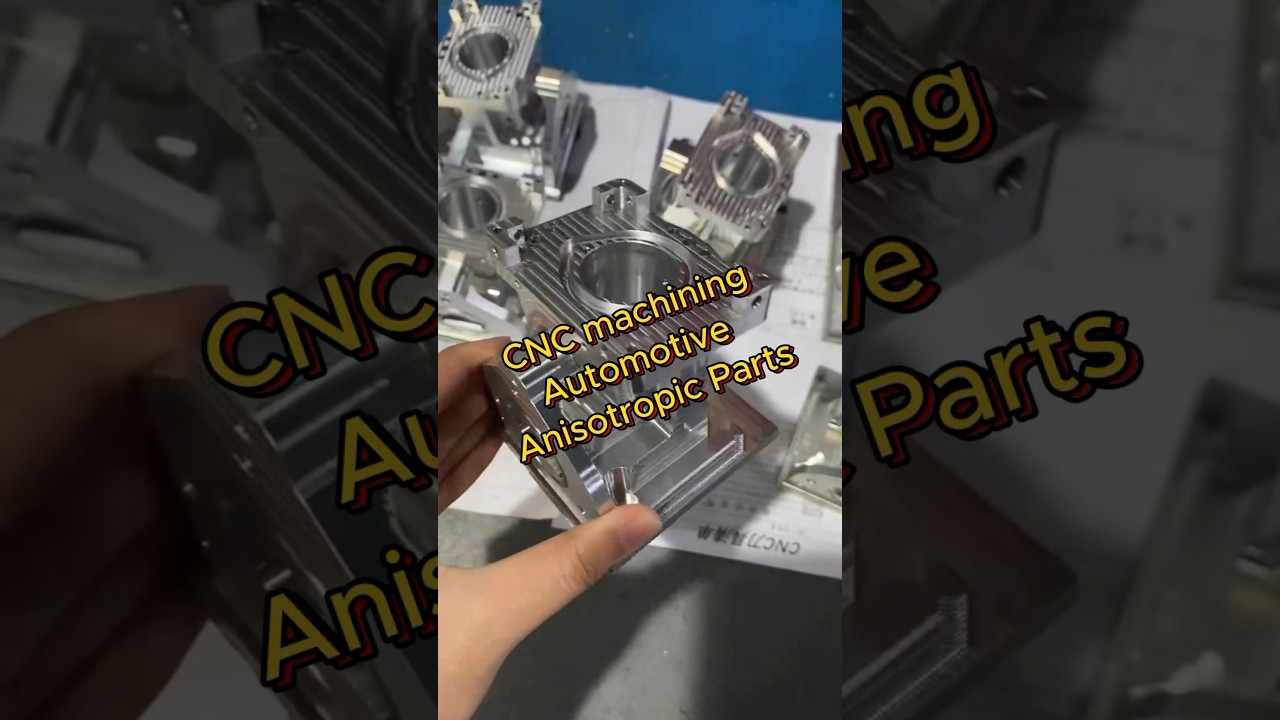

CNC Machining Automotive Anisotropic Parts

• 1
  Why anisotropy exists before the tool ever touches the part
• 2
  What changes on the machine when the stock is directional
• 3
  Which automotive materials behave this way, and how much
• 4
  How to orient a part so the grain works with the load
• 5
  Machining strategy for forged and rolled automotive blanks
• 6
  How to verify a directional part before it ships
• 7
  When anisotropy is not the problem you should chase
• 8
  Machined-from-plate vs forged near-net vs extruded bar

Anisotropy means a material answers differently depending on direction. Rolled aluminium 6061 plate carries flattened grain boundaries parallel to the rolling plane. A forged connecting rod carries flow lines that follow the die cavity. An extruded 6082 profile carries grains stretched along the extrusion axis. Cut a tensile bar along the grain and it may test 10 to 15 percent stronger than the same bar cut across it.

That directionality does not disappear when the part goes on a machining center. The cutter removes material, but it cannot rebuild the grain structure underneath. What remains is a part whose stiffness, fatigue life and residual stress state vary with orientation.

Automotive parts feel this more than most. Suspension arms, brake calipers, steering knuckles, EV battery tray brackets, turbo housings and transmission valve bodies all see cyclic load from a known direction. If the grain runs the wrong way, the part can pass a static check and still crack at 200,000 cycles.

This is the core of cnc machining automotive anisotropic parts. The machining operation is only half the story. The other half was decided at the mill that rolled the plate or the press that forged the blank.

• 1
  Rolled plateGrain flattened in the rolling plane, weak through thickness
• 2
  Forged blankFlow lines follow the die, strong along the load path if designed well
• 3
  Extruded barLong grains along the axis, poor transverse ductility

Cutting forces meet a material that pushes back unevenly. In 7075-T6 plate, a face mill running across the grain sees different specific cutting pressure than one running along it. The difference is small, maybe 5 to 8 percent, but it shows up as chatter on thin ribs and as inconsistent surface finish across a single face.

Residual stress is the bigger problem. Rolled and forged stock is stress-relieved, but machining removes material from one side only. The balance shifts. A 300 mm long 6061-T6 bracket can bow 0.05 to 0.15 mm after the first roughing pass is unclamped. On a suspension component held to ±0.005 mm, that is a scrapped part.

The fix is process, not magic. Rough, then stress-relieve, then semi-finish, then finish. Leave 0.5 to 0.8 mm on critical faces for the final pass. Keep the part clamped in the same orientation through finishing. Never flip a directional part between roughing and finishing unless the drawing calls for it.

Toolpath direction matters too. Climb milling along the grain on a forged aluminium control arm gives a more stable load than conventional milling across it. On titanium Ti-6Al-4V forgings, the difference is large enough that we program the roughing path to follow the flow lines.

• 1
  Rough with 0.5–0.8 mm stockLeaves material for a stress-relief and finish sequence
• 2
  Keep one setup through finishingRefixturing between passes reintroduces distortion
• 3
  Follow the grain on roughingClimb milling along flow lines cuts chatter on forgings

Aluminium is the mild case. 6061-T6 rolled plate is anisotropic, but the ratio between longitudinal and transverse yield is often under 1.1. 7075-T6 is worse, closer to 1.15, and it is far more prone to residual stress movement. ADC12 die castings are nearly isotropic in bulk but porous, so the weak direction is wherever a gas pocket sits.

Steel forgings are the classic case. 4140 and 4340 forgings show yield strength 8 to 12 percent higher along the flow line than across it. Fatigue strength diverges more, sometimes 20 percent. That is why a steering knuckle is forged, not carved from plate.

Stainless 17-4PH in the H900 condition is directional after aging if the bar was cold drawn. 303 free-machining stainless is deliberately anisotropic for chip breaking, which is fine for a bracket and wrong for a high-cycle shaft.

Titanium and Inconel are the extremes. Ti-6Al-4V forged billet can run 15 to 20 percent stronger along the grain. Inconel 718 rolled bar is worse still, and it work-hardens fast, so a wrong-direction finishing pass can leave a surface layer that cracks under thermal cycling.

• 1
  Mild anisotropy6061-T6, 6082, ADC12 castings
• 2
  Moderate anisotropy7075-T6, 4140 and 4340 forgings, 17-4PH
• 3
  Severe anisotropyTi-6Al-4V forgings, Inconel 718 rolled bar

Start with the load path. On a suspension arm, the tensile load runs from the ball joint boss to the chassis bush. The grain should run the same way. That single decision does more for fatigue life than any tolerance tightening.

Then look at the wall thickness changes. A directional material cracks where a thin web meets a thick boss, because the grain cannot accommodate the strain gradient. Add a 2 to 3 mm fillet at that transition and the stress concentration drops.

Holes matter. A cross-drilled hole in rolled plate cuts the grain and creates a stress riser. If the hole is unavoidable, keep it at least one diameter away from the nearest edge and deburr both sides. On a brake caliper, that rule alone prevents most field cracks.

Finally, decide if the part should be machined at all. A machined-from-plate bracket on a low-load sensor mount is fine. A machined-from-plate suspension upright is not. Forge it near-net, then machine only the interfaces. That keeps the flow lines intact where they carry load and puts the precision where it is needed.

• 1
  Align grain with the load pathOne decision, biggest fatigue effect
• 2
  Fillet thin-to-thick transitions2–3 mm radius cuts the strain gradient
• 3
  Keep holes away from edgesAt least one diameter of clean material
• 4
  Forge near-net for high-load partsMachine only the interfaces

We run 16 simultaneous 5-axis machining centers and 16 mill-turn centers, which matters here because a directional part often needs to be finished in one setup. Refixturing a forged knuckle between operations releases stress in an uncontrolled way.

Roughing on a forged aluminium control arm uses a 50 mm face mill at 2,500 to 3,500 rpm, 0.15 to 0.25 mm per tooth, and air blast rather than flood coolant. Thermal shock on a thin forged web causes more distortion than cutting force does.

Semi-finishing follows with a 16 mm end mill, 0.3 mm radial stepover, leaving 0.3 mm on critical faces. Then a stress-relief dwell. For 7075 parts we often specify a 4 to 8 hour hold at 120 to 160 °C between roughing and finishing when the drawing allows it.

Finishing runs light. 0.1 to 0.15 mm depth of cut, high spindle speed, sharp carbide. For Ra 0.8–1.6 μm on a directional surface, that is enough. Pushing harder work-hardens titanium and tears the grain boundary on Inconel.

• 1
  Single setup finishing5-axis and mill-turn keep the datum through the last pass
• 2
  Air blast on forged aluminiumAvoids thermal distortion on thin webs
• 3
  Stress-relief dwell4–8 h at 120–160 °C on 7075 when allowed

Dimensional inspection alone will not catch an anisotropy problem. A part can measure perfectly and still fail at 50,000 cycles. The checks that matter are grain orientation, surface integrity and residual stress state.

On forged blanks we ask the mill for a macro-etch coupon from the same heat. The etch shows the flow lines. If the flow line runs across the load path on the drawing, the blank is wrong before we cut it.

Surface integrity is checked visually and with a low-power microscope on critical fillets. A directional material that has been work-hardened by a dull tool shows white layer or micro-cracking. That is a reject, not a rework.

We inspect 100 percent of parts before shipment, with raw material check, in-process monitoring and final inspection. Reports are available on request. For automotive programs under IATF 16949:2016, the control plan records the grain direction callout as a characteristic, not a note.

• 1
  Macro-etch couponConfirms flow line direction from the same heat
• 2
  Critical fillet microscopyCatches white layer and micro-cracking
• 3
  Grain direction on the control planIATF 16949:2016 characteristic, not a drawing note

Not every failed automotive part is a grain direction issue. If a bracket cracks at a sharp internal corner, the radius is the problem. If a shaft wears at a bearing seat, hardness is the problem. Anisotropy matters most when the part sees high-cycle fatigue from a single dominant direction.

Low-load cosmetic brackets, sensor mounts and interior hardware can be machined from any convenient plate. Chasing grain direction there adds cost and lead time for no field benefit.

There is also a point where the fix is a different material, not a different orientation. A 6061 bracket that cracks under thermal cycling will not be saved by rotating the grain. It needs a material with better fatigue behaviour at temperature.

The engineering question is simple. Does the part see more than roughly 10,000 cycles in one direction? If yes, orientation and stock form belong on the drawing. If no, spend the effort on geometry and surface finish instead.

• 1
  Chase orientation whenHigh-cycle fatigue from one dominant load direction
• 2
  Do not chase orientation whenLow-load cosmetic or static parts
• 3
  Change material whenThermal cycling or wear drives the failure
