Anisotropic Parts Machining: Why Direction Changes the Cut
This page covers any workpiece whose properties differ along X, Y and Z. It explains where that matters, how grain and fibre direction shift tolerance and finish, and when a 5-axis setup is worth the extra cost.
What Makes a Part Anisotropic
A material is isotropic when a test coupon gives the same number in every direction. Aluminum 6061 billet is close to that. Cold-rolled 304 stainless is not. The rolling pass lines the grains up along one axis, so yield strength along the roll direction can sit well above the transverse value.
The core idea behind anisotropic parts machining is simple: plan cuts around that difference instead of ignoring it. The material does not change. The response to the cutter changes. A face mill that leaves a clean floor going with the grain can tear the same alloy going across it.
Three sources cause most of it. Grain flow from rolling, forging or extrusion. Fibre orientation in carbon composite. And heat-treat or weld structure that leaves a hard band next to soft metal. All three make the same tool behave differently on the same part.
You can spot it before you cut metal. Ask for the mill certificate and read the rolling direction. If the drawing calls a tight bore on a cold-rolled bar, the direction of that bore matters more than the tolerance block.
How Grain Direction Changes Cutting Forces
Shear plane angle is the mechanism. In ductile metal, the chip forms along a shear plane that tilts relative to the cutting edge. When the grain runs parallel to that plane, the chip slides and forces stay low. When the grain runs across it, the tool has to push through harder boundaries and forces climb.
That shows up as a few practical effects. Cutting force can swing 10 to 20 percent between the two directions on cold-rolled steel. Burr height changes more than that. Surface finish on a side wall can move a full Ra step just by flipping the feed direction.
Heat follows the same logic. Hard grain boundaries resist deformation, so more of the cutting energy turns into heat in the shear zone instead of into the chip. On titanium and Inconel that heat stays near the edge, which is why tool life drops fast when the direction is wrong.
For a machinist, direction is a variable like speed and feed. You can hold ±0.005 mm in either direction on a rigid setup. The difference is how much effort, tool wear and inspection time it takes to get there.

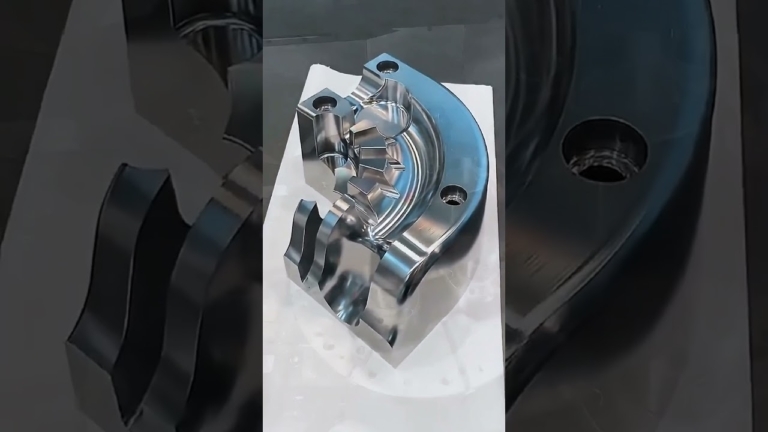

Where 5-Axis Setup Pays Off
Direction control is the main reason to move a part to a 5-axis center. On a 3-axis mill the tool axis is fixed, so the angle between the grain and the cutting edge is whatever the part orientation gives you. Rotate the part once and you can cut a wall with the grain instead of across it.
A simultaneous 5-axis center lets you keep the tool tilted to the surface while the table turns. That keeps the engagement angle steady on a curved wall. It also lets you reach a feature from the direction the material prefers, not just the direction the fixture allows.
Not every job needs it. A flat bracket with through holes is fine on a 3-axis machine. Thin ribs, deep pockets in forged stock, and long bores in cold-rolled bar are the cases where direction control usually earns back its setup time.
We run 16 simultaneous 5-axis machining centers, 12 four-axis mills and 27 three-axis machines. That mix lets us quote the process the part actually needs rather than forcing every job onto one platform.
Which Materials Show It Most
Cold-rolled and forged steel show the strongest direction effect. Grain flow follows the deformation path, so a forged connecting rod has properties along its length that differ from the cross direction. Cutting a bearing bore across that flow is where distortion shows up.
Titanium and nickel alloys are sensitive for a different reason. Low thermal conductivity keeps heat at the edge, and the alpha-beta structure of Ti-6Al-4V responds to direction during the cut. Climb milling along the grain keeps the heat moving into the chip.
Carbon fibre reinforced plastic is the extreme case. The fibre does not shear like metal. It fractures or pulls out depending on the angle between the fibre and the cutting edge. Ply orientation from the layup schedule sets the rule, and support material on the exit side is often the only way to stop delamination.
Aluminum is comparatively forgiving. 6061-T6 and 7075 still show grain from extrusion, but the effect on force is small enough that most jobs can ignore it. Plastic like POM and PEEK sits in between: moulded stock has a skin, and cutting into that skin changes the finish.
When Direction Control Is Worth the Cost
Use this to decide between a simple 3-axis setup and a direction-controlled 5-axis setup.
| Part feature | Direction effect | Recommended setup |
|---|---|---|
| Flat plate, through holes | Low, force varies under 5% | 3-axis, standard vise |
| Long bore in cold-rolled bar | High, ovality after boring | 4-axis, grain-aligned bore axis |
| Thin wall under 1.5 mm | High, wall deflects and chatters | 5-axis, tilted tool, light passes |
| Forged rib in titanium | High, heat and wear at edge | 5-axis, climb mill along flow |
| CFRP panel with open plies | Very high, delamination risk | 5-axis plus support backing |
| Extruded aluminum bracket | Low, force effect negligible | 3-axis, high feed, dry |
| Deep pocket in 4140 pre-hard | Medium, tool wear on cross cut | 4-axis with roughing strategy |
The Short Version
If the drawing calls a tight bore, a thin wall or a composite ply, control the direction and pay for the 5-axis setup. If it is a flat plate with clearance holes, run it on a 3-axis machine and keep the money.
Questions Engineers Ask
Does anisotropy break the tolerance, or just the finish?
Mostly the finish and the tool life. Bore roundness can drift when the cut crosses grain boundaries, because the material springs back unevenly after the edge passes. On a rigid setup with light passes, ±0.005 mm is still reachable in the wrong direction, but it takes more passes and more inspection.
How do I tell the grain direction on incoming stock?
Read the mill certificate and look for the rolling or extrusion direction. On the shop floor, a quick acid etch or a light grind on the end face shows flow lines. For forgings, the flash line marks the parting plane; grain runs roughly along the long axis of the part.
Can I just slow the feed down and ignore direction?
That helps with chatter but not with the mechanism. Lower feed reduces force, so the difference between directions shrinks, but cycle time grows and the tool still wears faster on the cross-grain side. Direction control is usually cheaper than a 40 percent feed cut.
Is heat treatment a factor?
Yes. A hardened case over a softer core acts like a layered material. The edge meets a hard skin, then a soft layer, then hard again. That alternating load chips carbide edges. Cutting direction relative to the case depth changes how the load lands on the insert.
What about 3D printed metal parts?
They are strongly anisotropic. Laser powder bed fusion leaves columnar grains along the build direction, so properties differ between the build axis and the layer plane. Machining a printed blank needs the same direction thinking as a forging, sometimes more.
How does this affect the quote?
It changes the process, not the material cost. A direction-controlled setup may add a 5-axis operation or a custom fixture. Send the drawing with the grain direction marked and we return a DFM analysis and quote within 12 hours.
