An isotropic material behaves the same in every direction. Cold-rolled 1018 steel does not. Roll the ingot and the grains stretch along the rolling direction. Yield strength along that axis can run noticeably higher than across it, and elongation across the short transverse direction drops first.

That difference shows up on the machine. A shaft turned from bar keeps its grain running lengthwise, which is usually the direction you want for torsion and bending. A bracket hogged out of a thick plate can end up with grain running through the thickness, right where a bolt pulls it apart.

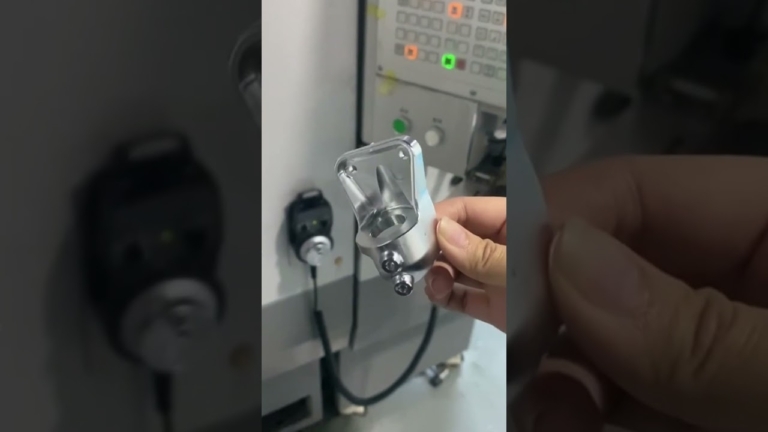

CNC cncmachining cncmachinist work removes material but cannot reorient the grain that is already there. What the programmer controls is which face of the stock becomes which feature, and how deep the cuts go. Those choices are the practical lever over anisotropy.

So the question is never whether a part is anisotropic. Almost every wrought metal is. The question is whether the load path lines up with the strong direction, and whether the drawing tells the shop which way that is.

Grain flow is set before the part reaches us. Forging bends the grain around the contour of the die, so a connecting rod ends up with grain following the shank. Rolling flattens grains into planes. Casting leaves a more random dendritic structure, which is closer to isotropic but weaker overall and prone to porosity.

Cut a forged blank and you expose those flow lines at the surface. Machining through them is normal; the risk is cutting so much that the load-bearing skin is gone. Thin the wrong wall and you have removed the material that was carrying the stress.

Heat treatment interacts with this. Quenching and tempering raise strength in all directions, but inclusions and banding left by rolling still seed crack paths. A part that is strong in tension along the grain can still split across it under impact.

For most brackets and housings the effect is small enough to ignore, maybe 5 to 15 percent on yield strength. For high-cycle fatigue parts the same number becomes the difference between a 10 million cycle life and a field failure.

Tool axis decides which face gets cut and how the cutter enters the material. On a 3-axis machine the tool stays vertical, so a deep pocket is milled with the grain running sideways through the floor. On a 5-axis center the tool can tilt and reach a wall at an angle that leaves more of the strong direction intact.

Stepover and depth of cut matter too, mostly through residual stress. Heavy roughing removes a stressed layer from one side of a plate and the part bows. You then finish-cut a shape that was straight when the stock was still balanced.

Contour or trochoidal toolpaths spread the load and keep heat down. A part that stays below roughly 150 °C during roughing holds its dimensions far better than one run dry at full radial engagement. For thin walls under 1.5 mm, light passes are not a preference, they are the only way to hold ±0.005 mm.

Climb milling on the finishing pass leaves a cleaner surface and less work hardening in stainless. Conventional milling on a finish pass can smear 304 and 316, and the smeared layer is exactly where a fatigue crack starts.

High-cycle fatigue parts need it: shafts, spindles, connecting rods, actuator arms, anything that sees millions of load reversals. Here the grain direction and the load direction should match, and the drawing should say so.

Pressure and sealing parts need it for a different reason. A valve body or manifold machined so that grain runs across a sealing face can leak after thermal cycling, because the material moves differently in each direction.

Thin, flat parts need it because distortion is directional. A 300 × 200 mm plate 4 mm thick will cup along the rolling direction after heavy face milling. Cutting equal amounts from both faces helps more than any fixturing trick.

Parts where it does not matter much: covers, brackets, cable clamps, cosmetic panels, low-load spacers. Spending 5-axis time to align grain on a cover is wasted money. The judgment call is load, cycle count and how the part fails if it does.

Add a grain direction note. One arrow and a sentence such as grain to run parallel to axis A covers most cases. Without it, the shop will nest the part for material yield, which is a reasonable default and often the wrong one for a fatigue part.

State the stock form. Bar, plate, forging or casting. A supplier who does not know the starting form cannot plan grain orientation, and a quote based on the wrong form will change once production starts.

Call out critical surfaces separately. Not every face needs Ra 0.8 μm. Marking the two or three faces that seal, slide or carry load lets us spend the finishing time there and leave the rest as machined at Ra 1.6–3.2 μm.

Add heat treat and stress relief before final machining where the part is thin or the tolerance is tight. Stress relief between roughing and finishing removes most of the movement that would otherwise appear after the part leaves the machine.
