CNC Lathe Parts: How Round Parts Actually Get Made

• 1
  What happens where the insert meets the metal
• 2
  Which part shapes belong on a lathe
• 3
  Live tooling and mill-turn: when one setup pays off
• 4
  How material choice changes the cut
• 5
  Holding tolerance, runout and finish on a turned part
• 6
  Turning against other routes for the same part

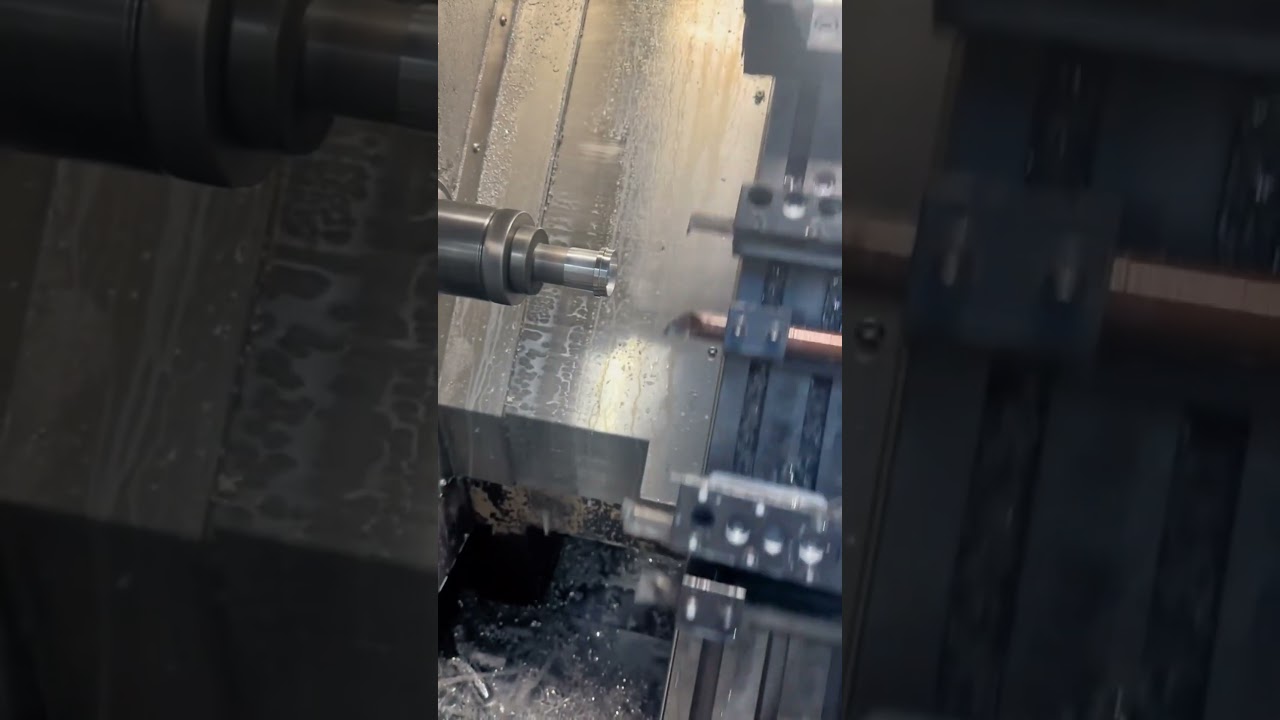

On a lathe the workpiece spins and the tool stays put. A single-point insert shears material away as the part rotates. The diameter that comes off the machine is set by the distance from the spindle centerline to the insert tip, not by the tool's width. That is the key difference from milling, where the cutter's own diameter defines the slot or pocket it leaves behind.

Because the part rotates, every feature that shares the spindle axis comes out concentric by default. A Ø20 mm journal, a Ø20 mm bearing seat and a Ø20 mm thread on the same shaft do not need separate setups to stay aligned. On a mill you would have to re-fixture the part or use a fourth axis to hold that relationship, and each setup adds stack-up error.

The cutting action is continuous. A lathe insert stays in the cut for the whole revolution instead of entering and exiting at each tooth. Chips come off in a steady stream, which is why interrupted cuts matter so much: a keyway, a cross-hole or a flat on the OD makes the insert hammer on every pass. Tool life drops, and on work-hardening stainless the surface can go bad fast.

Feed is expressed per revolution, not per tooth. A finishing pass at 0.08 mm/rev leaves a feed mark every 0.08 mm along the part. Feed marks show up as a visible helix on the OD. When a drawing calls for Ra 0.8–1.6 μm, the finishing feed and nose radius decide whether you get there, not the spindle speed alone.

• 1
  Concentric by defaultAnything sharing the spindle axis stays true without extra setups.
• 2
  Continuous cutInterrupted cuts from cross-holes or keyways shorten insert life.
• 3
  Feed per revolutionFinishing feed and nose radius set the visible surface finish.

The axis of symmetry is the first thing to check. If a part has one dominant rotational axis and most of its mass sits around it, turning is usually the cheapest way to make it. Shafts, bushings, spacers, pins, valve bodies, hose fittings, hydraulic adapters and turned flanges all fall in this group. The more of the part that can be described as a diameter, the better the fit.

Length-to-diameter ratio decides how hard the part is to hold. Up to about 4:1 a standard chuck holds the part well. Past roughly 8:1 the shaft starts to deflect under cutting force and you need a tailstock, a steady rest, or a change in strategy. Very slender parts can drift out of the ±0.005 mm band in the middle of the part even when both ends measure good.

Round is not the same as simple. A part with a deep internal bore, an undercut, or a thread that runs into a shoulder needs clearance for the tool and the chip. If the drawing shows a square internal corner, the insert nose radius cannot reach it. The corner will come out with a radius equal to the tool nose, and someone has to accept that or add a relief groove.

Cross-features pull the part away from pure turning. A shaft with two flats, a radial hole pattern, or a slot along its length needs a second operation on a mill, or a lathe with live tooling. That is where the cost curve bends upward, and it is worth checking whether the feature is really needed before the design is frozen.

• 1
  Good fitShafts, bushings, pins, fittings, adapters, turned flanges.
• 2
  Watch the ratioPast about 8:1, plan for a tailstock or steady rest.
• 3
  Square internal cornersNot reachable with a nose radius; add a relief groove.
• 4
  Cross-featuresFlats, slots and radial holes need live tooling or a mill.

A lathe with live tooling carries driven holders in the turret. The spindle can index and hold, so a cross-hole or a flat can be cut without unclamping the part. Mill-turn centers go further: the B-axis head or the subspindle lets the machine work on the end face and the back of the part in the same cycle. We run 16 mill-turn centers for exactly this reason.

The gain is positional. Every time a part moves from one machine to another, the new setup must re-establish the same datum. On a part with a true position callout of ±0.05 mm between a bore and a bolt circle, that re-datum is often the largest single source of error. Doing both features in one setup removes it.

The cost is cycle time and tooling. Live tooling runs slower than a dedicated mill spindle, and a driven holder takes a turret station that could be turning. For a part with one small flat, a second op on a 3-axis mill is often cheaper. For a part with a bolt circle, a keyway and a cross-hole, one mill-turn cycle usually wins.

There is a volume threshold too. At prototype quantities the setup labor dominates, so one setup is a clear win. At 10,000 pieces a year the cycle time gap can outweigh the setup savings, and splitting the work across a lathe and a mill may be the better plan. No minimum order quantity means both routes are open to us on the same part.

• 1
  One setupRemoves the re-datum error between turning and milling.
• 2
  Slower cutsLive tooling runs slower than a dedicated mill spindle.
• 3
  Turret stationsEach driven holder takes a station away from turning.
• 4
  Volume mattersOne setup wins at low volume; split routing can win at high volume.

Aluminium 6061-T6 turns fast and holds tolerance easily. It chips cleanly, so deep bores clear well and you can push feed rates. 7075 behaves differently: it is stronger but more prone to built-up edge and a torn finish if the insert geometry is wrong. On thin-wall aluminium, cutting force pushes the wall away from the tool and the part springs back after the pass, so light passes and support are needed.

Stainless 303 is the free-machining grade and turns close to aluminium in behavior. 304 and 316 work-harden. If the insert rubs instead of cutting, the surface gets harder, the next pass cuts worse, and the finish fails. The fix is a heavier feed per revolution and a sharp edge, not a slower one. 316L is common in medical and food-contact work and needs the same discipline.

Titanium TC4 (Ti-6Al-4V) and Inconel sit at the other end. Both keep their strength at the temperatures a cut generates, so heat goes into the insert rather than the chip. Speeds drop by a large factor, coolant has to reach the edge, and tool life is measured in minutes. On Inconel, a small change in depth of cut can double the tool cost on a part.

Plastics and copper alloys each bring their own rules. POM and PEEK move with temperature, so a part measured hot will not match the drawing when it cools. Free-machining brass C36000 turns faster than any steel and produces small chips; beryllium copper machines well but needs dust control. Tell us the material at quote time so speeds and feeds are planned for it.

• 1
  Aluminium 6061-T6Fast, clean chips, easy to hold ±0.005 mm.
• 2
  Stainless 303 vs 304303 is free-machining; 304 and 316 work-harden.
• 3
  Titanium and InconelHeat goes into the tool; speeds drop sharply.
• 4
  PlasticsThermal growth means a hot measurement misleads.

The stated tolerance is ±0.005 mm, which is about ±0.0002 in. That band is achievable on a rigid setup with the right material, but it is not automatic. Thermal growth of the part and the spindle over a long run will walk a dimension if the machine is not managed. We check raw material, monitor in-process, and inspect the final part 100% before shipment.

Runout is a separate number from diameter. A shaft can measure Ø20.000 mm at every station and still have 0.03 mm of total indicated runout if the centers are not aligned. Drawings should say which one matters. If the part spins in a bearing, runout is the controlling callout. If it presses into a bore, the diameter and its tolerance band are what count.

Surface finish comes from the finishing pass. A nose radius of 0.4 mm at 0.05 mm/rev gives a finer finish than a 1.2 mm radius at 0.15 mm/rev on the same material. Ra 0.2–0.8 μm is reachable on a lathe with a light finishing pass, but it needs a stable setup and a sharp insert. Bead blasting, tumbling or polishing can be added after turning when the finish spec is visual rather than functional.

Threads deserve their own note. A turned thread is cut with a single-point tool over several passes, so the pitch diameter and the lead are both controlled. Class 2 and Class 3 fits both come off a lathe. Rolled threads are stronger in fatigue because the grain flows around the root, but rolling is a separate process and suits ductile materials at higher volume.

• 1
  Diameter vs runoutTwo different callouts; say which one controls the fit.
• 2
  Finish parametersNose radius and finishing feed set the Ra you get.
• 3
  Cut vs rolled threadsRolled threads resist fatigue better but need volume.
