Acrylic (PMMA) is a thermoplastic. It does not form chips the way 6061 aluminium does. Under a sharp edge at the right feed, the material shears into curled chips and leaves a glossy wall. Push too slow and the edge rubs instead of cutting. The heat has nowhere to go, so it stays in the workpiece.

That heat is the whole story. PMMA softens near 105 °C and its thermal conductivity is roughly 0.19 W/m·K, about 1,000 times lower than aluminium. Friction at the tool tip cannot dissipate into the part. The chips carry most of it away, and if they are not evacuated fast enough they weld back onto the cut surface. The result is built-up edge, then a smear, then a crack.

Cast acrylic and extruded acrylic do not machine the same. Cast sheet has a higher molecular weight and machines to a clearer, more uniform finish, but it is also more brittle under point loads. Extruded sheet is cheaper and bends slightly before it breaks, which helps on thin walls. For optical parts, specify cast. For brackets and covers, extruded is usually fine and costs less.

Moisture matters less than it does for nylon, but acrylic does absorb a small amount of water. If a part sits in a humid shop for weeks before finishing, stress crazing can appear near machined edges after cleaning with solvent. Dry the stock or machine it soon after receipt.

Three-axis milling can reach any point on the top of a block. It cannot keep the tool axis normal to a curved surface without a ball nose tool and a lot of hand polishing. Simultaneous five-axis motion tilts the tool so the flank stays tangent to the surface. On a domed acrylic lens cover, that means one continuous pass instead of a grid of scallops.

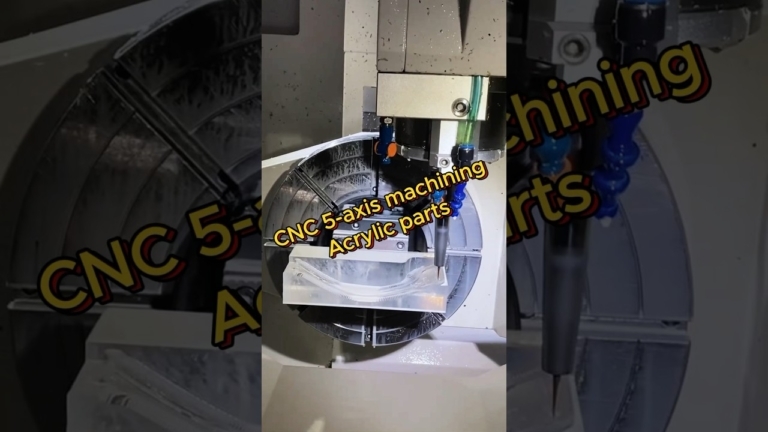

The second gain is setup count. A part with features on five faces normally needs five fixtures, five datum resets and five chances to introduce error. On a 5-axis machining center with a Ø400 mm rotary table, the workpiece is clamped once and indexed. Datum error stays inside one setup. On a prismatic acrylic part with tight hole-to-face relationships, that is often the deciding factor.

The third gain is tool access. Undercuts, deep pockets with drafted walls, and ports on a cylindrical body are reachable when the table rotates. On a 3-axis machine the same feature needs a special long-reach tool that deflects, or an EDM operation that is slow and leaves a recast layer in plastic.

None of this is free. Simultaneous motion in plastic demands conservative feed and consistent chip clearance, because the tool spends more time in the cut per revolution. Programmers who port aluminium toolpaths straight onto PMMA get chatter and melt marks.

Use two-flute carbide end mills with polished flutes and a high helix, 45° or steeper. Two flutes leave a larger chip channel than four, and acrylic chips are bulky. A four-flute tool in a deep pocket will recut chips and rub them against the wall. Uncoated carbide or a light DLC coating works; avoid thick TiAlN coatings that round the edge.

Spindle speed for a Ø6 mm tool typically lands between 12,000 and 18,000 rpm. Feed per tooth sits around 0.05–0.15 mm. That is a starting window, not a recipe. The number that matters is chip load consistency: if the tool is rubbing, the surface dulls; if the load spikes, the edge chips.

Rough with a 0.3–0.5 mm radial stepover and leave 0.2–0.3 mm for the finishing pass. Climb milling gives a better wall on acrylic because the tooth enters at maximum thickness and exits at zero, which reduces the rubbing that causes heat. Conventional milling on a finish pass will leave a visible white haze.

Air blast beats flood coolant here. Compressed air clears chips and cools the tool without thermal shock. If the cut is deep, a mist of water-soluble coolant helps, but the chips must still be blown out. Trapped chips are the most common cause of a scrapped acrylic part.

• 1
  Sharp, uncoated edgeA dull tool rubs and generates heat instead of shearing.
• 2
  Two flutes, high helixLarge chip channel for bulky PMMA swarf.
• 3
  Climb milling on finishReduces edge rubbing and white haze on walls.
• 4
  Air blast over floodClears chips and avoids thermal shock.

Acrylic crazes. Crazing starts at a scratch, a sharp internal corner or a machining mark, and it spreads under load or solvent exposure. Radius every internal corner to at least one-third of the wall thickness. A 0.5 mm fillet where a 2 mm wall meets a boss will save the part.

Thin walls are a different problem. Below about 1.0 mm, cutting forces deflect the wall away from the tool, and the finished thickness varies along the length. For a 0.8 mm wall, plan on multiple light finishing passes and a support fixture or sacrificial backing. If the design allows, thicken to 1.5 mm and save the setup cost.

Transparency raises the bar again. Any tool mark shows. Any chip recut shows. Any residual stress from a heavy roughing pass can show as a faint internal haze weeks later. An optical acrylic part usually needs a roughing pass with generous stock, a semi-finish, then a finishing pass at Ra 0.2–0.8 μm, followed by vapor polishing or flame polishing if a truly clear surface is required.

Threads and press fits behave differently than in metal. A tapped M4 thread in acrylic holds well if the wall is at least 2× the nominal diameter, but it strips if the part is over-torqued. For repeated assembly, insert a brass heat-set insert rather than cutting threads directly into PMMA.
