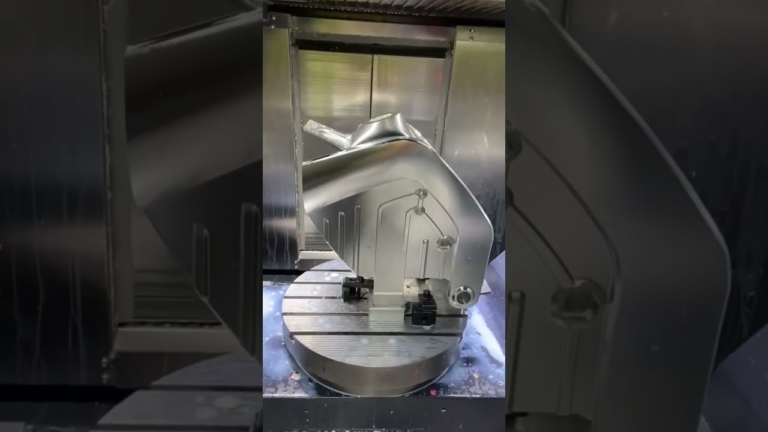

5 Axis Machining Large Aluminum Parts

A 900 mm aluminum frame with pockets on four sides can be cut on a 3-axis mill. You flip it, indicate it, and cut again. The problem starts when the part has angled faces, contoured ribs, or bores that are not normal to any single axis. Each extra setup adds a datum transfer, and every datum transfer adds error. On a part that is 1,200 mm long, a 0.02 mm shift at the first fixture can become 0.08 mm at the far end by the fourth setup.

Five-axis machining removes that stack. The trunnion and the rotary table present the angled face to the tool, so the same datum holds from roughing to finishing. That matters most on parts with a true position callout across features that sit on different faces. If two bores must stay within Ø0.05 mm of each other and they are 30 degrees apart, one setup is the safer route.

Not every large part needs it. A flat plate with through-holes and a single profile is cheaper on a 3-axis machine. We quote it that way. The 5-axis route pays off when re-fixturing error is bigger than the cost of the extra machine hour.

• 1
  Good fitAngled faces, compound angles, contoured pockets, bores on multiple axes.
• 2
  Good fitTight true position between features on different faces.
• 3
  Poor fitFlat plates with one profile and simple hole patterns.
• 4
  Poor fitParts where a 3-axis setup already holds the tolerance.

Our largest simultaneous 5-axis centers reach 4,000 × 400 × 150 mm. Other cells run 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. The rotary table is Ø400 mm. Those numbers describe the envelope, not the part. A 4,000 mm part still has to sit on the table, clear the spindle nose at every angle, and let the tool reach the deepest pocket without the holder rubbing the wall.

Aluminum is light, so part weight rarely limits the setup. What limits it is stiffness. A 3,000 mm extrusion hanging off the table will deflect under cutting load and chatter. We add support every 400–600 mm, or we leave tabs and cut them last. Thin walls below 2 mm on a long part need light finishing passes and a sharp tool, not a heavy roughing strategy.

If your part is longer than 4,000 mm, we split it into sections and join, or we quote a different process. We will tell you which one before you commit.

• 1
  Largest cell4,000 × 400 × 150 mm, single setup.
• 2
  Mid cells750 × 1,150 × 550 mm and 600 × 600 × 600 mm.
• 3
  Compact cells500 × 500 × 450 mm and 500 × 310 × 200 mm.
• 4
  Rotary tableØ400 mm, for parts that turn as well as tilt.

On a 1,500 mm aluminum part, the fixture matters as much as the machine. A vise at each end leaves the middle unsupported. We use a modular rail system with adjustable clamps, or a dedicated plate with pockets that match the part profile. Soft jaws machined in place hold the first op without marking the surface.

For the second op, we prefer clamping on stock that gets removed later. That keeps the finished faces free of clamp marks. Where that is not possible, we use low-profile toe clamps and plan the toolpath around them. Leaving tabs is common on long parts. The tabs carry the part through the last pass, then get cut in a short final op.

Vacuum workholding works well on thin aluminum panels up to about 1,200 mm. Beyond that, the seal area gets large and the holding force per square millimeter drops. We switch to mechanical clamping when a part needs heavy roughing.

• 1
  Modular railsAdjustable clamps along the full length.
• 2
  Soft jawsMachined in place to match the profile.
• 3
  TabsHold the part, cut off in a final short op.
• 4
  VacuumGood for thin panels, limited under heavy cuts.

We hold ±0.005 mm on features we can reach with a short, stiff tool. On a long aluminum part, that number applies locally, not across the whole 1,200 mm. Over that length, thermal growth and machine geometry stack up. Aluminum expands about 23 μm per meter per degree Celsius. A 5 °C shop swing on a 1,200 mm part moves it roughly 0.14 mm before the cutter touches it.

So we control the room. Our cells run in temperature-controlled bays, and we let large parts stabilize before the finishing pass. For a part with a tight overall length callout, we rough, cool, then finish. That sequence is not optional on long aluminum.

Surface finish follows the same logic. Ra 0.8–1.6 μm is a normal as-machined target. Ra 0.2–0.8 μm needs a finishing pass with a smaller stepover and a sharp insert, and it costs time. Tell us the finish callout up front so we can plan the toolpath.

• 1
  Local tolerance±0.005 mm on reachable features.
• 2
  Long-length toleranceLooser, driven by thermal and geometry.
• 3
  Thermal controlTemperature-controlled bays, cool before finishing.
• 4
  FinishRa 0.8–1.6 μm standard, Ra 0.2–0.8 μm on request.

Large aluminum parts usually start as plate or extrusion. We check the stock for flatness and internal stress before cutting. Stress-relieved 6061-T6 and 7075 are common for parts that will be machined on both sides. A non-relieved plate can move after the first op and pull the part out of tolerance.

Roughing removes most of the material with a high-feed strategy. Then we stress-relieve again if the part is thin, or let it rest. Finishing follows with a smaller tool and a tighter stepover. For 5 axis machining large aluminum parts, we keep the tool as short as the geometry allows. A long tool in a deep pocket will deflect and leave a taper.

Inspection happens at three points: incoming stock, in-process, and final. We measure on a CMM and provide reports on request. A 100% inspection before shipment is standard. If a feature is out, we catch it before it ships, not after.

• 1
  Stock checkFlatness and stress state before cutting.
• 2
  RoughingHigh-feed removal, then a rest or stress relief.
• 3
  FinishingShort tools, small stepover, controlled stepdown.
• 4
  InspectionIncoming, in-process, final; reports on request.
