CNC 5 Axis Parts: A Practical Machining Guide

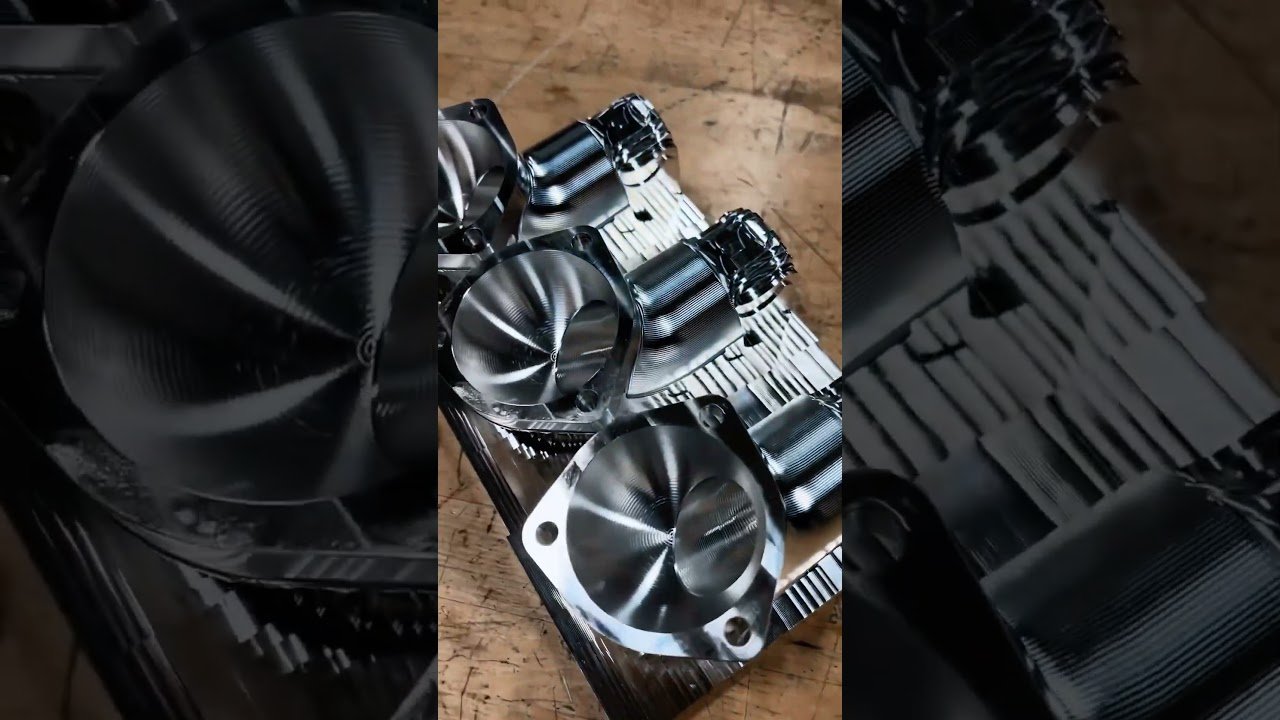

With a 3-axis vertical mill, the part sits still and the spindle moves in three perpendicular directions. Fixtures stay simple. Anything on the side or back of the part needs a second or third setup, and each setup adds its own stack of error.

A 5-axis machine adds two rotary axes on top of X, Y, and Z. Either the table tilts and rotates, or the spindle head swivels and turns. In a trunnion layout the part sits on a rotary table, which suits compact parts. In a swivel-head layout the tool moves around a fixed part, which suits long parts that would be awkward to spin.

The useful distinction is between indexed and simultaneous motion. Indexed means the rotary axes lock, cut, then unlock and move to the next angle. Simultaneous means all five axes move together through a single continuous tool path, which is what lets a ball nose cutter stay normal to a curved surface.

GreatLight runs 16 simultaneous 5-axis machining centers alongside 12 four-axis mills and 27 three-axis machines. That mix matters, because not every feature needs five axes. Sending simple parts to a 3-axis machine is faster and cheaper than occupying a 5-axis spindle.

The clear win is parts with features on several faces that must stay in relation to each other. A hydraulic manifold with bores on four sides, a sensor housing with angled ports, or an engine bracket with a machined face and two angled pads. Cut them in one setup and the position error between features comes from the machine, not from re-clamping the part.

Angle features are the second case. A hole that meets a surface at 30° is hard to drill on a 3-axis machine without a tilted fixture. On a 5-axis machine the head simply tilts. Short tools reach into deep pockets that would otherwise need long, flexible tooling with poor surface finish.

Then there are the parts that should not go on a 5-axis machine. A flat plate with holes through one face, a simple shaft turned on a lathe, a block with a single pocket. Setup time on a 5-axis center is longer and the hourly rate is higher, so the extra capability earns nothing. We push those to a 3-axis mill or a mill-turn center.

Curved surfaces are a gray area. Contoured blades, impellers, and organic housings often need simultaneous motion because a 3-axis machine would leave visible scallops or require long hand polishing. But a shallow cosmetic curve on a flat part can be finished with a ball nose cutter on a 3-axis machine and a light stepover. Ask whether the surface is functional or decorative.

• 1
  Good fitMultiple faces held to one datum, angled holes and ports, deep pockets, contoured surfaces
• 2
  Poor fitSingle-face plates, prismatic parts with loose tolerances, simple turned shafts
• 3
  Judgment callShallow cosmetic curves and medium-complexity housings

Work starts with the model and the drawing, not the machine. We check datums, tolerances, and any feature that needs a specific surface. A free DFM review comes back within 12 hours, and it often flags a wall too thin to hold, a corner radius smaller than the cutter, or a thread that cannot be reached.

Toolpath strategy follows. For simultaneous work the CAM programmer controls the lead angle and tilt to keep the cutter engaged at a steady load. Too much tilt and the tool rubs; too little and the shank collides with the wall. A Ø400 mm rotary table helps with parts that need rotation but not a large swing.

Fixturing is where 5-axis jobs are won or lost. Soft jaws, a self-centering vise, or a custom fixture hold the part rigid enough for the cutting forces while leaving the five faces clear. A part that rings or shifts during a long simultaneous pass will not hold ±0.005 mm, no matter how good the machine is.

In-process probing and a final inspection close the loop. Every part is inspected before shipment, with raw material checks and in-process monitoring along the way. Reports are available on request, which matters for aerospace, medical, and automotive work where the paper trail carries as much weight as the part.

Aluminum is the default for 5-axis work. Grades 6061 and 7075 cut fast, hold tight tolerances, and take anodizing well. Titanium TC4 (Ti-6Al-4V) and Inconel are common in aerospace but cut slowly and wear tooling, so toolpaths are planned around heat and chip evacuation. Stainless 17-4PH and 316L show up in medical and marine parts.

A few material rules save trouble. Thin aluminum walls move under clamping pressure, so fixtures need to support them from both sides. Titanium and Inconel generate heat at the cutting edge, which pushes toward lower speeds and generous coolant or high-pressure through-tool delivery. Magnesium AZ31B and AZ91D machine quickly but need chip control for safety.

Finishing is chosen with the function in mind. Anodizing for wear and color, hardcoat where the surface will rub, electroless nickel for corrosion and uniform coverage on complex geometry, bead blasting for a matte look, laser marking for part IDs at a minimum character height of 1.5 mm. Plating thickness changes fits, so call out critical bores before finishing.

The qualification rate on our lines runs at 99.99%. That figure rests on clean setups and inspection, not on rework, and it is the reason we push back when a tolerance is tighter than the function requires.

Tool access drives cost more than any other variable. A pocket 40 mm deep and 8 mm wide needs a long, slender cutter that deflects and chatters. Widen it to 12 mm, or reduce the depth, and the same feature cuts cleanly at a lower price. A good rule is to keep pocket depth under four times the tool diameter where possible.

Internal corners should match a standard cutter radius. A sharp inside corner forces a small tool and a slow pass, or a separate EDM operation. A 2 mm or 3 mm corner radius costs nothing to add in CAD and removes that problem. Undercuts and features hidden behind a lip are the hardest to reach, even on a 5-axis machine, because the holder still has a physical shape.

Datums deserve attention. Pick features that will be machined in the same setup and that a fixture can locate against. If the drawing calls a raw cast surface as a datum, the setup will chase variation. One clear primary datum, a secondary, and a tertiary beats a drawing with tolerances spread across five faces.

Threads and holes are worth a second look. Deep tapped holes in titanium or stainless break taps, so specify a thread mill if the hole is deeper than twice the diameter. Angled holes are easy on a 5-axis machine, but the entry surface should be flat or countersunk so the drill does not walk on a curved face.

• 1
  Keep depth proportionalPocket depth under four times the cutter diameter
• 2
  Add corner radii2–3 mm radii avoid tiny tools and EDM
• 3
  Clean datumsMachined faces as datums, not raw cast surfaces
• 4
  Plan entry surfacesFlat or countersunk faces for angled holes
