CNC Carbon Alloy Machining on 5-Axis Centers

• 1
  Key takeaways
• 2
  What CNC carbon alloy machining actually covers
• 3
  How the cutter removes material in each family
• 4
  Why 5-axis changes CNC carbon alloy machining
• 5
  Where the process stops working
• 6
  Machining parameters and setup choices
• 7
  How to verify a carbon alloy part
• 8
  Alloy steel vs carbon fiber composite

The phrase covers two unrelated material families. The first is carbon and alloy steel: 1018, 1045, 4130, 4140, 4340 and tool steel. Carbon content drives hardness and machinability; chromium, molybdenum and nickel are added for hardenability and toughness. The second family is carbon-fiber reinforced polymer, where the carbon is a fiber inside a resin matrix. Same word, opposite cutting behavior.

Machinists use "carbon alloy" loosely for any steel with more than about 0.3 percent carbon. That is a useful shorthand on the shop floor and a bad label on a drawing. A 4140 pre-hard block at 28 HRC and a CFRP laminate are not interchangeable in any planning step, not in tool selection, not in fixturing, not in inspection.

So the first job in any CNC carbon alloy machining quote is to split the request. Which family is it? If steel, what hardness and what heat treatment state? If composite, what fiber orientation and what resin? Those four answers decide the rest of the process plan.

• 1
  Alloy steelChips form and carry heat away. Tool life is predictable.
• 2
  Carbon fiber compositeNo continuous chip. Abrasion and dust dominate.
• 3
  Mixed assembliesSteel inserts in composite shells need separate operations.

In alloy steel the cut is a shear event. The edge compresses a small zone ahead of it until the metal shears along a plane and slides up the rake face as a chip. Roughly 70 to 80 percent of the heat leaves with that chip. That is why feed rate matters more than spindle speed for tool life: a light feed rubs instead of shearing, and the heat stays in the part and the edge.

In carbon fiber the mechanism is brittle fracture plus abrasion. The edge pushes fibers until they snap, and the exposed fiber ends drag along the flank face like a file. Heat generation is much lower, but edge wear is not. Carbide grades that last hours in 1045 steel can dull in minutes in a thick CFRP laminate.

Resin adds a third problem. If the local temperature passes the glass transition point, the matrix softens and smears instead of cutting cleanly. The result is a fuzzy edge, delamination at the exit ply, and a surface that fails visual inspection. Fiber orientation controls how bad it gets: cutting perpendicular to the fibers gives a clean shear, cutting parallel peels them.

• 1
  Steel: shearChip carries heat. Feed rate protects the edge.
• 2
  CFRP: fracture plus abrasionEdge wear is the cost driver, not heat.
• 3
  Resin: thermal limitStay under the glass transition or the edge smears.

A 3-axis mill holds the tool vertical and moves it in X, Y and Z. Any feature on a side wall, an undercut or an angled port needs a second setup, and each setup adds a datum error. On a part held to ±0.005 mm, two setups can consume most of the tolerance budget before a single cut is made.

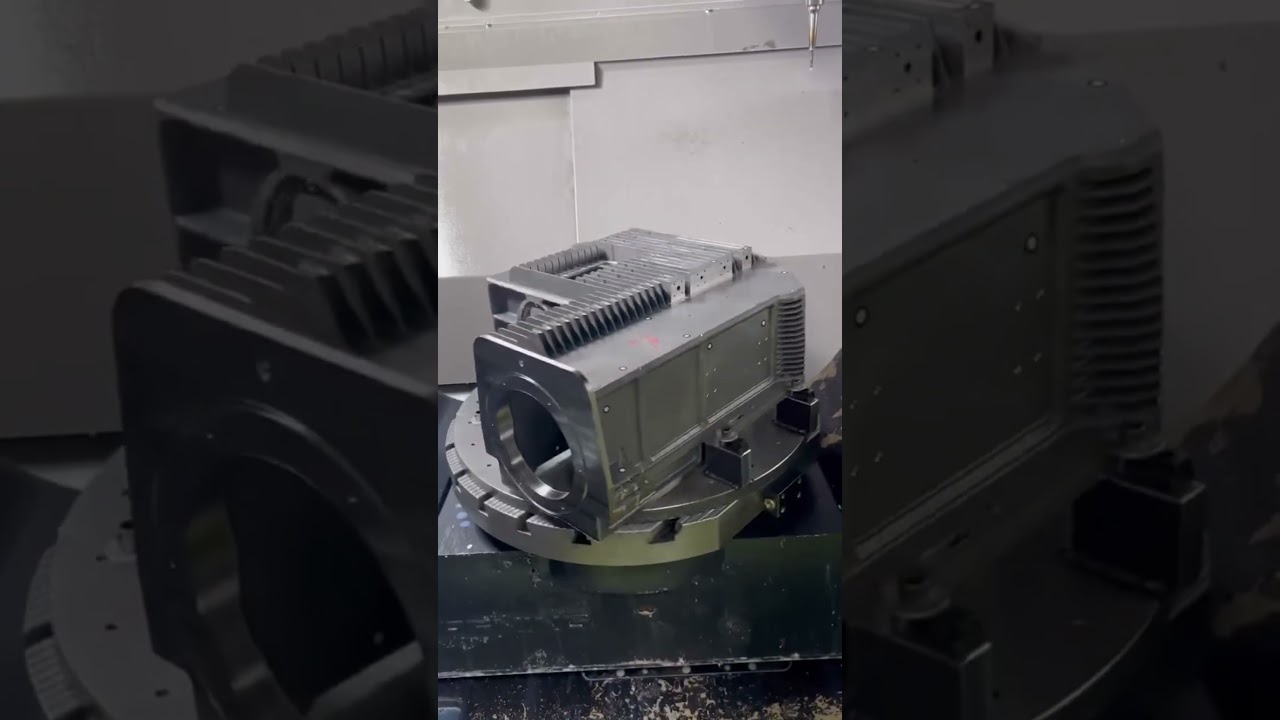

A simultaneous 5-axis center tilts the tool or the table while cutting. The practical gain is access, not raw speed. You reach five faces in one setup, drill angled holes without a fixture, and keep the tool normal to a curved surface. On a 4140 manifold or a CFRP duct, that single setup is often the difference between a passing part and a stack of rework.

There is a second, less obvious gain. Tilting the tool lets you control where the edge contacts the material. On a thin composite wall, a shallow tilt spreads the cutting force and reduces delamination at the exit. On a deep steel pocket, a smaller effective diameter at the tip reduces chatter without a long-reach tool.

GreatLight runs 16 simultaneous 5-axis machining centers, plus 27 three-axis machines for the simpler work. We route each job to the machine that can hold the tolerance at the lowest total cost, not to the most expensive one.

• 1
  One setup, five facesRemoves datum error stacking from multiple fixtures.
• 2
  Tool normal to surfaceBetter finish on curved walls and angled bosses.
• 3
  Controlled contact angleLower delamination risk on thin composite walls.

Alloy steel at high hardness is a boundary case. Soft steels machine well with standard carbide. As hardness climbs past roughly 45 HRC, cutting forces rise, chatter becomes common, and you need either a pre-hard state or a grinding operation after heat treatment. If your drawing calls for 58 HRC and a ±0.005 mm bore, plan the sequence around that, not against it.

Composite has a different wall. Thick laminates with high fiber volume cut slowly because the edge wears fast. Thin skins move under clamping pressure and can spring back into the cutter. Hand-layup panels vary in thickness, so a nominal 3 mm panel can measure 2.6 to 3.4 mm, which breaks any program written to a single Z depth.

Some geometry simply does not belong on a mill. A 300 mm deep, 12 mm wide slot in 4340 steel needs an electrode or a wire EDM, not a long-reach end mill. A CFRP tube with continuous fibers running the length of the part will fray at the cut no matter which center you use. Recognizing that early saves a scrapped run.

• 1
  Above 45 HRCExpect chatter and extra operations. Plan the sequence early.
• 2
  Thin composite skinClamping pressure distorts it. Use vacuum workholding.
• 3
  Very deep narrow slotsLong-reach tools deflect. Consider EDM instead.

For 4140 pre-hard at 28 to 32 HRC we typically run coated carbide at 120 to 180 m/min surface speed, 0.08 to 0.15 mm per tooth feed, and a 0.5 to 1.0 mm radial depth with a high-feed strategy. Those numbers keep the chip thick enough to carry heat and the radial load low enough to avoid chatter on a long wall.

For 1018 and 1045 in the normalized state the window is wider: 180 to 250 m/min with the same feed range. The risk here is not tool wear but built-up edge at low speeds. If you see a rough, torn finish on a mild steel face, the fix is usually more speed, not more coolant.

For CFRP the numbers look unusual. Surface speed drops to 200 to 400 m/min with diamond-coated tooling, feed climbs to 0.05 to 0.1 mm per tooth, and the tool path is almost always a climb cut with a sacrificial backing plate at the exit. Dust extraction runs at the spindle, not at the enclosure floor, because the fine fraction stays airborne.

Fixturing decides as much as the cutting data. Steel parts go on a vise or a 5-axis tombstone with hard stops. Composite panels go on a vacuum table with a dedicated spoil board. Mixing the two on one fixture is how thin composite parts get crushed.

• 1
  4140 pre-hard120–180 m/min, 0.08–0.15 mm/tooth, coated carbide.
• 2
  1018 / 1045180–250 m/min. Raise speed if the finish tears.
• 3
  CFRP200–400 m/min, diamond coating, climb cut, extract at the spindle.

Steel parts follow a familiar path: check the raw material certificate, monitor the first article, then measure the critical features. A CMM with a touch probe handles most geometry down to ±0.005 mm. Hardened parts need the measurement done after heat treatment, because the part moves during quench and temper.

Composite parts need a different checklist. Dimensional inspection is still done on a CMM, but the probe force must be low, and the part must be supported the same way it will be in service. Edge quality is judged visually against a written standard, not a verbal one. Delamination is checked with a dye penetrant or an ultrasonic scan on safety-critical parts.

We inspect 100 percent of parts before shipment, and reports are available on request. For composite work we photograph the machined edges and keep the images with the inspection record, because edge quality is the failure mode that a dimensional report will not catch.

• 1
  SteelCMM after heat treatment. Material cert on file.
• 2
  CompositeLow-force probing, visual edge standard, ultrasonic on critical parts.
• 3
  Both100% inspection before shipment, reports on request.
