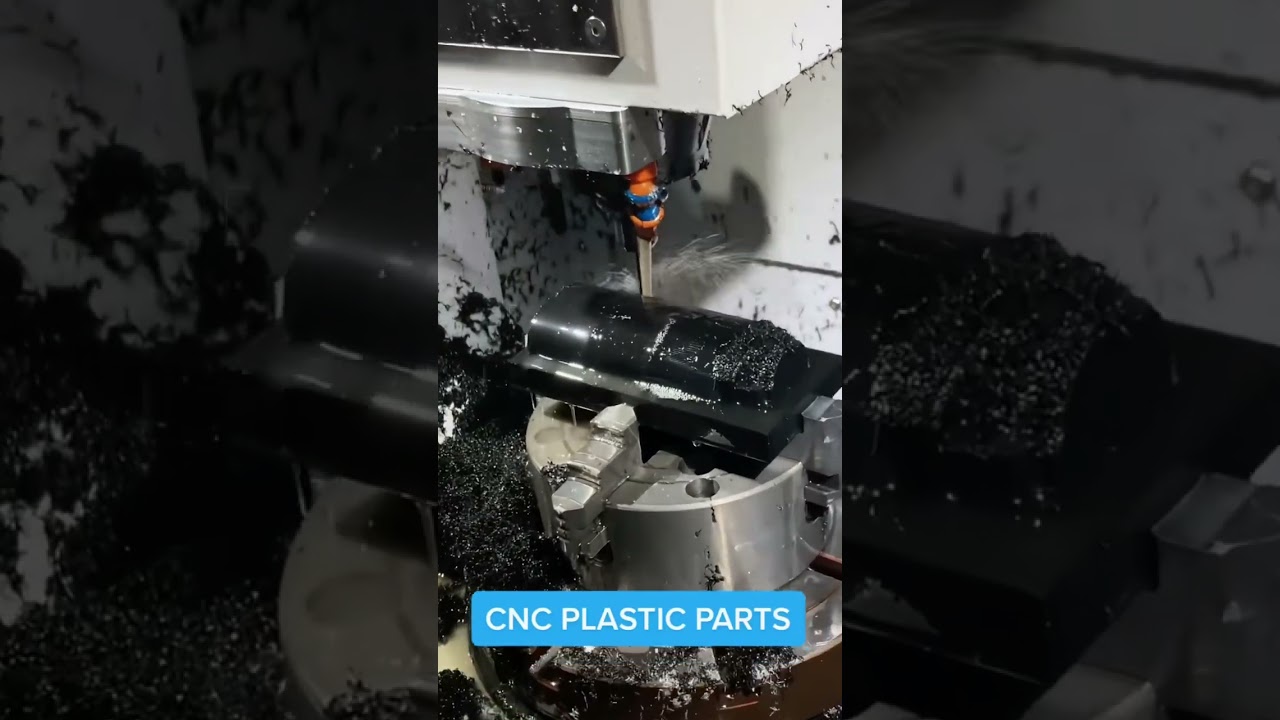

CNC Plastic Parts on 5-Axis Mills: What Engineers Should Know

• 1
  Why Plastic Behaves Differently Under a 5-Axis Spindle
• 2
  How ABS, POM, PEEK and PC Cut on a 5-Axis Mill
• 3
  Where 5-Axis Machining Helps Plastic Parts and Where It Does Not
• 4
  What Tolerance and Finish You Can Realistically Hold
• 5
  Design Details That Decide Whether the Part Machines Well
• 6
  How We Set Up Plastic Jobs at GreatLight
• 7
  Plastic Material Selection by Application

Metal cutting removes heat with the chip and the coolant. Plastic does not conduct heat well, so most of the heat from the cut stays at the tool tip. A 6 mm end mill running at 12,000 rpm in POM can push the local temperature past the glass transition point within a few seconds if the feed is too low. The material does not melt into a puddle. It goes soft, smears, and then re-hardens behind the cutter.

That softening changes the geometry you are trying to hold. A wall that measures 2.00 mm on the first pass may spring back to 2.04 mm after the tool leaves, because the elastic recovery of the plastic pushes the material back out. On a 5-axis machine the same effect shows up on a contoured surface as a wavy finish. The tool path is correct; the material moved.

Chip evacuation is the second difference. Aluminum chips are heavy and fall away. Plastic chips are light, they carry static, and they wrap around the tool. Recutting a chip doubles the heat at the tip. Air blast at 0.4–0.6 MPa clears most of it. Deep pockets in ABS still need pecking passes or a short dwell to let the air do its job.

The third difference is clamping. Plastics are roughly 10 to 30 times more flexible than steel. A vise tightened to the same feel you would use on 4140 will bow a plastic block, and the bow will be machined into the part. Light clamping plus support underneath is the rule, not the exception.

ABS is the forgiving one. It machines at 8,000–12,000 rpm with a two-flute carbide cutter, takes a clean edge, and tolerates a light air blast instead of coolant. It also has the lowest stiffness of the common engineering plastics, so thin ribs and tall walls deflect. If a part is mostly cosmetic and does not need to hold a tight bore, ABS on a 3-axis mill is usually the cheaper route.

POM (Delrin) is the plastic that machines most like brass. It cuts at 10,000–14,000 rpm, produces a continuous chip, and holds ±0.05 mm on a well-supported feature without much effort. It does not like sharp internal corners, because the same notch sensitivity that makes it strong makes it crack at a stress riser. Add a 0.5 mm corner radius and the part lasts.

PEEK and PC sit at the other end. Both need slower surface speeds, sharper tools, and more attention to heat. PC will stress-craze around a machined hole if the tool rubs instead of cuts. PEEK holds its shape at temperatures where ABS is already soft, which is exactly why it is used for semiconductor and medical fixtures, but it also costs enough that a scrapped part matters.

PC is the one to watch on a 5-axis machine. It is tough, transparent in some grades, and it scratches if you look at it wrong. Protective film stays on until final inspection. Coolant should be avoided unless the shop has a dedicated line, because PC absorbs moisture and can cloud over time.

Five-axis work earns its cost when the part has features on more than one face. A plastic manifold with ports at compound angles, or a housing with a contoured outer skin and a bored inner pocket, can be cut in one setup instead of three. Each setup you remove is a chance to lose 0.05 mm of position. So the real benefit is not the curved surface itself, it is the datum control.

The second benefit is tool access. A long-reach tool in a 5-axis holder can tilt into a pocket and cut with the side of the flute instead of the tip. That reduces the length-to-diameter ratio, which reduces chatter. In plastic, chatter is not just a finish problem; it is a heat problem, because vibration rubs the material.

Where it does not help: flat plates, simple brackets, and any part that can be cut from one side. A 3-axis mill with a fixture can hold the same tolerance on those shapes, and the hourly rate is lower. If a buyer asks for 5-axis on a flat cover, the honest answer is that they are paying for capability they will not use.

Another boundary is feature size. Below about 1.5 mm in width, plastic features start to flex under cutting force no matter how many axes you have. Laser cutting, waterjet, or a different design with a thicker rib is often the better answer than a very small end mill on a 5-axis center.

On metals, GreatLight holds ±0.005 mm and finishes down to Ra 0.2–0.8 μm. Plastic is a different conversation. The tolerance you can hold depends on the material's thermal expansion and its stiffness, not on the machine. POM and PEEK can reach ±0.02 mm on a supported feature. ABS and PP are closer to ±0.05 mm, and thin walls are worse.

Temperature moves the number. A POM part that measures 20.00 mm at 20 °C will measure about 20.02 mm at 30 °C. If a drawing calls for ±0.01 mm on a 100 mm plastic part, the shop has to control the room, not just the cutter. That is possible, and it is also a cost the buyer should understand before the RFQ goes out.

Surface finish follows the same logic. A sharp two-flute cutter with a light finishing pass gets plastic to Ra 0.8–1.6 μm. Pushing for Ra 0.2–0.8 μm on plastic usually means a slower pass and more heat, which can make the finish worse, not better. For most plastic parts, Ra 1.6–3.2 μm is the as-machined baseline.

Inspection matters here. GreatLight inspects 100% of parts before shipment, with raw material checks, in-process monitoring, and a final inspection report on request. On plastic, the report should state the temperature at measurement, because that number is part of the result.

Wall thickness is the first number to check. Below 1.5 mm, plastic walls deflect under normal cutting force and vibrate. Between 1.5 mm and 3 mm, a 5-axis mill can hold reasonable tolerance if the wall has support. Above 3 mm, the part is usually solid enough that the material choice matters more than the process.

Corner radii are the second. A sharp internal corner in POM or PMMA concentrates stress and is also hard to cut without a smaller tool, which means a slower pass and more heat. A 0.5 mm radius is enough to change both the strength and the cut. On a pocket floor, a small radius lets a larger cutter reach the corner, which shortens cycle time.

Draft is not required for machining the way it is for molding, but it helps when the part has deep pockets. A 2° draft on a 30 mm deep pocket lets the cutter clear chips and reduces the chance of rubbing the wall on the way out. It also makes the part easier to remove from a fixture without marking it.

Finally, think about how the part will be held. A plastic part with a flat sacrificial tab that can be clamped and then cut off is easier to machine than a part with no holding feature. We will suggest this in the DFM review, but a designer who plans for it up front saves a round trip.

We run 127 high-precision CNC machines across three plants, including 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines, and 16 mill-turn centers. Maximum processing size is 4,000 mm, and the largest travel is 4,000 × 400 × 150 mm. For plastic work, the 5-axis centers are used when the part has compound-angle features or needs one-setup datum control.

Tooling for plastic is kept separate from steel tooling. A cutter that has run 4140 has a worn edge, and a worn edge on POM rubs instead of cuts. We use sharp two-flute and three-flute carbide, air blast as the default coolant, and light clamping with support under thin sections. Protective film stays on PC and PMMA parts until final inspection.

The quote comes back with a DFM analysis inside 12 hours, and production can start within 24 hours of approval. Parts ship in 3–5 days for standard jobs. There is no minimum order quantity, so a single prototype and a 10,000-part run go through the same setup logic.

Certifications cover ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022. Uploads are secure and confidential, and an NDA is available on request. If the material choice or the tolerance is not realistic for the process, we say so in the DFM note rather than quoting a number we cannot hold.
