What a CNC Machining Panel Actually Controls on a 5-Axis Mill

• 1
  What Sits on a CNC Machining Panel
• 2
  How the Control Turns Coordinates into Cuts
• 3
  When 5-Axis Milling Beats 3-Axis on the Same Part
• 4
  Where the Panel and the Machine Run Out of Range
• 5
  3-Axis vs 4-Axis vs 5-Axis: Choosing by Part Feature

A CNC machining panel is the front end of the machine control. On a 5-axis mill it splits into four working groups: axis jog and mode select, spindle and feed override, tool changer and magazine control, and the offset and alarm pages. Operators touch all four in the first ten minutes of a setup.

Mode select decides what the machine will accept. Jog, handwheel, MDI, memory and edit are separate states. In jog you move one axis at a time at a set feed. In MDI you type a single block and run it. In memory the machine reads the whole program. Choosing the wrong mode is the most common reason a first article stalls.

The panel also holds the safety chain. Door interlocks, spindle orient, air pressure and coolant level all report back to the control. If any one of them drops out, the panel blocks cycle start. That is why a machine that ran fine yesterday can refuse to start today over a low air signal.

Override dials look simple and matter more than most people expect. Feed override lets you slow a cut from 100% down to 0% without editing the program. Spindle override trims speed in set steps, often 50% to 120%. During a first article, both are the fastest way to hear and feel whether a cut is loaded correctly before you commit to the full program.

• 1
  Mode selectJog, handwheel, MDI, memory, edit
• 2
  OverridesFeed and spindle, no program edit needed
• 3
  ATC controlMagazine index, pot position, tool data
• 4
  Offset pagesWork shifts, tool length, cutter radius

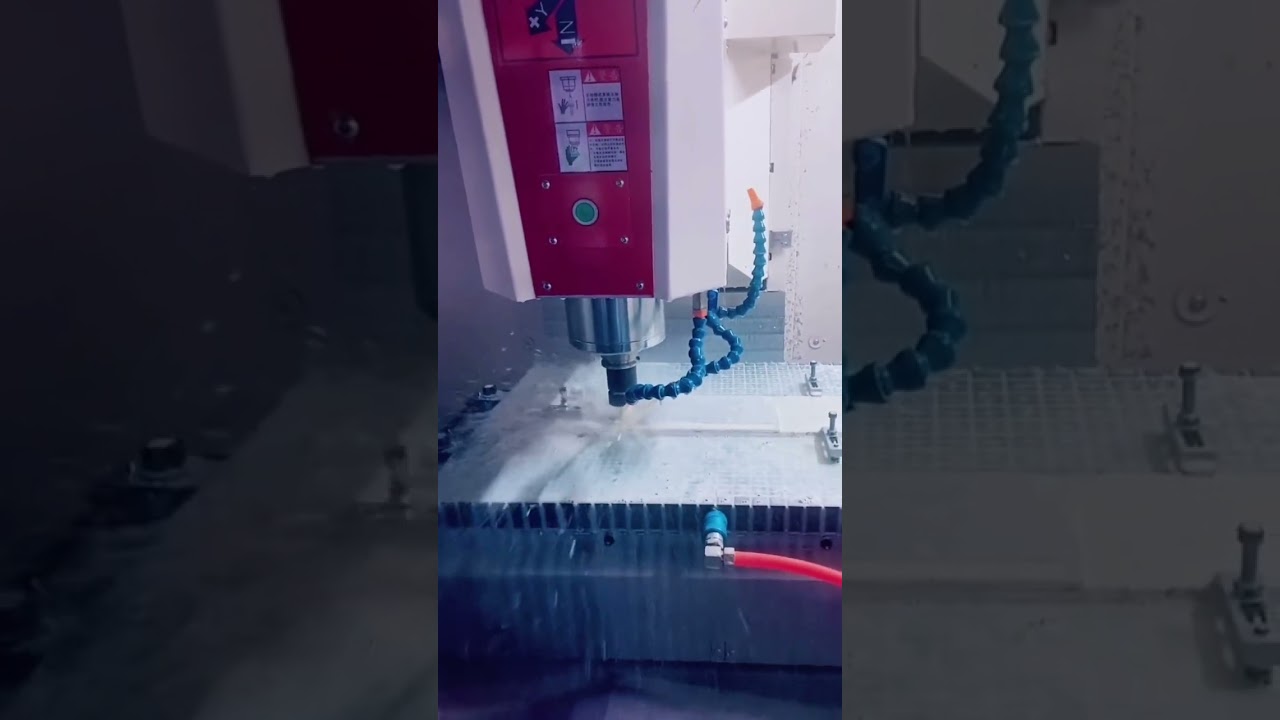

A program is a list of positions, feeds and speeds. The control reads each block, works out the path between the current point and the next one, and sends pulses to the servo drives. On a 3-axis machine those drives move X, Y and Z only. The part stays put and the tool does all the traveling.

A 4-axis machine adds a rotary table, usually turning around X or Y. The rotary table holds the part, so the control now has to blend a rotary angle with linear moves. Setup time drops because one clamping can reach three or four faces. The trade-off is that the rotary table itself takes up work envelope space.

A 5-axis machine adds a second rotary axis, either as a trunnion (table tilts and rotates) or as a swivel head. Now five servo axes move at once. The control has to keep all five synchronized inside one look-ahead buffer, and it has to re-post the tool tip position as the two rotations change. That is the real difference between 4-axis and 5-axis.

Look-ahead is what keeps the tool from overshooting at corners. The control reads a set number of blocks ahead, slows the feed before a tight radius, then accelerates out. Short look-ahead and high feed equals gouged corners. Long look-ahead with a poorly filtered CAM path equals chatter, because the machine is chasing thousands of tiny moves.

Tool length and work offsets sit on top of all of this. The control adds the tool length offset to Z and the work offset to every axis, so the same program can run on two different vises. If a part comes out 0.2 mm off in Z, the offset page is the first place to look, not the CAM file.

• 1
  3-axisThree linear servos, part fixed
• 2
  4-axisAdds one rotary table, often Ø400 mm
• 3
  5-axisTwo rotary axes plus three linear, all synchronized
• 4
  Look-aheadBuffer length sets corner accuracy and surface finish

The usual reason to move a part to 5-axis is access, not speed. A deep pocket with undercut walls, a port at an angle, or a face that would need three separate 3-axis setups can often be reached in one 5-axis setup with a stubby tool. Short tools deflect less. That shows up directly in tolerance and finish.

The second reason is surface quality on curved geometry. A ball nose tool on a 3-axis machine has to sweep in tight stepovers to hit Ra 0.8 μm on a compound curve. Tilting the tool lets the control use the side of the cutter and a wider stepover. Cycle time falls and the surface can land in the Ra 0.2–0.8 μm band without hand polishing.

The third reason is feature-to-feature position. Every extra setup adds a work offset and a re-clamp error. If a part has a bore on one face and a mating slot on the opposite face, cutting both in one 5-axis setup removes the stack-up between them. With a ±0.005 mm tolerance, that stack-up is often the deciding factor.

5-axis is not automatically better. A flat plate with a few holes is faster and cheaper on a 3-axis machine. Simple prismatic parts rarely justify the longer setup, the more expensive post, and the higher hourly rate. We run both, and the honest answer for most flat parts is still 3-axis.

• 1
  Use 5-axisUndercuts, compound curves, many-sided bores
• 2
  Stay 3-axisFlat plates, simple pockets, through holes
• 3
  Setup countEach extra setup adds its own position error
• 4
  Tool reachShort tools deflect less and hold tolerance better

Work envelope is the first hard limit. Our largest travel is 4,000 × 400 × 150 mm for long, slim parts. Medium machines cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm. Compact 5-axis cells run 500 × 500 × 450 mm and 500 × 310 × 200 mm. A part that fits in a compact cell can still fail if the trunnion needs room to swing.

Rotary table capacity is the second limit. With a Ø400 mm table, the part plus fixture has to clear the table edge and still leave swing clearance. Engineers often size the part to the X-Y-Z envelope and forget the rotary sweep. Send us the 3D model and we check the swing before quoting, not after.

Thermal drift is the third. A machine that holds ±0.005 mm at 08:00 can drift past that by mid-afternoon if the shop warms up. On tight work we warm the spindle, run a warm-up cycle, and re-probe the work offset between batches. The panel shows the drift in the offset page before it shows up as a scrap part.

Material choice pushes back too. Aluminum 6061 and 7075 cut cleanly at high spindle speed. Titanium TC4 (Ti-6Al-4V) and Inconel need lower surface speed, more coolant and a stiffer setup, so the practical tolerance and finish bands are wider. The panel parameters change, but the physics does not.

• 1
  Max travel4,000 × 400 × 150 mm
• 2
  Medium cells750 × 1,150 × 550 mm; 600 × 600 × 600 mm
• 3
  Compact cells500 × 500 × 450 mm; 500 × 310 × 200 mm
• 4
  Rotary tableØ400 mm, watch swing clearance
