5axis CNC Machining: How It Works and When to Use It

This page explains what 5axis cnc machining actually does to a part, where it beats 3-axis milling, and where it costs you money for no gain. Written for design engineers and buyers who have to pick a process before the drawing is frozen.

16 simultaneous 5-axis centers±0.005 mm tolerance4,000 mm max sizeNo MOQ

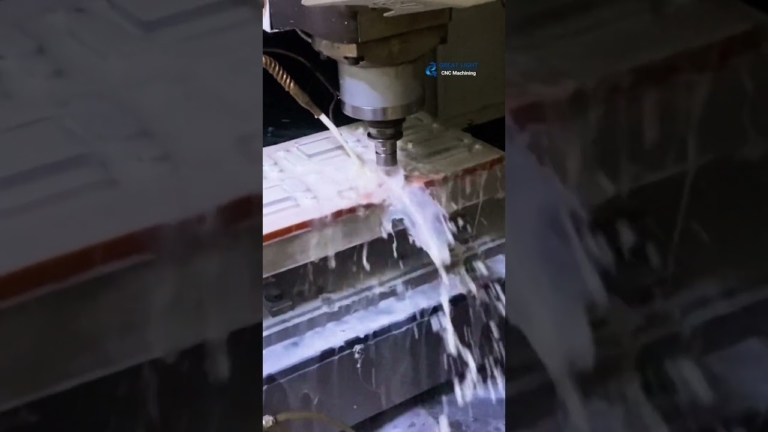

5axis cnc machining of custom auto spare parts and engine components
Short version

Key takeaways

Two rotary axes change the setup countUp to five faces can be reached in one clamping, so datum error stops stacking.
Simultaneous and 3+2 are different toolsOne keeps the tool moving along a curve; the other indexes the part and mills flat.
Not every complex part needs five axesIf all features are reachable in two or three setups, 3-axis milling is cheaper.
Tolerance depends on the whole stackMachine, fixture, tool and thermal growth all land on the final number.
Mechanism

What the two extra axes actually move

A 3-axis mill moves the tool in X, Y and Z. The part sits still. A 5-axis machine adds two rotary axes, so either the table tilts and rotates the part, or the spindle head tilts while the table turns. That is the whole difference. Everything else follows from it.

Those rotary axes let the cutter approach a face from an angle instead of straight down the Z axis. On a part with pockets on four sides and a hole on a fifth, a 3-axis machine needs four or five setups. Each setup means unclamping, re-fixturing and re-zeroing. Each one adds positional error that stacks on the finished part.

With 5axis cnc machining, one clamping can reach five faces. The datum stays the same from the first cut to the last. That is why shops quote tighter true-position tolerances on 5-axis work than on a 3-axis part that needs the same number of features. The machine is not more accurate in a straight line. It just makes fewer chances to lose the datum.

On our floor, 16 simultaneous 5-axis machining centers run alongside 27 three-axis machines. The split is deliberate. Not every part belongs on the five-axis side, and forcing it there raises the price without improving the part.

  • 1
    Trunnion tablePart tilts in A and rotates in C; common for compact and mid-size parts.
  • 2
    Tilting spindleHead tilts while the table rotates; better for long or heavy parts.
  • 3
    One datumFewer clampings means less accumulated positional error.
Setup strategy

Simultaneous 5-axis vs 3+2: pick by toolpath, not by part size

People use the term 5-axis for two different things. In 3+2 mode, the rotary axes move to a position, lock, and the machine cuts a normal 3-axis toolpath. In simultaneous mode, all five axes move at once while the tool stays in contact.

3+2 is the workhorse. It reaches five faces in one setup and holds normal milling tolerances. Programmers like it because the toolpath behaves like 3-axis code. If your part has flat faces, straight walls, drilled holes and counterbores on several sides, 3+2 covers it. Cycle times stay close to 3-axis.

Simultaneous cutting is for curved surfaces that a ball nose tool would otherwise have to sweep in many passes. The rotary axes tilt the tool so its flank or tip stays normal to the surface. That shortens the toolpath, keeps the effective cutting speed steady on contoured surfaces, and holds a more even surface finish. Bladed discs, impellers, turbine housings and sculpted mold cores are the usual candidates.

The trade-off is programming time and verification. Simultaneous toolpaths need collision checking and post-processing that takes hours, sometimes days. On a short run, that engineering cost can exceed the machining cost. On a family of parts that repeats, it pays back fast.

  • 1
    Choose 3+2 whenFeatures are planar, holes are axial, and faces are reachable by indexing.
  • 2
    Choose simultaneous whenSurfaces are freeform and a fixed tool axis leaves marks or chatter.
  • 3
    Mix bothMany jobs index for roughing, then go simultaneous for the finishing pass.
Tolerance

Where the tolerance budget goes on a 5-axis part

A tolerance on a drawing is a number. Getting it on the part means controlling a chain. The machine contributes its own positioning error. The fixture adds deflection. The tool bends under load. The material moves when it is cut. Heat grows the spindle and the part. All of these land in the final measurement.

Rotary axes make that chain longer. Each rotary axis has its own positioning accuracy and repeatability, and any error is amplified by the distance from the rotary center to the feature. A 0.01 mm error at the center of a Ø400 mm rotary table can become several times larger at the edge of a long part.

That is why ±0.005 mm is realistic on compact 5-axis parts with features close to the rotary center, and harder to hold on a 3,000 mm part hanging far from the pivot. When we quote tight true-position callouts on large work, we look at feature location relative to the rotary axes before we commit.

Surface finish follows a similar logic. With a tilted tool, the contact point on a ball nose cutter moves toward its tip, where the effective cutting speed drops toward zero. Programmers compensate by raising spindle speed and adjusting step-over. On our finishing passes, Ra 0.8–1.6 μm is routine, and Ra 0.2–0.8 μm is achievable on smaller features with a light finishing pass.

  • 1
    Watch the swingError grows with distance from the rotary center.
  • 2
    Fixture firstA flexible fixture costs more tolerance than the machine does.
  • 3
    Thermal driftLong simultaneous cuts warm the spindle; rough and finish in separate passes.
Classify the part

Which parts suit 5axis cnc machining

The clearest signal is feature orientation. If the drawing has holes, slots or pockets whose axes point in four or more directions, or at compound angles, five-axis work removes setups. Fewer setups means fewer fixtures to design, less handling and a shorter path from stock to finished part.

The second signal is aspect ratio. A long, thin part with features on several sides is painful on a 3-axis machine because each re-fixturing bends it a little. On a five-axis machine it can be held once, machined, and never touched again.

The third signal is surface form. Sculpted surfaces, blends, fillets that run across faces, and any geometry where a fixed tool axis leaves visible witness lines point to simultaneous cutting.

Some parts look complex but are not. A manifold with holes on six sides can often be drilled on a 3-axis machine with a simple angle plate, or turned and milled on a mill-turn center. Adding five axes there adds cost with no gain. We say so at the quote stage rather than sell the more expensive route.

  • 1
    Good fitCompound-angle holes, five-face pockets, thin long parts, sculpted surfaces.
  • 2
    Poor fitPrismatic parts with all features pointing one way.
  • 3
    Consider mill-turnRound parts with cross features can be finished in one turning setup.
Material behavior

How material choice changes the five-axis approach

Aluminium is the easy case. Grades like 6061-T6, 7075 and 2024 cut fast, hold a sharp edge, and do not load the tool. Five-axis roughing removes material quickly with a high-feed cutter, then a light finishing pass follows the curve. Thin walls down to about 1 mm are workable if the toolpath keeps radial engagement steady.

Stainless and tool steel behave differently. 17-4PH, 316L and 4140 work-harden at the contact point if the cutter rubs instead of cutting. On simultaneous toolpaths the feed per tooth must stay high enough to stay under the hardened layer, which limits how much the programmer can slow down for a tight corner.

Titanium and nickel alloys push it further. TC4 and Inconel generate heat that stays in the cut rather than leaving with the chip. Tool life drops, so five-axis programs use shorter arc segments, more coolant, and conservative step-over. The advantage of five-axis here is not speed. It is that a complex titanium part comes off one setup instead of five, and titanium hates being re-fixtured.

Plastics and composites have their own rules. POM and HDPE move with temperature and clamp pressure, so light passes and sharp tooling matter more than axis count. Carbon fibre wears edges fast and creates dust that needs extraction. Five-axis trimming of a curved composite panel avoids the delamination you get from a hand router.

  • 1
    AluminiumHigh feed, light finish pass, thin walls feasible.
  • 2
    Stainless and steelKeep feed per tooth up to avoid work hardening.
  • 3
    Titanium and InconelHeat stays in the cut; shorter arcs, more coolant.
  • 4
    Plastics and compositesSharp tooling, light clamping, dust extraction.
Cost logic

Why five-axis parts cost what they cost

Buyers often expect a five-axis part to cost more per hour and assume that is the whole story. It is not. The hourly rate on a five-axis center is higher than on a 3-axis mill, but the part may spend less total time in the shop because it skips setups.

Model it as a sum. Programming and simulation time, fixture design, setup time, cutting time, inspection time. On a one-off part, programming and fixturing dominate, and five-axis loses. On a run of 50 or 500 identical parts, the fixed engineering spreads out and setup savings win.

Geometry matters too. Five-axis machines reach features that would otherwise need a second operation or a custom fixture. A part that would have been two operations on two machines becomes one operation on one machine, which cuts queue time between operations.

We hold no minimum order quantity, so a single prototype and a 10,000-part run both go through the same route. For prototypes, the honest answer is sometimes that 3-axis plus a fixture is cheaper and just as good. We tell customers that instead of quoting five axes by default.

  • 1
    Fixed costProgramming, simulation and fixturing spread over the batch.
  • 2
    Variable costCutting time, tool wear and inspection per part.
  • 3
    Break-evenFive-axis usually wins once the part needs three or more setups on 3-axis.
Decision table

3-axis, 3+2 and simultaneous: which fits the job

Compare by how many faces you must reach, whether surfaces are curved, and how many parts you are making.

Criterion3-axis milling3+2 (indexed)Simultaneous 5-axis
Faces reachable per setup1 to 2Up to 5Up to 5, plus undercuts
Curved surface qualityWitness lines from fixed axisGood on shallow curvatureBest on freeform surfaces
Programmer effortLowModerateHigh, needs simulation
Best batch sizePrototype to large runSmall to mid runAny run with repeated geometry
Typical tolerance±0.005 mm on small parts±0.005 mm to ±0.01 mm±0.005 mm near rotary center
Fixtures neededOne per faceOne or twoUsually one
Cost driverNumber of setupsSetup plus indexing timeProgramming and toolpath time
Good exampleFlat plate with axial holesHousing with faces on four sidesImpeller or sculpted mold core

The verdict

If all your features point one way and the part is prismatic, stay on 3-axis and spend the money on a better fixture. If you need three or more faces in one clamping, go 3+2. Only choose simultaneous 5-axis when the surfaces are genuinely freeform and a fixed tool axis leaves marks.

FAQs

Questions engineers ask before releasing a five-axis part

Can a 5-axis machine hold a tighter tolerance than a 3-axis machine?

Not in a straight line. A good 3-axis machine and a good 5-axis machine hold similar linear accuracy on a single face.

The gain comes from setup count. Five faces in one clamping means one datum instead of four or five, so positional error between features does not accumulate. That is where the tighter true-position result comes from.

Do I need to redesign my part to make five-axis machining worthwhile?

Usually not, but small changes help. Give the cutter room to reach a face at an angle, and avoid deep narrow pockets where a tilted tool shank will collide.

A corner radius that matches a standard cutter diameter also removes a finishing operation. We review the model and send DFM notes with the quote, free of charge.

How does the shop check a five-axis part?

Raw material is checked on receipt, dimensions are monitored during the run, and every part is inspected before shipment. Reports are available on request.

For parts with compound-angle features, a CMM program is built from the same model used for machining, so the inspection datum matches the machining datum.

What size parts can you run on five axes?

Our largest travel is 4,000 × 400 × 150 mm, with mid-size envelopes of 750 × 1,150 × 550 mm and 600 × 600 × 600 mm, and compact envelopes of 500 × 500 × 450 mm and 500 × 310 × 200 mm.

Rotary tables go up to Ø400 mm. Features far from the rotary center lose some tolerance, so we flag that at the quote stage.

Which certifications cover a five-axis job?

We hold ISO 9001:2015, IATF 16949:2016, ISO 13485:2016 and ISO 27001:2022. Automotive and medical programs follow their own documented routes.

Uploads are treated as confidential and an NDA is available on request before you send drawings.

How fast can a five-axis quotation come back?

Quotation and free DFM analysis within 12 hours. Production can start within 24 hours once the drawing and material are confirmed, and parts typically ship in 3–5 days.

Programming time for simultaneous toolpaths is part of that schedule, so complex freeform parts may need a longer window before the first cut.
