5axiscnc Machining: How It Works and When to Use It

• 1
  What the Two Extra Axes Actually Change in 5axiscnc Machining
• 2
  Simultaneous 5-Axis vs 3+2: Two Different Jobs
• 3
  Which Part Geometry Belongs on This Machine
• 4
  Tolerance, Surface Finish and How They Interact
• 5
  Choosing Between 3-Axis, 3+2 and Simultaneous

A 3-axis mill moves the table in X and Y and the spindle in Z. The cutter always approaches from one direction, so any face that does not point up must be reached by re-fixturing the part. A 5axiscnc machining center adds two rotary motions, usually a tilting spindle head plus a rotating table or a trunnion pair. The tool can now reach five faces of a prismatic part without the operator touching the setup.

The second effect is less obvious. Because the tool can tilt, the contact point between cutter and workpiece moves away from the tool tip. On a ball nose cutter, the effective cutting speed at the point of contact stays constant instead of dropping to zero at the center. That is why a tilted cutter leaves a cleaner floor and why deep cavities stop chattering.

The third effect is geometric. A tilted tool can clear a wall that a straight tool would rub. Undercuts, blended fillets and compound angles that need a special form cutter on a 3-axis machine become a standard end mill job here. Fewer setups, fewer fixtures, and one datum chain instead of five stacked tolerances.

• 1
  One setup, five facesPositional errors stop accumulating across fixtures.
• 2
  Constant contact speedTilted ball nose cutters avoid the zero-velocity center.
• 3
  Undercuts without form toolsA standard end mill reaches what a shaped cutter used to do.

The term covers two setups that behave nothing alike. In 3+2, also called positional 5-axis, the rotary axes move to an angle and lock. The machine then cuts as a rigid 3-axis mill. This is the workhorse for parts with faces on several planes: housings, brackets, manifolds. Cycle times stay close to 3-axis, and programming is simpler.

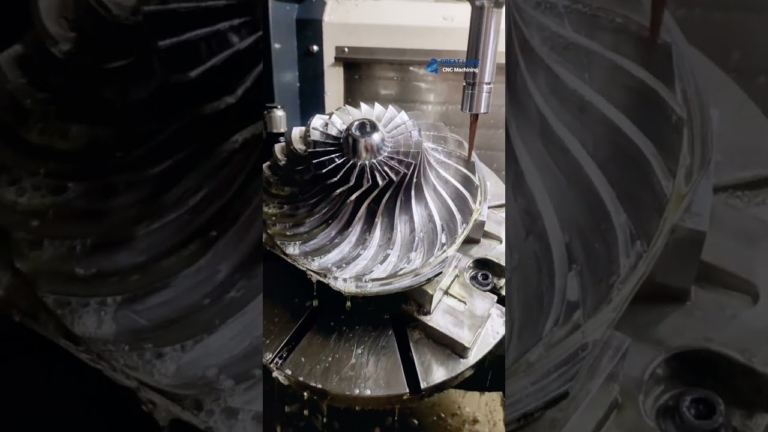

In simultaneous 5-axis, all five axes move at once while the cutter is in the material. The controller interpolates along a continuous path. This is what you need for a swept surface, a turbine blade, a port, or a fillet that wraps around a curved wall. Tool axis control keeps the cutter normal to the surface or leaning into the cut.

The trade-off is cost and risk. Simultaneous work needs a post-processor that matches the exact machine kinematics, and simulation before the first cut. A wrong tool vector shows up as a gouge, not a warning. Positional work tolerates looser programming and is easier to inspect because each face is a flat plane in a known orientation.

Start with face count. If a part has features on three or more non-parallel faces, the setup savings usually pay for the machine rate. A hydraulic manifold with ports on four sides is a textbook case. So is a robot arm joint where the bearing bores sit on two perpendicular axes that must stay coaxial to each other.

Next, look at wall height and tool reach. A deep pocket with a 4:1 depth-to-diameter ratio is where a tilted cutter earns its keep. Beyond roughly 6:1, no amount of tilting saves you, because the shank rubs the wall. Long-reach tooling helps, but it deflects, and deflection is what kills the tolerance.

Then check rigidity of the part itself. Thin walls and tall unsupported sections will move under cutting force no matter how many axes you have. If the part rings when you tap it, plan for light passes and a support fixture, or accept a coarser finish.

Finally, ask whether the drawing needs it. A flat plate with holes on one face is a 3-axis job, and running it on a five-axis machine only adds programming time and machine-hour cost. The extra axes are a geometry tool, not a quality upgrade.

• 1
  Good fitFeatures on 3 or more non-parallel faces; compound angles; swept surfaces.
• 2
  Poor fitSingle-face plates; pockets deeper than 6:1; parts that flex under light cuts.

A five-axis machine does not automatically hold a tighter tolerance than a three-axis one. The rotary axes add two more error sources: angular positioning and the distance from the rotary center to the cutting point. The further the part sits from that center, the more a small angular error grows into a linear one at the feature.

On parts we run, the working tolerance is ±0.005 mm (±0.0002 in) on critical features, verified on a CMM against the drawing datum. Reaching that number depends more on thermal stability, tool wear monitoring and fixturing than on axis count. A part held in a soft vise will move before the machine does.

Surface finish follows the same logic. A tilted ball nose cutter with a small stepover gives Ra 0.2–0.8 μm on aluminium and steel. A conventional path on a flat face lands around Ra 0.8–1.6 μm, and roughing passes sit at Ra 1.6–3.2 μm. If a drawing calls for a mirror finish, the last pass usually runs at a shallow depth with a fresh cutter.

The practical rule: choose the process that gets the geometry right, then tune parameters for the finish. Do not specify five-axis work hoping the finish improves on its own.
