CNC Mill Turn Machining: How One Setup Does Turning and Milling

• 1
  What CNC Mill Turn Machining Actually Does
• 2
  Which Parts Suit CNC Mill Turn Machining
• 3
  How the Cycle Is Built and Held to Tolerance
• 4
  Where 5-Axis Milling Beats Mill-Turn
• 5
  Material Behavior in a Combined Cycle
• 6
  Checking a Mill-Turn Part Before It Ships
• 7
  Mill-Turn vs 5-Axis Milling vs Separate Operations

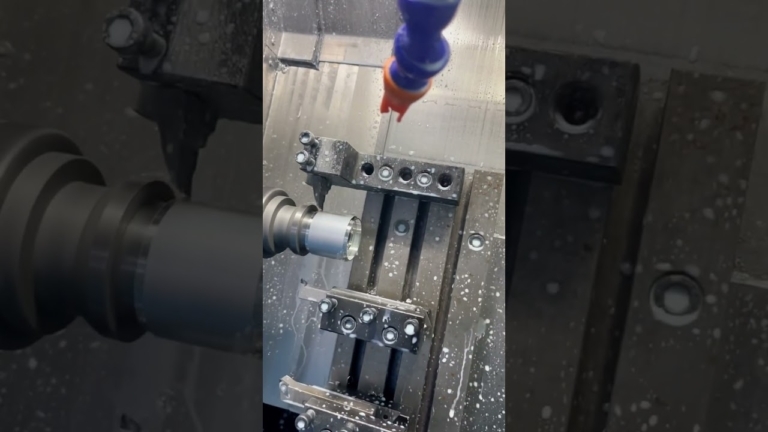

A mill-turn center holds the workpiece in a spindle that rotates it like a lathe, then adds at least one milling spindle that can move in multiple axes. The part is turned on its outside diameter and milled on its flanges, flats, or cross-holes without being unclamped. The CNC reads one program that covers both operations, so the toolpaths share a common zero point.

That shared zero point is the real difference. On a conventional lathe, a cross-hole or a milled flat is either done on a second machine or with a live tool that has limited reach. Every reclamp adds stack-up error, usually 0.01–0.03 mm on a well-aligned fixture. Mill-turn removes those handoffs, so position between a turned bore and a milled bolt circle stays inside the machine's own repeatability.

The machine's B-axis, a tilting milling head, is what makes the geometry flexible. It can approach a part at any angle between the turning axis and the part face, which means undercuts, angled ports, and blended radii can be cut in the same cycle. On a lathe with a fixed live tool, those features either need a special holder or simply cannot be reached.

• 1
  One datumTurning and milling share the same work offset, so concentricity is set by the machine, not by fixture alignment.
• 2
  Fewer setupsA part that needs three operations on separate machines often runs in two or one on a mill-turn center.
• 3
  B-axis reachA tilting head cuts angled faces and blended transitions that a fixed live tool cannot touch.

The process pays off on parts that are mostly rotational but carry off-axis features. Think hydraulic manifolds, motor housings, sensor bodies, and valve blocks: a cylindrical body with cross-drilled ports, a milled mounting pad, and a threaded end. If more than about 60 percent of the cycle is turning, mill-turn is usually the cheaper route because the milling spindle sits idle less of the time.

Part size matters as much as shape. GreatLight runs 16 mill-turn centers alongside 16 simultaneous 5-axis machining centers, with a maximum processing size of 4,000 mm. Long shaft-type parts with a milled keyway or spline are a natural fit. So are small stainless and titanium medical components where a second setup would risk scratching a finished surface.

Mill-turn is a poor choice for flat, prismatic parts. A bracket or a plate that is 80 percent face milling belongs on a 3-axis or 5-axis mill, where the table holds it rigidly and the spindle reaches every face. Forcing that geometry onto a mill-turn center wastes the turning capability and often needs a custom fixture that costs more than the machining.

Wall thickness also sets a boundary. Thin-walled tubes deflect when the turning spindle grips them, and the milling spindle adds a second cutting force from a different direction. Below roughly 1 mm wall on a 50 mm diameter, the part may need a support mandrel or a redesigned grip area. We flag that during DFM review rather than after the first article.

• 1
  Good fitRotational body with cross-holes, milled pads, slots, or angled ports.
• 2
  Good fitLong shafts needing a keyway, spline, or flat in the same cycle.
• 3
  Poor fitFlat prismatic plates and brackets that are mostly face milling.
• 4
  Watch outWalls under 1 mm on a large diameter, where gripping force distorts the bore.

Programming starts from the solid model, not from a drawing sketch. The CAM post splits the cycle into a turning section and a milling section but keeps one coordinate system. For a typical aluminum housing we hold ±0.005 mm on bored diameters and true position, with surface finish between Ra 0.8 and 1.6 μm on sealing faces. Aesthetics surfaces can run Ra 0.2–0.8 μm if the drawing calls for it.

Tool selection drives cycle time more than spindle speed does. A mill-turn center has a limited tool magazine compared with a dedicated mill, so the programmer groups features by tool and by approach angle. If a single boring bar can reach three diameters from one B-axis position, that saves an index and a rapid move on every part. On a 10,000-piece run, small savings compound.

Thermal drift is the main enemy of tight tolerance on a long cycle. The turning spindle and the milling spindle both generate heat, and the two spindles sit on different structures. We let the machine warm up on a test cycle, then check a known diameter before releasing the program. In-process probing catches drift on runs longer than a few hours.

Chip evacuation is often overlooked in mill-turn work. Chips fall toward the turning axis and can wrap around a bored feature while the milling spindle is still cutting. Through-spindle coolant and programmed chip-break pauses handle most of it. Deep bores with a length-to-diameter ratio above 6:1 usually need a peck cycle instead of one continuous pass.

• 1
  One coordinate systemTurning and milling share a zero point, which protects true position between features.
• 2
  Warm-up checkA test cut confirms diameter before the program is released to production.
• 3
  Peck deep boresAbove 6:1 length-to-diameter, break the cut to clear chips.

A simultaneous 5-axis machining center moves the tool and the table together, so it can sweep a contoured surface in one continuous path. Mill-turn centers interpolate in several axes too, but the turning spindle is optimized for rotation, not for holding a complex contoured surface still. On an impeller, a turbine blade, or an organic bracket, 5-axis milling gives a smoother surface and a shorter cycle.

The dividing line is usually feature density, not size. If a part has many faces that all need milling and only one cylindrical bore, it belongs on a 5-axis mill. If it has a dominant turned axis and a handful of off-axis features, mill-turn wins. Parts that sit in the middle sometimes get split across both machines, with the turned blank finished on a 5-axis center.

Fixture cost decides the borderline cases. A mill-turn center grips on a round diameter, which is cheap and repeatable. A 5-axis mill usually needs a dovetail or a tombstone fixture, plus a setup that locates the part in five directions. For a 20-piece prototype order, that fixture can dominate the price. For a 5,000-piece order, it disappears into the piece price.

• 1
  Choose 5-axisContoured surfaces, blades, and parts where milling is the main operation.
• 2
  Choose mill-turnA dominant turned axis with cross-holes, pads, and threads.
• 3
  Split the workTurn the blank on a mill-turn center, then finish contours on a 5-axis mill.

Aluminum is the easy case. Grades like 6061-T6 and 7075 cut fast on both the turning and milling side, and the same speeds work for both operations. The risk is built-up edge on a sharp milled edge when the coolant is aimed only at the turning tool. We redirect coolant per operation in the program rather than relying on one flood line.

Stainless 303 and 316L behave differently. They work-harden, so a milling pass that rubs instead of cuts will leave a hard skin that dulls the next tool. The fix is a consistent feed per tooth and no dwell at the end of a pass. 17-4PH in the H900 condition is machinable but abrasive, so insert life is shorter and the program should not push the turning speed to the aluminum range.

Titanium TC4 (Ti-6Al-4V) and Inconel are the demanding end. Both hold heat in the cut, so the tool edge sees high temperature while the part stays cool. On a mill-turn center this matters because the milling spindle is often less rigid than a dedicated mill spindle. We keep radial engagement low, use high-pressure coolant, and accept a slower cycle rather than risk a smeared surface.

Plastics and composites need their own settings. POM and PEEK cut cleanly with sharp, polished tools, but they move with temperature, so a warm part measured right after the cycle will shrink as it cools. For carbon fibre, dust extraction matters more than coolant. We machine those on the same centers with tooling reserved for non-metals to avoid cross-contamination.

• 1
  Aluminum6061-T6, 7075: same speeds for turning and milling, watch built-up edge.
• 2
  Stainless303, 316L, 17-4PH: avoid rubbing passes that work-harden the surface.
• 3
  Titanium and InconelLow radial engagement, high-pressure coolant, slower cycle.
• 4
  PlasticsPOM, PEEK: measure after cooling, not straight off the machine.

The first article is the moment of truth. We measure the turned diameters, the milled true position, and the surface finish against the drawing, then compare the results with the CAM simulation. If the true position is off but the diameters are correct, the issue is usually a work offset or a thermal effect rather than a tool wear problem.

In-process probing covers the rest of the run. A probe checks one or two critical features at a set interval, and the machine compensates before the next part is cut. This is how a long run holds ±0.005 mm without an operator standing at the door with a micrometer. Every part still gets a final inspection before shipment, and reports are available on request.

For parts that go into regulated assemblies, the paperwork matters as much as the measurement. Our quality system is certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022, so a mill-turn job can carry the same inspection record as any other process. If a customer needs a specific report format, we agree on it before the first chip is cut.

Surface finish is checked on the part, not on a coupon, because a mill-turn cycle changes the cutting conditions between operations. A sealing face turned at one speed and milled at another can show two different Ra values on the same drawing callout. We measure both and note where the finish came from.

• 1
  First articleCompare turned diameters, true position, and finish against the drawing.
• 2
  In-process probeCheck critical features at intervals and compensate before the next part.
• 3
  Final inspection100 percent before shipment, with reports on request.
