Mill-Turn Machining: A 7-Step Shop Process
Mill-turn machining turns and mills a part in one setup on a machine with a B-axis or sub-spindle. This guide is for engineers and buyers deciding whether a part belongs on a mill-turn center, and how to run it without losing tolerance.
What matters before you commit
What mill-turn machining actually does

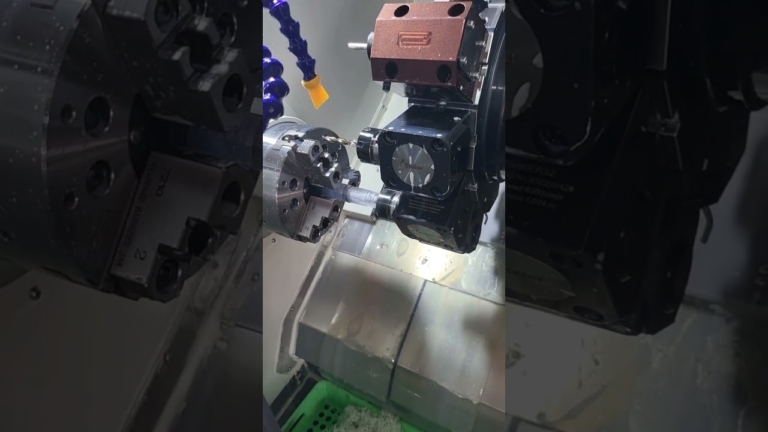

Mill-turn machining means the part stays in one workholding while the machine turns it and mills it. The spindle acts as a C-axis indexer, so a milled flat, a cross hole, or a slot can be cut at any angular position without re-chucking. On a machine with a B-axis, the tool tilts instead of the part, which keeps the part rigid and lets you reach the back of a shoulder.
The practical gain is datum control. Every time a part moves to a second machine, you stack a new fixture error on top of the first one. A turned OD used as the datum for milled features is one of the most stable setups in a shop. That is why pump housings, valve bodies, and motor shafts come off mill-turn centers with the bore and the bolt pattern already concentric.
A mill-turn center is not a lathe with a drill stuck on the turret. It carries a live tool spindle, often 12,000 rpm or higher, and enough Y-axis travel to mill off-center. Some machines add a second spindle so the back face is machined after a pick-off transfer. That is where cycle time drops, because the part is never touched by a human between operations.
Where it stops paying off is simple geometry. A straight shaft with a single diameter and a keyway does not need a B-axis. A part with one bore and no cross features is a lathe job. The setup cost of a mill-turn center only earns back when the part has at least three features on two or more faces.
- 1One workholdingTurned datum and milled features stay in the same coordinate system.
- 2Live toolingDriven tools cut cross holes, flats, and slots at any index angle.
- 3B-axis tiltThe tool angles to the part, so undercuts and compound holes are reachable.
Which parts belong on a mill-turn center
Start with the feature count. If a part has a turned OD or bore plus two or more milled features that must be angularly related to each other, mill-turn is the default. Flange parts with a bolt circle, hydraulic manifolds, and gearbox covers all fall into this group. The angular relationship is the key phrase. If the holes only need to be somewhere on the face, a second op on a 3-axis mill is cheaper.
Look at the aspect ratio next. A part that is 6× longer than its diameter is hard to hold in a chuck without a tailstock or steady rest. Mill-turn centers handle it, but the bar feeder limits you to roughly Ø80 mm on the smaller machines. Above that, the blank goes on a chuck and the cycle gains a load and unload step. Parts longer than 4,000 mm do not fit our travel at all.
Material changes the decision too. Aluminum 6061 and 2024 cut fast with live tooling and hold ±0.005 mm without much effort. Stainless 316L and 17-4PH work-harden, so a light pass with a dull live tool will rub instead of cut. Titanium Ti-6Al-4V needs lower surface speed and more coolant pressure. Inconel is the slowest of the group and often pushes a part back to a mill plus a lathe because cycle time dominates.
Tolerance is the last filter. Anything tighter than ±0.005 mm on a cross feature needs a temperature-stable setup and in-process probing. If the drawing calls for Ra 0.2–0.8 μm on a bore, plan a finishing pass with a boring bar, not a milling cutter. Milling a bore to that finish is possible but slow, and the tool marks run the wrong way for a seal.
- 1Good fitFlanges, manifolds, valve bodies, motor housings, hydraulic fittings.
- 2Poor fitPlain shafts, single-diameter pins, parts with one face only.
- 3Size windowØ80 mm from bar, larger on chuck, 4,000 mm maximum length.
Holding ±0.005 mm across a mill-turn cycle
Thermal drift is the first thing that eats tolerance. A spindle that has run for 20 minutes is not the same size as a cold one. For tight bores, we run a warm-up cycle and then touch off the tools. On a batch of 200 parts, the first 5 are checked and the offsets are adjusted before the run continues. Skipping the warm-up is the most common cause of a bore that drifts 0.01 mm over a shift.
Tool pressure matters as much as the machine. A long live tool holder deflects under load. Keep the gauge length short, and use the largest shank that fits the turret. For a Ø10 mm end mill cutting a cross slot in 4140, a 4-flute carbide tool at 0.05 mm per tooth is a safe starting point. If the slot comes out tapered, the holder is flexing, not the machine.
In-process probing closes the loop. A touch probe on the B-axis can measure a bore or a face after the cut and feed the offset back to the control. That turns a ±0.005 mm requirement into a process that corrects itself. Without probing, the same part needs an operator check every 10 to 20 pieces. Probing adds cycle time but removes the scrap risk on high-value parts.
Coolant and chip control decide the finish. Through-tool coolant clears chips from a deep cross hole. A chip that stays in the cut gets re-cut and shows up as a scratch on the bore. High-pressure coolant at 70 bar or more is common on stainless and titanium. On aluminum, air blast plus a mist is often enough.
- 1Warm up firstRun the spindle 20 minutes, then set offsets before the first cut.
- 2Short tool gaugeLong live tool holders deflect and taper the slot.
- 3Probe the resultMeasure in-cycle and feed the offset back to the control.
7 steps from print to finished part
- 11. Read the print for datumsMark the turned OD or bore as datum A. List every milled feature and its angular relation to A. If two features have no relation to each other, they can go on separate machines.
- 22. Pick the workholdingUnder Ø80 mm, bar feed with a collet. Larger, a 3-jaw chuck or a fixture plate. Long parts get a tailstock or steady rest. Check that the clamp force will not distort a thin wall.
- 33. Set the zero pointTouch off the face and the OD, then index the C-axis to a known feature. Record the B-axis tilt offset. A wrong B offset shows up as a hole that is on position in X but off in Z.
- 44. Rough turn and rough millTake 2–3 mm radial depth on aluminum, 1.5 mm on steel, 1 mm on titanium. Leave 0.3 mm on turned diameters and 0.2 mm on milled faces for finishing.
- 55. Finish the datum firstFinish the bore or OD that everything else references. Check it before milling. If the datum is out, every milled feature is out.
- 66. Mill the cross featuresUse live tooling at 8,000–12,000 rpm on aluminum, 4,000–6,000 rpm on stainless. Keep feed per tooth at 0.03–0.08 mm. Index the C-axis between features and confirm with a probe.
- 77. Inspect before the part leaves the machineMeasure the critical bore, the bolt circle, and one angular relationship. Log the numbers. A part that passes on the machine does not come back from inspection.
Mill-turn vs. mill plus lathe vs. 5-axis mill
Pick the process from the feature set, not from machine availability.
| Part feature | Mill-turn center | Mill plus lathe | 5-axis mill |
|---|---|---|---|
| Turned OD + cross holes | One setup, best fit | Two setups, datum stack | Possible, round stock harder |
| Flat plate, pockets both sides | Not ideal | Mill op only | One setup with trunnion |
| Long shaft, one keyway | Overkill | Lathe is faster | Poor fit |
| Valve body, 5 faces | Best fit | 3+ setups | Good if no round features |
| Thin-wall housing Ø60 mm | Good with soft jaws | Distortion risk on rechuck | Good with fixture |
| Titanium impeller | Good with probing | Slow, many setups | Good, tool access tight |
Questions engineers ask
How many parts do I need before mill-turn pays off?
There is no minimum order quantity, and one prototype can run on a mill-turn center. The setup cost is the same as any CNC job, so the break-even is about feature count, not batch size. A part with four cross features usually costs less on mill-turn at any quantity because it avoids a second fixture.
For a single simple part, a mill plus a lathe may still be cheaper. Send the drawing and we will say which route we would take.
Can mill-turn hold a bore concentric to the OD?
Yes, and that is its main advantage. Because the bore and the OD are cut in the same setup, concentricity is limited by the machine spindle, not by a fixture. We hold ±0.005 mm on position for milled features relative to the turned datum.
If the drawing asks for 0.01 mm total runout, that is achievable on a mill-turn center with a warm spindle and a finish boring pass.
What surface finish can I expect?
As-machined turned and milled surfaces land at Ra 1.6–3.2 μm. A finishing pass with a boring bar or a wiper insert reaches Ra 0.8–1.6 μm. Fine bores for seals or bearings can reach Ra 0.2–0.8 μm with a slow finish pass and high-pressure coolant.
Milled bores do not reach the same finish as a bored bore. If the finish spec is tight, say so on the drawing so we plan the tool path.
Does a B-axis add cost to my part?
It adds machine rate, not setup time. A B-axis lets us cut a compound-angle hole in one pass instead of a second fixture, so the total cycle often drops. Parts that need a true 5-axis tool path are the ones where the rate shows up.
If your part has no angled features, a Y-axis mill-turn center does the same job at a lower rate.
How do you keep confidential parts secure?
Uploads are secure and confidential, and we sign an NDA on request before drawings are shared. Our quality system is certified to ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022, which covers information security.
We do not publish customer names or part photos without written permission.
What do you need to quote a mill-turn part?
A 3D model or a 2D print with tolerances, the material, the finish, and the quantity. Tell us which features are critical. A quotation and a free DFM analysis come back within 12 hours.
If a feature is better made another way, we will say so in the DFM notes rather than quote a process that will fight the part.
