CNC Machined Parts Grinding Process: 6 Steps From Blank to Final Size
A working guide to the CNC machined parts grinding process for engineers and buyers. It covers when grinding beats milling, how much stock to leave, what wheel and coolant to use, and how to inspect the result. Read it and you can judge whether a part needs grinding at all.
Key takeaways
Where the CNC machined parts grinding process fits
Grinding is not a replacement for milling. It is the operation that takes a milled part the last few hundredths of a millimeter to print. A 5-axis machining center can hold ±0.005 mm on a good day, but only in soft material, at light depth of cut, with a sharp tool and a stable setup. Once the part is hardened to 58 HRC, or the wall is 0.8 mm thin, milling stops being predictable.
The CNC machined parts grinding process is a controlled abrasive cut. A bonded wheel turns at 30 to 35 m/s surface speed and each grit acts like a tiny negative-rake cutter. Because the bite per grit is a few micrometers, the cutting force stays low and the resulting surface is smoother than a milling insert can produce. That is why grinding follows heat treatment instead of replacing it.
Three signs tell you a part needs grinding. The first is a hardness above roughly 45 HRC, where carbide tool life collapses. The second is a tolerance tighter than ±0.01 mm on a diameter or a flatness callout under 0.01 mm. The third is a surface finish requirement below Ra 0.8 μm.
Not every part belongs on a grinder. Long slender shafts deflect under wheel pressure and need steady rests. Deep blind bores with a diameter under 6 mm are hard to reach with a wheel of usable stiffness. Soft aluminium gummed up with wheel loading is usually better finished by milling and bead blasting. If the print allows ±0.02 mm and Ra 1.6 μm, tool marks from a fine end mill will pass, and grinding only adds cost and lead time.
- 1Hardness above 45 HRCCarbide wears too fast to hold size, so the part goes to the grinder.
- 2Tolerance tighter than ±0.01 mmDiameter, roundness or flatness calls that milling cannot repeat.
- 3Finish below Ra 0.8 μmSealing faces, bearing journals and sliding surfaces.
Stock allowance, wheel choice and coolant
Stock allowance is the single number that decides whether the grind succeeds. Too little stock and the wheel skates on the hardened skin without cleaning up the previous tool marks. Too much stock and you burn the part, load the wheel and lose the size. For hardened steel at 50 to 60 HRC, leave 0.20 to 0.30 mm on diameter. For stainless and tool steel that work-hardens, leave 0.15 to 0.25 mm. For a finish-only pass on a soft but tight-tolerance part, 0.05 to 0.15 mm is enough.
Wheel selection follows the material, not the machine. Aluminium oxide wheels in a vitrified bond cover most carbon and alloy steels. Silicon carbide suits cast iron and carbide. Cubic boron nitride, or CBN, is the better choice for high-volume hardened steel because it holds form far longer and cuts cooler. A typical steel wheel is 46 to 60 grit for roughing and 80 to 120 grit for finishing, with hardness graded J to L.
Grit size sets the finish, but the dressing tool sets the cutting behaviour. A sharp single-point diamond dressed at 0.02 to 0.05 mm per pass leaves an open wheel that cuts freely and runs cool. A slow, fine dress leaves a dull wheel that rubs, glazes and burns. On a production run, dress after every 20 to 30 parts and log the compensation.
Coolant keeps the process honest. Flood the contact zone with 20 to 40 L/min of water-based fluid at 6 to 8% concentration. Aim the nozzle at the point where the wheel meets the work, not at the top of the wheel. Straight oil gives a better finish on difficult stainless but needs fire protection and mist extraction. Watch the chip colour: straw yellow is fine, blue or black means the part is burning.
- 1Hardened steel0.20–0.30 mm on diameter, aluminium oxide wheel, 46–60 grit roughing.
- 2Stainless and tool steel0.15–0.25 mm stock, keep the wheel sharp to limit work hardening.
- 3Finish pass0.05–0.15 mm, 80–120 grit, light dress, full flood coolant.
Workholding and setups that hold size

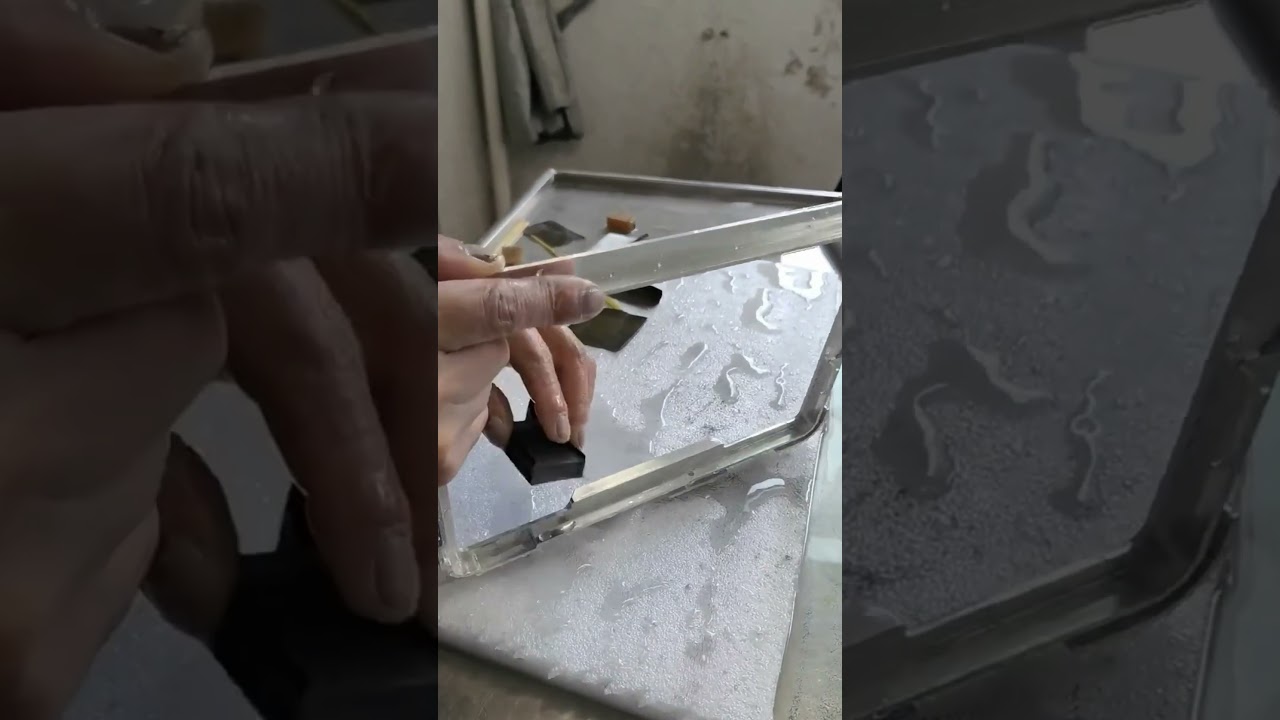

A grinder cannot fix a bad setup. Wheel pressure is low, but the part is usually thin, hard and already at final hardness. Every setup should locate on a ground surface, not on a milled one, and clamp with even force. Three-point clamping on a magnetic chuck is common for flat work, but for thin plates add a support pad under the grinding zone so the part does not bow.
Between centers is the standard setup for shafts. Use a driving dog and grind the journals in one pass where possible, because re-chucking adds runout. Check the centers before every run. A burr or a dry center will show up as a taper of 0.01 mm over 100 mm, and the operator will chase it all day with wheel compensation.
For bores, internal grinding needs a wheel diameter of at least one third of the bore. Below that ratio the spindle deflects and the bore comes out bell-mouthed. Use a rigid quill, keep the overhang short and feed the wheel out at 0.005 to 0.01 mm per pass for the finish.
Magnetic chucks hold flat parts well but they can magnetize the workpiece. For parts going into a sensor or a motor, demagnetize after grinding and verify with a gauss meter. A residual field of 2 to 3 gauss will pull chips into a bearing housing and the customer will find it later.
- 1Locate on ground surfacesMilled surfaces carry 0.02 mm of error straight into the ground part.
- 2Check centers every runA dry or burred center produces taper, not a size error.
- 3Demagnetize after magnetic chuckingResidual field pulls chips into bearing bores and sensors.
Common defects and what causes them
Burn marks are the most common failure. They appear as blue or black patches with a tempered zone underneath. The usual causes are a dull or glazed wheel, too much infeed, or coolant that misses the contact zone. Fix the dress first, then reduce depth per pass to 0.01 mm and verify the coolant nozzle aim. A burned part cannot be reworked; the hardness under the surface is already gone.
Chatter looks like a regular pattern of marks spaced at the wheel or workpiece frequency. It comes from an unbalanced wheel, a loose spindle bearing, or a part held too flexibly. Rebalance the wheel, then check the workholding. If the pattern spacing matches the part's natural frequency, add a steady rest or reduce the wheel speed by 10%.
Size drift across a run points to thermal growth, not to the wheel. The machine, the coolant and the part all expand as the run continues. Let the machine warm up for 20 to 30 minutes, keep the coolant temperature stable, and check the first three parts against the last three. A drift of 0.01 mm over 50 parts usually means the coolant is warming up.
Taper on a shaft means the setup, not the wheel. Check the centers, the table level and the tailstock alignment. A tailstock offset of 0.005 mm produces a taper of 0.01 mm over 200 mm, which is enough to fail a print that calls out cylindricity.
- 1Burn marksDull wheel, heavy infeed or missing coolant. Dress, lighten the cut, re-aim the nozzle.
- 2ChatterUnbalanced wheel or flexible workholding. Rebalance and stiffen the setup.
- 3Size driftThermal growth. Warm up the machine and stabilize coolant temperature.
- 4TaperCenters, level or tailstock misalignment. Check before chasing wheel compensation.
The grinding sequence, step by step
- 11. Inspect the incoming partCheck hardness, stock allowance and existing runout before the wheel touches it. A part with 0.04 mm of runout needs straightening or a roughing pass first. Confirm the stock is between 0.05 and 0.30 mm depending on material and hardness.
- 22. Balance and mount the wheelBalance the wheel to under 0.5 g·mm and let it run at full speed for one minute before dressing. An unbalanced wheel leaves chatter marks at the wheel frequency and ruins the finish. Never exceed the wheel's marked maximum speed.
- 33. Dress the wheelDress with a sharp single-point diamond, 0.02 to 0.05 mm per pass, with full coolant. A fresh dress removes loading and restores the grit edges. Log the dress and reset the size compensation to zero.
- 44. Set the cut sequenceRough at 0.02 to 0.04 mm depth per pass, then finish at 0.005 to 0.01 mm. Use a spark-out pass of 2 to 4 seconds with no infeed. The spark-out removes spring-back and is what makes the size repeatable within ±0.005 mm.
- 55. Control the coolantFlood at 20 to 40 L/min, aimed at the contact zone. Check concentration daily with a refractometer and keep it at 6 to 8%. Insufficient coolant is the leading cause of burn marks and thermal cracks.
- 66. Measure hot and coldTake an in-process reading, then let the part cool to room temperature before the final measurement. A 50 mm steel part at 40 °C reads about 0.010 mm oversized. Final inspection goes on a temperature-stable surface plate.
- 77. Deburr and protectBreak the edges with a fine stone or a chamfer tool. Grinding burrs are thin and hard, and they scratch mating parts. Oil the ground surface before packing to stop rust in transit.
Grinding method by part feature
Pick the method from the feature and the tolerance, not from habit.
| Feature | Method | Typical tolerance | Finish |
|---|---|---|---|
| Hardened shaft, Ø10–80 mm | Cylindrical, between centers | ±0.005 mm | Ra 0.2–0.8 μm |
| Small pin, high volume | Centerless through-feed | ±0.005 mm | Ra 0.4–0.8 μm |
| Flat plate, hardened | Surface grinding, magnetic chuck | ±0.005 mm flatness | Ra 0.4–0.8 μm |
| Bore Ø20–100 mm | Internal grinding | ±0.008 mm | Ra 0.4–1.6 μm |
| Soft part, ±0.02 mm only | CNC milling, no grinding | ±0.02 mm | Ra 1.6–3.2 μm |
| Thin wall under 1 mm | Milling plus bead blast | ±0.02 mm | Ra 1.6–3.2 μm |
Grinding questions engineers ask
How much stock should I leave for grinding?
For hardened steel at 50 to 60 HRC, leave 0.20 to 0.30 mm on diameter. For stainless and tool steel, 0.15 to 0.25 mm works better because these grades work-harden. If the part only needs a finish pass on an already accurate surface, 0.05 to 0.15 mm is enough.
Too little stock leaves the hardened skin and the previous tool marks in place. Too much stock forces heavy infeed, which loads the wheel and risks burn.
Can grinding hold ±0.005 mm on a production run?
Yes, with a warm machine, a freshly dressed wheel and a spark-out pass. The limit is usually thermal, not mechanical. The part grows as it heats, so the size you measure hot is not the size you ship.
We measure in-process, let the part cool, then take the final reading on a temperature-stable surface plate. That is how the ±0.005 mm callout stays repeatable across a run.
When is grinding the wrong choice?
When the print allows ±0.02 mm and Ra 1.6 μm, a fine end mill will pass and grinding only adds cost. Soft aluminium is another case: it loads the wheel and the surface tears instead of cutting cleanly.
Deep small bores, thin walls under 1 mm and long unsupported shafts are also poor candidates. In those cases we mill, then bead blast or polish to hit the finish call.
Does grinding change the heat treatment?
It can, if the cut is too heavy or the coolant is weak. The surface can reach tempering temperature in a few milliseconds, which softens a shallow layer and leaves burn marks.
A sharp wheel, light infeed and full flood coolant keep the temperature low. If a part shows blue patches, the affected layer has to be removed or the part is scrap.
How do you inspect a ground surface?
Size and roundness go on a micrometer or a coordinate measuring machine. Finish is checked with a profilometer or a comparator patch for shop-floor use. Hardness is spot-checked on a sample from the run.
We inspect 100% of parts before shipment, with raw material checks, in-process monitoring and a final inspection. Reports are available on request.
What lead time should I plan for?
Quotation and DFM feedback come back within 12 hours, and production can start within 24 hours of a released drawing. Ground parts usually ship in 3 to 5 days depending on quantity and heat-treat scheduling.
There is no minimum order quantity. We run from a single prototype to 10,000+ part runs, and grinding is scheduled as one operation inside that flow.
