CNC 3+2 Linkage Machining for Angled and Multi-Face Parts

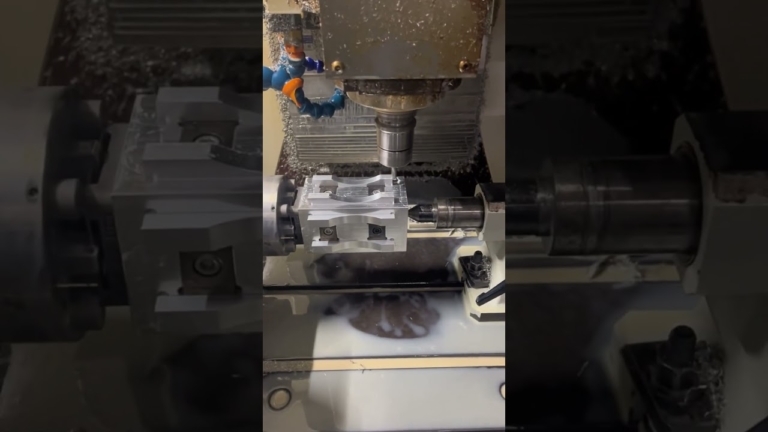

CNC 3+2 linkage machining uses a 5-axis machining center but does not run all five axes at the same time. The two rotary axes tilt the table or the spindle head to a fixed angle, the machine clamps them, and then X, Y and Z cut the feature. The controller treats the tilted position as a new working plane, so a face that sits at 37° on the drawing becomes a flat face for the tool.

The name comes from three linear axes plus two positioning axes. That is the difference from simultaneous 5-axis work, where the rotary axes keep moving during the cut. Both run on the same machine, and the choice is made at the CAM stage, not on the shop floor.

For the engineer, the useful part is this: 3+2 lets you reach five faces of a part without a second fixture, and it holds dimensions on angled features that a tilted vise or an angle plate would struggle to repeat. On our 16 simultaneous 5-axis machining centers, the same program can run either as 3+2 or as full simultaneous, depending on what the feature needs.

• 1
  Positioning axesA and C, or B and C, depending on the machine build
• 2
  Cutting axesX, Y and Z only, with the rotary axes clamped
• 3
  Typical angle rangeAny angle the rotary table can reach, set in CAM

3+2 linkage machining suits parts with flat faces that sit at an angle to each other. A gearbox housing with a mounting flange at 30° and four bolt holes drilled normal to that flange is a clean fit. So is a manifold block with ports on two perpendicular sides, or a bracket with a stiffening rib that meets the base at 45°.

The setup also helps when a part has several faces that all need to be machined in one program. Instead of four separate vise setups with four chances to lose position, the operator loads the blank once and the table indexes to each face. Positional error between features drops because the part never leaves the fixture.

Where 3+2 stops being the right answer: thin walls that deflect when the rotary table tilts, features with undercuts that need the tool to swing while cutting, and deep cavities where a long tool at a tilt will chatter. Those cases belong on a full simultaneous program or a different process.

A practical rule we use: if the feature can be cut with the tool axis fixed and the part simply rotated into place, 3+2 is enough. If the tool axis has to change direction during the cut, it is no longer a 3+2 job.

A 3+2 setup adds the rotary axes to the tolerance stack. The linear axes still hold ±0.005 mm on a well-maintained machine, but each rotary positioning step brings its own repeatability, and that error shows up as a small angular shift between faces. On a Ø400 mm rotary table, a few arc-seconds of positioning error becomes a few microns at the edge of the part.

That is why datum choice matters more in 3+2 work than in three-axis work. We pick one datum face and one datum hole, machine them first, and reference every later face to them. When the drawing calls for a position tolerance between two angled faces, the inspection report has to be built on the same datum scheme, or the numbers will not agree.

For most machined parts, the achievable result in 3+2 is a position tolerance of ±0.01 mm between features on different faces, with flatness and parallelism in the ±0.005 mm range on a single face. If a design needs tighter angular control than that, we look at whether the feature can be cut in one plane instead.

Angular callouts deserve a second look. A tolerance written as ±0.5° over a 200 mm face is a 1.7 mm band at the end of the face, which is loose. A tolerance written as ±0.05 mm over the same length is tight for a rotary setup. Converting the angular callout into a linear one at the feature edge makes the requirement clear to both the programmer and the inspector.

Fixturing is where a 3+2 job is won or lost. The blank has to sit on a support that lets the table tilt without the part hitting the machine. We usually leave a clamping boss or a set of tabs on the blank, machine the part, then cut the tabs off in a light finishing pass. That keeps the part rigid during the angled cuts and avoids a second setup.

Tool reach sets the limit on how far the part can tilt. The longer the tool, the more it deflects, and a tilted part often means the tool is cutting further from the spindle than it would in a flat setup. For deep features on an angled face, we shorten the tool, take lighter radial cuts, and sometimes pre-drill to reduce the load on the finishing tool.

Cycle time in 3+2 is usually longer than a three-axis job because the table has to index between faces, and each index costs a few seconds plus a probe check if the part is high value. It is still faster than moving the part between four separate machines. On a medium-complexity housing, an extra 10 to 15 minutes of indexing time can remove two hours of re-fixturing and re-datuming.

Chip evacuation needs attention when the part is tilted. Chips fall toward the low corner and can pack around the fixture. We program a coolant burst after each face change and, on aluminum parts, use air blast on the finishing passes so the surface does not get scored by recut chips.

The material list for 3+2 work is the same as for any milling job. Aluminum 6061-T6 and 7075 cut cleanly at a tilt and hold tight tolerances. Stainless 304 and 17-4PH work harden if the tool rubs, so on angled faces we keep the feed per tooth up and avoid dwelling in the cut. Titanium TC4 and Inconel need lower speeds, more coolant, and a rigid setup, which is one reason to keep the rotary axes clamped rather than moving during the cut.

Surface finish on an angled face depends on the same variables as a flat face: tool geometry, stepover, feed, and rigidity. A 3+2 setup can reach Ra 0.8–1.6 μm on aluminum and stainless without a secondary operation. If a sealing face needs Ra 0.2–0.8 μm, we plan a separate finishing pass with a smaller stepover rather than trying to hit it in one go.

Angled faces also collect tool marks that are hard to polish out by hand. If the part goes to anodizing, those marks show through. Bead blasting evens them out, and it is often worth adding to the finish spec for visible angled faces.
