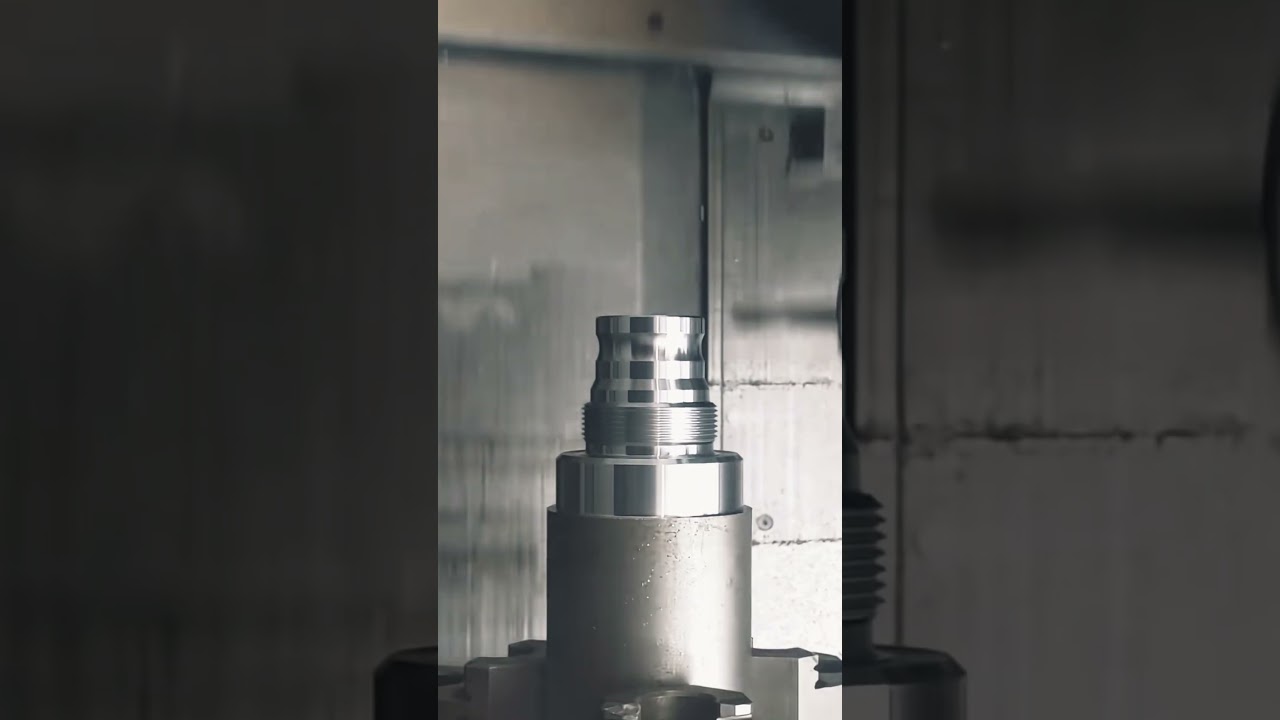

A 3-axis mill moves the tool in X, Y and Z. The workpiece stays fixed. Every face you cannot reach from the top needs a new setup, which means loosening clamps, re-datuming, and accepting a small position error each time. A 5axiscnc cnc center adds two rotary axes, so the tool can approach a face at an angle while the table tilts or turns.

The important distinction is simultaneous versus indexed. Indexed 5-axis (often called 3+2) rotates the table to an angle, locks it, then cuts. Simultaneous 5-axis keeps both rotary axes moving while the tool is in the material. Indexed work is simpler to program and rigid. Simultaneous work is what lets a ball nose cutter follow a curved surface in one continuous pass.

That difference shows up in the geometry you can hold. A turbine blade, an impeller, or a port with a continuously twisting wall cannot be cut by locking the table at one angle. The tool has to stay normal to the surface as it travels. On a 3-axis machine the same feature becomes many short passes with visible step marks.

Our own shop runs 16 simultaneous 5-axis machining centers alongside 27 three-axis machines and 16 mill-turn centers. The mix matters. Sending every job to a 5-axis center wastes money on parts that a 3-axis mill would finish in one setup with a good fixture.

Tolerance is not a single number. It is the sum of every error between the datum and the feature. Boring a hole, flipping the part, and boring a matching hole from the other side adds the re-clamp error to both. That is why a part with tight bore-to-bore alignment often costs more than the drawing suggests.

Cutting both features in one setup removes that stack. On a 5-axis center the table tilts to bring the second face to the tool, so the spindle never loses its reference to the first face. We hold ±0.005 mm (±0.0002 in) on production parts, and the setup strategy is usually what decides whether that is reachable.

Thermal drift still applies. A spindle that has been running for hours grows, and a long roughing cycle heats the part before the finishing pass. For tight work we rough, let the part cool, then finish. On thin walls the cutting force itself deflects the material, so light passes with a sharp tool matter more than machine specification.

Surface finish follows the same logic. A continuous 5-axis pass leaves a smoother wall than a series of indexed cuts, because there is no re-entry mark at each angle change. Where the drawing calls for Ra 0.8–1.6 μm, the toolpath strategy does as much work as the finishing insert.

A 5-axis center can reach five sides of a cube, but not the sixth. The face clamped in the vise or bolted to the tombstone is still blocked. Designers often assume the machine solves every angle. It does not. If a critical feature sits on the mounting face, plan for a second operation or a custom soft jaw.

Rotary tables add their own constraint. A Ø400 mm table can hold a part that swings clear of the machine envelope, but a tall part tilted 90° may hit the spindle head or the way covers. We check the swing envelope before quoting, not after. That is one reason a part that looks simple on screen can come back with a higher price.

Thin-wall parts need support, not just reach. A 1 mm wall on an aluminum housing will chatter if it is only held at the base. Wax, low-melt fixturing alloy, or a machined nest can back it up. Each of those adds a process step, so the price reflects the fixturing, not the cutting time.

For long parts, we work up to 4,000 mm on the larger travels. At that length, thermal expansion of the material itself becomes a real variable. A 4,000 mm aluminum extrusion can grow measurably between morning and afternoon, so we control the shop temperature and finish critical dimensions in one window.

Aluminum is the easy case. Grades like 6061, 7075 and 6082 cut fast with high spindle speeds, and the 5-axis toolpath keeps the cutter engaged instead of rubbing. The main risk is distortion after removing a lot of stock from a thin section, so we rough with leaving stock and stress-relieve where the geometry allows.

Stainless and titanium behave differently. 316L and 17-4PH work-harden if the tool dwells, so the feed per tooth has to stay above a threshold even on a curved pass. TC4 (Ti-6Al-4V) and Inconel generate heat at the cutting edge, which is where high-pressure coolant and a rigid setup earn their cost. A flexible setup on these materials shows up as tool breakage, not just poor finish.

Plastics and composites bring their own rules. PEEK and carbon fibre are abrasive and need sharp, uncoated tooling with strong extraction. Carbon fibre dust is conductive and gets into everything, so we isolate those jobs. The 5-axis advantage here is edge quality on contoured trim cuts, where a hand-finished edge would fray.

In every case, the material decides the cutting parameters first and the machine second. A 5-axis center does not make Inconel cut like aluminum. It only removes setups and lets the tool stay engaged on complex surfaces.

Start with the number of faces that carry a tolerance. If two or three faces are datums for each other and the part is small enough to flip by hand, a 3-axis mill with a good fixture is often the cheaper route. Add a setup only when the alignment between faces is tighter than the re-clamp error you can accept.

Next, look at the geometry of the surfaces themselves. Contoured, twisted or organic shapes that must blend smoothly favor simultaneous 5-axis. So do parts with deep pockets that need a short, stiff tool reaching in at an angle. If every surface is flat and square to an axis, the extra axes buy you very little.

Then consider quantity. One prototype and a 10,000-part run are different problems. For a prototype, the value of 5-axis is getting a correct part fast without building a fixture. For production, the value is a shorter cycle with fewer operations, and that only pays off when the volume covers programming time.

Finally, ask what happens if the feature cannot be reached at all. Undercuts, internal channels and cross-holes sometimes cannot be machined from any angle on a 3-axis machine. In those cases 5-axis is not a cost question, it is the only way to make the part as designed.
