CNC Aluminum Parts Processing: Where 5-Axis Milling Earns Its Keep

• 1
  What the two extra axes buy you in CNC aluminum parts processing
• 2
  Tool length, chatter and the reach limit
• 3
  Thermal drift and why the first part is not the tenth
• 4
  Workholding and datum strategy
• 5
  Cases where 5-axis is the wrong answer
• 6
  Choosing a process for aluminum parts

A 3-axis mill moves the tool in X, Y and Z while the part sits still. Every new face means a new fixturing position. A 5-axis machine adds two rotary motions, so the tool can swing around the part or the part can tilt under the tool. That is the whole difference. Everything downstream follows from it.

The practical gain is not speed. It is access. A tool that stays short and stiff can reach an angled boss, a deep pocket wall or a port face without a long extension holder. Short tools deflect less, so the cut can be pushed harder and the wall stays parallel.

The second gain is setup count. One clamped position can expose five faces. On a 3-axis machine those five faces are five setups, five datum re-zeroing steps and five chances to stack tolerance. On a 5-axis center the datums are set once, so position error between faces stays inside one machine coordinate system.

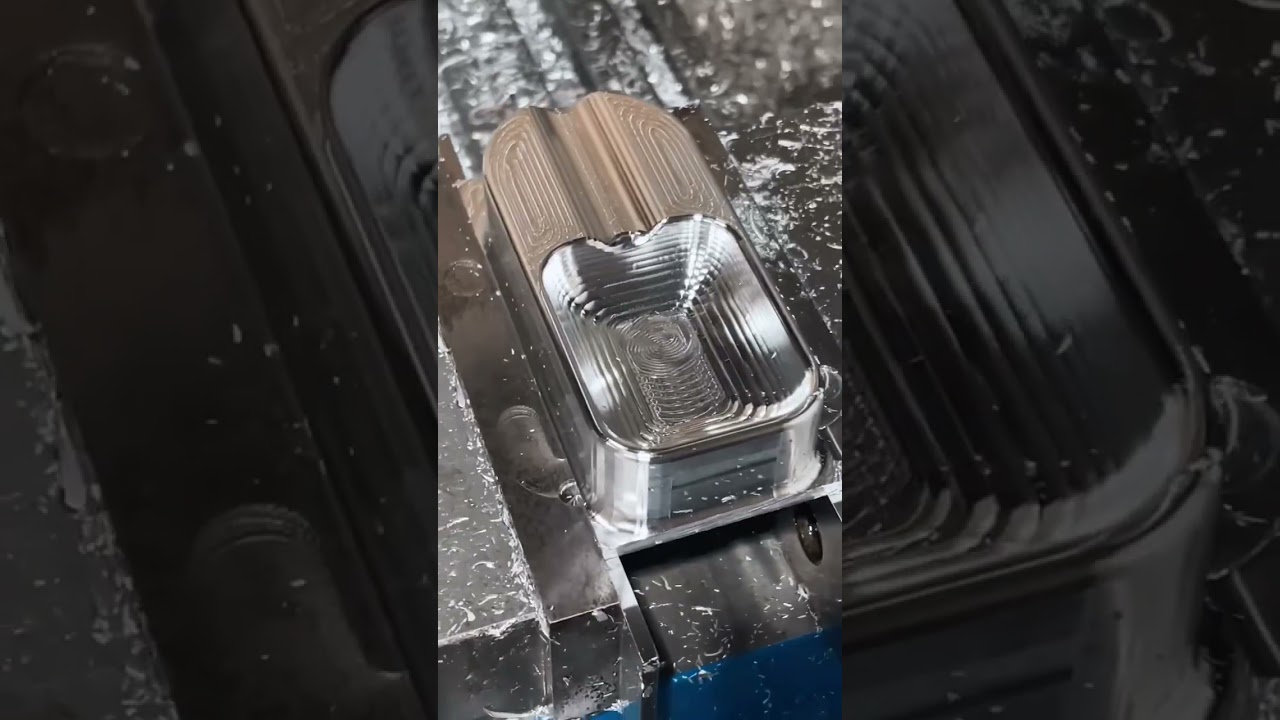

Aluminum makes this trade cheap to test. The material cuts fast, tools last, and a wrong call costs a few hours rather than a week. That is why aluminum housings, manifolds and brackets are the parts where 5-axis usually pays for itself first.

Stiffness falls with the cube of tool overhang. Double the stick-out and the tool bends eight times as much under the same side load. Aluminum hides this well because cutting forces are low, but a Ø6 mm end mill hanging 60 mm out of a holder will sing in a deep pocket no matter what the feed says.

The fix is not a slower feed. It is a shorter tool. Tilting the part toward the spindle lets a stub-length cutter reach a wall that a 3-axis machine could only reach with a long neck. The rotary table does the reaching instead of the tool.

There is a limit. Rotary axes carry their own backlash and their own positioning error. A trunnion table tilts the part, and any error in that tilt shows up as a taper on the wall or a mismatch at a corner. For tight parallel walls, a rigid 3-axis setup with a short tool can still beat a loose 5-axis one.

Watch the corners. When the tool changes direction along an angled wall, the cutter contact point moves, and the load changes with it. A constant feed that works on a straight wall can chatter in the corner. Cam software handles this with feed reduction, but the operator has to verify it, not trust it.

Aluminum conducts heat away from the cut about five times faster than steel. That sounds helpful, and mostly it is: the tool runs cooler and the edge lasts. The heat still goes somewhere. It goes into the chip, the part and the fixture.

A 500 mm aluminum plate warms up over a run. It grows. Thermal expansion of aluminum is roughly 23 μm per meter per degree Celsius, so a 5 °C rise on a 500 mm part moves a feature by about 60 μm. That is twelve times the ±0.005 mm tolerance we hold on a good day.

The consequence is simple. On long runs, the tenth part is not a copy of the first. Coolant strategy, spindle warm-up and sometimes a deliberate dwell between roughing and finishing keep the part near room temperature before the finish pass.

Coolant choice matters too. Flood coolant pulls heat out of the part but can shock a thin wall. For thin aluminum ribs, air blast or minimum quantity lubrication often holds size better than a heavy flood, because the wall never gets a cold bath on one side only.

On a 3-axis machine the vise or fixture is the reference. On a 5-axis machine the rotary table is the reference, and everything upstream of it has to agree. That starts with how the blank is prepped. A sawn face that is not flat will rock on the table and pull the part out of position under clamp load.

For a first article, we usually face the blank, drill two datum holes and use those holes for the rest of the run. Holes survive reclamping better than edges. They also make it possible to move the part between a 3-axis roughing machine and a 5-axis finishing machine without re-probing every face.

Zero-point clamping helps on repeat work. A pallet with a fixed reference lets the operator load, clamp and start without touching an indicator. The setup time drops, and so does the variation between operators.

Do not skip the probe. Touching off the rotary center once and trusting it for a month is how taper creeps into parts. We probe the rotary axis at the start of a run and after any crash, and we log the number.

Prismatic parts with faces that all look along one direction do not need rotary axes. A plate with pockets, holes and a flat profile machines faster on a 3-axis mill with a bigger table, and the fixture is cheaper. Adding a 5-axis machine here buys nothing and adds setup risk.

Very large parts are another limit. Our 5-axis travel tops out around 4,000 × 400 × 150 mm on the large frame. Above that, or where the part is too heavy for a trunnion, the job moves to a 3-axis machine with a repositioned fixture, or to a mill-turn center.

Simple turned parts belong on a lathe, not a mill. A shaft with a groove and two threads is a turning job. Mounting it on a 5-axis mill wastes spindle time and usually gives worse roundness.

Finally, prototypes with unsettled geometry. If the design will change next week, spending a day on a 5-axis fixture is a bad trade. Cut it on a 3-axis machine, check the fit, then commit to the 5-axis process once the shape stops moving.
