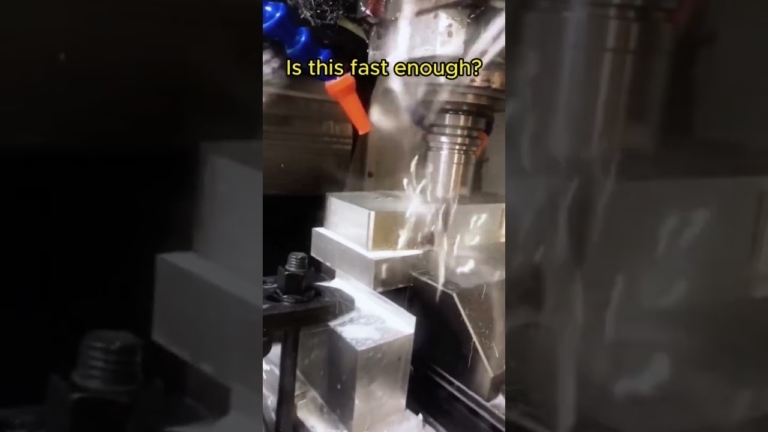

A CNC machining display is a digital readout (DRO) or operator screen that shows axis position, feed rate, spindle speed and offset values while a machine runs. On an older manual mill it is a bolt-on box with glass scales. On a CNC it is the control screen, and the same numbers drive the servo loop.

The display itself does not cut metal. It reports where the tool is and how far it still has to travel. That distinction matters when a part fails. If the readout says X is at 120.000 mm but the wall is 0.08 mm thin, the fault is in the offset, the tool or the setup, not in the numbers.

Most shop-floor displays share four values: absolute position, relative (incremental) position, tool offset and feed override. On a 5-axis center you also get rotary positions and the machine coordinate system. Reading those four values correctly is most of the skill.

• 1
  Absolute positionDistance from the part zero point set in the work offset table.
• 2
  Relative positionDistance from wherever the operator last reset. Useful for manual moves.
• 3
  Tool offsetLength and radius compensation the control applies to the programmed path.
• 4
  Feed overridePercentage of programmed feed. A short display of what the operator is doing.

A 3-axis machine shows three linear positions. A 5-axis machine adds two rotary axes, so the display has to show both the linear positions and the rotary positions, plus the pivot distance between them. The control blends the two into a single tool tip position, otherwise the part comes out wrong.

The pivot distance is the distance from the rotary table centerline to the spindle gauge line. Set it wrong by 0.05 mm and a 5-axis contour will drift by roughly that amount at the tool tip, depending on the rotary angle. This is why setup on a 5-axis center takes longer than on a 3-axis mill.

GreatLight runs 16 simultaneous 5-axis machining centers, 12 four-axis mills, 27 three-axis machines and 16 mill-turn centers. The choice between them is not about prestige. It is about how many faces of the part need to be cut without a re-fixture.

Every number on the display traces back to a datum on the drawing. The machinist sets the work offset so the control and the drawing agree. If the drawing calls out a datum B on a bore, the probe touches that bore and the display stores the center. From then on, the readout is a direct translation of the drawing.

Tool length offsets are the second link. A 12 mm end mill and a 6 mm end mill have different lengths, so each tool gets its own offset. The display shows the compensated path, not the raw program. That is why a wrong tool number can ruin a part and still show a clean readout.

The third link is thermal drift. A spindle that has run for two hours grows a few micrometres. On a ±0.005 mm job that matters. Good shops warm up the spindle and re-check the offset before the finishing pass.

On a manual mill doing one-off repair work, a DRO pays for itself in a week. The operator drills a bolt circle by reading coordinates instead of counting handwheel turns. Positional error drops from 0.1 mm to about 0.02 mm with good scales.

On a CNC, the readout matters most during setup and first-article inspection. Once the program is proven, the operator watches load, chips and sound, not the numbers. A display that is hard to read at a glance slows setup, and setup time is a real cost on short runs.

In 5-axis work the display also shows the rotary table angle and the tool vector. That is how the operator confirms the part is being cut on the intended face after a rotary move. Without it, a 90° tilt can look correct on screen and cut the wrong wall.

A display cannot see tool wear. If the insert has worn 0.03 mm, the readout still shows the commanded position. The part is 0.03 mm off and the screen looks perfect. That is what in-process gauging and tool-life management are for.

A display cannot see fixture deflection. A thin-walled aluminium part pushed at 8,000 rpm will move under cutting force even if every axis is exactly where the control says. The display reports the machine, not the workpiece.

A display cannot see thermal growth in the part itself. A 300 mm aluminium plate warming 5 °C grows about 0.07 mm. For tight work, measure at a stable temperature, or cut, wait and cut again.
