5 Asix CNC Machining: How Simultaneous Motion Changes the Cut

• 1
  What the two extra axes do in 5 asix cnc machining
• 2
  Undercuts, deep pockets, and the tool reach problem
• 3
  Where the accuracy actually goes
• 4
  How a 5 asix cnc machining job is planned
• 5
  3-axis, 3+2, and simultaneous: which fits the part

A 3-axis mill moves the tool in X, Y, and Z while the part stays fixed. A 5 asix cnc machining center adds two rotary motions, so the tool can approach a face from an angle instead of only from the top. That single change removes most of the reason shops build multiple fixtures.

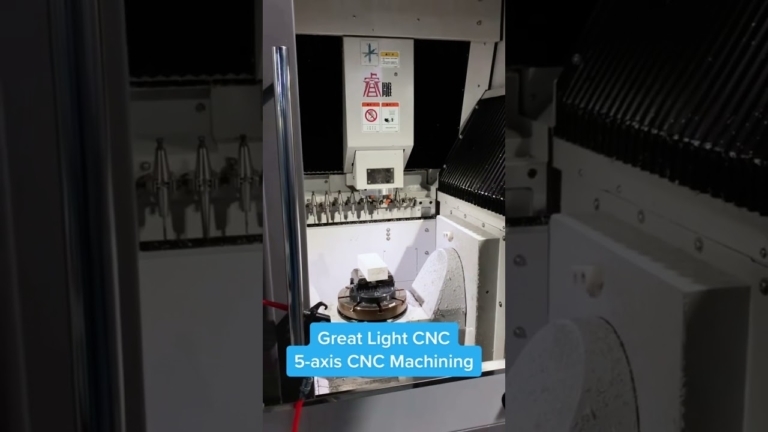

The rotary pair comes in two common forms. A trunnion table tilts and rotates the part under a vertical spindle. A swivel head tilts the spindle itself over a fixed table. Both give the same geometric freedom, but they behave differently with heavy parts and long tools.

Here is the part that matters on the shop floor. The controller must keep the tool tip on the programmed path while five motors move at once. Feed rate is defined at the tip, not at each axis, so the rotary motors sometimes spin far faster than the linear ones. On a tight contour with a small cutter, that is where machine dynamics show up as chatter or witness marks.

Linear axes on our machines travel up to 4,000 × 400 × 150 mm, and the medium group covers 750 × 1,150 × 550 mm. A Ø400 mm rotary table sets the practical limit for the tilted part, not the X travel. Parts that swing outside that envelope need a different setup plan, not a bigger program.

Most parts that arrive as 5-axis candidates fail on one of three features: an undercut, a pocket deeper than three times the cutter diameter, or a face that needs a drilling normal the 3-axis spindle cannot reach. Each one is a geometry problem, not a machine problem.

Short tools are stiff tools. When a cutter is held in a long holder to reach the bottom of a deep cavity, deflection grows roughly with the cube of the length. Tilting the part lets a shorter, thicker cutter reach the same floor. That is the real gain, and it usually shows up as better surface finish and longer tool life rather than as a new feature.

Undercuts are the clearest case for the rotary axes. A groove on the underside of a flange, a port with a non-orthogonal entry, or a chamfer that runs around a compound curve cannot be cut in one 3-axis setup. They can be cut in several 3-axis setups, but each re-clamp adds positional error and labor.

Not every angled face needs simultaneous motion. A part with six flat faces at fixed angles is usually faster in 3+2, where the table indexes to a position and locks before the cut. The rotary axes stop moving during the cut, so the machine behaves like a rigid 3-axis mill with a smart fixture.

A stated tolerance of ±0.005 mm is a machine and process capability, not a promise that every feature on every part lands there. On a 5-axis part, the tolerance chain includes the rotary table runout, the fixture location, the tool holder, thermal drift, and the probe used to set the work offset.

Rotary axes are the new term in that chain. A trunnion table with 10 arc-seconds of positioning error moves a point 200 mm from center by roughly 0.01 mm. That is larger than the linear-axis contribution. Keep critical features close to the rotary center when the drawing allows it.

Thermal behavior matters more here than on a 3-axis job, because a 5-axis cycle is usually longer and the part is repositioned between operations. A warm spindle and a cold fixture will disagree. Rough, let the part settle, then finish with the offsets re-probed.

Inspection should follow the same logic. Check the datum features first, then the features cut in the tilted setups, and compare against the model rather than against a 2D drawing. On our side, parts get a raw material check, in-process monitoring, and a final inspection before shipment, with reports available on request.

Programming starts with the setup, not the toolpath. The engineer picks the smallest number of work holdings that still reaches every feature, then decides which of them need continuous motion. A part that can be done in two holdings and 3+2 will beat a one-holding simultaneous program on cycle time in many cases.

Stock and fixture design drive the rest. Thin walls need support on both sides while the cutter passes. Deep cavities need coolant aimed at the contact zone, not at the wall behind it. We usually model the fixture in the same file as the part so the programmer can see clearance for the holder, not just the cutter.

Materials change the parameters, not the strategy. Aluminum 6061 and 7075 run fast with high rake angles. Titanium TC4 (Ti-6Al-4V) and Inconel need lower surface speed, more coolant, and a stiffer setup, which favors shorter tools and 3+2 indexing. Stainless 17-4PH sits in between and machines well with the right feeds.

The first article is where the plan gets tested. If a feature is out of position, the fix is usually in the work offset or the fixture, not in the toolpath. Chasing it with cutter compensation hides the problem and moves the error somewhere else.
