CNC Machining So Fast: Why Some Jobs Finish in Days
Speed on a five-axis center is not one trick. It comes from fewer setups, shorter tools, and toolpaths that keep the cutter in the cut. This page explains the mechanism, the limits, and the jobs where 3-axis still wins.

In this article
- 1
- 2
- 3
- 4
- 5
- 6
- 7
- 8
What Makes CNC Machining So Fast on Five Axes
Fast cycle time is usually described as spindle speed. That is only part of it. The bigger gain is geometric: the tool can reach five faces of a part without the operator unclamping it. Setup is where hours disappear on a complex job, not cutting.

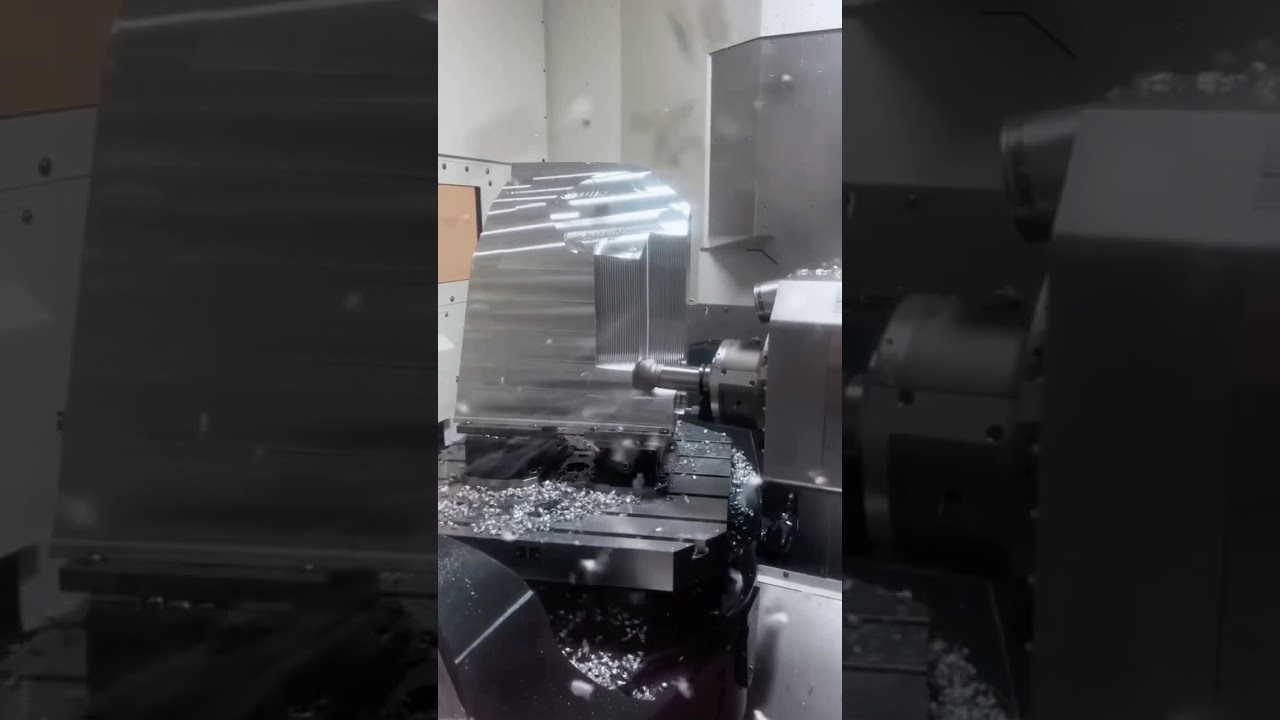

A three-axis machine holds the part flat and moves the table in X, Y and Z. A five-axis center adds two rotary axes, so the tool axis tilts relative to the workpiece. Once the tool can tilt, a part that needed four fixtures on three separate machines can often be finished in one clamping.
That single clamping changes the timeline. There is no re-datuming between operations, no waiting for the part to return to the machine, and no stack-up of positional error from fixture to fixture. The part goes in once and comes out finished.
So when engineers ask why CNC machining so fast on some jobs and slow on others, the answer is usually setup count and tool access, not the spindle. A five-axis job with one clamping can beat a three-axis job with six clampings even at lower rpm.
Tilted Tools Cut With the Side of the Cutter
On a flat part, a ball nose cutter touches the surface at one point. Feed rates have to drop because the effective cutting diameter at that contact point is tiny. Tilt the tool 20–45° and the contact moves toward the side of the cutter, where surface speed is higher.
That tilt lets us run a larger stepover. A common starting range is 5–10% of tool diameter on a steep wall, but on a shallow slope with a tilted tool it can open up to 20–30% without leaving witness marks above Ra 0.8–1.6 μm.
Shorter tools matter just as much. Five-axis access lets us use a stub-length cutter instead of a long neck. A tool with a 3:1 length-to-diameter ratio can be pushed far harder than one at 8:1, where chatter and deflection force conservative feeds.
The combined effect is not a single big jump. It is three or four moderate gains stacking: higher surface speed at the contact, larger stepover, stiffer tool, and fewer air moves because the tool stays engaged around a contour.
Where the Speed Advantage Disappears
Five axes do not help on a part that is essentially a plate with holes. If every feature is reachable from one direction, the extra rotary motion adds programming time and machine hours without removing a setup. A three-axis machine with a good fixture will beat it.
Rotary axes also have their own dynamics. A trunnion table carrying a heavy part accelerates slower than a linear axis, so tight contouring around a small radius can force feed reduction. On a 40 kg fixture, reversal errors at the rotary joints show up as blend marks.
Rigid tapping, deep bores and long reaches in a single direction are still plain three-axis work. Adding rotation only changes the approach vector, and if the feature is already aligned, there is nothing to gain.
The practical rule: count the setups first. If five-axis machining removes two or more clampings, it usually wins. If it removes none, it usually loses.
Why One Clamping Beats Four Good Fixtures
Every clamping adds a datum. When a part moves from op 1 to op 2, the operator re-zeroes on a surface that was itself cut in op 1. Each transfer carries its own error, and those errors add. Four operations can easily consume half of a ±0.005 mm tolerance before the first chip.
One clamping removes that chain. Positional tolerance is limited by the machine's own accuracy instead of by fixture repeatability. On a simultaneous five-axis center with a Ø400 mm rotary table, that is often the difference between a part that needs a rework loop and one that ships.
Setup time also scales with part count in a way engineers underestimate. A 30-minute setup on a 50-part run is 25 hours of machine time lost. On a one-off prototype it is negligible. The five-axis case is strongest in the middle: 10 to 500 parts with complex geometry.
There is a catch. Fixturing a five-axis part can take longer to design, because the blank needs a clamping point that does not sit in the toolpath. That is why we run DFM on the model before quoting, and why a free DFM check inside 12 hours often changes the fixture plan, not the part.
Toolpath Strategy Has More Effect Than Machine Spec
Two programmers can hit the same part on the same machine with cycle times 40% apart. The difference is usually in three places: how much of the cut is done with the tool engaged, how much of the path is air, and how often the axis reverses.
Keeping the cutter engaged matters most on hard materials. In titanium TC4 or Inconel, a light radial cut with a large axial depth keeps heat in the chip instead of the tool. Trochoidal and dynamic paths hold a constant chip load, which lets us raise feed per tooth.
Air moves are pure cost. On a part with 30 pockets, a path that lifts and repositions between every pocket can add minutes. Ordering cuts by proximity and staying down where the geometry allows is a programming habit, not a machine feature.
Axis reversal is the quiet one. Every time a rotary axis changes direction, it has to overcome its own inertia and any backlash in the drive. Paths that keep rotation continuous, even while the linear axes compensate, hold tolerance better and finish faster.
None of this is exotic software. It is the standard toolkit on a modern CAM seat. What it needs is a programmer who knows the machine's acceleration limits and does not ask for moves the machine cannot hold.
Material Choice Sets the Real Speed Ceiling
Aluminium 6061-T6 is the fast case. High spindle speeds, generous depth of cut, and good chip evacuation let a five-axis center run near its limit. The same geometry in 316L stainless will run at roughly one third of the feed and eat inserts faster.
Titanium and Inconel are the slow case, and no axis count fixes that. Low thermal conductivity means heat goes into the cutter. Speeds drop, coolant strategy changes, and tool life becomes the constraint rather than the motion system.
Plastics behave differently again. POM and PEEK cut fast but move with heat, so roughing passes and a cool-down before finishing hold dimensions better than pushing feed. A part that measures right off the machine can drift 0.02 mm after an hour.
Magnesium AZ31B and AZ91D cut quickly, but chip handling is a safety matter, not a speed matter. We treat those runs with dedicated housekeeping rather than trying to win cycle time.
5 Axis vs 3 Axis: Match the Job to the Machine
Cycle time is only one column. Setup count and part geometry decide the rest.
| Part feature | 3-axis | 5-axis | Better choice |
|---|---|---|---|
| Flat plate, holes on one face | 1 setup, fast | 1 setup, same | 3-axis |
| Five faces, tight datums | 3–4 setups | 1 setup | 5-axis |
| Deep cavity, short tool | Long tool, slow feed | Tilted short tool | 5-axis |
| Undercut on a side wall | Extra fixture | Tool tilts in | 5-axis |
| Large weldment, one face | Fits 4,000 mm travel | May not fit | 3-axis |
| Simple turned shaft | Mill-turn or lathe | No benefit | 3-axis |
Five Questions Before You Choose a Process
Answer these and the process usually picks itself.
| Question | If yes | If no |
|---|---|---|
| Are features reachable from 2+ directions? | Five-axis likely | 3-axis probably fine |
| Does the part need 2+ clampings on 3-axis? | Five-axis likely | 3-axis faster |
| Is the tool reach longer than 4:1? | Tilt to shorten it | 3-axis fine |
| Is the run between 10 and 500 parts? | Setup savings pay | Any process works |
| Are datums tighter than ±0.01 mm across faces? | One clamping helps | Fixture is enough |
The Short Answer
If five-axis motion removes two or more clampings, choose it. If it removes none, a three-axis machine with a solid fixture will be faster and cheaper. Count setups before you count axes.
Questions Engineers Ask Next
Does 5 axis always cut cycle time?
No. It cuts time when it removes setups or shortens the tool. On a part reachable from one direction, the rotary motion adds programming and machine time with no gain.
The honest test is setup count. Two or more clampings removed is the usual break-even point.
What tolerance can a five-axis center hold?
We work to ±0.005 mm (±0.0002 in) on qualifying features, with Ra 0.2–0.8 μm available on finished surfaces when the geometry allows.
Tighter than that depends on the feature, the material and the fixture, so we confirm it during DFM rather than quoting a blanket number.
How long does a quote take?
Quotation and a free DFM analysis come back within 12 hours of upload. Production can start within 24 hours once the model and material are fixed, and parts typically ship in 3–5 days.
Uploads stay confidential and an NDA is available on request.
Is there a minimum order quantity?
No. We run from a single prototype up to 10,000+ part runs on the same process.
Small runs are where the setup saving from five-axis work shows up most clearly.
Which materials suit five-axis work best?
Aluminium grades such as 6061-T6, 7075 and 6082 give the biggest speed gain because the machine can run near its limits.
Stainless, titanium TC4 and Inconel are cut on the same machines but at much lower feeds, so the axis count stops being the deciding factor.
When should I stay with 3 axis?
Plates, simple shafts, and parts where every feature faces one direction. Also large weldments that only fit the 4,000 × 400 × 150 mm travel envelope in one orientation.
In those cases a three-axis machine or a mill-turn center finishes the job with less programming and less risk.
