Guide Seat Machining CNC: How Location, Fit, and 5-Axis Setup Decide the Part
A guide seat is a locating feature. It sets the axis of a valve, a spindle, a plunger, or a slide, so every downstream clearance is measured from it. This page covers the geometry, the tolerance stack, and the setup choices behind guide seat machining CNC, including when 5-axis work is worth the extra cost and when it is not.

What a Guide Seat Actually Does
This feature carries an axis. In a valve body it is the bore that keeps the stem from tipping. In a die set it is the pocket that keeps a punch square to the plate. In a robot joint it is the shoulder that centers a bearing. The seat does not move. Its job is to hold something else on line.
Everything downstream is measured from it. If the bore runs 0.02 mm off axis, the mating stem tilts, the contact patch shifts to one edge, and the seal wears unevenly. That is why a seat is usually the tightest callout on the drawing, while the outer profile of the same part can stay loose at ±0.1 mm.
Seats come in three common shapes. A straight bore with a shoulder, a tapered cone that self-centers, and a shallow counterbore that only locates a flat face. Each one is machined differently, and each one fails in its own way when the setup is wrong. Knowing which shape you have tells you what to fixture and what to measure.
The Tolerance Stack Behind the Bore
Two numbers drive the whole job: bore diameter and bore position. Diameter is easy to hold on a good machine. Position is where most scrap comes from, because it depends on how the part was located when the bore was cut, not just on the tool.
For a metal-to-metal press fit, a bore in the Ø20 mm range usually needs about 0.010 mm of diametral clearance control. That puts you inside the ±0.005 mm band we hold on 5-axis centers. For a running fit with a lubricated stem, 0.020 to 0.050 mm is workable and costs less.
Roundness and straightness matter more than people expect. A bore can measure on size at both ends and still be bowed 0.015 mm in the middle. The stem will bind anyway. Always check cylindricity, not just diameter at the mouth.
Surface finish sets wear rate. A sliding seat at Ra 0.8 to 1.6 μm holds oil and runs cool. Push to Ra 0.2 to 0.8 μm only when the seal is elastomeric or the motion is very slow, because a mirror bore can wipe lubricant off and gall.
Why 5-Axis Setup Changes the Result
On a 3-axis machine the seat is cut from one direction, then the part is flipped for the back side. The flip introduces a second datum. If that datum is off by 0.01 mm, the two bores no longer share an axis, and the assembly shows it as runout.

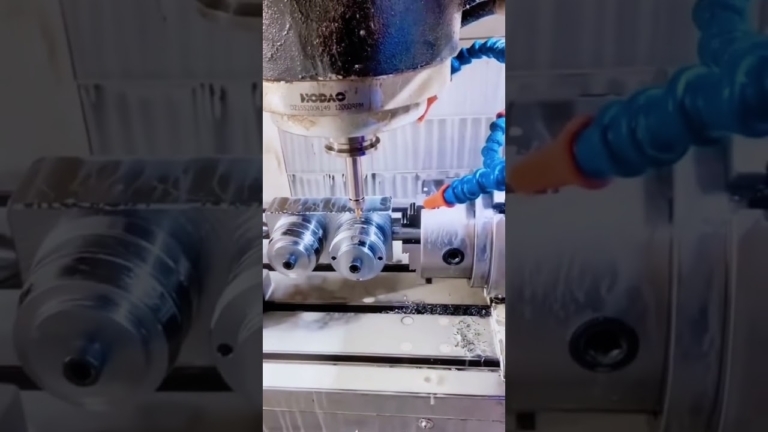

A simultaneous 5-axis center cuts the seat and the surrounding faces in one setup. The bore, the shoulder, and the mounting bolt pattern all come off the same zero. That removes flip error entirely. On our 16 simultaneous 5-axis centers, a Ø400 mm rotary table handles most valve bodies and spindle housings without re-chucking.
5-axis is not free. Program time is longer and the machine rate is higher. Use it when the seat axis is not parallel to a face, when there are angled ports breaking into the bore, or when two seats must stay coaxial across a long body. If the part is a flat plate with one straight bore, 3-axis does the same job for less.
Thin-wall seats are a separate problem. A Ø30 mm bore in a 3 mm wall will move when you unclamp. Rough it, let it rest, then finish with light passes of 0.1 to 0.2 mm radial depth. Clamp pressure should be just enough to hold the part, not enough to oval it.
Material Choice and What It Does to the Cut
Aluminum seats are common in pneumatic valves and light housings. 6061-T6 and 7075 cut clean and hold a bore well, but they wear fast against a steel stem. Anodizing the bore adds hardness and a thin dimension change, so the bore must be cut undersize before coating.
Stainless is the default for anything wet or corrosive. 303 machines easily and is fine for a guide that does not see heavy load. 316L and 17-4PH are tougher, gummier, and will pull a boring bar if the feed is pushed. Expect to drop feed by 20 to 30 percent and use a rigid bar.
Bronze and beryllium copper seats are used where you want the seat to wear instead of the shaft. C36000 and C27400 cut freely and give a smooth bore with little effort. They are also soft, so deburring has to be done by hand or with a controlled tool, not a wire brush.
Titanium and Inconel seats appear in aerospace and high-temperature work. TC4 (Ti-6Al-4V) and Inconel both work-harden at the surface. Take a full cut, never rub, and keep coolant on the bore. A dwell of even half a second will harden the wall and kill the next pass.
Measuring the Seat Without Guessing
A bore gauge or an internal micrometer tells you size at one depth. It does not tell you whether the bore is straight. Use an air gauge or a three-point bore gauge at three depths, top, middle, and bottom, and compare. A spread over 0.008 mm means the bar was deflecting.
Coaxiality between two seats is checked with a mandrel or a CMM. A ground plug gauge through both bores is the fast shop-floor test. If it enters with light hand pressure and no rock, the axis is good. If it rocks, the bores are parallel but offset.
Surface finish gets checked with a portable profilometer on a sample, not on every part. Set the cut parameters once, prove the finish, then hold those parameters. Chasing finish by hand-polishing the bore will round the edge and change the seat's locating face.
We inspect 100 percent of parts before shipment, with raw material check, in-process monitoring, and a final inspection. Reports are available on request. Our four certifications, ISO 9001:2015, IATF 16949:2016, ISO 13485:2016, and ISO 27001:2022, cover quality, automotive, medical, and information security scopes.
When Each Setup Pays Off
Pick the setup from the seat geometry, not from habit.
| Condition | 3-axis | 4-axis | 5-axis |
|---|---|---|---|
| Seat axis parallel to a face | Good fit | Good fit | Overkill |
| Two coaxial seats, long body | Flip risk | Workable | Best fit |
| Angled ports into the bore | Extra setups | Partial | Single setup |
| Bore on a compound angle | Not practical | Rarely | Required |
| Flat plate, one straight bore | Cost winner | No gain | No gain |
| Thin wall, tight roundness | Light passes | Light passes | Best control |
| Tolerance at ±0.005 mm | Possible | Possible | Most repeatable |
The Short Version
If the seat axis sits square to a face and the tolerance is looser than ±0.02 mm, run it on 3-axis and save the money. If two seats must stay coaxial, or the bore sits on an angle, or you need ±0.005 mm with repeatable roundness, put it on a 5-axis center and cut it in one setup.
Questions Engineers Ask
How tight a bore can you hold on a guide seat?
On a 5-axis center we hold ±0.005 mm on diameter and position in the Ø20 to Ø80 mm range, which covers most valve and spindle seats.
Below Ø10 mm the boring bar gets thin and deflection grows, so expect ±0.008 mm unless the feature is reamed rather than bored.
Should the bore be bored or reamed?
Bore it when you need to correct position or roundness, because a boring bar can move the axis. Ream it when the hole is already on axis and you only need size and finish.
A reamer follows the existing hole. It will not fix a bore that was drilled off center.
What surface finish should a sliding seat have?
Ra 0.8 to 1.6 μm is the working range for a lubricated steel or bronze stem. It holds oil in the crosshatch and resists galling.
Go to Ra 0.2 to 0.8 μm only for elastomer seals or very slow motion. A mirror finish on a fast sliding fit can starve the contact.
How do you keep a thin-wall seat round?
Rough the bore leaving 0.3 to 0.5 mm, release the clamps, let the part settle, then finish with 0.1 to 0.2 mm radial passes.
Use soft jaws or a pie-jaw chuck and clamp only to the torque needed to stop the part from moving. Extra clamp pressure is the main cause of oval bores.
Does anodizing change the bore size?
Yes. Hardcoat anodizing builds roughly half in and half out of the surface, so the bore closes by close to the coating thickness per side.
Machine the bore undersize by that amount and mask the seat face if the shoulder is a locating datum.
What lead time should I plan for a new seat design?
We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours of approval. Parts ship in 3 to 5 days.
There is no minimum order quantity, so a single prototype and a 10,000-part run go through the same first-article process.
