CNC Machining Plastic Cavity Parts: How Material, Walls and Tool Access Decide the Result

• 1
  Key takeaways
• 2
  What a plastic cavity is and where it sits in a tool
• 3
  Why cnc machining plastic cavity parts behaves differently from metal work
• 4
  Wall thickness, draft and radii in a machined cavity
• 5
  How 5-axis access changes cnc machining plastic cavity parts
• 6
  Surface finish and release behavior
• 7
  Which process fits the cavity job

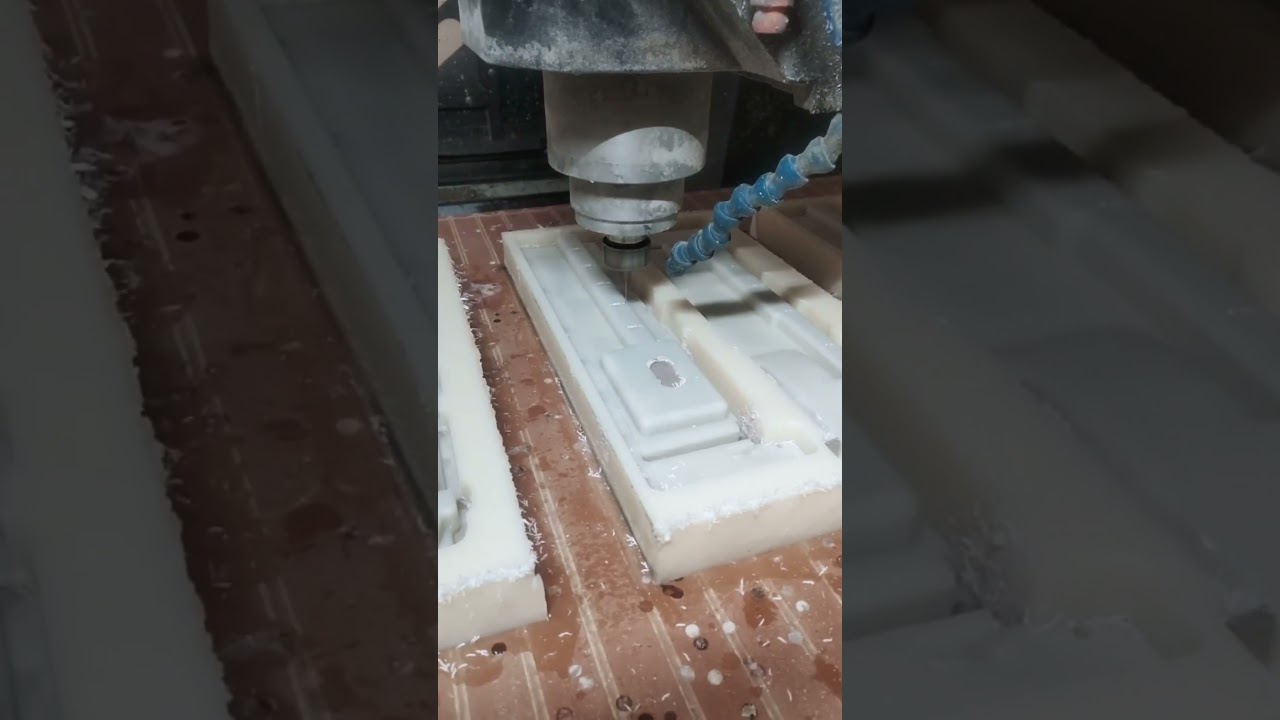

A cavity is the female half of a mold. It carries the outside surface of the molded part, while the core forms the inside. When we talk about cnc machining plastic cavity parts, we mean cutting that negative form directly from a plastic block instead of cutting a steel insert for a production mold.

The distinction matters because the two jobs have different success criteria. A steel mold insert must survive hundreds of thousands of cycles, so hardness and polish matter. A machined plastic cavity is usually a bridge: it validates geometry, proves fit, or produces a short run of usable parts before a hard tool is committed.

Typical uses are vacuum casting masters, urethane casting tools, silicone molds, and low-volume forming or locating fixtures. In all of these, the plastic cavity is a working tool, not a cosmetic model. It has to hold size across the run and release the part without tearing.

That puts the emphasis on wall stiffness, thermal stability and surface finish. A cavity that is 2 mm too thin will bow under clamping pressure. A cavity machined without draft will grip the part. Both failures show up on the third or fourth shot, not the first.

• 1
  Female formThe cavity carries the outer surface; the core carries the inner surface.
• 2
  Bridge toolUsed before hard tooling exists, or when quantities never justify it.
• 3
  Working toolIt must survive repeated cycles, not just one fit check.

Aluminum and steel remove heat with the chip. Plastics do not. POM, ABS and PC conduct heat poorly, so the cutting edge keeps the heat and the material around it softens. The result is a built-up edge, a torn surface, or a dimension that measures well on the machine and shrinks after cooling.

Thermal expansion is the second difference. Unfilled ABS moves roughly 8–10 × 10⁻⁵ per °C. Over a 400 mm cavity and a 20 °C swing, that is close to 0.6 mm of growth or shrinkage. For a plastic cavity, tolerance is often a thermal-control problem before it is a tool-wear problem.

Moisture is the third. PA and PEEK absorb water from the air. A nylon cavity machined to size on a dry day can grow enough overnight to change a fit. POM and PMMA are far more stable, which is why they dominate cavity work when the geometry is demanding.

The practical consequence is that a plastic cavity should be roughed, allowed to settle, then finished. Cutting it to final size in one continuous pass feels efficient and usually costs a rework cycle.

• 1
  Heat stays in the cutPoor conductivity softens the surface and encourages built-up edge.
• 2
  Expansion dominatesUnfilled ABS moves about 8–10 × 10⁻⁵ per °C.
• 3
  Hygroscopic grades driftPA and PEEK take on moisture and change size after machining.

A production mold insert sits in a steel pocket that backs it up. A machined plastic cavity often has no backing, so the wall is the structure. Unfilled plastic has an elastic modulus in the 2–3.5 GPa range, roughly one tenth of aluminum. Walls below 3 mm on a cavity over 150 mm across will deflect under clamp load and show a witness line on the part.

Draft is not optional. Internal faces need 0.5–1° per side, and textured or grained surfaces need 1.5–3° because the texture itself adds grip. When a customer sends a cavity model with zero draft, we flag it in the DFM report rather than cut it and hope.

Fillet radii do two jobs. They reduce stress concentration in the plastic, and they let a smaller tool reach the corner without a long overhang. A 3 mm internal radius cut with a 6 mm ball nose is a short, stiff setup. The same corner with a 0.5 mm radius forces a tool that will chatter.

Sharp internal corners in plastic are also a release problem. The part grips the corner, the ejector pushes, and the corner tears. A radius of at least half the wall thickness removes most of that risk at no cost to function.

• 1
  Minimum wallKeep 3 mm or more on cavities wider than 150 mm.
• 2
  Draft angles0.5–1° per side plain; 1.5–3° on textured faces.
• 3
  Corner radiusAt least half the wall thickness to avoid tearing on release.

A cavity is full of faces that point back at you. Undercuts, side walls, angled bosses and deep pockets all sit away from the spindle axis on a 3-axis machine. The usual answer is a long, thin tool, and a long, thin tool in plastic deflects, rubs, and burns the surface.

A simultaneous 5-axis center tilts the tool so it stays normal to the surface and keeps the overhang short. On our 16 simultaneous 5-axis machining centers, a deep rib that would need a 4:1 overhang on a 3-axis setup can be cut at roughly 2:1. The wall stays parallel and the finish needs less hand work.

The second gain is one-setup machining. When the tool can reach five sides without re-fixturing, the cavity keeps a single datum. Every re-clamp in plastic introduces a small error, and those errors accumulate across a deep pocket.

Choose 3-axis when the cavity is shallow and open. Choose 5-axis when the depth-to-width ratio passes about 3:1, when there are undercuts, or when the part has features on more than one face. That single rule covers most plastic cavity work we quote.

• 1
  Shorter overhangTilting the head cuts a deep rib at roughly 2:1 instead of 4:1.
• 2
  One setupFive-sided access keeps a single datum and stops error stacking.
• 3
  Rule of thumbPast 3:1 depth-to-width, or with undercuts, move to 5-axis.

The cavity surface becomes the part surface. A tool mark of 0.02 mm depth transfers to every part that comes out. For a visual part, that means the cavity has to be cut finer than the final requirement, because casting and forming tend to amplify texture rather than hide it.

As-machined plastic typically lands at Ra 1.6–3.2 μm with a sharp cutter and a light finishing pass. Bead blasting or tumbling brings that to Ra 0.8–1.6 μm, and polishing can reach Ra 0.2–0.8 μm on grades that hold a polish, such as PMMA and POM. ABS and PP do not polish to a mirror; they smear.

Release angle and finish work together. A polished cavity with 0.5° draft will release better than a rough cavity with 2° draft, because friction scales with surface roughness. If a part is sticking, check the finish before adding more draft.

One caution: a mirror finish on a plastic cavity shows every scratch it picks up in service. For a working tool, a uniform matte finish at Ra 0.8–1.6 μm is often the better choice. It hides handling marks and releases cleanly.

• 1
  As machinedRa 1.6–3.2 μm with a light finishing pass.
• 2
  Bead blast or tumbleRa 0.8–1.6 μm, uniform and forgiving.
• 3
  PolishedRa 0.2–0.8 μm on PMMA and POM.
