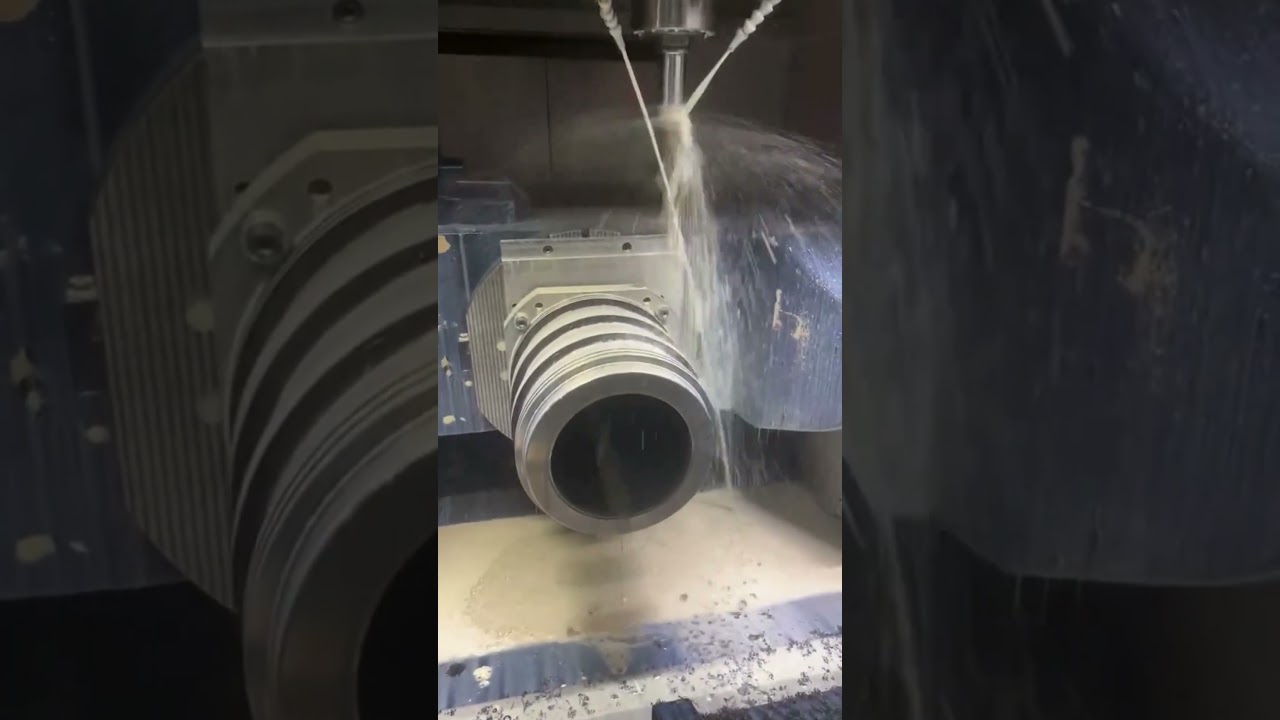

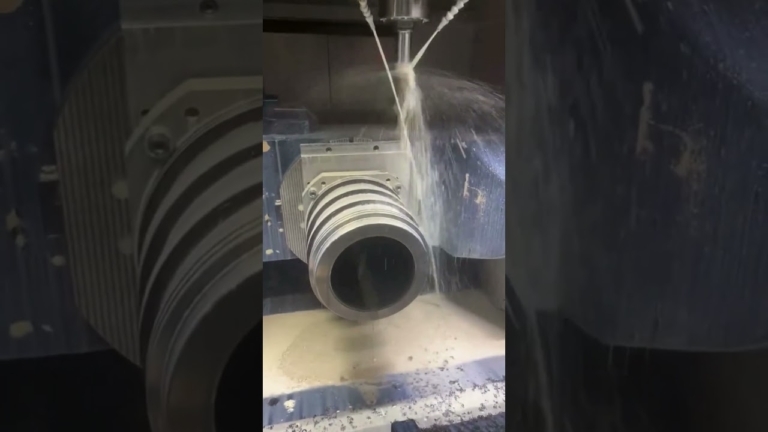

A three-axis mill moves the tool in X, Y and Z. The workpiece stays still. A machining center that carries the CNC machiningcncmachining 5axiscnc cnc configuration adds two rotary axes, so the tool or the table can tilt and rotate while the cutter is engaged. The two extra axes are usually labeled A and B, or A and C, depending on which way they pivot.

The important word is simultaneous. Truly simultaneous motion means all five axes interpolate at the same time under one block of NC code. That is different from 3+2 positioning, where the rotary axes index to an angle, lock, and then cutting happens in three axes only. Both are sold as 5-axis work, and they are not the same process.

Simultaneous motion lets the cutter stay tangent to a curved surface. On an impeller blade or a hip stem, the tool tip follows a continuous path while the table reorients. The result is a shorter cutter, higher stiffness, and a surface that needs less hand finishing. Positioning-only work still gets you five faces in one setup, but the cut itself is plain three-axis.

We run 16 simultaneous 5-axis machining centers alongside 12 four-axis mills and 27 three-axis machines. That mix matters. Not every feature on a part needs five axes at once, and putting simple pockets on a five-axis spindle just burns machine time.

• 1
  SimultaneousAll five axes interpolate in one NC block.
• 2
  3+2 positioningRotary axes index and lock, then cut in three axes.
• 3
  Cutter lengthTilting the table shortens the tool and raises stiffness.

Every re-fixture adds error. Clamp a part three times and you stack three datum errors, three chip-cleaning risks, and three chances to load it backwards. On a part with features on five faces, that stack can push you past ±0.005 mm before the cutter even touches metal.

Five-axis work collapses those setups into one. The part is clamped once, probed once, and every face is reached by rotating the table. Positional tolerance between features comes from the machine's rotary accuracy, not from how well an operator tapped the part against a stop.

That is the real gain for most shops. It is not exotic geometry. It is the boring case of a bracket with holes on four faces and a slot on the fifth, where one setup holds a 0.02 mm true position that three setups could not.

Cycle time usually goes the other way. Five-axis moves are slower than three-axis moves on the same feature, because the machine is reorienting while it cuts. If a part fits in one three-axis setup and meets tolerance, keep it there.

Undercuts are the clearest signal. If a feature sits behind a wall that a straight Z-axis tool cannot reach, you either tilt the part or you split it into two parts and bolt them together. Tilting is cheaper once the shape gets complex.

Curved surfaces with tight blend radii are the second signal. A ball nose cutter held straight down has near-zero surface speed at its tip, so it rubs instead of cutting. Tilting the tool off the surface normal puts the cutting speed back on the flank of the tool and lets you feed faster with less heat.

Deep cavities drive the third case. A long tool deflects. Shorten the tool by tilting the work, and the same cut holds tolerance with far less chatter. On a 300 mm deep pocket, the difference between a Ø12 mm tool at 4:1 and 8:1 stickout is the difference between a clean wall and a tapered one.

The reverse is also true. Flat plates, simple shafts, and prismatic housings with open faces rarely justify five axes. A 4,000 × 400 × 150 mm travel envelope on our large machines means size is not the barrier there. Economics is.

Aluminum 6061 and 7075 cut freely with five-axis toolpaths. High spindle speeds and light radial engagement keep the tool cool, and the tilting motion lets you use the full flute length. Thin-wall aluminum parts benefit most, because a tilted cutter pushes the wall instead of rubbing it.

Titanium Ti-6Al-4V is the opposite. Low thermal conductivity means heat stays in the cutting zone, so the tool must stay in cut for short arcs and exit often. Five-axis toolpaths make that possible, but feed rates drop hard. Expect slower cycle times and more tool changes.

Stainless 316L and 17-4PH work well with the same logic as titanium, with less heat risk. Inconel is the hardest case we run. It work-hardens fast, so any dwell in the cut raises the next pass's resistance. A continuous five-axis path avoids that better than a three-axis path with sharp direction changes.

Plastics like POM, PEEK and carbon fibre need sharp tools and high surface speed. Five-axis motion helps on contoured composite parts, but dust extraction and tool wear become the limiting factors, not the kinematics.

Rigidity is finite. A rotary table is a bearing, and bearings flex. Push a heavy cut through a tilted setup and the table moves under load. That is why we keep roughing on three-axis machines where possible and reserve five-axis passes for semi-finish and finish.

Programming time is real time. A simultaneous toolpath needs collision checking, post-processor verification, and often a test cut in plastic or aluminum before the real material. On a one-off part, that engineering can exceed the machining hours.

Tolerance is not free. We hold ±0.005 mm across five axes, but that figure assumes a stable setup, a sharp tool, and a temperature-stable shop. Add a thin floor or a long reach and the achievable tolerance loosens.

Inspection gets harder too. A tilted cut produces surfaces that a caliper cannot check. You need a CMM with the right probe angles, or you trust the machine and verify the critical few dimensions. We inspect 100% of parts before shipment and can provide reports on request.
