5-axis machining

CNC 5 Axis Machining for Complex Machined Parts

This page explains how simultaneous 5-axis CNC machining removes setups on angled, contoured and thin-wall parts, and where it is not worth the cycle time. It is written for design engineers and buyers who need to pick a process and judge a quote. By the end you can tell whether your part geometry needs five axes, what tolerance and finish are realistic, and what to send for pricing.

16 five-axis centers±0.005 mmØ400 mm rotary tableNo MOQ
Custom Auto Spare Parts 5 Axis CNC Machining Engine Parts
Overview

What five axes actually change

Two extra rotary axes move the tool or the part, so the cutter reaches faces that would need a second or third setup on a 3-axis machine.

Process

How simultaneous 5-axis machining works

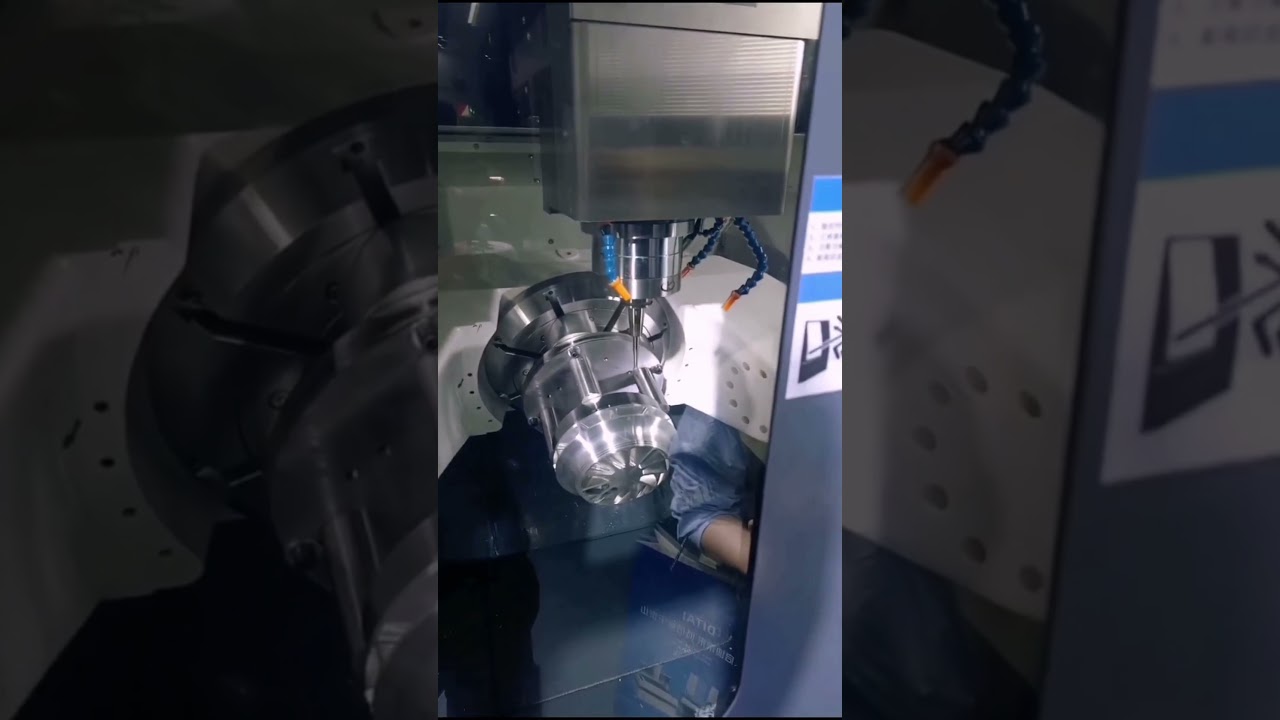

A 3-axis mill moves in X, Y and Z. The cutter always approaches from one direction, so any feature on a side wall or an angled face needs the part flipped and re-datumed. A 5-axis machining center adds two rotary axes. On a trunnion machine the table tilts and rotates; on a swivel-head machine the spindle tilts. Either way the tool can reach five faces of a part in one clamping.

The word simultaneous matters. In 3+2 (positional) mode the rotary axes lock and the machine behaves like a 3-axis mill on an angled plane. That is enough for many prismatic parts and it is faster. True simultaneous machining keeps all five axes moving together, which is what lets a ball-nose cutter follow a curved surface at a constant lead angle. Impellers, turbine blades and organic housings fall into this group.

The practical gain is setup count. Every re-clamp adds a datum error, an operator step and a queue. On a part with features on four sides, five-axis work can cut three setups to one. On a simple plate with holes on one face, it adds nothing and costs cycle time.

We run 16 simultaneous 5-axis machining centers alongside 27 three-axis machines, 12 four-axis mills and 16 mill-turn centers. If a part does not need the rotary axes we say so and quote it on the cheaper machine.

  • 1
    3+2 positionalRotary axes index and lock, then cut like 3-axis. Fast, rigid, good for angled holes and pockets.
  • 2
    SimultaneousAll five axes move at once. Needed for contoured surfaces and undercut geometry.
  • 3
    Mill-turnTurning plus milling in one cycle for shafts and housings with off-axis features.
Selection

Which parts belong on a 5-axis machine

The clearest signal is feature direction. Count the faces that carry toleranced features. If three or more faces do, five-axis work usually wins once you add up the fixtures, the re-datuming and the inspection time for each extra setup. Angled holes and compound-angle faces are the classic case: on a 3-axis machine they need an angle plate and a sine bar, and the position still drifts between setups.

Contoured surfaces are the second signal. A curved blade, a duct, a lens housing or a mold cavity with draft can be roughed and finished by a ball-nose tool that stays normal to the surface. That keeps the step-over even, which keeps the scallop height even, which is what makes a polished surface possible without hand blending.

Thin-wall and deep-pocket parts are the third signal. With the part tilted, a shorter cutter reaches the floor of a deep pocket. Short tools deflect less, so you can hold a wall without chatter and without a second operation to relieve the stress.

Some parts still do not belong here. Flat plates, brackets, simple bushings and anything that fits in a single 3-axis envelope with one setup should stay on a 3-axis machine. Five-axis cycle time is higher because the control is moving two more axes and the toolpath is longer. Use it where it buys accuracy, not by default.

  • 1
    Good fitMulti-face housings, impellers, angled ports, organic contours, thin walls, undercuts.
  • 2
    Poor fitFlat plates, single-face hole patterns, simple turned parts, high-volume simple geometry.
  • 3
    Ask firstParts where the 5-axis quote is higher and the tolerance is loose enough for 3-axis.
Capability

5-axis capacity and process limits

Numbers below are what our shop can hold, not a general industry claim. Ask about your specific geometry before you design to the tightest column.

ItemValueNotes
Tolerance±0.005 mm (±0.0002 in)Best achieved on rigid setups, not on long slender tools
Surface finishRa 0.2–0.8 μm fineRa 0.8–1.6 μm typical, Ra 1.6–3.2 μm as machined
5-axis centers16 simultaneousPlus 12 four-axis mills and 27 three-axis machines
Rotary tableØ400 mmTrunnion table for parts within this swing
Large travel4,000 × 400 × 150 mmLong parts, rails, beams
Medium travel750 × 1,150 × 550 mmBridge-style and 600 × 600 × 600 mm
Compact travel500 × 500 × 450 mm500 × 310 × 200 mm for small high-detail parts
Max part size4,000 mmAbove this we quote a different process
Qualification rate99.99%First-pass parts meeting drawing
Inspection100% before shipmentMaterial check, in-process, final; reports on request
Materials

Materials, finishes and tooling choices

Aluminum is the easiest five-axis material. 6061 and 7075 cut fast, hold tolerance well and take an anodized finish. 7075 is stiffer and better for thin walls, but it is less weldable and more prone to stress movement after roughing. We leave stock and let the part rest before finishing when the wall is under 2 mm.

Stainless 303 and 304 machine cleanly; 316L and 17-4PH are tougher and generate more heat, so trochoidal toolpaths and high-pressure coolant matter more than spindle speed. Titanium TC4 (Ti-6Al-4V) and Inconel need low cutting speeds and sharp, coated tools. They are the materials where five-axis work pays off most, because fewer setups mean fewer chances to scrap an expensive blank.

Copper and brass machine freely but move with heat. Beryllium copper needs dust control and a closed cycle. Magnesium AZ31B and AZ91D cut very fast and need chip handling rules for fire risk. Plastics such as POM, PEEK and carbon fibre are machined with different feeds and sharp tooling; carbon fibre needs dust extraction and diamond-coated cutters.

Finishing options include anodizing in clear, color, hardcoat and conductive types, electroless nickel, zinc, silver and gold plating, powder coating, black oxide, bead blasting, tumbling, brushing and polishing. Laser marking is available down to 1.5 mm character height. Finishes change dimensions, so call out which surfaces are cosmetic and which are functional.

  • 1
    Aluminum6061, 6061-T6, 2024, 5052, 5083, 6063, 6082, 7075, ADC12.
  • 2
    Stainless303, 304, 316, 316L, 420, 430, 431, 440C, 17-4PH (SUS630).
  • 3
    Steel1018, 1045, 4130, 4140, 4340, A36, tool steel.
  • 4
    SpecialTA1, TA2, TC4 (Ti-6Al-4V), Inconel, magnesium AZ31B / AZ91D.
DFM

Design rules that keep a 5-axis quote low

Tool access drives cost more than part size. A feature that needs a long, thin cutter to reach it will run slowly and may not hold tolerance. Keep pocket depth under about 4× the cutter diameter where you can, and open the corner radii to match a standard end mill. A 6 mm corner in a 12 mm deep pocket needs a 6 mm tool; that is fine. A 2 mm corner in the same pocket needs a 2 mm tool, which is slow and fragile.

Datums should be machinable in the first setup. If the drawing calls out a face that can only be reached after a flip, the inspector has to build a fixture to find it. Put the primary datum on a face the five-axis setup can cut and measure. Add a note about which features are critical; we plan the toolpath order around those first.

Wall thickness under 1 mm is possible in aluminum but it changes the plan. We rough, stress-relieve with a rest, then finish with light passes. Tolerances tighter than ±0.005 mm on a thin wall are usually not measurable with a handheld tool, so agree on the measurement method before quoting.

Threads and holes matter too. Angled holes are the reason many parts come here, but a hole drilled normal to a curved surface needs a spot face or the drill wanders. Call out the entry condition. For deep holes, a gun-drilled or mill-turn route may beat five-axis milling.

Send a STEP file plus a 2D drawing with tolerances, datums, material, finish and quantity. We return a quotation and a free DFM analysis within 12 hours, and production can start within 24 hours after drawing approval. Parts ship in 3–5 days for typical quantities.

  • 1
    Corner radiiMatch the largest standard end mill that fits the pocket.
  • 2
    Depth to diameterKeep under 4:1 for milling; deeper pockets need a different plan.
  • 3
    DatumsMachinable and measurable in the first 5-axis setup.
  • 4
    Critical featuresFlag them on the drawing so toolpath order protects them.
Quality

Inspection, traceability and confidentiality

Every part is inspected before shipment. That means a raw material check on the certificate, in-process monitoring of critical dimensions, and a final inspection against the drawing. Reports are available on request, including dimensional reports and material certificates. For first articles we can supply a full dimensional layout.

The shop holds ISO 9001:2015 for quality management, IATF 16949:2016 for automotive and engine hardware work, ISO 13485:2016 for medical device components, and ISO 27001:2022 for information security. The automotive and medical standards add traceability and change-control requirements, so expect more documentation on those jobs. That is normal, not a delay tactic.

Confidentiality is handled the same way. Uploads are secure and confidential, and we sign an NDA on request before drawings arrive. If your part is a patent-pending design, send the NDA first and we will start there.

Capacity sits across three wholly-owned plants with 150 technicians and 7,600 m² of floor space, in Dongguan, China and a Singapore factory at No.3 Joo Koon Circle, Singapore 629032. That split helps customers who need a second shipping origin or a shorter route to Southeast Asia. There is no minimum order quantity, so a single prototype and a 10,000-part run use the same process and the same inspection rules.

  • 1
    ISO 9001:2015Quality management baseline for all jobs.
  • 2
    IATF 16949:2016Automotive and engine hardware production.
  • 3
    ISO 13485:2016Medical device components.
  • 4
    ISO 27001:2022Information security for your files.
FAQs

Common questions about 5-axis machined parts

How do I know if my part needs 5-axis machining?

Count the faces with toleranced features. Three or more, or any compound-angle feature, usually points to five axes.

If the part fits in one 3-axis setup and the tolerance is standard, three axes will be cheaper and just as accurate.

What tolerance and surface finish can you hold on 5-axis parts?

We hold ±0.005 mm (±0.0002 in) on rigid setups, with finishes from Ra 0.2–0.8 μm up to Ra 1.6–3.2 μm as machined.

Thin walls and long reach tools reduce what is measurable, so agree on the measurement method before quoting.

Which file formats and information should I send for a quote?

A STEP or IGES model plus a 2D drawing with tolerances, datums, material, finish and quantity.

If you only have a model, send it and note the critical features. We return a quotation and free DFM analysis within 12 hours.

Can you machine one prototype and then run production?

Yes. There is no minimum order quantity, so a single part and a 10,000+ part run go through the same process.

Production can start within 24 hours of drawing approval, and typical orders ship in 3–5 days.

How do you handle angled holes and undercuts?

The rotary axes position the part so the tool enters normal to the surface, which avoids the wander you get drilling into a curve.

If the entry is on a curved face, add a spot face or flat in the design, or tell us and we will plan the entry in the CAM model.

What about my design data and confidentiality?

Uploads are secure and confidential, and we sign an NDA on request before drawings arrive.

The shop holds ISO 27001:2022 for information security, so file handling follows a documented process.
