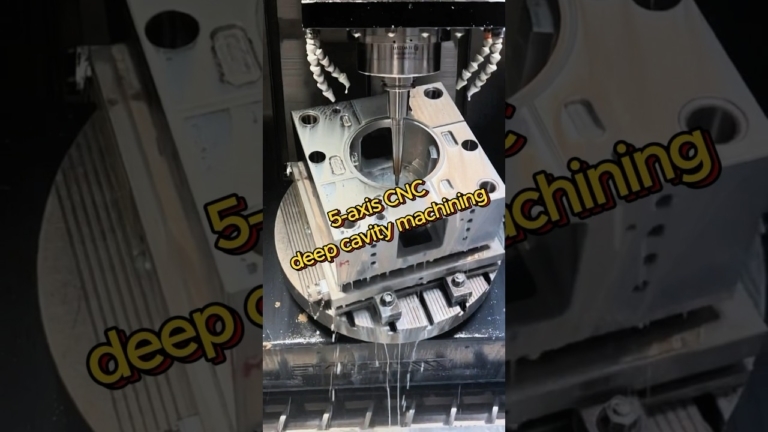

5-Axis CNC Deep Cavity Machining

• 1
  What counts as a deep cavity in 5-axis CNC deep cavity machining
• 2
  Why reach costs accuracy: deflection and chatter inside the cavity
• 3
  3+2 positioning versus simultaneous 5-axis cutting
• 4
  Tool selection for deep pockets: L/D, flute count and corner radii
• 5
  Roughing strategy that keeps the cavity stable
• 6
  Geometry choices that decide whether a deep cavity is machinable
• 7
  Deep cavity setup and tooling comparison

A deep cavity is any pocket, bore or internal form whose depth is large relative to the tool you need to reach the corner. Depth to diameter ratios are the number that matters. A Ø6 mm end mill cutting 60 mm deep is already at 10:1, and that is roughly where ordinary carbide starts to complain. A Ø2 mm tool in a 30 mm deep rib slot is at 15:1, and at that point you are no longer milling, you are machining with a wet noodle.

The second half of the definition is access. A cavity with a straight wall and an open top can be cut on a 3-axis machine all day. A cavity becomes a five-axis problem when the floor is not normal to the entry direction, when the walls undercut, or when the feature sits off the main axis of the part. Then the tool has to approach from a different vector, and either the workpiece or the spindle has to rotate.

In 5-axis CNC deep cavity machining, the two things you are buying are vector control and stiffness management. Vector control lets the tool tip into a corner that a 3-axis spindle would leave as a rounded radius. Stiffness management is the harder half: every degree of reach you add with a long tool is a degree of deflection you have to pay back somewhere else in the process.

A cutting tool behaves like a cantilever. Deflection scales with the cube of the length to diameter ratio, so doubling the stick-out of the same diameter does not double the error, it multiplies it roughly eight times. That is why a Ø4 mm tool that holds ±0.01 mm at 20 mm of reach will not hold the same band at 60 mm, no matter what the control says. The machine is not the weak link. The tool shank is.

Chatter follows the same geometry. A long, slender tool has a low natural frequency, and the tooth passing frequency of a normal milling cut lands close enough to it that the tool starts ringing. You hear it before you measure it. Chatter of 5–10 μm is enough to blow a Ra 0.8–1.6 μm requirement on a sealing face, and it also beats up the tool edge, so the next part is worse than this one.

Thermal effects compound the problem. A deep pocket traps heat and chips. If the coolant jet cannot reach the bottom, the tool tip runs hotter than the shank, the edge wears unevenly, and the effective diameter drifts through the run. On a 10:1 tool that drift is often larger than the tolerance band itself.

Chip evacuation is the quiet killer. A deep cavity with a small floor area will pack chips against the wall, and the tool re-cuts them. Re-cutting triples the load on the edge and doubles the heat. This is why roughing strategy inside a deep cavity matters more than the finishing pass.

3+2, sometimes called positional five-axis, locks the rotary axes at an angle and then cuts. The machine behaves almost like a 3-axis machine at that angle, which means the rigidity of the setup is close to a 3-axis setup and the programming is far simpler. For a deep cavity with flat floors, angled walls and a handful of hole axes, 3+2 is usually the correct answer.

Simultaneous five-axis moves all axes while cutting. You need it when the surface is continuously curved, when the tool must stay normal to a sweeping wall, or when a corner radius is smaller than any tool that can reach the bottom in a fixed orientation. Simultaneous cutting also lets you use the side of a bull-nose tool to finish a wall in one continuous pass instead of a stack of Z steps.

The trade is real. Simultaneous motion spends machine time on acceleration instead of cutting, and the effective feed rate at the tool tip varies as the part rotates, so surface finish becomes harder to predict. On a long-reach tool, the deflection direction also changes through the pass, which can turn a stable cut into a chattering one halfway down a wall.

A practical rule: if the feature can be reached from five or fewer discrete orientations, position and cut. If the surface must be continuous, or the part is a mould or impeller where blend lines ruin function, go simultaneous. Mixed parts often use both, with 3+2 for the bulk of the cavity and simultaneous passes for the critical blends.

Pick the largest diameter that fits the corner, then check the L/D you are forced into. A cavity with a 4 mm internal corner radius accepts a Ø8 mm tool, which at 80 mm of depth is 10:1 and manageable with a stubby holder and light step-down. The same cavity with a 1.5 mm corner radius forces a Ø3 mm tool, and nothing about the machine will save that cut.

Corner radius is the design decision that costs the most money, and it is usually invisible on a drawing. Going from a 1 mm internal radius to a 3 mm internal radius can move a cavity from 15:1 to 7:1, which changes the number of passes, the tool life, and often the number of setups. It is the single easiest change an engineer can make.

Flute count matters inside a deep cavity for chip room, not for finish. A three-flute tool has more chip clearance than a four-flute, which helps when the cavity packs chips. Variable helix geometry helps more, because it breaks the resonance that causes chatter on long tools. For finishing a deep wall, a four or five flute tool with a small corner radius gives a better surface and deflects less at the same diameter.

Reach extensions are a last resort. A shrink-fit extension or a carbide neck adds stiffness compared to a plain long shank, but every joint is another place for runout to appear. Measure the assembly runout before the cut, not after the part is scrapped.

Start with a smaller tool than the final geometry allows. On a deep cavity, hogging with the biggest possible cutter and then switching to a long, thin tool for the corners is a common mistake, because the long tool then has to remove a heavy, uneven load in the corner. Leave a consistent radial stock, typically 0.3–0.5 mm, so the finishing tool sees a uniform load.

Use helical or trochoidal entry rather than plunging. A plunge loads the center of the tool, which is the least efficient part of the edge and the worst place to evacuate chips. A helical ramp spreads the load across the flutes and keeps the chips moving up the wall.

Control the axial depth of cut. On long-reach tools, a smaller axial depth with a higher feed per tooth is more stable than a deep cut at low feed. The tool spends less time in the cut and generates less heat per revolution. High-pressure through-spindle coolant, where available, changes this equation more than any other single factor because it clears the chip from the cutting zone.

Measure the cavity as it is cut. In-process probing of the floor and wall after roughing catches stock variation before the finishing pass, when there is still material to correct. Once the finishing pass is done on a deep cavity, corrections are expensive.

Make the cavity as open as its function allows. Every millimeter of material left above the cavity floor is another millimeter of tool you have to hang out. If the part is a housing, consider whether the cavity can be cut from both ends, or whether a cover plate can be added so the cavity becomes an open pocket before assembly.

Avoid sharp internal corners below a 2 mm radius unless there is a functional reason. If the corner exists for a seal or an O-ring, check whether the mating part can carry the radius instead. The radius has to live somewhere, and putting it in the part that is easy to machine is usually free.

Watch floor-to-wall thickness. A thin floor under a deep cavity will deflect under cutting load and spring back, so the finished depth is wrong. If the floor is under 2 mm, plan for a support or a sacrificial backing, and expect to take finishing cuts in more than one pass.

Draft is not just for moulds. A 1–2° wall draft on a deep cavity extends tool life, improves chip evacuation and lets you use a slightly larger tool at the bottom. If the drawing is straight-walled because that is how it was modelled, that is a modelling artifact, not a requirement.
