Motor 5-Axis CNC Machining: How the Process Works and Where It Stops
A working explanation of motor 5-axis CNC machining for engineers who design housings, rotors, stator cans and end plates. We cover what the two extra axes actually change, which features benefit, which do not, and how to read a tolerance callout before you release a drawing.
What the two rotary axes actually change
A 3-axis mill moves the tool in X, Y and Z. The part stays still. A 5-axis machine adds two rotary axes. Now the tool can approach the part from an angle. The work can tilt, or the spindle can swing, or both. That single change decides which features you can cut in one setup.

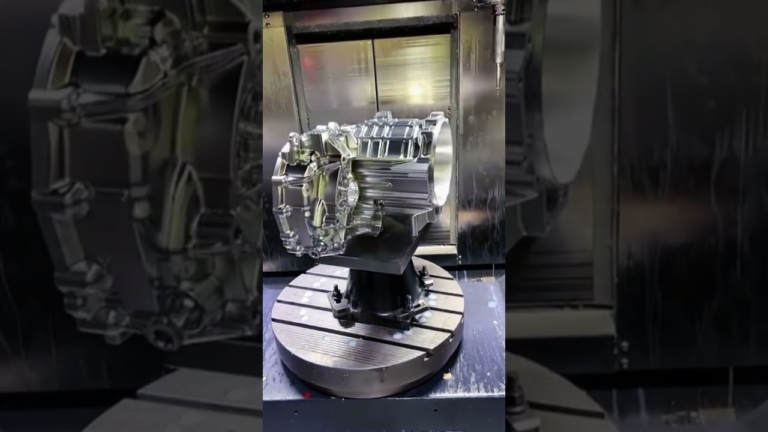

The rotary table version is the common layout for motor parts. A trunnion holds the work and rotates it around A and C. The spindle stays vertical. With a Ø400 mm rotary table, a rotor or end plate up to that swing diameter can be indexed to any face without unclamping. Simultaneous motion is the other mode: all five axes move at once while the cutter stays in contact.
Why does that matter for a motor? A motor is a stack of coaxial features. Bores, bearing seats, stator pockets, mounting flanges, cooling channels. Their function depends on where they sit relative to one centerline. Every time you unclamp and re-fixture, you add a new datum and a new error source. Five-axis work removes most of those moves.
There is a limit. The rotary axes do not make a part stiffer. They do not fix a thin wall that deflects under cutting load. And they do not replace a good fixture. On a long rotor shaft with a 4:1 length-to-diameter ratio, chatter usually comes from the setup, not from the axis count.
Motor features that benefit from motor 5-axis CNC machining
Angled ports and cooling jackets. A water-cooled motor housing often has inlet and outlet ports set at an angle to the main bore. On a 3-axis machine you either tilt the part by hand or use a long reach tool that flexes. On a 5-axis machine the table tilts 30° to 45° and a short, rigid cutter enters square to the surface. That gives you a clean seat for an O-ring or a threaded fitting.
Deep bores with a closed end. Stator pockets and rotor cavities are often blind. A straight tool cannot reach the floor near the wall without rubbing the shank. Tilting the work lets the cutter reach the corner with the flute, not the shank. This is the case where simultaneous motion beats indexed motion, because the tool path needs to sweep as it descends.
Features on multiple faces. An end plate may carry a bearing bore on one side, a bolt circle on the other, and a sensor pocket on the edge. Machining all of them in one setup keeps the bore-to-bolt-circle position tied to one datum. If you split the part across three setups, each flip adds roughly 0.01 mm to 0.03 mm of positional variation from fixture seating alone.
Impellers and rotor laminations. Not every motor part is a housing. Small blowers, turbine rotors and lamination stacks have curved surfaces that a ball nose cutter must follow. Here the rotary axes let the tool stay normal to the surface, which keeps the scallop height even across a twisted blade.
- 1Angled portsTilt the table 30°–45° so a short cutter enters square.
- 2Blind boresSimultaneous motion sweeps the cutter to the floor corner.
- 3Multi-face partsOne setup keeps bore and bolt circle on one datum.
- 4Curved bladesTool stays normal to the surface, even scallop height.
When 5-axis is the wrong choice
A round part with one bore and one face does not need five axes. A 3-axis lathe or a mill-turn center will turn it faster and cheaper. The rule we use: if the part can be cut in two setups on a 3-axis machine without a tolerance stack problem, keep it there. Five-axis time costs more per hour, and programming takes longer.
Thin-wall housings are a second case. An aluminum motor can with a 2 mm wall will deflect under a 5-axis finishing pass just as it will under a 3-axis pass. The fix is a support fixture, a lower radial depth of cut, and sometimes a semi-finish pass before spring passes. Axis count does not enter that decision.
Very large parts are a third. Our 5-axis travels reach 4,000 × 400 × 150 mm on the largest machines, and the rotary table is Ø400 mm. A motor frame longer than the rotary swing cannot be indexed around its own axis. It runs as a 3-axis job with repositioning, or on a mill-turn center.
Mirror-image parts are a fourth. If a left and right bracket are identical except mirrored, two 3-axis fixtures may still be cheaper than one 5-axis program, because the fixture cost is paid once and the cycle time is shorter. Run the numbers before you assume five axes win.
Setup count, cost and surface finish trade-offs
Five-axis machining is not automatically more accurate. It is more accurate when it removes a setup. Each clamp and unclamp adds seating variation. On a machined aluminum face with a clean fixture, that is around 0.005 mm. On a cast surface or a rough saw cut, it can be 0.05 mm or more. So the real question is how many datums your drawing needs.
Surface finish is a separate lever. A 5-axis finish pass with a ball nose tool leaves scallops that depend on stepover and tool radius. To reach Ra 0.8–1.6 μm on a curved motor surface, a 6 mm ball nose tool runs at 0.1 mm to 0.15 mm stepover. Tighter than that, and the cycle time grows fast with little gain.
Programming time matters too. A simple indexed 5-axis job with three faces may take two hours to program. A simultaneous job with a swept tool path on a twisted blade can take a full day. That cost lands in the first part, then spreads across the run. For a one-off prototype, indexed setups are often the better call.
Material choice moves the numbers. Aluminum 6061 and 6082 cut fast and hold a good finish. Stainless 316 and 17-4PH work-harden, so we take lighter radial cuts and keep the tool moving. Titanium TC4 and Inconel need lower surface speed and more coolant, which stretches cycle time. The axis count stays the same; the feeds do not.
How we hold tolerance on a motor housing
A typical sequence for an aluminum housing with a bore, an angled port and a bolt circle.
- 11. Fix the datumClamp on the raw stock or a cast boss. Define the main bore as datum A and the mounting face as datum B before any cut. Touch off with a 3D probe, not an edge finder.
- 22. Rough both sidesLeave 0.3 mm to 0.5 mm of stock per side. Rough at 2,000–3,000 rpm for aluminum with a 12 mm carbide end mill, 0.5 mm radial engagement. This moves most of the heat before finishing.
- 33. Semi-finish the boreBore to within 0.1 mm of nominal. Check roundness with a bore gauge. If the wall is under 3 mm, reduce radial depth to 0.2 mm and add a spring pass.
- 44. Mill the angled portTilt the table 30°–45° and cut with a short 8 mm tool. Square entry avoids the elliptical seat you get from a 3-axis approach.
- 55. Finish the bore and faceHold ±0.005 mm on the bore diameter and Ra 0.8–1.6 μm on the bearing seat. Use a boring head or a fine-pitch face mill at 0.05 mm depth.
- 66. Drill the bolt circleIndex the C axis and drill in one cycle. Positional tolerance of the circle to datum A stays within 0.01 mm when the part is never unclamped.
- 77. Inspect before releaseCMM the bore, the face runout and the bolt circle. We run 100% inspection before shipment and can send reports on request.
Which setup fits which motor part
Match the part geometry to the machine, not the other way around.
| Part feature | 3-axis | Indexed 5-axis | Simultaneous 5-axis |
|---|---|---|---|
| Single bore, one face | Best fit | Overkill | Overkill |
| Angled port, flat seat | Needs tilt fixture | Good fit | Not needed |
| Blind stator pocket | Tool rubs wall | Possible | Best fit |
| Bore + bolt circle, 2 sides | Two setups, stack error | Best fit | Good fit |
| Twisted impeller blade | Not practical | Poor scallop control | Best fit |
| Thin 2 mm wall can | Support fixture | Support fixture | No advantage |
| Frame over Ø400 mm | Reposition | Off the table | Off the table |
The short answer
If a motor part has coaxial features on two or more faces, or an angled port that needs a square seat, use indexed 5-axis and cut it in one setup. If it has a swept surface on a blade or a deep blind pocket, pay for simultaneous motion. If it is a simple round part or a wall under 3 mm, keep it on 3-axis or a mill-turn center and spend the money on the fixture instead.
Questions engineers ask before releasing a drawing
Can motor 5-axis CNC machining hold ±0.005 mm on a bore?
Yes, on a stable setup with a boring head and a rigid fixture. We hold ±0.005 mm ( ±0.0002 in ) on bores and bearing seats as a routine callout.
The limit is the part, not the machine. A thin wall or a long overhang will move under cutting force. In that case we add a support, reduce the finish pass depth, and inspect the result before shipping.
Does five-axis machining always cost more than three-axis?
Per hour, yes. Per part, not always. If five axes remove two setups and a flip, the total time can be lower and the positional tolerance is tighter.
For a simple round part, three axes or a mill-turn center wins on both time and cost.
What is the largest motor part you can machine on the rotary table?
The rotary table is Ø400 mm. Larger 5-axis travels reach 4,000 × 400 × 150 mm, and other machines cover 750 × 1,150 × 550 mm and 600 × 600 × 600 mm.
A part wider than the rotary swing cannot be indexed around its own axis. It runs as a 3-axis job with repositioning, or on a mill-turn center.
Which motor materials cut well on five axes?
Aluminum 6061, 6061-T6, 6082 and 7075 are the easy group. Stainless 303, 304, 316 and 17-4PH ( SUS630 ) machine well with lighter radial cuts.
Titanium TC4 ( Ti-6Al-4V ) and Inconel are workable but slow. They need lower surface speed, more coolant and shorter tool life.
How do you keep a cold-rolled motor housing from moving after machining?
Rough, then let the part rest, then finish. Castings and welded frames release internal stress when you remove stock, and the part will move a few hundredths of a millimeter.
For housings with tight bore-to-face runout, we rough to within 0.5 mm, stress-relieve or rest the part, then take the finish cut on the same datum.
Can you work from a 3D model only, without a 2D drawing?
Yes. Send STEP or IGES and we run a free DFM analysis within 12 hours. We flag features that need a specific datum, tight tolerances that add cost, and tool reach problems before quoting.
Uploads are secure and confidential, and we sign an NDA on request.
