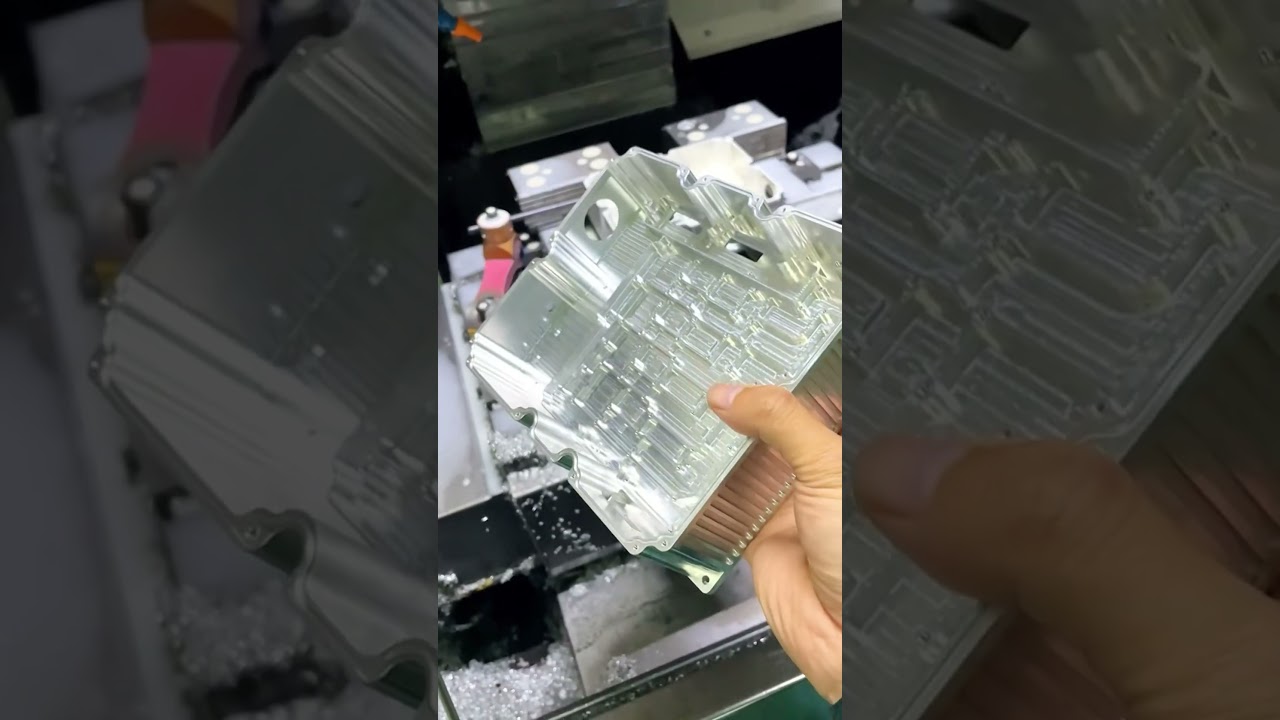

The word small is relative. In milling, a cavity turns difficult when its depth-to-width ratio passes roughly 3:1. A 10 mm wide pocket 25 mm deep is routine. The same 10 mm width at 60 mm deep is a different job. The tool that fits is long, thin, and flexible, and every cutting force bends it instead of cutting cleanly.

Three things change at once. The tool gets longer, so stiffness drops as roughly the cube of length. The chip has farther to travel before it leaves the cut. And the coolant jet has to reach the bottom of a blind hole where it cannot easily flush.

That combination is why small cavity CNC machining is judged less by spindle power and more by tool reach, chip room, and how the tool enters the wall. A 20,000 rpm spindle does not help if the tool snaps at 15 mm depth.

It also means the ceiling is geometric, not mechanical. You can buy a stiffer machine, but you cannot buy your way out of a 12 mm deep slot that is 2 mm wide. At that point the process has to change.

The practical rule on the shop floor is simple. Keep flute length at or below 5× the cutter diameter for finishing, and 3× for roughing. A Ø3 mm end mill finishing a 12 mm deep wall is already at the edge. Push to 20 mm and you are cutting with a whip.

When the design forces more reach, two options work. The first is a necked cutter: full diameter at the flutes, a relieved shank behind. A Ø3 mm cutter with a Ø2.4 mm neck reaches 20 mm with far less rub on the wall. The second is a tapered or lollipop tool for contoured floors and undercuts.

Corner radius matters as much as length. A cavity with sharp internal corners forces a small cutter into a big job. Adding R1.0 mm or larger to floor corners lets a Ø6 mm cutter finish what a Ø2 mm cutter would otherwise have to crawl through. Internal corner radius should be at least 0.5 mm above the tool radius you intend to use.

Micro tools below Ø1 mm are a separate discipline. They need high spindle speed, low runout, and often a shrink-fit or hydraulic holder. Runout of 5 μm on a Ø0.5 mm cutter is 1% of diameter and will break it in the first pass.

• 1
  Rough with a shorter toolRemove the bulk at 3× diameter reach, then switch to a long finisher.
• 2
  Add corner radiiR1.0 mm or larger on floor corners lets a bigger cutter finish the cavity.
• 3
  Check runout firstMeasure at the flute, not the holder. Above 10 μm, change the setup.

A chip that cannot leave the cut gets recut. Recutting doubles the heat going into the tool and the wall, and it is the usual cause of a cavity that measures oversize at the top and undersize at the bottom. In a blind pocket, the only exit is up. Gravity works against you.

Through-spindle coolant at 40–70 bar is the most reliable answer. It pushes chips straight up the flute. Where that is not available, air blast plus a pecking cycle at 0.5–1× diameter depth per peck keeps the pocket clear.

For aluminium, high-pressure coolant lets you run aggressive parameters without welding chips to the flute. For stainless and titanium, the priority flips: you need the coolant aimed at the cutting edge, and you need to avoid dwelling in the cut. A tool that rubs in 316L work-hardens the wall in seconds.

Trochoidal and dynamic paths help here. Instead of a full-width slot, the cutter moves in a circular arc at low radial engagement. Heat leaves with the chip, and the tool spends less time in any one spot. In a small cavity this often means the difference between one tool per part and one tool per ten parts.

Five-axis does not make a small cutter stiffer. What it does is change the direction the tool approaches the wall. On a deep side wall, tilting the tool by 10–20° lets you use a shorter effective reach and cut with the side of the flute instead of the tip. That is a real gain in surface finish and tool life.

The second gain is access. A cavity with a re-entrant feature, an angled floor, or a port on a sloped face may be impossible in three setups on a 3-axis machine. On a simultaneous 5-axis center with a Ø400 mm rotary table, the part rotates and the tool stays short.

The cost is setup complexity and verification. Tool paths must be checked for holder collision, and post-processor accuracy matters more when the tool is 3 mm across. A small error in the rotary axes shows up as a gouge on a finished wall.

For most small cavities, 3-axis with a good holder and a necked cutter is still the faster and cheaper route. Reach for 5-axis when the geometry demands it, not when the tolerance does. Our 16 simultaneous 5-axis machining centers are used mainly for angled ports, contoured floors, and parts that would otherwise need four fixtures.

Milling wins when the cavity is shallow enough for a rigid tool and the quantity is low to medium. One prototype to a few thousand parts, machined from 6061, 7075, 304, or POM, is normally the fastest path. Setup is quick and design changes cost nothing but a new program.

Machining loses when the cavity is very deep and narrow. A 2 mm wide slot 30 mm deep is a wire EDM job or a design change. The same applies to arrays of small pockets with sharp corners, where the milling time per part climbs faster than the part count justifies.

There is also a material angle. Aluminium and brass cut cleanly at small diameters. Titanium and Inconel do not. In Ti-6Al-4V, a Ø2 mm cutter in a deep pocket is running at the edge of its heat tolerance, and the wall can work-harden if the feed stops. Those cavities often move to EDM or to a cast feature.

One design change usually pays for itself. Increasing the cavity width by 1 mm, or adding a corner radius, can cut cycle time by a third and remove the risk of a broken tool mid-run. It is worth checking before the drawing is frozen.
