5 Axis Small Cavity Machining

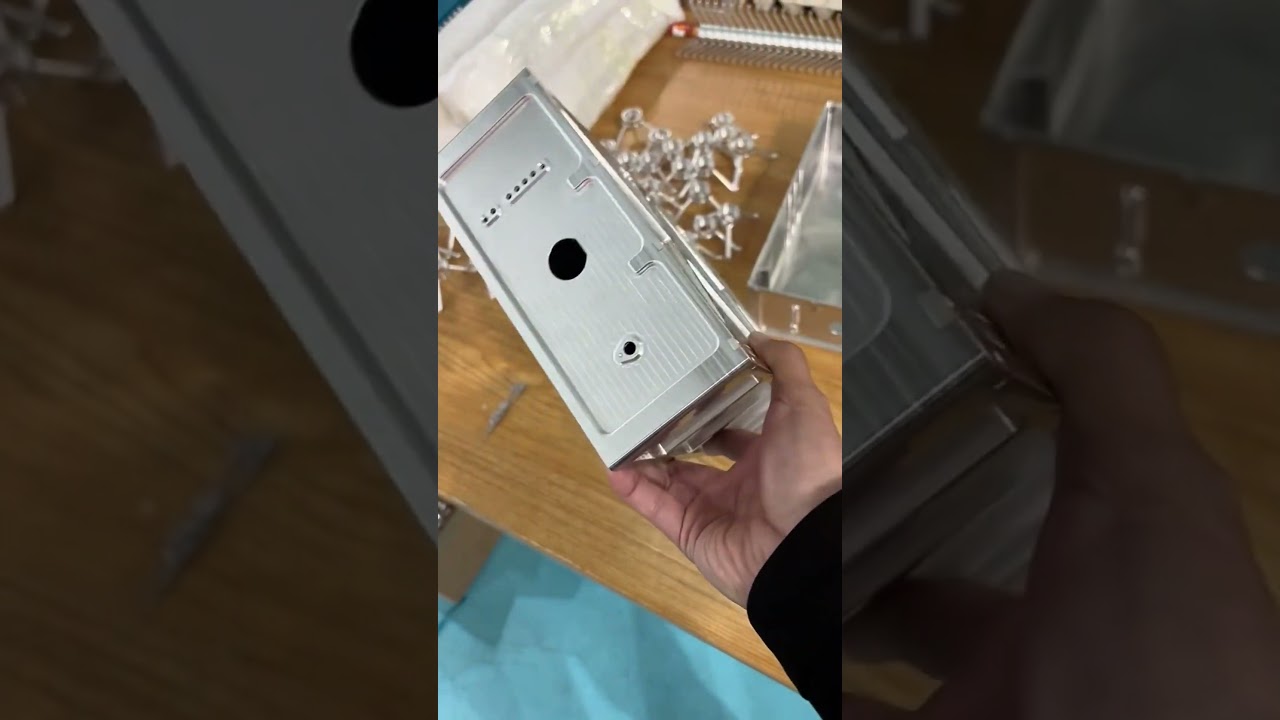

A pocket 12 mm deep and 6 mm wide is not a hard part until the tool has to reach the bottom corner without chattering. This page explains how small cavity machining on 5-axis machines actually cuts those features, where the limits sit, and how to tell a cavity that needs 5 axes from one a 3-axis machine will finish faster.
What makes a cavity small in small cavity machining
A cavity is small when the cutting tool, not the part, becomes the limiting factor. The usual trigger is depth-to-width ratio. A pocket 8 mm wide and 40 mm deep has an L/D of 5:1 for the tool that has to reach the floor. That number decides deflection, chatter and the tolerance you can hold at the bottom corner.
The second trigger is corner radius. If the print calls an internal radius of R1.5 mm, the largest tool that fits is Ø3 mm. Everything downstream changes: stepover, feed rate, spindle load and the number of passes. An outside profile of the same part can be cut with a Ø12 mm cutter at four times the material removal rate.
The third trigger is wall height. Thin walls deflect away from the cutter. Below 1 mm wall thickness, cutting force pushes the wall rather than the chip. A 0.8 mm wall in aluminium 6061 will spring back and gauge oversize unless you take light finishing passes and leave 0.15–0.25 mm stock.
None of these limits care whether the machine has three, four or five axes. They are set by the cutter and the material. The axis count only decides how you present the tool to the wall.
- 1L/D above 4:1Use a reduced neck or taper neck cutter, and expect lower depth of cut.
- 2Internal R below 2 mmTool diameter is capped at twice the radius. Plan the tool list first.
- 3Wall under 1 mmLight finishing passes, sharp tool, coolant aimed away from the wall.
How 5-axis motion changes the cut
On a 3-axis machine the tool axis is fixed. The only way to cut a deep cavity wall is to use a tool long enough to reach, and long tools bend. Deflection grows with the cube of the length, so a tool twice as long deflects about eight times as much under the same load. That is the whole problem in one sentence.
A simultaneous 5-axis machine tilts the tool. On a trunnion table with a Ø400 mm rotary table, the tool can be presented at 30–45° to the wall it is cutting. A shorter, stiffer cutter reaches the same floor corner because the machine moves the part into the tool instead of asking the tool to be longer.
The second gain is contact geometry. When a ball nose cutter runs at a tilt, the effective cutting radius at the contact point is larger than the tip radius. That reduces the scallop height for the same stepover. In a deep rib cavity, this is often the difference between Ra 1.6 μm and Ra 0.8 μm without a separate finishing tool.
The third gain is one-setup access to five faces. A cavity that opens on two adjacent sides can be cut without re-fixturing. Every re-fixture adds stack-up error, and on a small cavity that error is often larger than the tolerance itself.
- 1Tilt angle 30–45°Keeps the shank clear of the wall while shortening the effective reach.
- 2Tool lengthShorter tool, less deflection. This is the main reason to tilt.
- 3One setupFewer re-fixtures means less stack-up error on tight cavities.
Tool selection and stepover math
Start with the largest tool the corner radius allows, then work down. Roughing a small cavity with a Ø6 mm flat end mill and finishing with a Ø3 mm tool is normal. Going straight to the small tool wastes hours. The roughing pass should remove 60–70% of the material before any finishing cutter touches the wall.
For a ball nose cutter, scallop height depends on tool radius and stepover, not on depth of cut. A Ø6 mm ball nose at 0.5 mm stepover on a flat floor leaves a scallop around 10 μm. Push the stepover to 1.0 mm and the scallop jumps to about 40 μm. On a vertical wall the same cutter leaves nearly no scallop, because the contact point runs along the side of the ball.
That asymmetry is the reason a tilted tool helps. When the tool axis is normal to the surface, a ball nose leaves its best finish. When it is not, the finish degrades fast. Five axes let you keep the tool near-normal on floors, walls and fillets in the same pass.
Feed rate on small tools is limited by chip thinning and by spindle speed. A Ø1 mm cutter in aluminium needs 20,000–30,000 rpm to hit a reasonable surface speed. If the spindle tops out lower, the feed per tooth has to drop, and the cycle time goes up. Check spindle speed before quoting a cavity full of Ø1 mm ribs.
- 1Rough firstRemove 60–70% of stock with the largest tool that fits the opening.
- 2Stepover 0.3–0.5 mmTypical finishing stepover for a Ø6 mm ball nose on a floor.
- 3Spindle speedSmall cutters need high rpm. Confirm the spindle can reach it.
When 5 axes do not help
A straight-walled pocket with a generous floor radius and open top access is a 3-axis job. Adding tilt does not remove more material and does not improve the finish, because the wall is already normal to a vertical tool. It only adds motion time. We quote those on 3-axis machines and keep the 5-axis centers free for work that needs them.
Deep bores and cross-holes are a different case. If the feature is a round bore smaller than Ø4 mm and deeper than 10 mm, no tilting trick removes the need for a long, thin tool. The answer is usually a drilled pilot plus a reamer, or EDM for sharp internal corners. Small cavity machining has a floor, and that floor is set by tool stiffness.
Very small features also run into measurement limits. A cavity 0.5 mm wide cannot be probed reliably with a touch probe, so verification moves to optical or CT methods. If the drawing tolerance is ±0.005 mm on a 0.5 mm feature, ask whether the function actually needs it, because the inspection cost can exceed the machining cost.
Hardened steel above 45 HRC pushes the same way. Small tools in hard material need rigid holders, low runout and often a separate finishing pass with a fresh edge. Cutter runout above 5 μm will show up as a tapered wall on a deep rib.
- 1Open pockets3-axis finishes them faster. Skip the tilt.
- 2Deep small boresDrill plus ream, or EDM. Tilt does not fix tool stiffness.
- 3Hard steelKeep runout under 5 μm and change the finishing cutter often.
Workholding and heat in tight pockets
Small cavities rarely fail on the tool path. They fail on the fixture. A thin floor under a deep pocket will vibrate no matter how good the cutter is. Adding a sacrificial support underneath, or leaving a web until the last operation, does more for the finish than any change to the stepover.
Clamping force also matters. Vises distort small parts. On a cavity with 1.5 mm walls, holding the part in a five-axis vise can close the cavity by 0.02 mm before the cutter touches it. Soft jaws machined to the part profile, or a vacuum plate on a flat back face, keeps the distortion low enough to hold ±0.005 mm.
Heat is the other quiet problem. Small tools in a deep pocket cannot clear chips well, and the chips recut. Recutting raises the temperature at the cutting edge and dulls the tool fast. Through-spindle coolant or high-pressure air aimed at the pocket floor matters more on a 6 mm deep cavity than on a shallow one.
We check these three things before every small cavity job: how the part is held, how the chips leave, and how the tool is measured. If any of the three is weak, the tolerance will not hold, no matter how many axes the machine has.
- 1Support the floorLeave a web or add a support under thin floors to kill vibration.
- 2Soft jawsMachined to profile, they cut distortion on thin-wall cavities.
- 3Chip evacuationThrough-coolant or high-pressure air. Recut chips dull small tools.
Choosing the process for a small cavity
Match the feature to the process. If two rows apply, quote both and compare cycle time.
| Cavity feature | Best process | Tool size | Why |
|---|---|---|---|
| Open pocket, R3 corners, 3:1 depth | 3-axis milling | Ø6–12 mm end mill | Vertical tool already normal to wall |
| Deep rib cavity, 6:1 depth, R1.5 | 5-axis simultaneous | Ø3 mm, tilted 30–45° | Shorter tool, less deflection |
| Cross-hole on a side face | 5-axis, one setup | Ø2–5 mm drill | No re-fixture, less stack-up |
| Bore under Ø4 mm, 10 mm deep | Drill and ream | Ø3.8 mm drill, reamer | Tilt cannot fix tool stiffness |
| Sharp internal corner, hard steel | EDM | Electrode | Corner radius below cutter limit |
| Thin 0.8 mm wall, 25 mm tall | 5-axis, light finish passes | Ø4 mm, 0.15 mm stock | Tilt lowers side load on wall |
| Shallow logo or 0.3 mm relief | 3-axis or laser | Ø1 mm or laser | Low load, high spindle speed |
Verdict
If the cavity is open and the floor radius is generous, choose 3-axis and save the motion time. If the depth-to-width ratio is past 4:1, the corner radius caps the tool at Ø3 mm or below, or the feature sits on two faces, choose 5-axis small cavity machining and tilt the tool. When the bore is under Ø4 mm and deeper than 10 mm, choose drilling or EDM instead — no axis count fixes a tool that is too thin.
Common questions
What depth-to-width ratio still works on a 3-axis machine?
Up to about 4:1 with a reduced-neck carbide cutter and light radial engagement, a 3-axis machine holds a small cavity fine. Past 4:1 the tool needs either a taper neck or a tilt.
The limit is not the machine. It is how far the cutter can reach before deflection eats the tolerance. A Ø6 mm tool 30 mm long will flex measurably under normal cutting load.
Does tilting the tool always improve the surface finish?
No. Tilting helps when the surface is curved or when the tool would otherwise need to be long. On a flat floor cut with a ball nose at normal incidence, the finish is already at its best and tilt does not improve it.
On a vertical wall, a tilted ball nose changes the contact point and usually improves the finish because the effective radius grows. On a flat floor, keep the tool normal.
How small a cavity can be machined at all?
With a Ø0.5 mm cutter, cavities around 0.6 mm wide and a few millimetres deep are machinable in aluminium and brass. Below that, tool breakage and chip evacuation dominate, and the process becomes unreliable.
For features below 0.5 mm, EDM or laser cutting is usually the better route. The deciding factor is not the machine resolution but whether the cutter can survive the pass.
Why does my small cavity come out tapered?
Tool deflection is the usual cause. A long, thin cutter pushed at the recommended feed will bend away from the wall, leaving the top of the cavity wider than the bottom.
Check three things: cutter runout, the length of the tool below the holder, and the radial depth of cut. Reducing radial engagement to 5–8% of the tool diameter and adding a spring pass usually removes the taper.
Can a small cavity hold ±0.005 mm?
Yes, in aluminium and stainless with a rigid setup and a finishing pass at low radial engagement. The tolerance applies to the feature, not to every point on a rough surface.
Thin walls, deep pockets and hard steel make it harder. In those cases we look at whether the function needs the full tolerance or only a locating feature needs it.
