Spiral Groove Milling in CNC Machining

• 1
  What spiral groove milling actually cuts
• 2
  How the tool path is built
• 3
  Why 5-axis matters for spiral groove milling
• 4
  Holding lead, width, and runout
• 5
  When spiral groove milling is the wrong call
• 6
  Which setup fits which groove

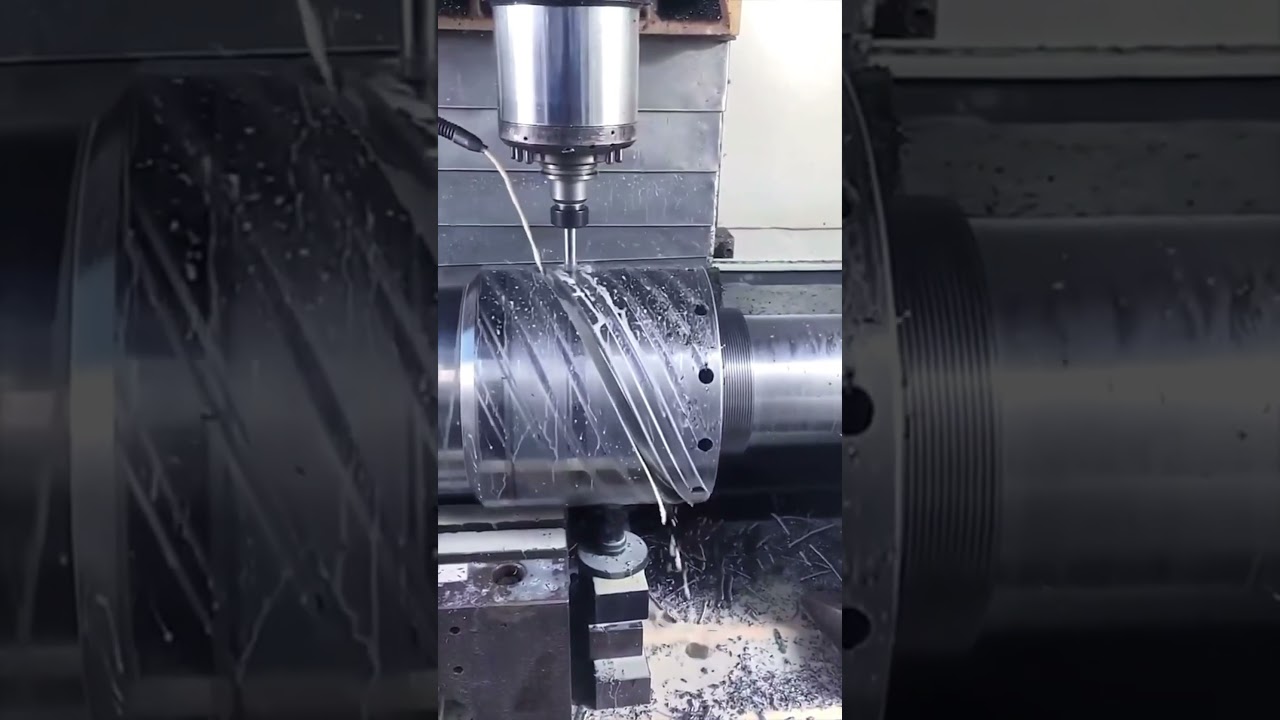

A spiral groove is a helical channel cut along a cylinder, a cone, or the wall of a bore. Picture a thread with a much wider, flatter profile, or a screw conveyor wrapped around a shaft. Lead, groove width, and the wall angle between passes define the feature. Lead is the axial distance the helix advances in one full turn. It sets everything downstream: table feed, tool engagement, and chip evacuation.

Two families cover most work. An external spiral groove runs on an outside diameter, like a screw rotor or a grooved roller. An internal spiral groove sits inside a bore, like a rifled barrel or a pump stator housing. The cutting mechanics differ enough that they should be quoted as separate processes, even when the drawing calls both of them spiral grooves.

The third case is a face spiral, cut on a flat or slightly conical surface. Scroll compressor plates and some seal faces use it. The tool path is a shrinking spiral in X and Y instead of a helix in Z, so the machine never has to synchronize rotary and linear axes. That makes it the cheapest of the three to produce.

• 1
  External grooveCut on an OD; tool reaches from the side, chip falls free
• 2
  Internal grooveCut inside a bore; chip evacuation drives the tool choice
• 3
  Face spiralCut on a flat face; 3-axis motion is often enough

CAM does not machine a spiral by rotating the part and indexing. It interpolates. The controller receives a stream of points that follow the helix, and the rotary axes turn continuously while the linear axes advance. On a 3-axis mill, the part is usually tilted once and the helix is cut with X, Y, and Z alone. On a 5-axis machine, the tool axis stays normal to the groove floor through the whole pass.

That distinction matters for the groove floor. If the tool axis drifts out of normal, the effective cutter diameter changes along the pass and the floor comes out convex. Keeping the axis normal is the main reason to spend 5-axis time on a groove that looks like a simple profile.

Step-over controls the floor finish. For a ball nose tool, a step-over near 8 to 10 percent of cutter diameter lands around Ra 0.8–1.6 μm in aluminium. Push it to 20 percent and you feel the scallops. On a groove wider than about 3 × cutter diameter, use a bull nose or a barrel cutter and take the floor in fewer, wider passes.

• 1
  3-axis tiltedCheapest path; floor normal only at one point
• 2
  5-axis continuousTool axis normal the whole way; better floor and wall
• 3
  Step-over8–10% of cutter Ø for Ra 0.8–1.6 μm

A helix is a coordinated motion. The rotary table and the linear axes must stay in step, and any backlash in the rotary shows up as a lead error you cannot file out. We run 16 simultaneous 5-axis machining centers with a Ø400 mm rotary table, which covers most pump rotors, screw elements, and grooved shafts up to the table capacity.

The second benefit is reach. An internal groove with a steep wall angle cannot be cut from one setup on a 3-axis machine without a long, thin tool that deflects. Tilting the part lets a shorter, stiffer tool reach the same wall. Tool deflection drops, and so does the wall taper.

For long parts, we use machines with travel up to 4,000 × 400 × 150 mm. A screw rotor that is 2 m long will sag under its own weight if it is only supported at the ends, so it needs a steady or a tailstock. Plan that support into the fixture before the first cut, not after the lead drifts.

• 1
  Rotary backlashShows as lead error; check before the run, not after
• 2
  Shorter toolsTilting the part reduces deflection and wall taper
• 3
  Long partsUse a steady or tailstock; sag changes the lead

Lead error is the first thing to check on a finished groove. It comes from rotary backlash, thermal growth, or a CAM post that rounds the helix into too few points. A lead that is off by 0.05 mm over 100 mm of travel is enough to change the flow rate of a metering groove. On critical parts, we cut a short test section and measure the lead before running the full length.

Groove width is set by cutter diameter, not by the tool path, so a reground tool cuts narrow. Track tool diameter between regrinds and offset the CAM file. A 0.02 mm diameter change is a 0.02 mm width change, and on a seal groove that is often outside the tolerance band.

Runout between the groove and the bore or the shaft journal matters more than the groove itself on rotating parts. If the groove is concentric to the bearing journal within ±0.005 mm, the part runs quiet. If it is not, the groove pumps unevenly and the assembly vibrates at speed. Check both features in the same setup.

• 1
  LeadVerify with a test section before the full pass
• 2
  WidthSet by cutter diameter; offset after each regrind
• 3
  RunoutMachine groove and journal in one setup

Deep internal grooves with a length-to-diameter ratio above about 5:1 are a poor fit for milling. The tool shank grows long, chatter starts, and the wall finish falls apart. Whirling or single-point thread milling on a lathe with a live tool often beats a mill here, and it is worth asking for that instead.

Very high helix angles, past roughly 45°, push the cutter into the wall on one side of the pass. The tool rubs instead of cutting, and heat builds in a narrow band. Broaching or grinding a groove like that is slower to set up but holds the profile better across a production run.

Hardened steel above about 45 HRC is another boundary. Carbide will cut it, but tool life drops fast and the floor finish suffers. If the part will be hardened after machining, cut the groove soft and leave 0.1 to 0.2 mm for a finishing pass after heat treat, or grind it.

Soft plastics and thin-wall tubes bring their own problem. Clamping pressure distorts the bore, so the groove comes out oval after the vise is released. Use a soft jaw or a pot fixture, and take light passes.

• 1
  L/D over 5:1Use whirling or thread milling instead
• 2
  Helix over 45°Cutter rubs; consider broach or grind
• 3
  Above 45 HRCRough soft, finish after heat treat
• 4
  Thin-wall tubeSoft jaws or pot fixture; light passes
